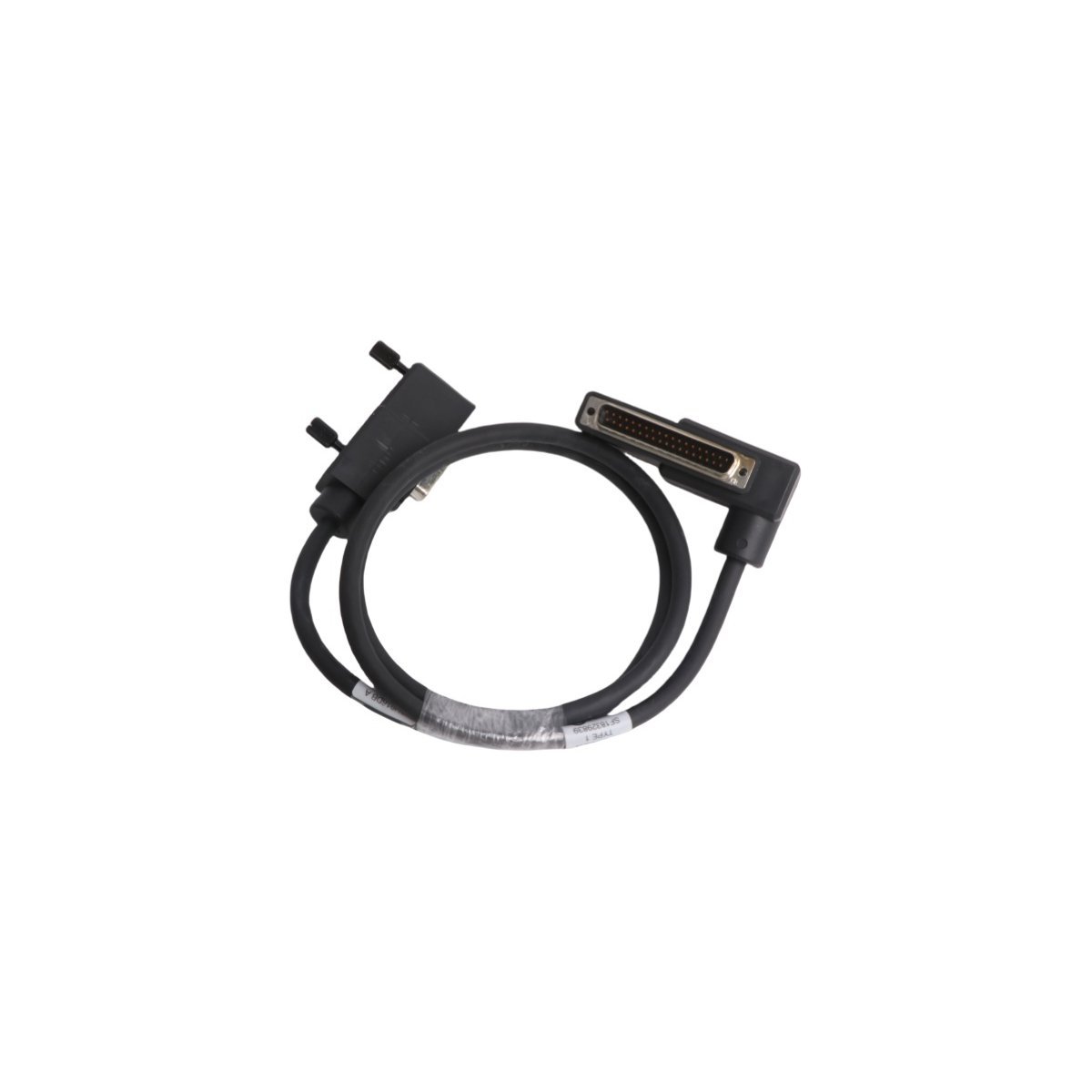

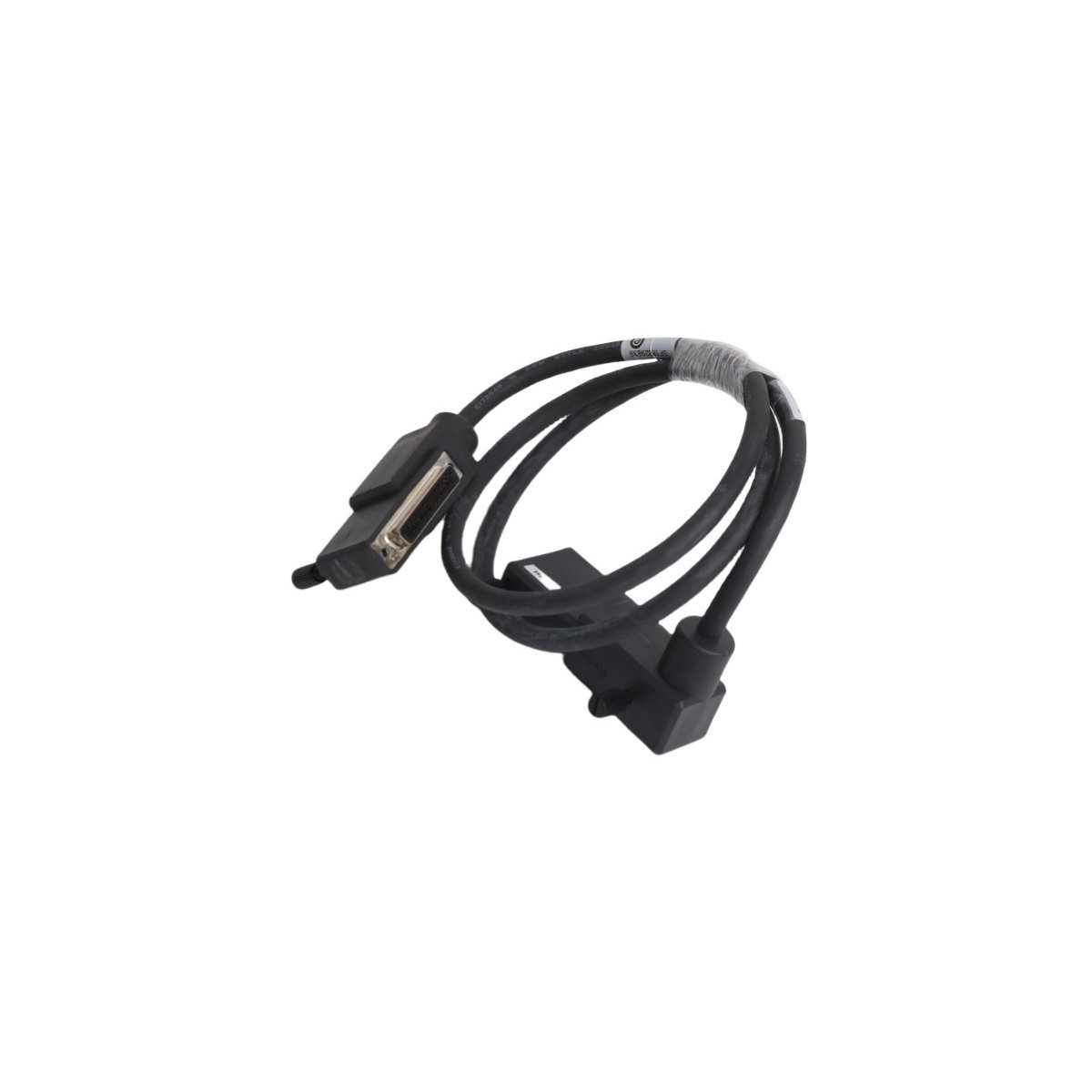

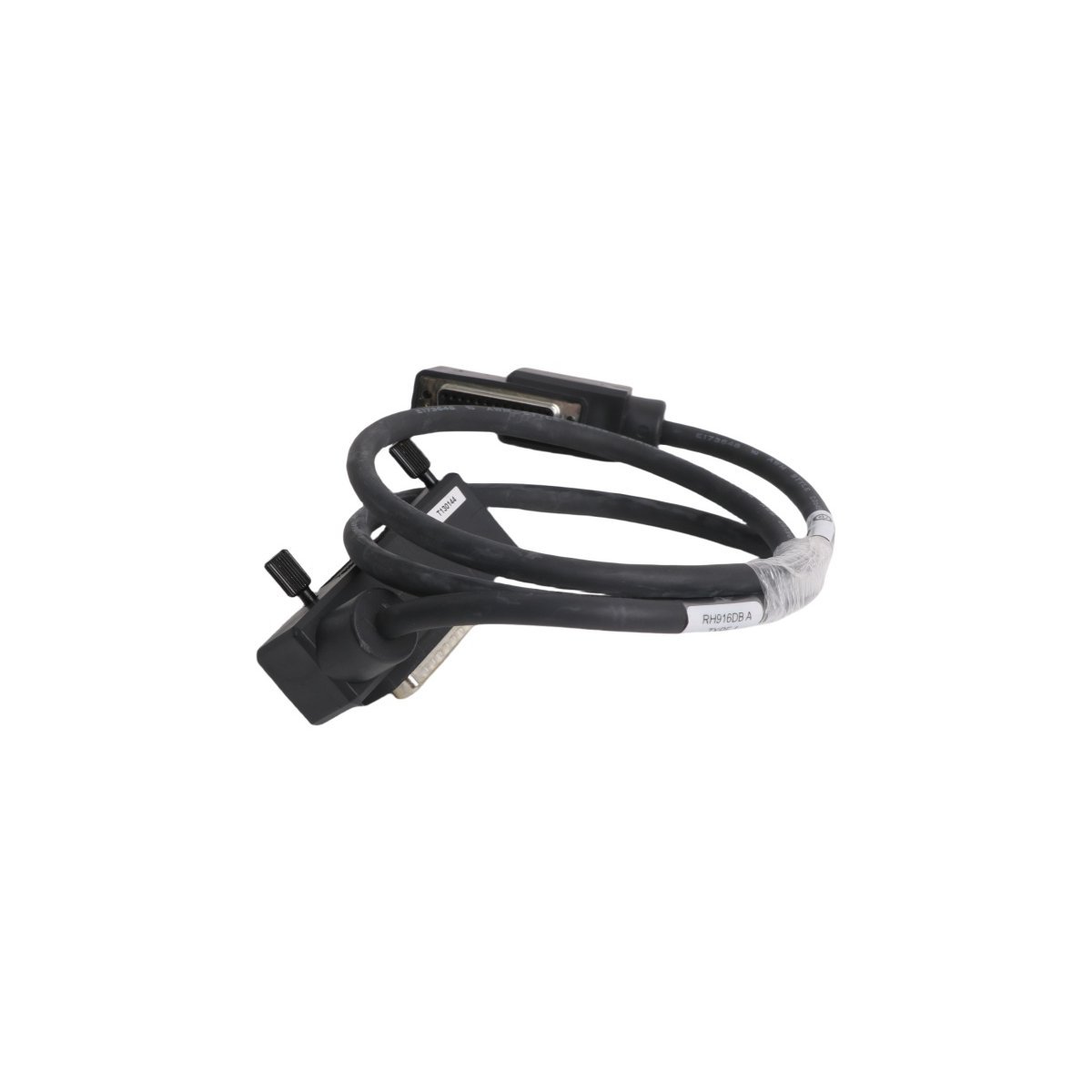

Foxboro RH916DB Industrial Termination Cable Assembly

The RH916DB is a ruggedized industrial electrical cable designed for the Foxboro 200 Series DCS, providing high-conductivity termination and signal integrity in extreme thermal environments.

Technical Operational Overview

The RH916DB serves as a specialized interconnection solution within the Foxboro 200 Series Distributed Control System (DCS). Engineers utilize this assembly to facilitate secure electrical terminations between system modules and field equipment. By leveraging high-grade copper conductors, the cable ensures minimal signal attenuation and maximum conductivity, which remains vital for maintaining the precision of industrial control loops.

Furthermore, the cable features a specialized polyurethane conductive coating that acts as a robust insulation barrier. This protective layer shields the internal conductors from chemical exposure and mechanical wear typical of plant floors. The RH916DB supports versatile integration by interfacing with both BNC and M12 connector types, allowing it to bridge various hardware standards within a single automation rack. Because it is engineered for resilience, the assembly withstands significant physical stress and high pull forces without compromising the electrical path.

Key Technical Characteristics

• Superior Conductivity: Uses high-purity copper to deliver stable electrical performance and signal accuracy for critical DCS operations.
• Resilient Insulation: Features a polyurethane conductive coating that provides excellent abrasion resistance and protection against industrial contaminants.
• Extreme Thermal Tolerance: Operates reliably in a broad temperature range from -40°C to +85°C, making it suitable for unconditioned outdoor cabinets and high-heat processing areas.
• Connector Versatility: Accommodates both M12 and BNC termination standards to support diverse industrial sensing and communication hardware.
• Structural Integrity: Engineered with high pull strength to prevent accidental disconnections and ensure long-term mechanical stability in high-vibration zones.
• Environmental Compliance: Meets strict RoHS standards, ensuring the assembly is free from hazardous substances and safe for global deployment.

Product Specifications

Industrial Applications

The RH916DB assembly is frequently applied in sectors requiring high-reliability signal termination, including:

• Petrochemical Processing: Facilitating sensor-to-DCS connections in environments with volatile temperature fluctuations.
• Power Generation: Providing dependable signal paths for monitoring equipment in electromagnetic interference (EMI) prone areas.
• Advanced Manufacturing: Integrating M12-based industrial sensors into a centralized Foxboro 200 Series control architecture.
