Description

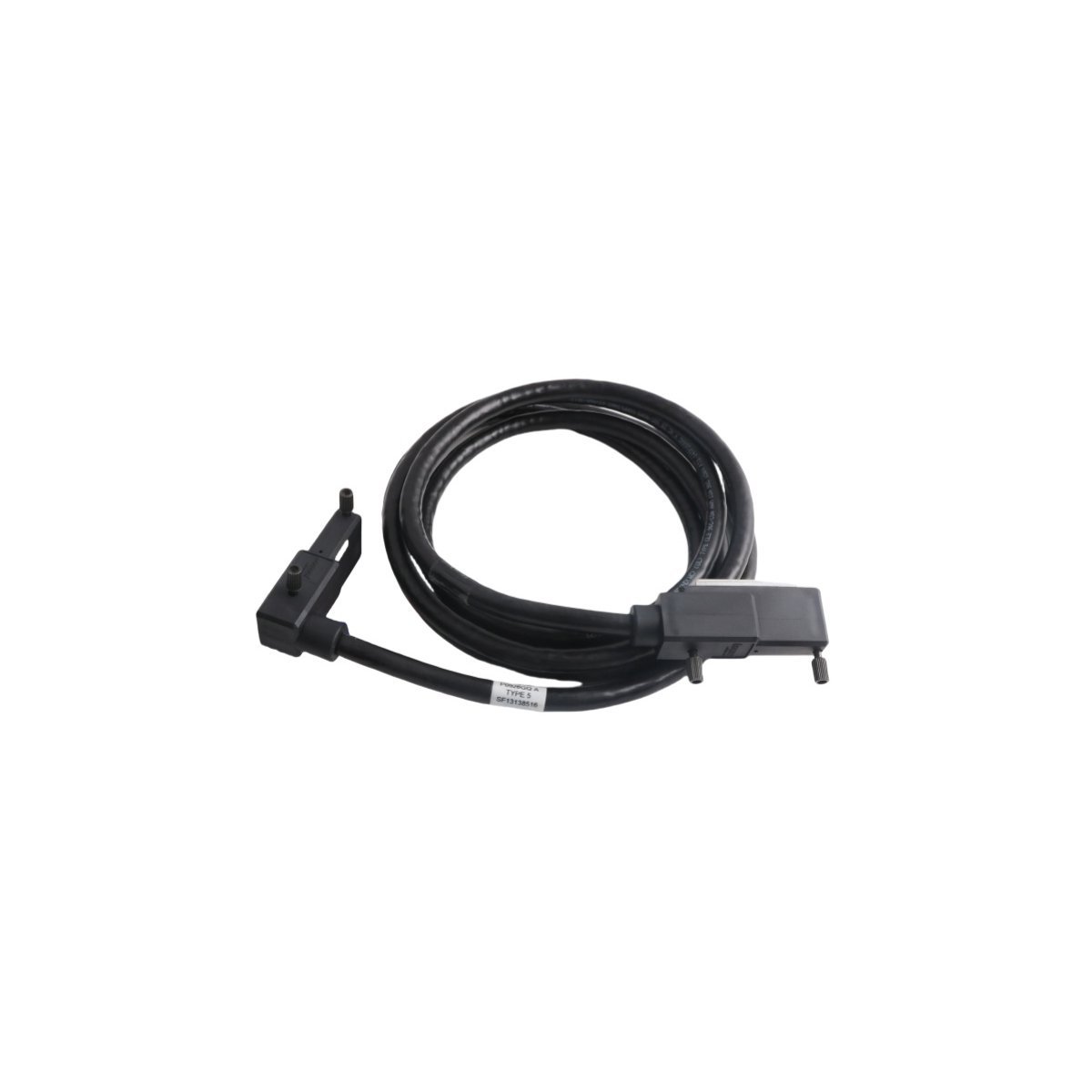

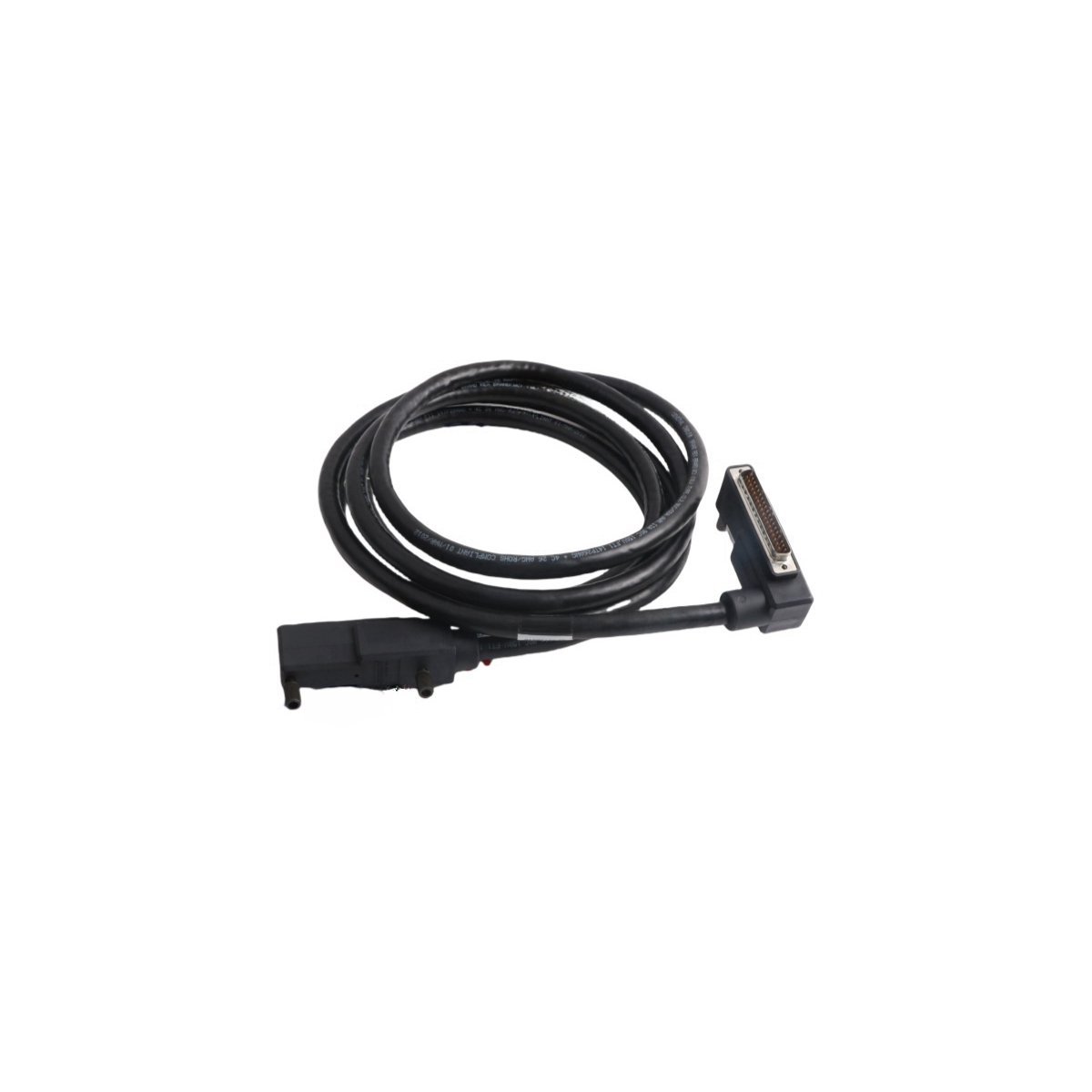

Foxboro P0926GQ I/A Series Type 5 Hypalon-Jacketed Termination Cable

The P0926GQ is a high-durability Type 5 termination cable designed for the Foxboro I/A Series DCS, featuring a specialized Hypalon jacket for superior chemical resistance and HART protocol transparency.

Technical Operational Overview

The P0926GQ serves as a high-integrity link within the Foxboro I/A Series Distributed Control System (DCS), specifically designed to facilitate the connection between field instruments and termination assemblies. This Type 5 cable utilizes a Hypalon (chlorosulfonated polyethylene) outer jacket, which provides a significant advantage in industrial environments where exposure to UV radiation, ozone, and corrosive chemicals is common. By implementing this robust shielding, the cable maintains its mechanical flexibility and electrical insulation properties over long-term deployment, effectively preventing signal degradation caused by environmental wear.

Functionality extends beyond simple connectivity, as the P0926GQ supports full HART communication protocol transparency. This feature allows the control system to perform real-time data exchange with intelligent field devices, enabling advanced diagnostics and remote configuration without signal interference. To ensure reliable performance across global industrial sites, the cable operates within a temperature window of -20°C to +70°C. Furthermore, the assembly complies with international CE and UL safety standards, ensuring that it meets the rigorous quality benchmarks required for critical process automation in the chemical, power, and oil sectors.

Key Technical Characteristics

• Hypalon Protective Jacketing: Offers exceptional resistance to chemical corrosion, oils, and environmental weathering compared to standard PVC cables.
• HART Protocol Integration: Enables seamless bi-directional digital communication between the DCS and smart field transmitters.
• Reliable Thermal Range: Maintains consistent electrical performance in environments ranging from -20°C to +70°C.
• High-Integrity Signal Path: Engineered to minimize electromagnetic interference, ensuring high-accuracy data transmission for sensitive control loops.
• Industrial Compliance: Manufactured to meet CE and UL certifications, guaranteeing adherence to global safety and quality regulations.
• Durable Construction: Features a high-strength design that simplifies installation and reduces the necessity for frequent maintenance or replacement.

Product Specifications

Industrial Applications

The P0926GQ is ideally suited for demanding sectors where cable longevity and signal precision are paramount:

• Offshore Platforms: Resisting salt spray and harsh sunlight while maintaining critical sensor data.
• Chemical Plants: Providing reliable terminations in areas with potential exposure to acidic or alkaline vapors.
• Refining and Petrochemical: Supporting intelligent HART-based instrumentation for proactive asset management and safety monitoring.
