Description

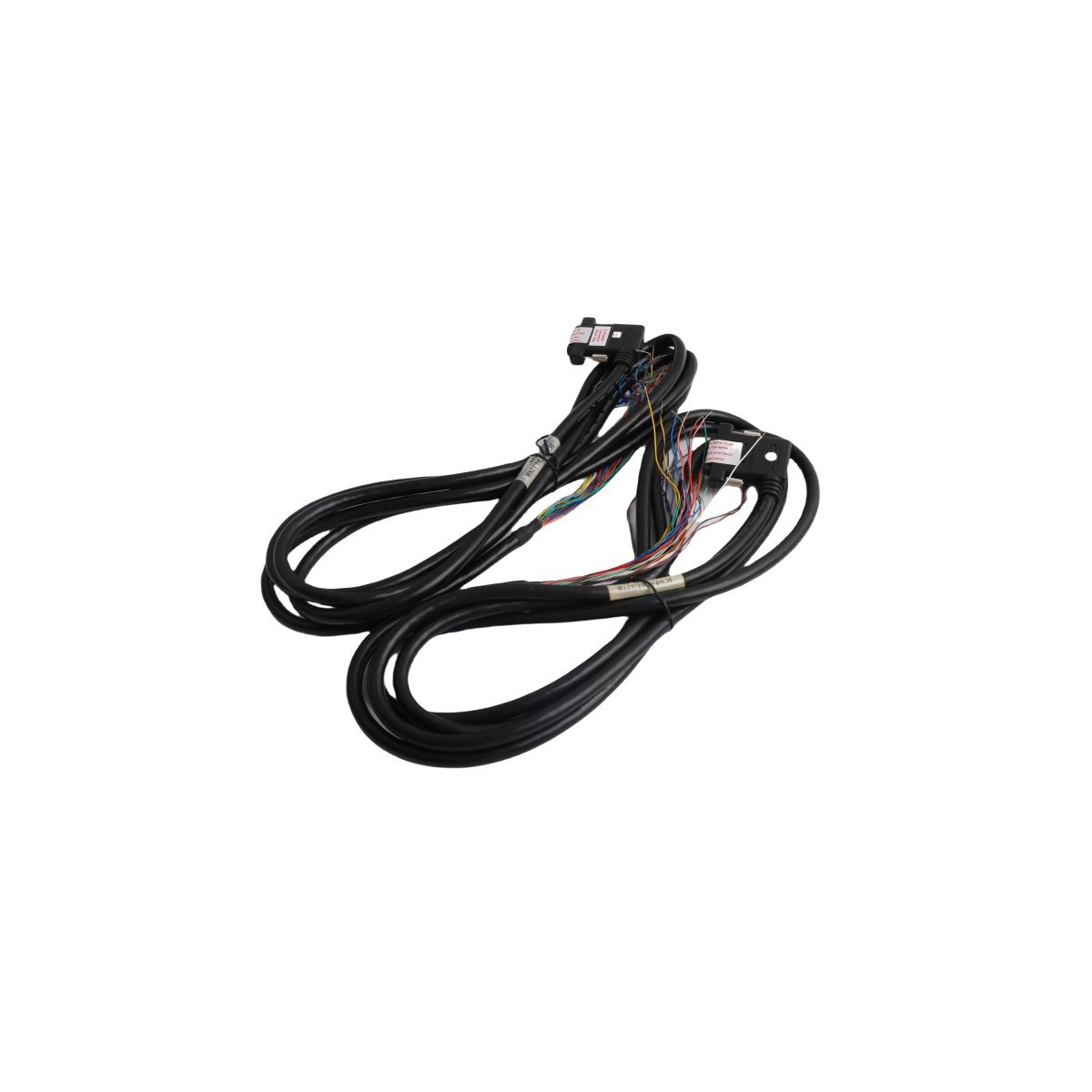

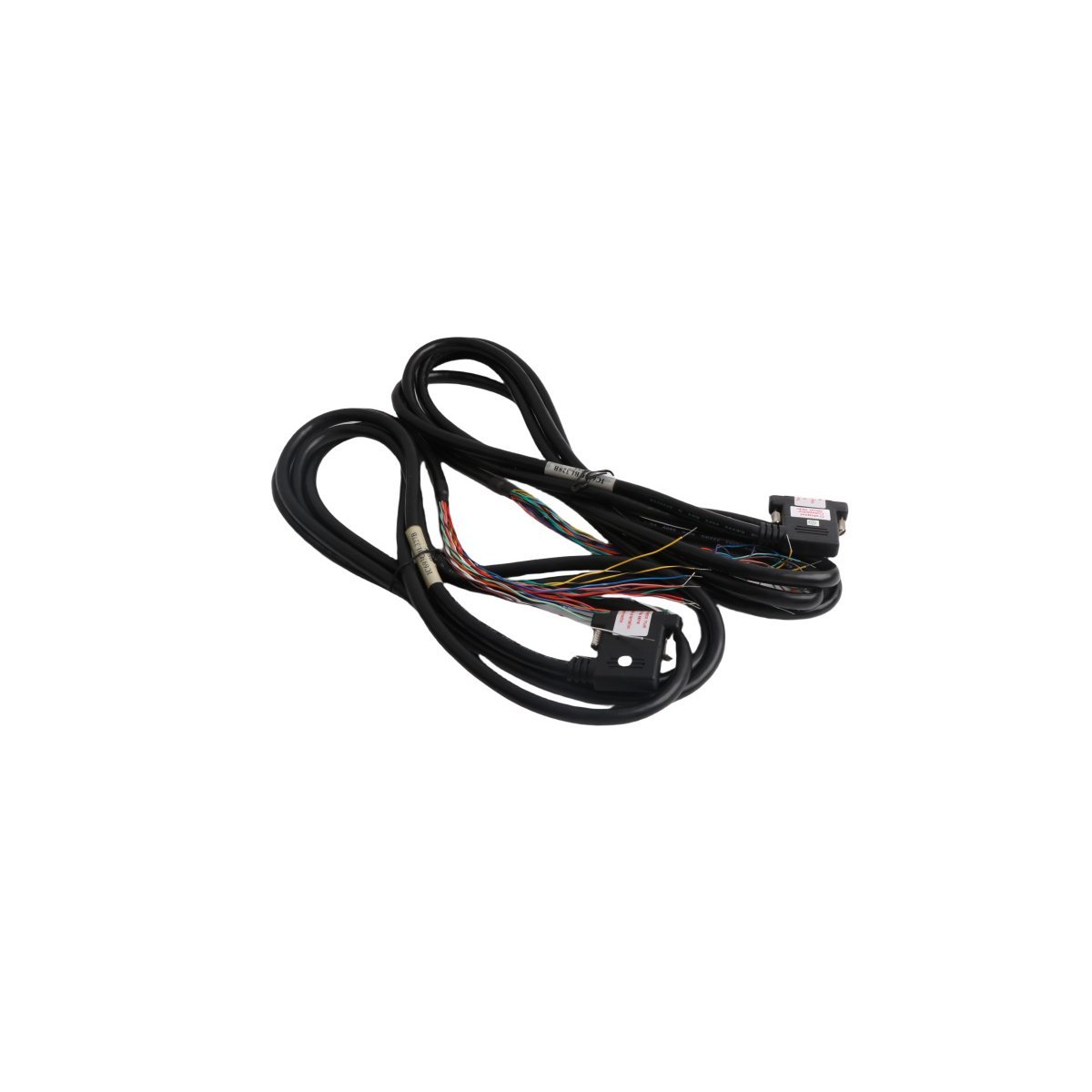

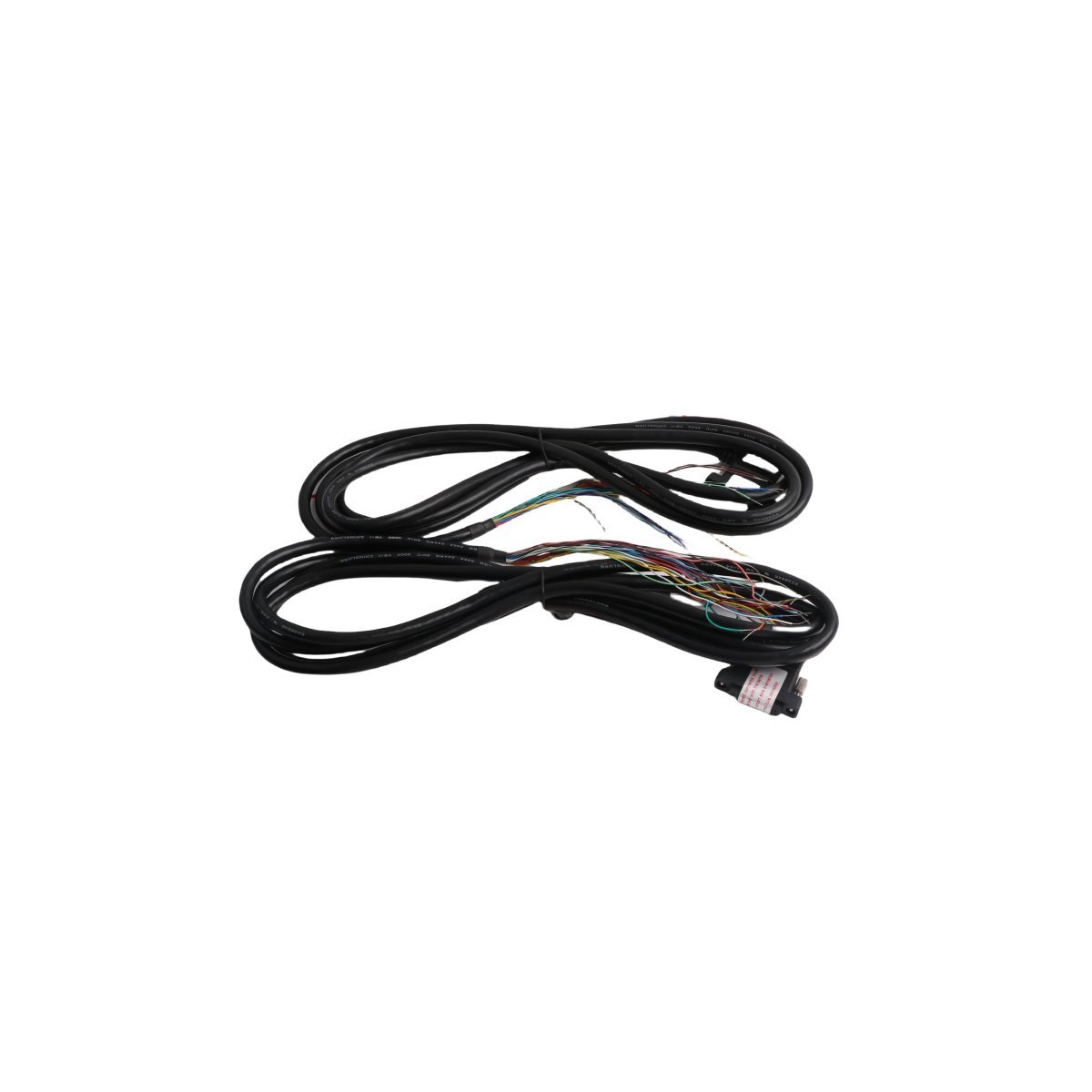

Configured for high-density I/O signal transmission in Series 90-30 PLC platforms, the GE IC693CBK001 (IC693CBK001 Cable Kit) provides direct physical electrical interconnection between 32-point I/O modules and external field termination points.

Hardware Specifications

PLC System Connectivity and Signal Integrity

The IC693CBK001 assembly functions as a physical interface link, utilizing backplane bus communication protocols established by the host Series 90-30 CPU and I/O modules. The integration of 24-pin connectors allows for precise I/O density scaling, facilitating the transition from high-density module pins to field wiring blocks. Firmware flash compatibility is not applicable to this passive cable kit; however, the physical layer must maintain electrical continuity to ensure deterministic I/O scan speeds. The cables (IC693CBL327 and IC693CBL328) are engineered to support the signal requirements of 32-point modules, ensuring minimal impedance and signal crosstalk during data transfer between the field devices and the PLC backplane.

Frequently Asked Questions

Q: Can the cable ends be terminated in any specific field terminal block?

A: Yes, the cables feature stripped ends intended for connection to generic terminal blocks, provided the terminals are rated for the 1.2 A per pin current capacity of the cable conductors.

Q: Is this cable kit compatible with non-GE Series 90-30 modules?

A: The physical connectors are specifically keyed for the front panels of 32-point modules in the GE Series 90-30 system, such as models IC693MDL654, 655, 752, and 753. Use with non-compatible hardware may result in improper pin alignment or electrical failure.

Field Installation Guidelines

• Verify that the PLC power supply is switched off before connecting or disconnecting the 24-pin connectors to the front panel of the I/O module to avoid potential short circuits.
• Ensure the cable routing path avoids high-voltage AC lines to prevent induced electromagnetic interference on the low-voltage DC signals.
• Utilize proper strain relief techniques when securing the cables to the cabinet structure to prevent mechanical stress on the 24-pin module connectors.
• Check that all wire connections at the terminal block are tightened to the torque specifications of the specific terminal block used to ensure low-resistance contacts.
• Maintain a minimum bend radius during installation to protect the internal conductor insulation of the 3-meter cables.
