Description

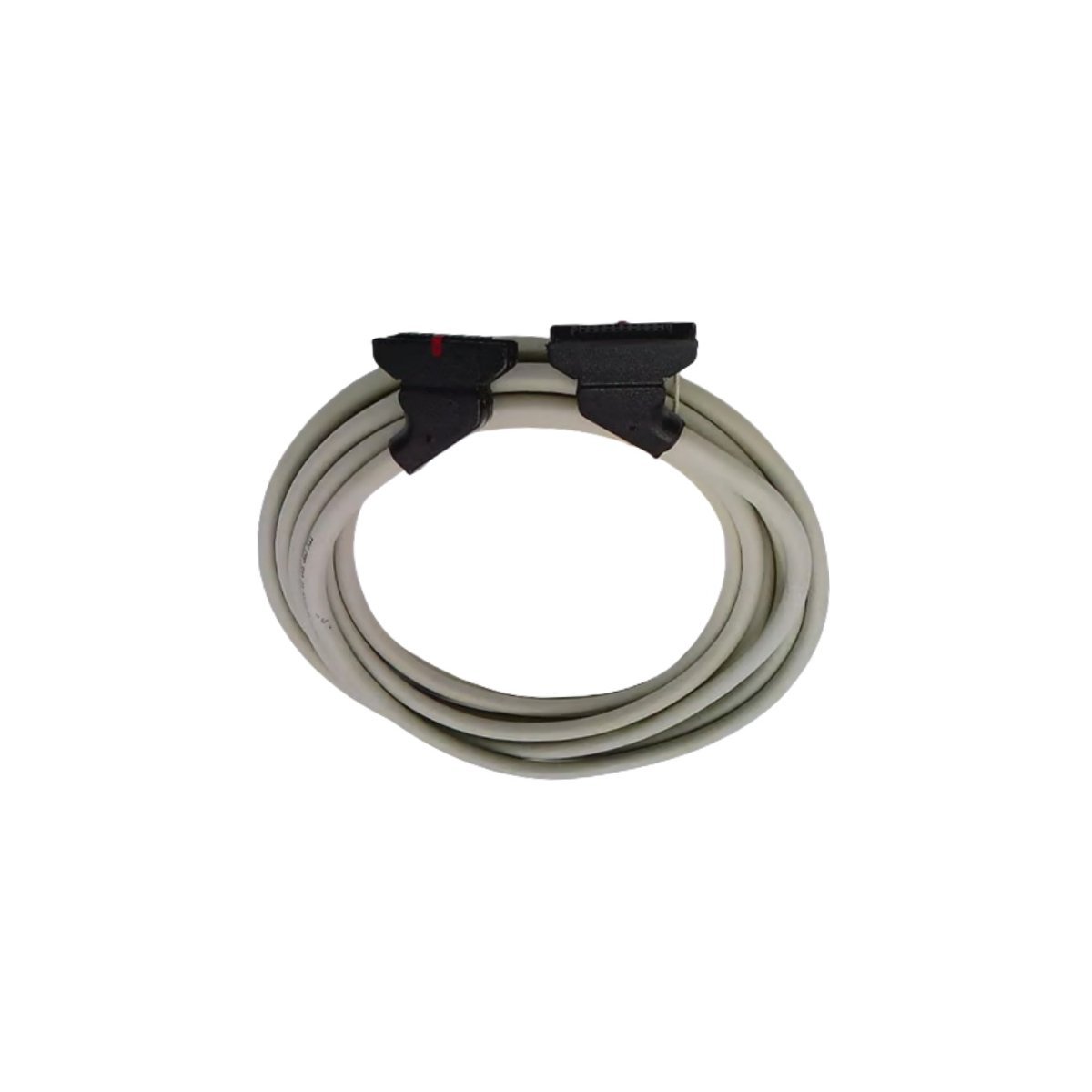

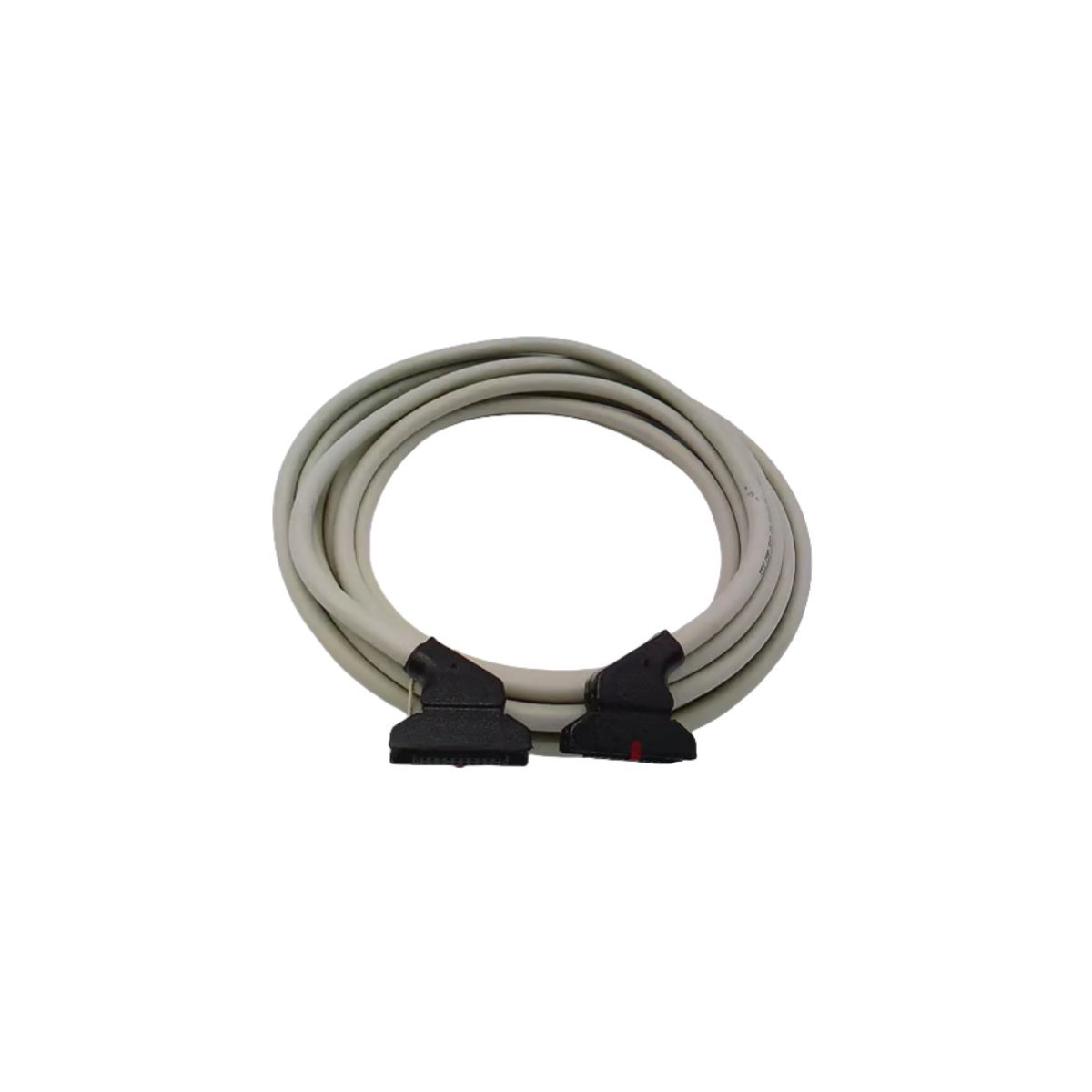

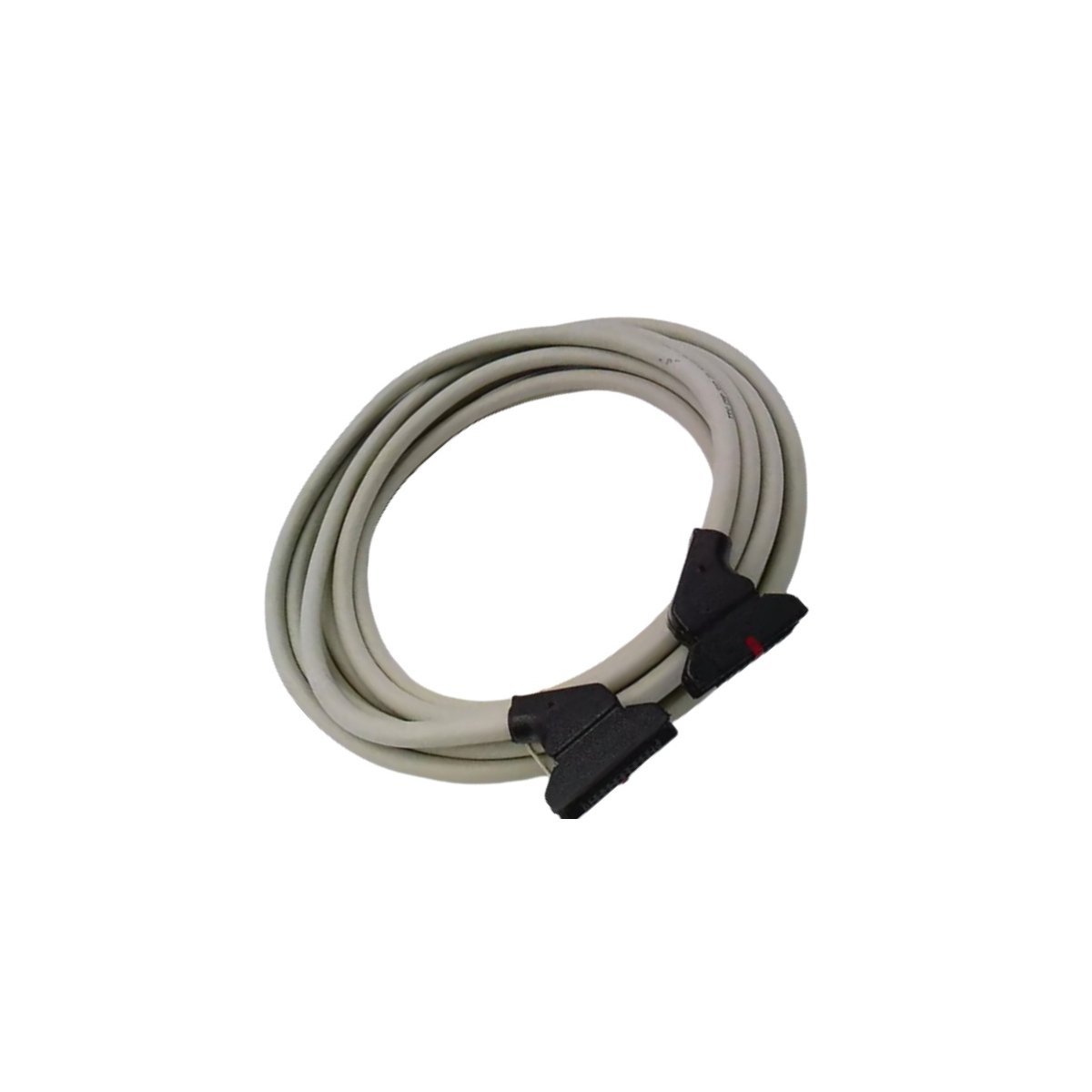

The Schneider Electric TSXCDP503 acts as a high-integrity link for Modicon Premium automation platforms. This 5-meter pre-formed cable facilitates rapid wiring between PLC modules and Telefast sub-bases. It specifically interfaces with the ABE7H16R20 sub-base to streamline control cabinet organization. By using standardized HE10 connectors, it eliminates potential wiring errors during installation. The cable features a rugged design to withstand the stresses of industrial environments. Consequently, it ensures continuous signal flow for critical monitoring and control tasks.

Core Technical Specifications

• Brand: Schneider Electric
• Model Number: TSXCDP503
• Product Type: Pre-formed Connecting Cable
• Cable Length: 5 Meters (16.4 feet)
• Connector Type: Two HE10 20-pin Connectors
• Wire Gauge: AWG 22 (0.34 mm²)
• Rated Operating Voltage: 24V DC (30V DC Maximum)
• Current per Channel: 0.5 A
• Total Current Capacity: 2.4 A Maximum
• Bending Radius: Minimum 50 mm
• Temperature Range: -25°C to +70°C (Operating)
• Weight: 0.40 kg

Advanced Shielding and Performance

This connecting cable provides superior protection against electromagnetic interference through its internal shielding. It supports RS-485 serial communication with speeds reaching 115.2 kbps. Furthermore, the flexible jacket allows for easy routing through dense cable trays. The unit maintains stable electrical properties across a wide temperature spectrum. It remains functional even in unheated industrial facilities or high-heat processing zones. This reliability significantly reduces signal noise and prevents data corruption in complex systems.

Compatibility and Integration

The TSXCDP503 integrates perfectly with several Modicon Premium specialized modules. It supports counter modules such as the TSXCTY2A and TSXCTY4A. Additionally, it works seamlessly with the TSXCFY21 and TSXCCY1128 communication cards. This versatility makes it a vital accessory for diverse automation architectures. The French-engineered construction adheres to strict European quality and safety standards. Using this genuine Schneider Electric accessory preserves the system warranty and operational safety. It represents a dependable choice for maintaining peak performance in modular PLC networks.
