Description

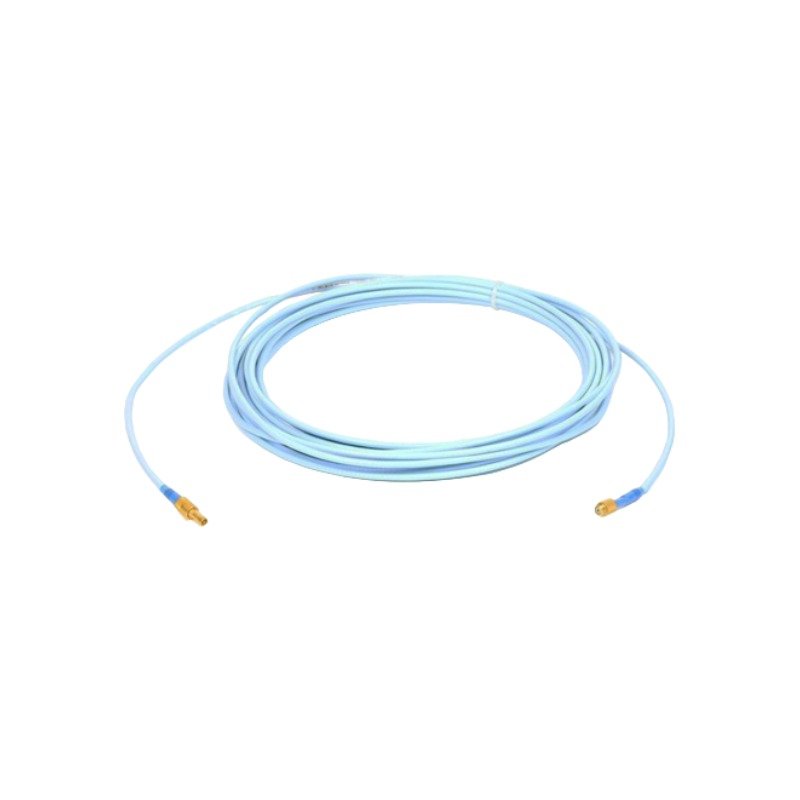

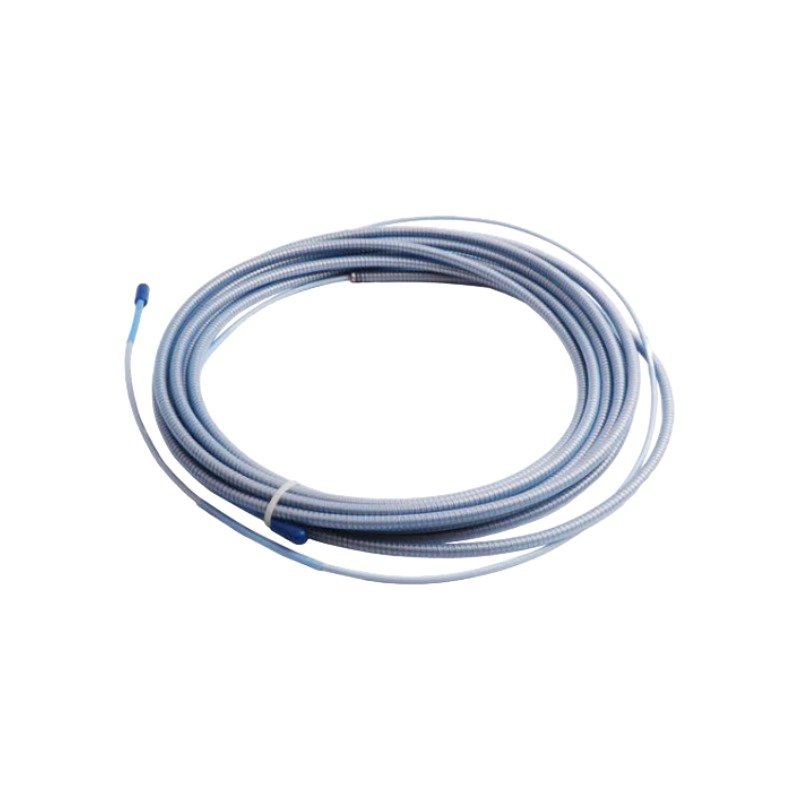

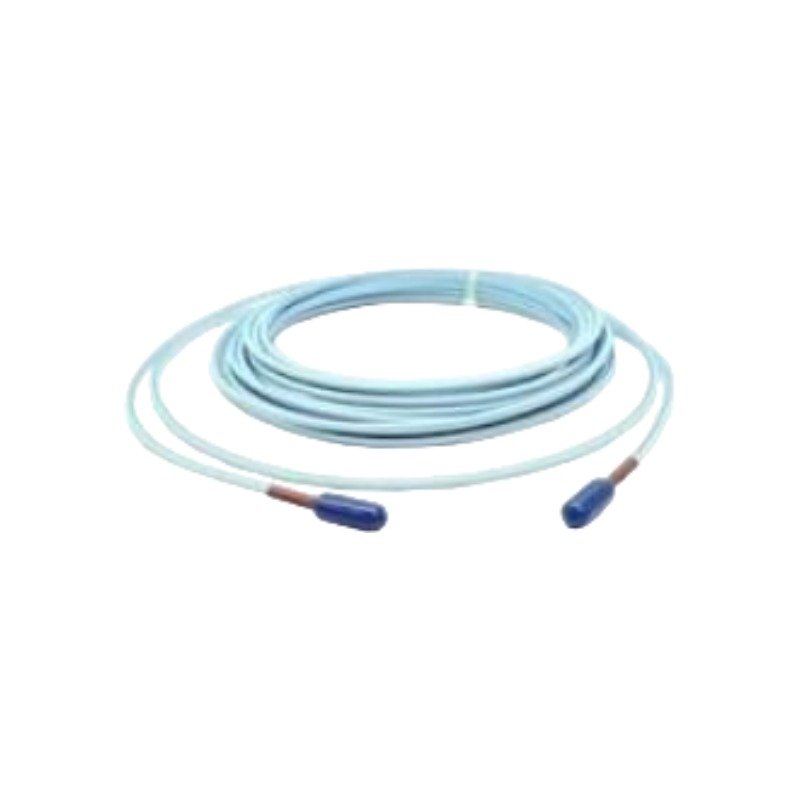

The Bently Nevada 330190-045-00-00, also cataloged as the 330190 Extension Cable, operates as a dedicated hardware component for eddy-current signal transmission and non-contact displacement measurement within 3300 XL 8 mm Proximity Transducer System platforms.

Hardware Specifications

Eddy-Current Signal Conditioning and TSI Characteristics

The hardware executes automated eddy-current probe scaling to output a continuous analog voltage directly proportional to the physical gap between the probe tip and the observed conductive target. Consequently, during commissioning, the field technician must perform gap voltage validation (-10 VDC targets) to verify that the transducer operates within the linear midpoint of the calibration curve. Meanwhile, the high-frequency demodulation circuitry tracks high-velocity rotor dynamics, capturing precise metrics for radial vibration, axial thrust position, and phase reference indication. Furthermore, internal cross-talk suppression features actively prevent signal degradation from electromagnetic coupling when technicians install multiple probes and extension cables in close proximity on the same machine bearing housing.

Frequently Asked Questions

Q: Can technicians hot-swap the Bently Nevada 330190-045-00-00 extension cable while the machinery protection system runs online?

A: No. Operators must isolate and de-energize the associated Proximitor Sensor loop prior to disconnecting or connecting the extension cable coaxial junctions, because this precaution prevents voltage transients and inadvertent trip signals in the monitoring rack.

Q: How does the 4.5-metre physical length option alter total transducer system matching?

A: This exact cable features a 4.5-metre length option. Therefore, technicians must match this extension cable exclusively with a 0.5-metre total length 3300 XL probe to complete a standard 5.0-metre system configuration, ensuring the Proximitor sensor reads the precise total electrical length.

Field Installation Guidelines

• Inspect the coaxial connection points for moisture or debris prior to final joining, ensuring the inner gold pins match without physical misalignment.
• Next, connect the male probe connector to the female extension cable connector, applying finger-tight force to latch the ClickLoc mechanical coupling securely.
• Wrap silicone self-vitrifying tape or install separate protective boot sleeves over the exposed coaxial connection to isolate the circuit from the surrounding metallic machinery framework.
• Subsequently, route the 4.5-metre cable length through flexible or rigid grounded metal conduits, maintaining a minimum bend radius of 25 mm to prevent inner core degradation.
• Finally, tie down any excess cable slack outside the machine casing using vibration-resistant clamps to prevent physical whipping and subsequent mechanical insulation wear.
