Description

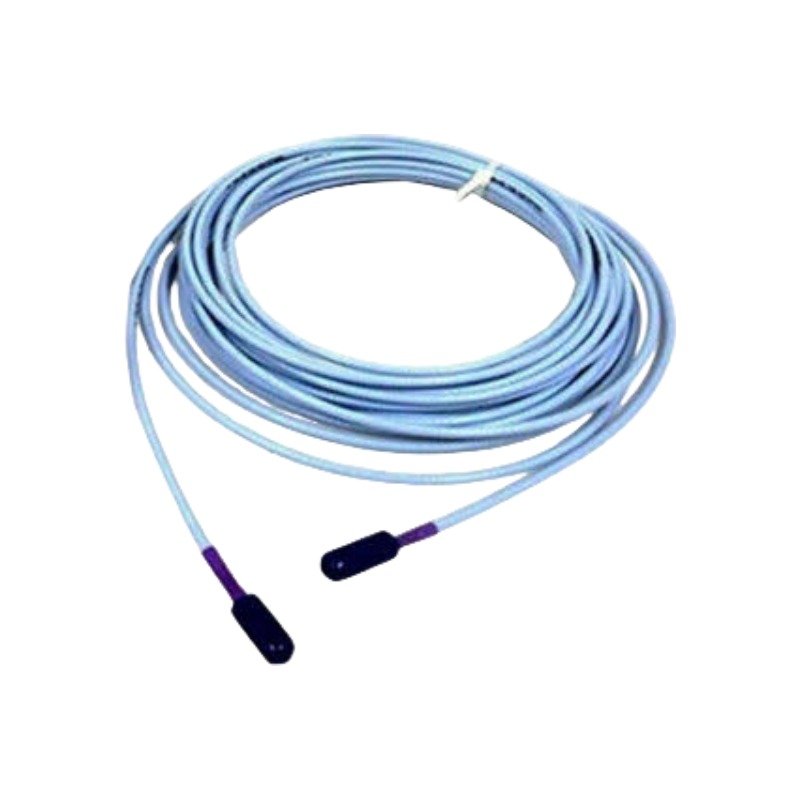

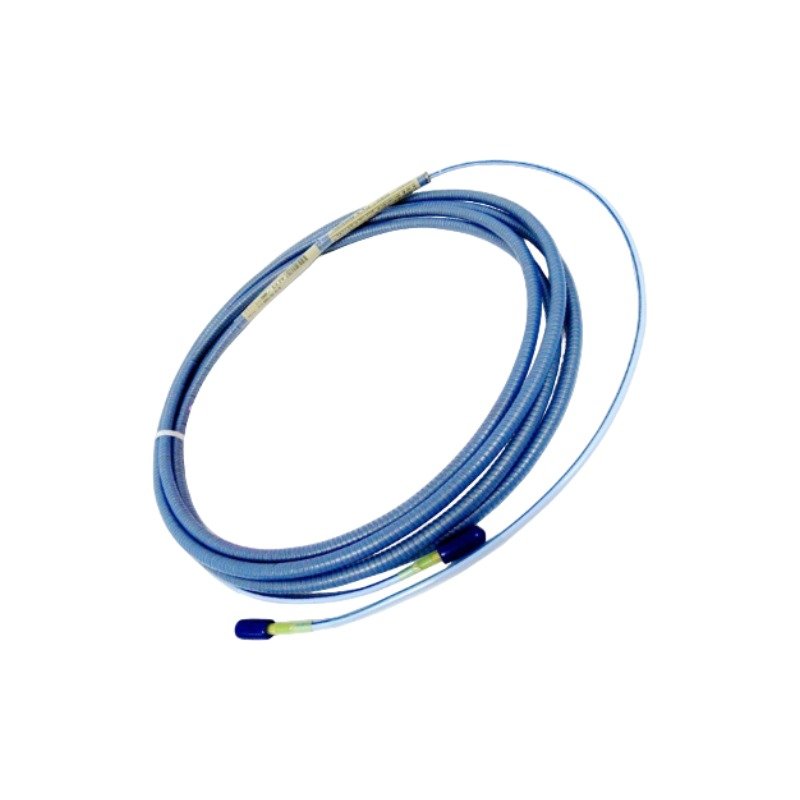

The Bently Nevada 330854-040-24-00 serves as the primary 330854 Extension Cable utilized to execute high-frequency RF signal transmission across 3300 XL 25 mm Proximity Transducer System platforms.

Hardware Specifications

Machinery Monitoring and TSI Characteristics

This hardware configuration directly drives exact eddy-current probe scaling within rotating machinery monitoring frameworks, specifically supporting differential expansion loops. The balanced triaxial design maintains precise structural and electrical tuning, which successfully eliminates cross-talk suppression failures when technicians route the transmission lines through high-density conduit runs. Furthermore, the specialized FluidLoc moisture barrier design prevents internal fluid migration to protect terminal junctions. Consequently, the assembly provides instantaneous gap voltage validation, maintains stable targeting around calibrated -10 VDC operational centers, and prevents signal attenuation that typically degrades the standard 0.787 V/mm (20 mV/mil) scale factor required to evaluate rotor dynamics.

Frequently Asked Questions

Q: What specific mechanical protection does the option 24 designation provide for this extension cable assembly?

A: The option 24 designation specifies a High-Temperature FluidLoc cable configuration equipped with integrated connector protectors. Consequently, this assembly prevents moisture or process oils from traveling along the cable core to the Proximitor sensor if the outer jacket is breached.

Q: Can installation teams mix this 330854 series extension cable with standard 8 mm or 11 mm proximity probes?

A: No. This extension cable matches only the electrical impedance parameters of the 3300 XL 25 mm proximity transducer system. Therefore, connecting this cable to 8 mm or 11 mm probes alters the system electrical length, resulting in severe calibration errors across the 12.7 mm linear range.

Field Installation Guidelines

• Connector Engagement: Technicians must fully engage the high-temperature connectors via the ClickLoc design interface. Finger-tighten the coupling mechanism until a physical click occurs, and avoid mechanical pliers to protect the internal 75 ohm contacts.
• Routing Radii: Always route the triaxial cable path with a minimum bend radius of 25.4 mm (1.0 in). Otherwise, tight bends degrade the internal PFA insulation layer and trigger signal reflections.
• Ground Isolation: Verify that the factory-installed connector protectors completely insulate the ClickLoc junction point. This step isolates the circuit from physical contact with the machine housing and stops ground loops.
