Description

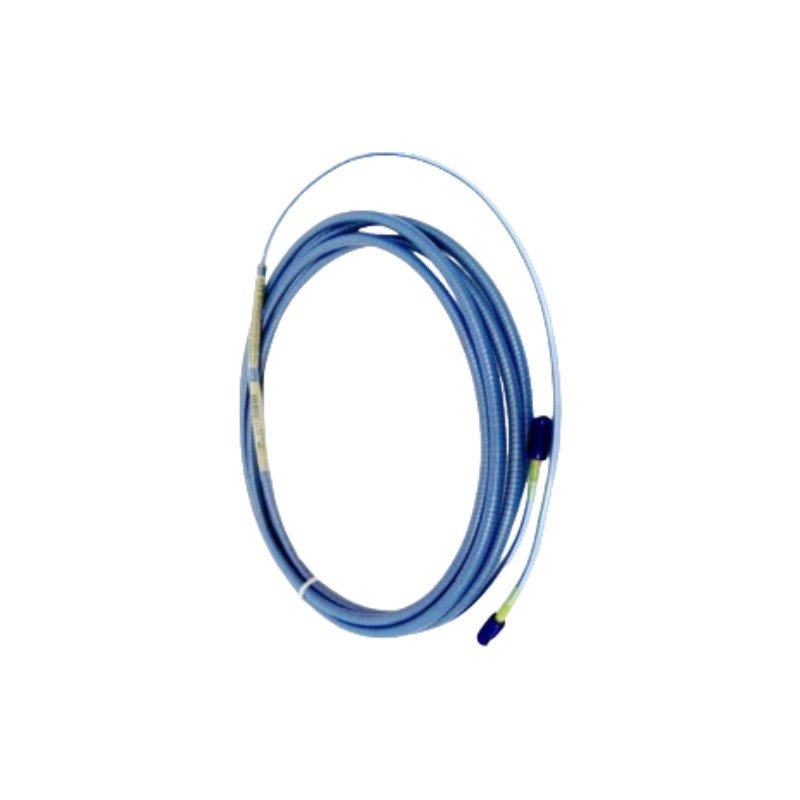

The Bently Nevada 330854-080-24-CN serves as the primary 330854 Extension Cable utilized to execute high-frequency RF signal transmission across 3300 XL 25 mm Proximity Transducer System platforms.

Hardware Specifications

Machinery Monitoring and TSI Characteristics

This hardware configuration directly drives exact eddy-current probe scaling within rotating machinery monitoring frameworks, specifically supporting large-scale differential expansion loops. The balanced triaxial design maintains precise structural and electrical tuning, which successfully eliminates cross-talk suppression failures when technicians route the long transmission lines through high-density conduit runs. Furthermore, the specialized FluidLoc moisture barrier design prevents internal fluid migration to protect terminal junctions over extended distances. Consequently, the assembly provides instantaneous gap voltage validation, maintains stable targeting around calibrated -10 VDC operational centers, and prevents signal attenuation that typically degrades the standard 0.787 V/mm (20 mV/mil) scale factor required to evaluate rotor dynamics.

Frequently Asked Questions

Q: What specific mechanical hardware profile does the option 24 designation specify for this 8.0 meters cable?

A: The option 24 designation specifies a High-Temperature FluidLoc cable configuration equipped with integrated connector protectors. Consequently, this design prevents process fluids or ambient moisture from traveling along the cable core to the Proximitor sensor interface.

Q: How does the -CN suffix modify the hazardous area deployment rules for the 330854-080-24-CN assembly?

A: The -CN suffix denotes a regional variation configuration that carries a non-certified designation for explosive atmospheres. Therefore, field installation teams must restrict its physical deployment to safe zones or locations that do not mandate intrinsic safety certifications.

Field Installation Guidelines

• Connector Engagement: Technicians must fully engage the high-temperature connectors via the ClickLoc design interface. Finger-tighten the coupling mechanism until a physical click occurs, and avoid mechanical pliers to protect the internal 75 ohm contacts.
• Routing Radii: Always route the triaxial cable path with a minimum bend radius of 25.4 mm (1.0 in). Otherwise, tight bends degrade the internal PFA insulation layer and trigger signal reflections.
• Ground Isolation: Verify that the factory-installed connector protectors completely insulate the ClickLoc junction point. This step isolates the circuit from physical contact with the machine housing and stops ground loops.
