Description

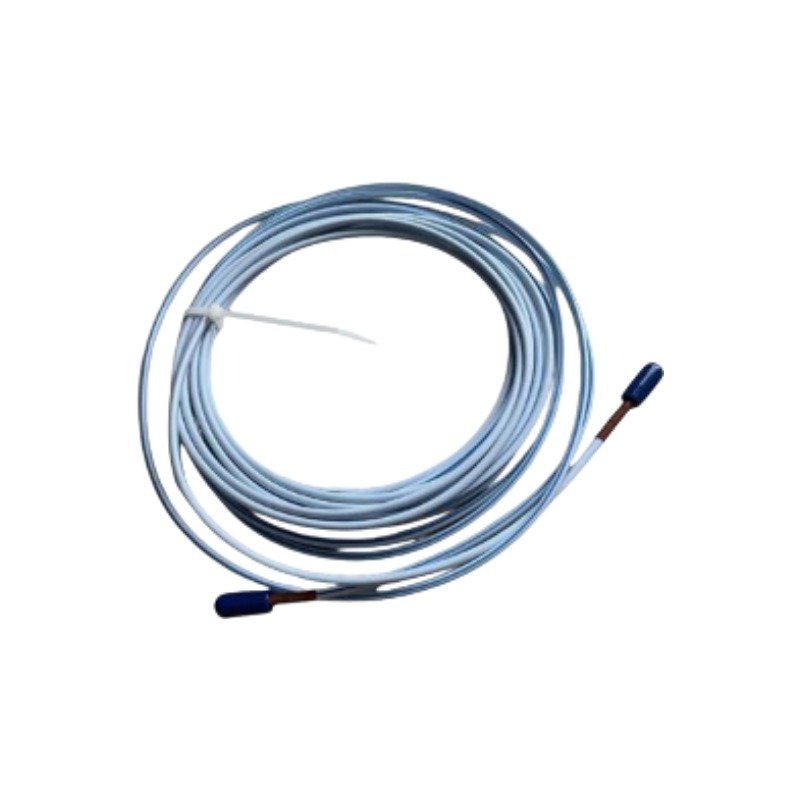

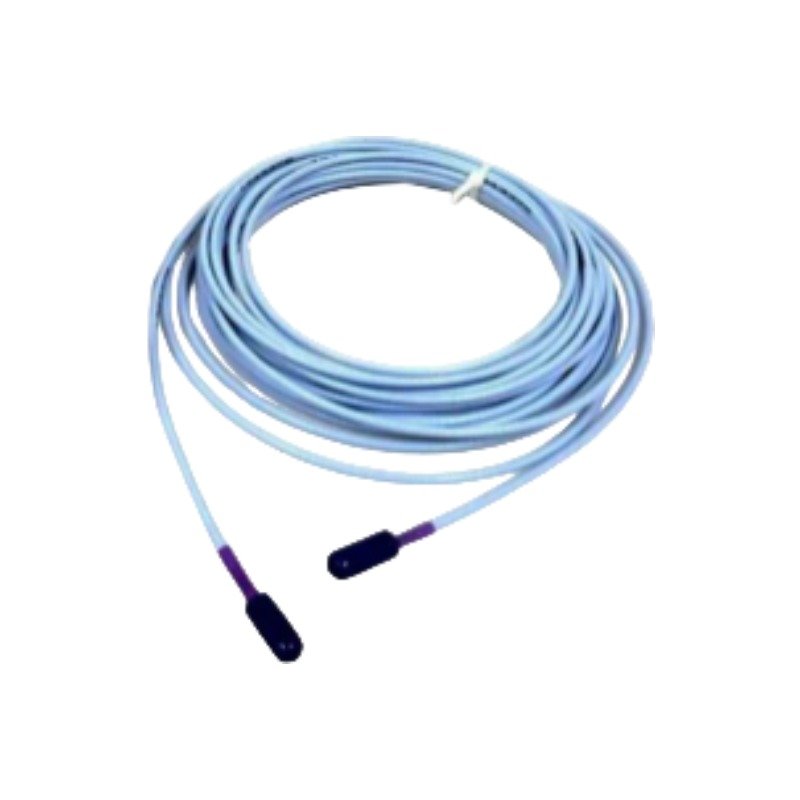

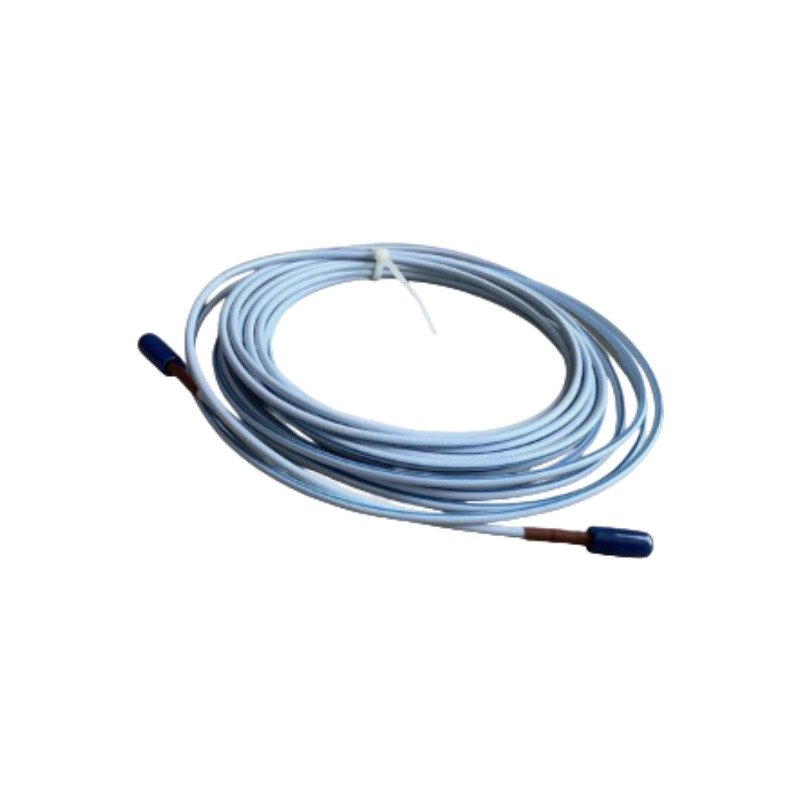

The Bently Nevada 330877-080-37-00, also cataloged as the 330877 Extension Cable, serves as the primary 330877 Extension Cable utilized to execute high-frequency RF signal transmission across 3300 XL 50 mm Proximity Transducer System platforms.

Hardware Specifications

Machinery Monitoring and TSI Characteristics

This hardware configuration directly drives exact eddy-current probe scaling within rotating machinery monitoring frameworks, specifically supporting long-range differential expansion loops. Specifically, the balanced triaxial design maintains precise structural and electrical tuning, which successfully eliminates cross-talk suppression failures when technicians route the transmission paths through high-density conduit runs. Furthermore, the physical impedance matching provides instantaneous gap voltage validation. Consequently, the cable maintains stable targeting around -10 VDC operational centers and prevents the signal attenuation that typically degrades the standard 0.394 V/mm (10 mV/mil) scale factor required to evaluate rotor dynamics on steam turbines.

Frequently Asked Questions

Q: What specific protection layers does the option 37 code dictate for the 330877-080-37-00 cable core? A: The option 37 designator specifies a FluidLoc moisture-sealed core combined with an integrated flexible stainless steel armor layer. Therefore, this option delivers both fluid migration defense and mechanical crush resistance in severe open-space turbine environments.

Q: Can an installation team link this 330877 series 50 mm extension cable with a standard 3300 XL 8 mm or 11 mm probe? A: No. The internal capacitance profile of 69.9 pF/m is tuned exclusively for the 50 mm transducer circuit. Consequently, matching it with 8 mm or 11 mm systems changes the electrical loop length, corrupts the -10 VDC gap validation, and invalidates TSI sensor reporting.

Field Installation Guidelines

• Connector Engagement: Technicians must fully engage the high-temperature connectors via the ClickLoc design interface. Finger-tighten the coupling mechanism until a physical click occurs, and avoid mechanical pliers to protect the internal 75 ohm contacts.
• Routing Radii: Always route the armored physical cable path with a minimum bend radius of 31.8 mm (1.25 in). Otherwise, tight bends distort the external steel interlocking plates and risk crimping the inner triaxial conductor line.
• Ground Isolation: Ensure the pre-installed connector protectors fully wrap the junction point. This step isolates the circuit from physical contact with the turbine casing structure and completely blocks ground loops.
