Description

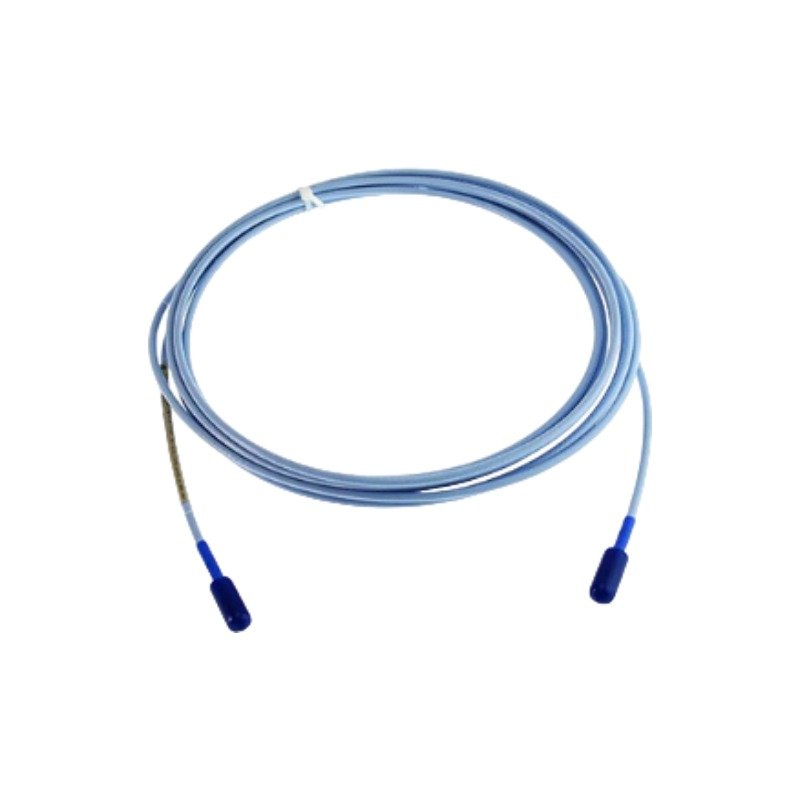

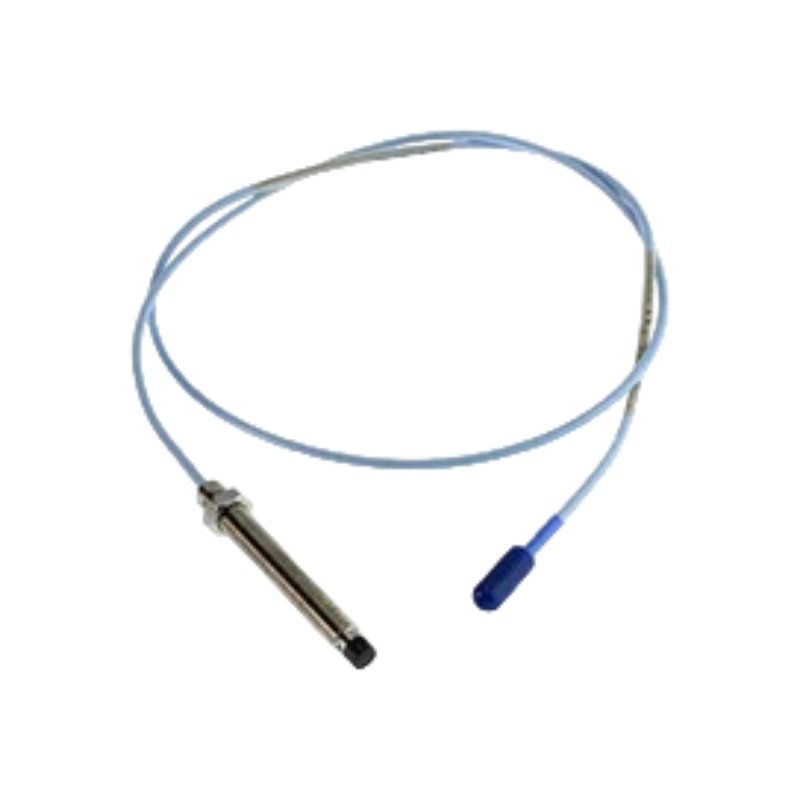

The Bently Nevada 330930-040-01-00, also cataloged as the 330930 Extension Cable, operates as a dedicated hardware component for non-contacting vibration and displacement measurements within 3300 NSv Monitoring System platforms.

Hardware Specifications

Transducer Calibration and Gap Voltage Validation

The hardware requires precise gap voltage validation during mechanical commissioning to establish the linear range centerpoint. Field technicians must calibrate the sensor to target a nominal -10 VDC gap voltage, which corresponds to the physical midpoint of the eddy-current probe scaling matrix. This positioning ensures accurate rotor dynamics acquisition and minimizes the risks associated with signal cross-talk suppression when multiple 3300 NSv proximity probes are installed in tight axial or radial arrangements.

Frequently Asked Questions

Q: How does the total length of this 4.0-meter extension cable affect the overall transducer system calibration?

A: The 3300 NSv transducer system relies on a strict total electrical length matching matching either a 5.0-meter or 7.0-meter configuration. Pairing this 4.0-meter cable with a 1.0-meter probe satisfies the 5.0-meter total system requirement, ensuring the eddy-current probe scaling stays within the defined 7.87 V/mm parameter.

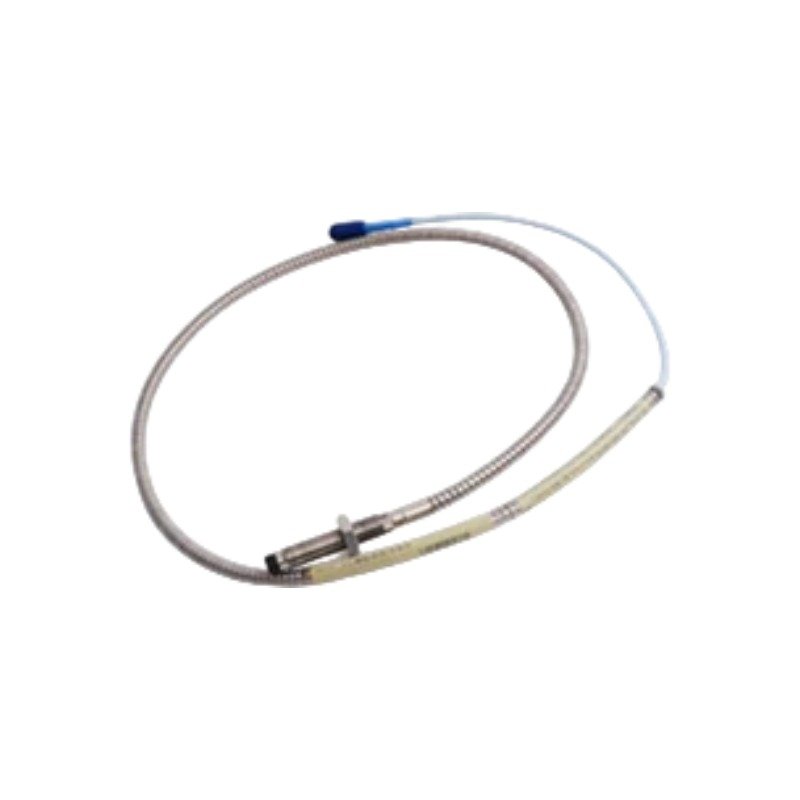

Q: What physical protection does the FEP jacket and stainless steel armor provide to the coaxial signal core?

A: The stainless steel armor provides mechanical crush resistance and protects against structural abrasion inside machine casings. The FEP jacket isolates the inner dielectric layers from chemical exposure and prevents fluid ingress that could disrupt the characteristic impedance of the loop.

Field Installation Guidelines

• Verify that the total combined length of the probe and this extension cable matches the specific tuning configuration of the Proximitor Sensor prior to running signal routing.
• Avoid tightening the gold-plated ClickLoc connectors with wrenches or pliers; rotate the coupling nut until a tactile “click” is felt to ensure structural locking.
• Route the armored coaxial cable assembly using a path that maintains the minimum specified bend radius to eliminate signal degradation or fatigue points.
• Isolate all interlocking coaxial connection points from machine grounds by verifying that the protective insulation sleeves are completely installed over the outer bodies.
