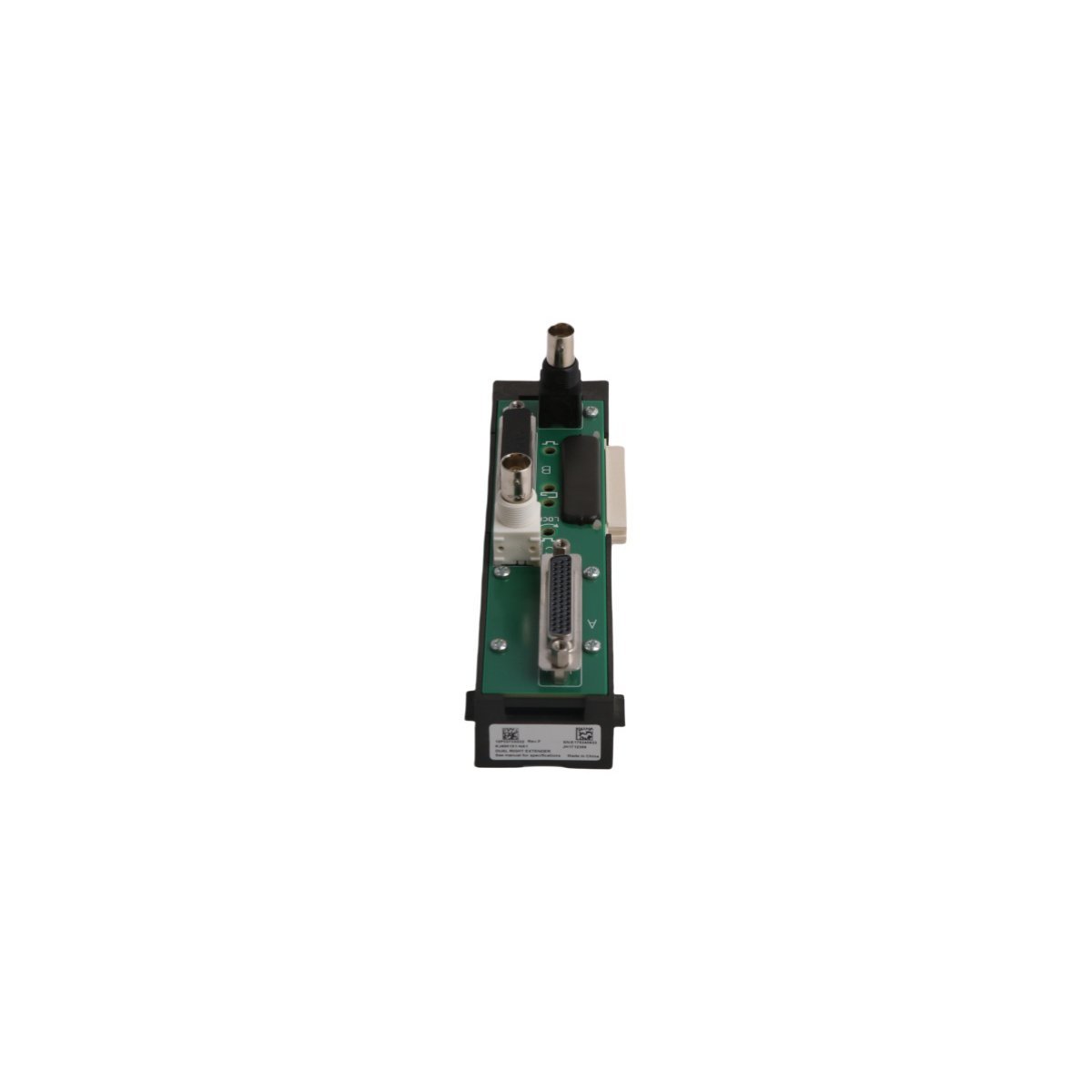

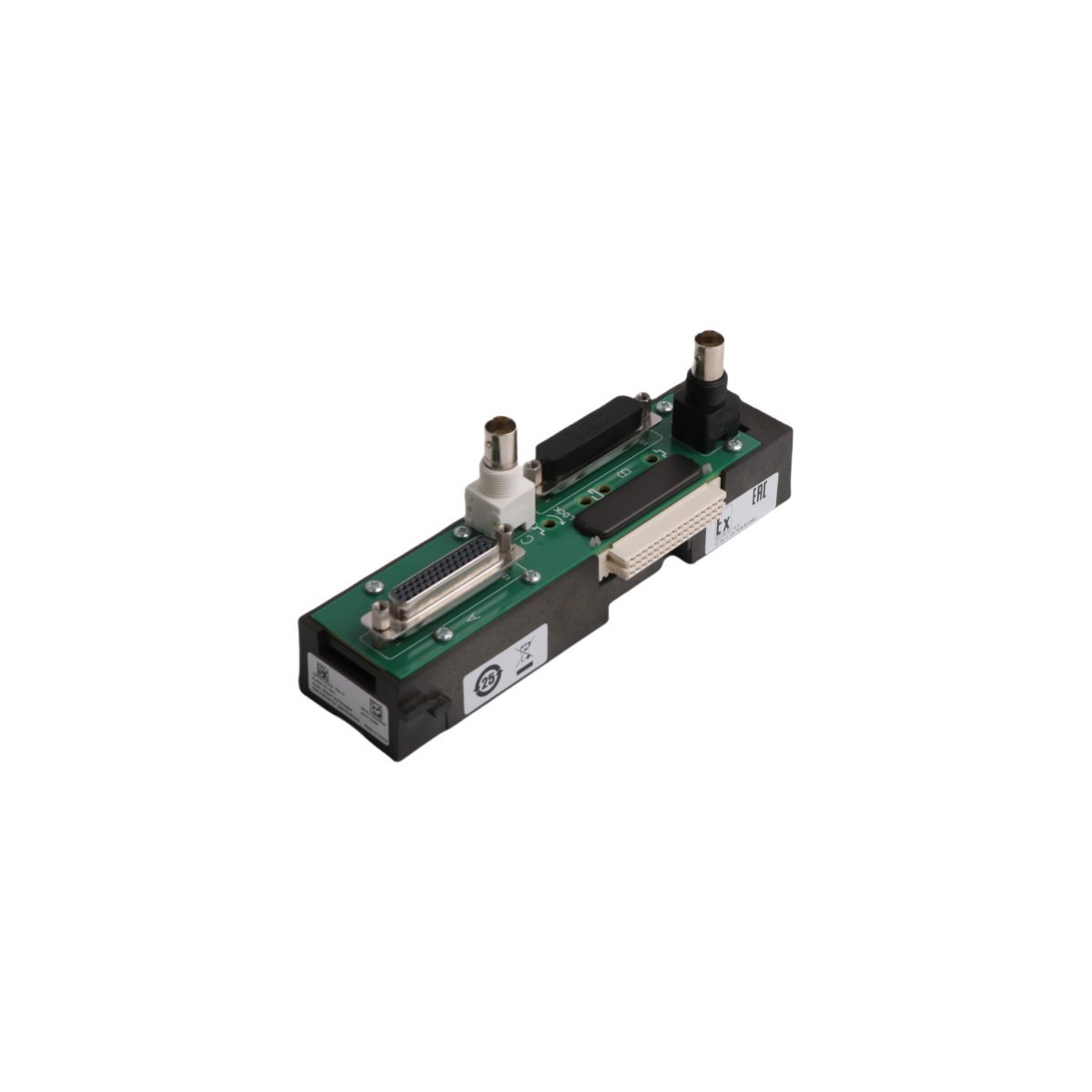

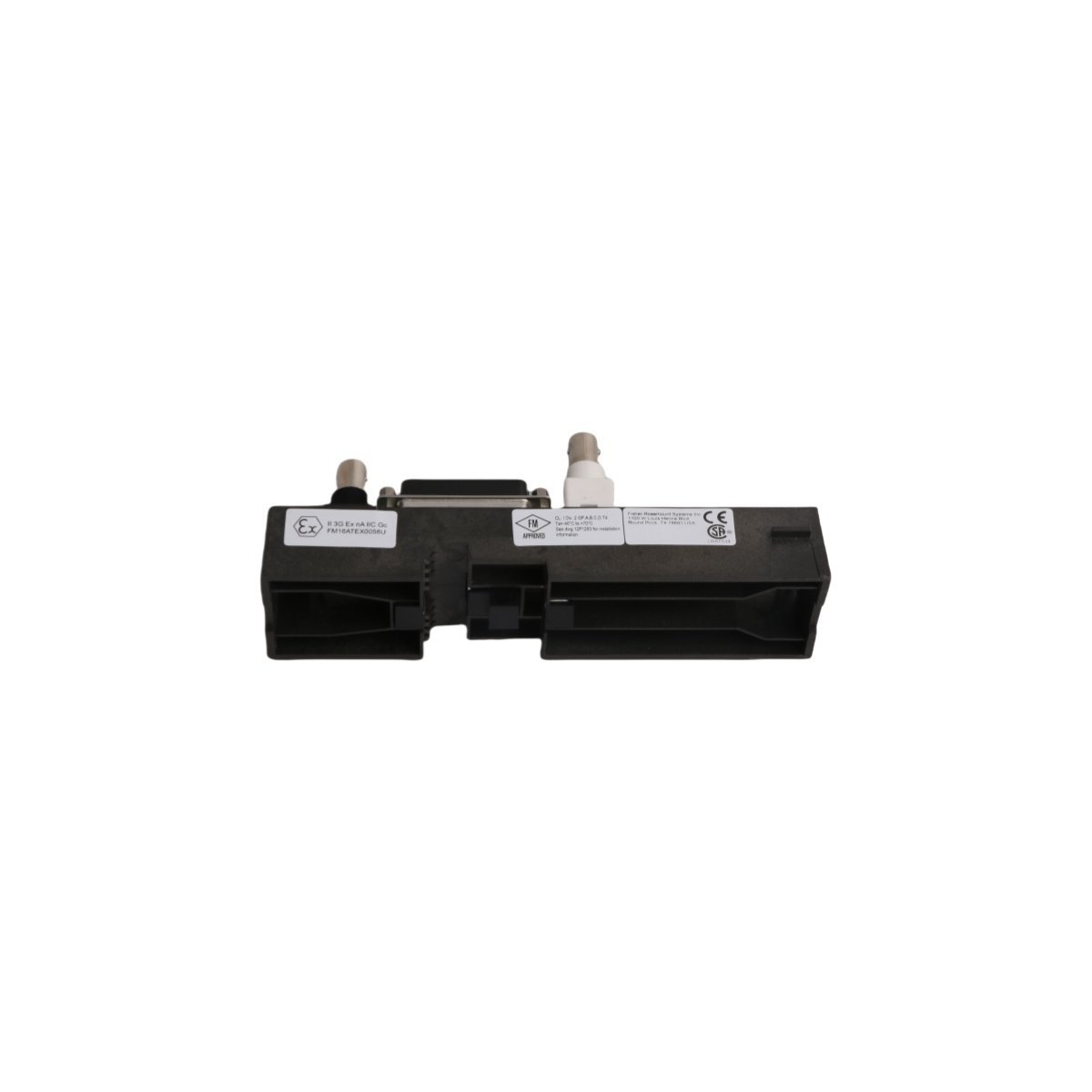

The Emerson KJ4001X1-NA1, also recognized by part number 12P3373X032, functions as a high-integrity Horizontal LocalBus Dual Right Cable Extender for the DeltaV M-series I/O subsystem. This specialized component enables the physical expansion of the LocalBus backbone to the right side of a carrier assembly. By providing a secure, low-latency bridge for both power and data, the extender allows engineers to scale their Distributed Control System (DCS) across multiple carriers while maintaining a unified communication architecture.

Operational Reliability and Power Distribution

Because critical processes depend on uninterrupted data flow, the KJ4001X1-NA1 is engineered to support a robust 12VDC power supply at 8A. This dual-cable configuration ensures that downstream I/O modules receive consistent voltage and sufficient current for high-density applications. Furthermore, the cable’s construction prioritizes signal integrity, effectively shielding sensitive LocalBus communications from the electromagnetic interference often found in dense industrial control cabinets.

Primary advantages of this LocalBus extender include:

• Extension of high-speed communication to right-hand I/O expansion carriers
• Support for modular system growth without complex rewiring
• Maintenance of redundant data paths to prevent single points of failure
• Optimized signal transmission for real-time process monitoring

Core Technical Specifications

• Brand: Emerson (DeltaV Series)
• Model Identifier: KJ4001X1-NA1
• Part Identification: 12P3373X032
• Module Category: Horizontal LocalBus Dual Right Cable Extender
• Voltage Capacity: 12 VDC
• Rated Current: 8.0 Amps
• Dimensions: 16.6 x 4.5 x 6.2 cm
• Unit Weight: 0.18 kg
• Manufacturing Origin: USA
• Compliance Standards: UL, CSA, CE, and CAN certified

Integration and Environmental Stability

The KJ4001X1-NA1 facilitates rapid system assembly through its user-friendly interface and modular design. Its compact footprint is specifically intended for space-constrained control environments, allowing for maximum I/O density within standard enclosures. Moreover, the hardware is built to operate reliably in challenging industrial climates, maintaining performance in non-temperate zones. By adhering to international safety protocols and certifications, this cable extender guarantees a high degree of interoperability and safety for global automation projects, ultimately improving long-term asset scalability and operational uptime.
