Description

Comprehensive Product Overview

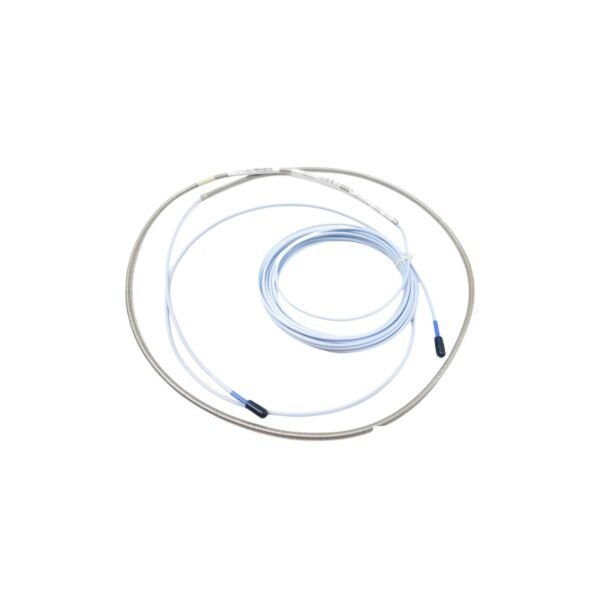

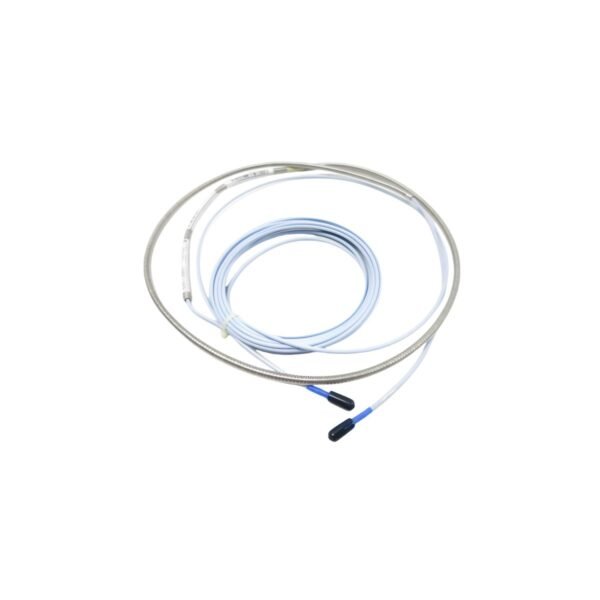

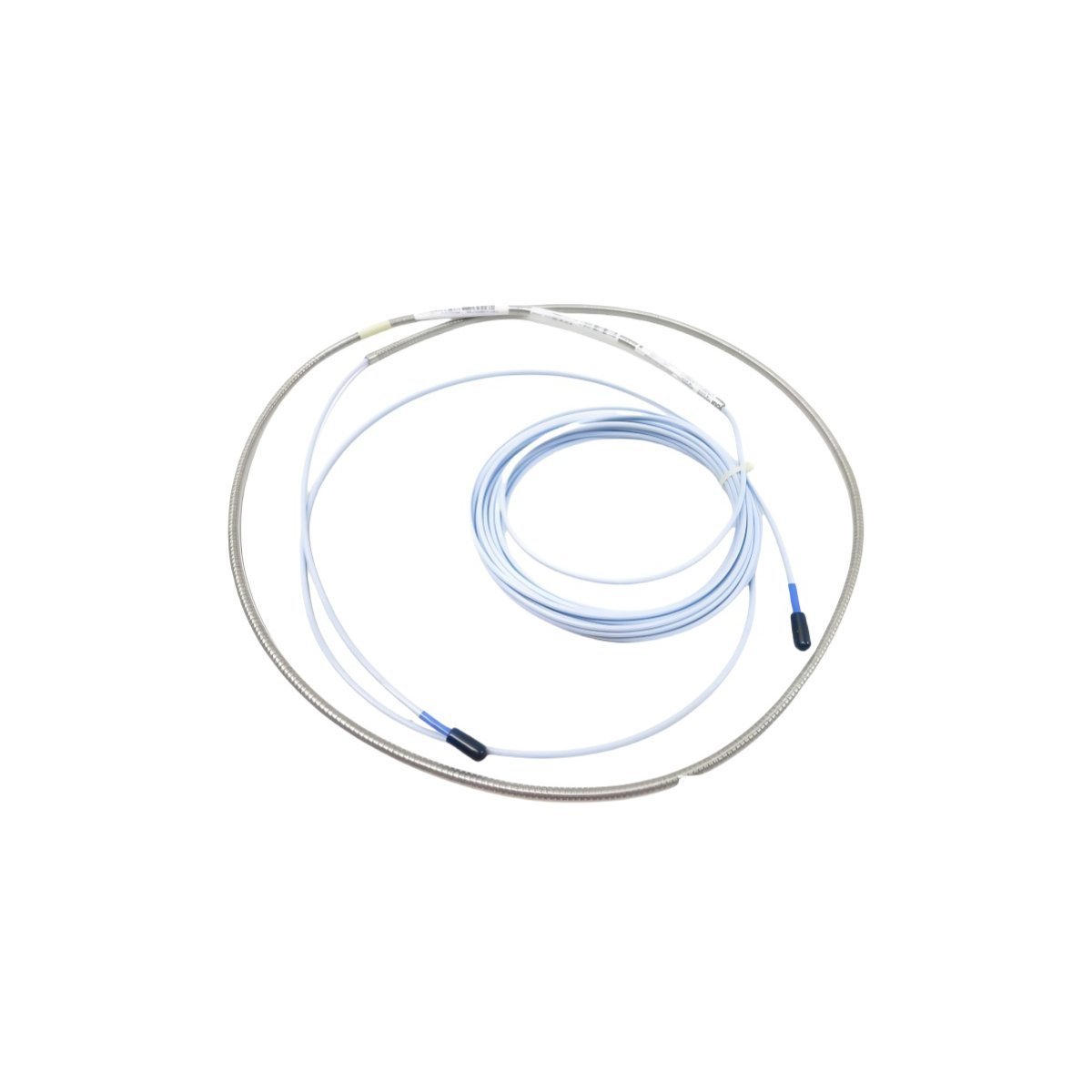

The Bently Nevada 129957-085-057-05 serves as a high-performance link within the 3300 XL 8mm Proximity Transducer System. Primarily, this extension cable facilitates the transmission of critical displacement and vibration signals from the transducer probe to the Proximitor Sensor. Because industrial environments often present physical obstacles, this cable provides the necessary reach while maintaining the rigorous electrical impedance required for accurate machinery diagnostics. Consequently, it functions as an indispensable component for monitoring the health of high-speed rotating equipment.

Key Technical Specifications

• Manufacturer: Bently Nevada (Baker Hughes)
• Model Number: 129957-085-057-05
• System Compatibility: 3300 XL 8mm Proximity Transducer System
• Cable Diameter: 8mm
• Insulation Material: High-grade Fluorinated Ethylene Propylene (FEP) / Teflon
• Environmental Rating: IP67-rated connector integrity
• Temperature Range: -51°C to +177°C (-60°F to +350°F) for standard industrial use
• Weight: 0.15 kg
• Total Length Configuration: Specifically calibrated for the 3300 XL series 5-meter or 9-meter system lengths

Operational Features and Environmental Resilience

Engineers specifically specify the 129957-085-057-05 because it offers superior mechanical protection and signal stability. Furthermore, the cable construction utilizes advanced shielding techniques to neutralize the effects of Radio Frequency Interference (RFI) and electromagnetic noise. Since reliability is paramount in Turbine Supervisory Instrumentation (TSI), the cable employs gold-plated brass ClickLoc connectors to ensure a secure, vibration-proof connection.

• Superior Insulation: Due to the implementation of Teflon coating, the cable resists degradation from moisture, corrosive chemicals, and lubricating oils.
• Mechanical Durability: In addition to its electrical properties, the cable features a robust design that permits routing through tight conduits without compromising signal conductors.
• Signal Precision: Because the 3300 XL system relies on precise voltage-to-distance conversion, this extension cable maintains a constant capacitance to avoid measurement drift.
• Application Versatility: This hardware excels in various sectors, including power generation, oil and gas, and wastewater treatment, where it monitors turbines, pumps, and gearboxes.

Industrial Implementation

While standard cables often succumb to thermal stress, the 129957-085-057-05 thrives in extreme conditions. Moreover, the integration of this cable into a 3300 XL system allows for a seamless “plug and play” installation, which significantly reduces labor time during maintenance outages. Therefore, by choosing this authentic Bently Nevada component, operators effectively minimize the risk of false trips or missed vibration events, ultimately safeguarding expensive capital assets.
