Description

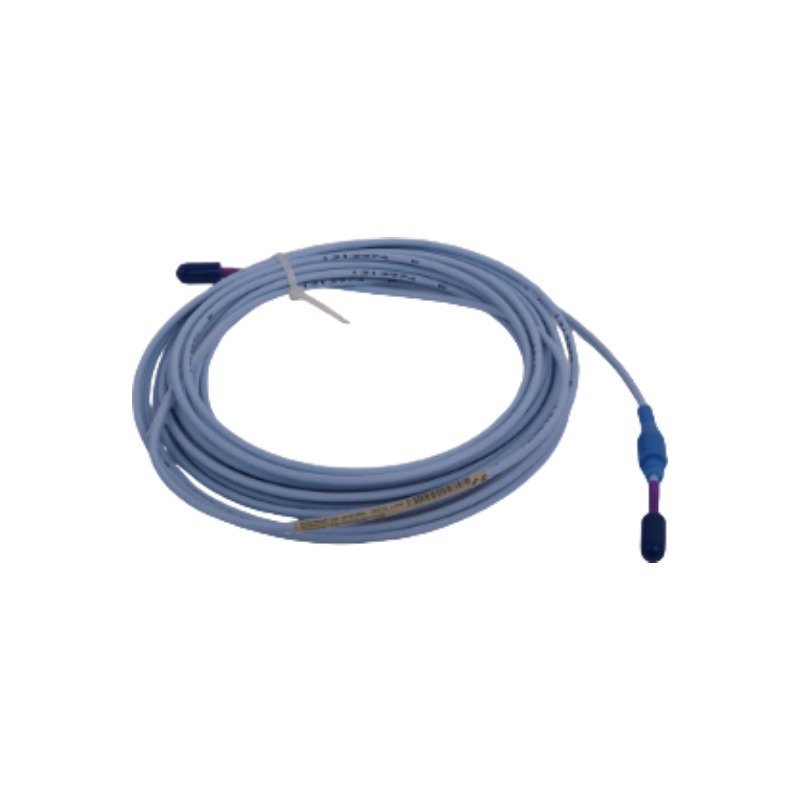

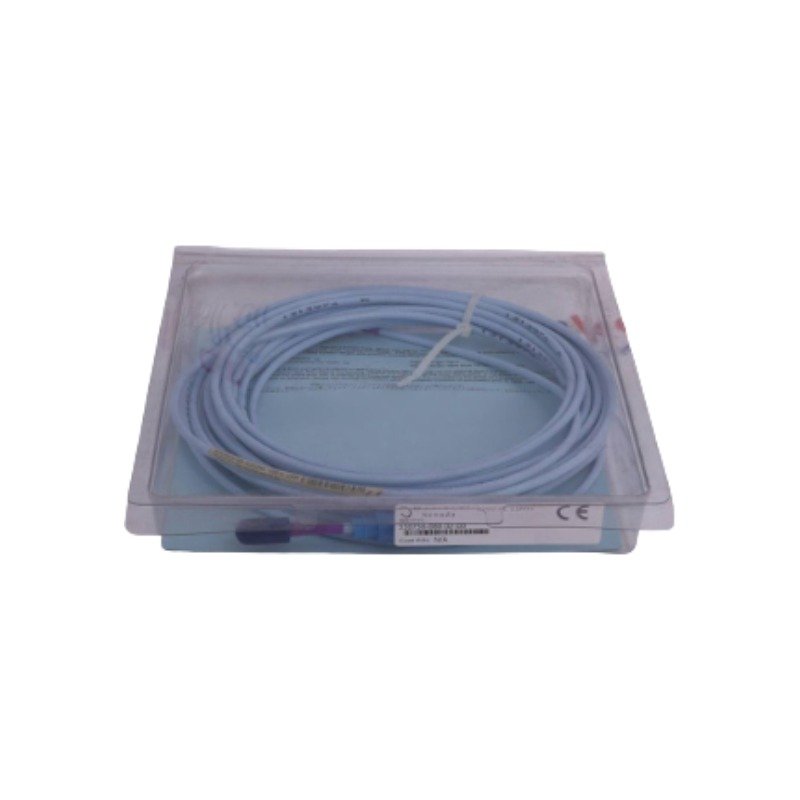

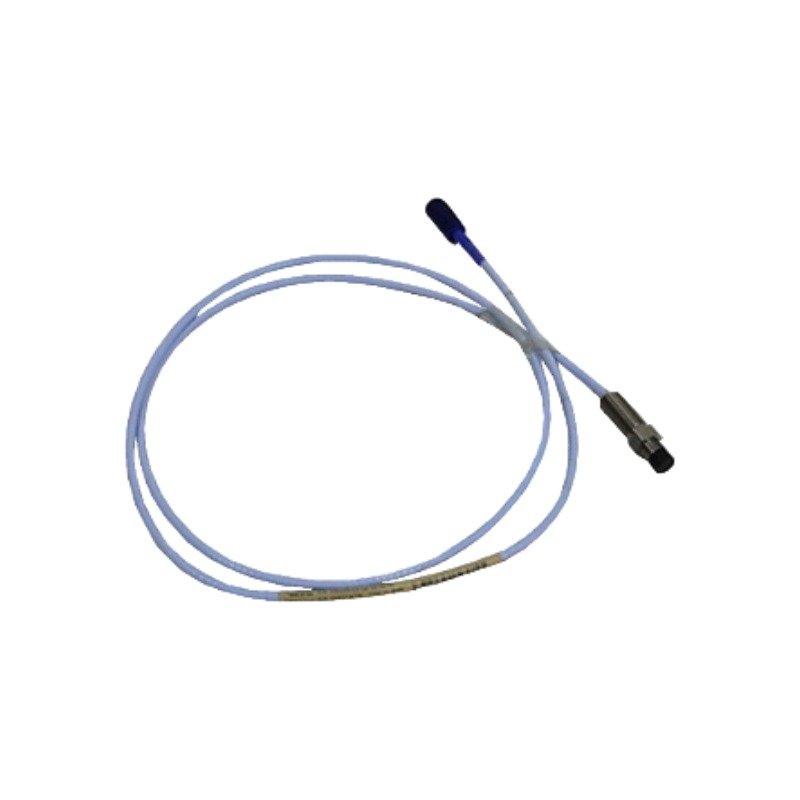

The Bently Nevada 330730-080-02-00, also cataloged as the 330730 Extension Cable, serves as the primary 330730 Extension Cable utilized to execute high-frequency RF signal transmission across 3300 XL 11 mm Proximity Transducer System platforms.

Hardware Specifications

Machinery Monitoring and TSI Characteristics

This hardware configuration directly drives exact eddy-current probe scaling within rotating machinery monitoring frameworks. Specifically, the balanced coaxial design maintains precise structural and electrical tuning, which successfully eliminates cross-talk suppression failures when technicians route the line through high-density conduit runs. Furthermore, the physical impedance matching provides instantaneous gap voltage validation. Consequently, the cable maintains stable targeting around -10 VDC operational centers and prevents the signal attenuation that typically degrades the standard 3.94 V/mm (100 mV/mil) scale factor required to evaluate rotor dynamics.

Frequently Asked Questions

Q: What does the -02 option code represent in the 330730-080-02-00 part number structure?

A: The -02 option specifies that the factory adds a flexible stainless steel armor layer over the coaxial cable core without pre-installing external connector protectors. Thus, this selection offers enhanced mechanical protection against crush and abrasion hazards in harsh fields.

Q: Does the stainless steel armor on this 8.0 meters assembly alter the total electrical length configuration?

A: No. The armor serves purely as an external mechanical defense shield. Therefore, the internal 75 ohm transmission core maintains the identical electrical length calibration needed to form a precise 9.0 meters total loop with a 1.0 meter probe.

Field Installation Guidelines

• Connector Engagement: Technicians must fully engage the connectors via the ClickLoc design interface. Finger-tighten the coupling mechanism until a physical click occurs, and avoid mechanical pliers to protect the internal 75 ohm contacts.
• Routing Radii: Always route the armored physical cable path with a minimum bend radius of 31.8 mm (1.25 in). Otherwise, over-bending distorts the external steel interlocks and risks crimping the internal coaxial line.
• Ground Isolation: Because this specific hardware option omits pre-installed connector protectors, technicians must manually apply silicone tape over the ClickLoc junction. This isolation stops physical contact with the machine housing and halts ground loops.
