Description

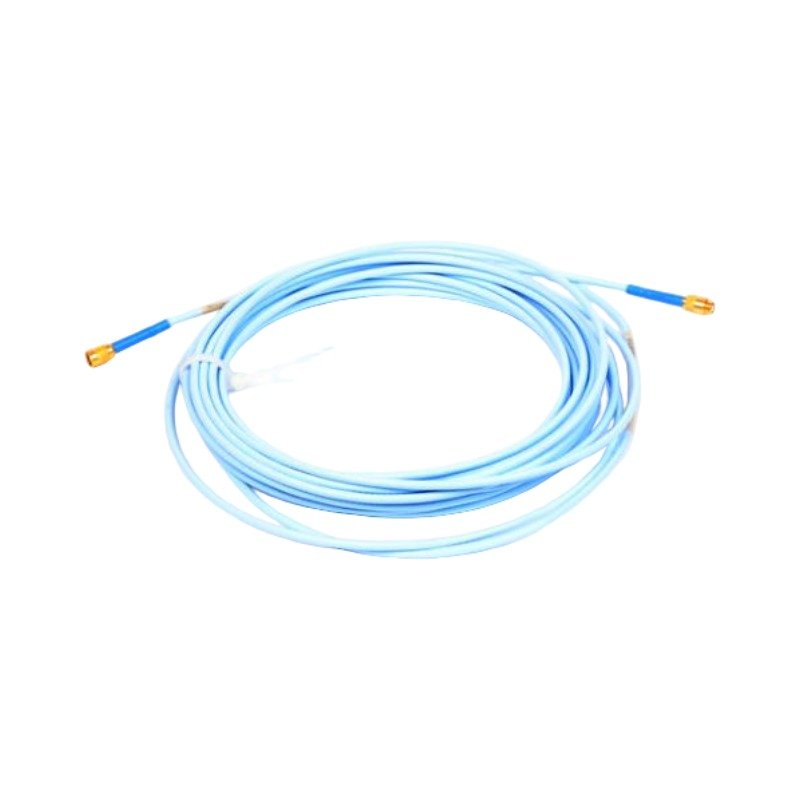

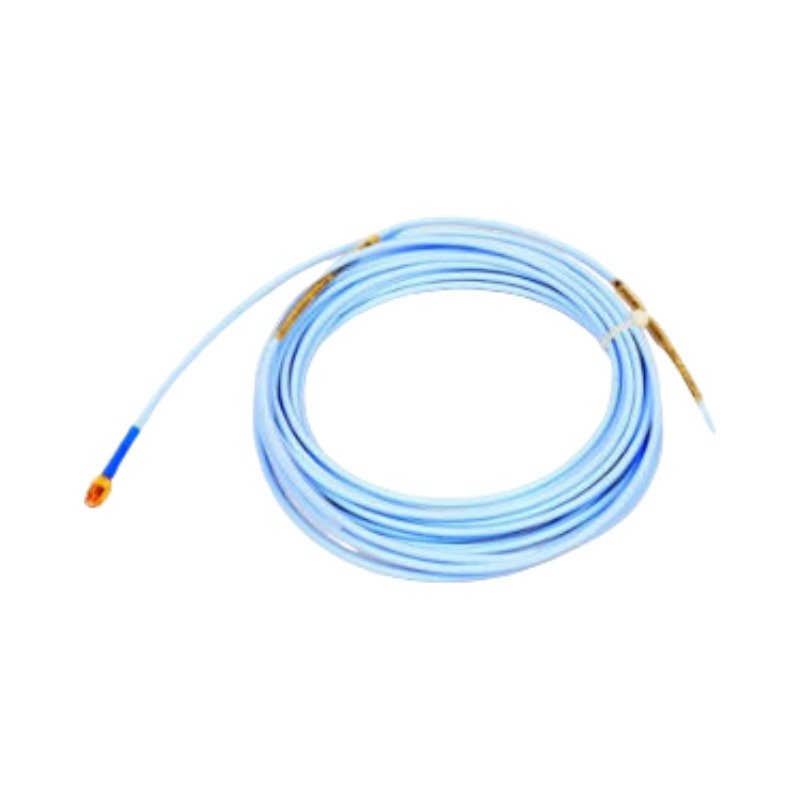

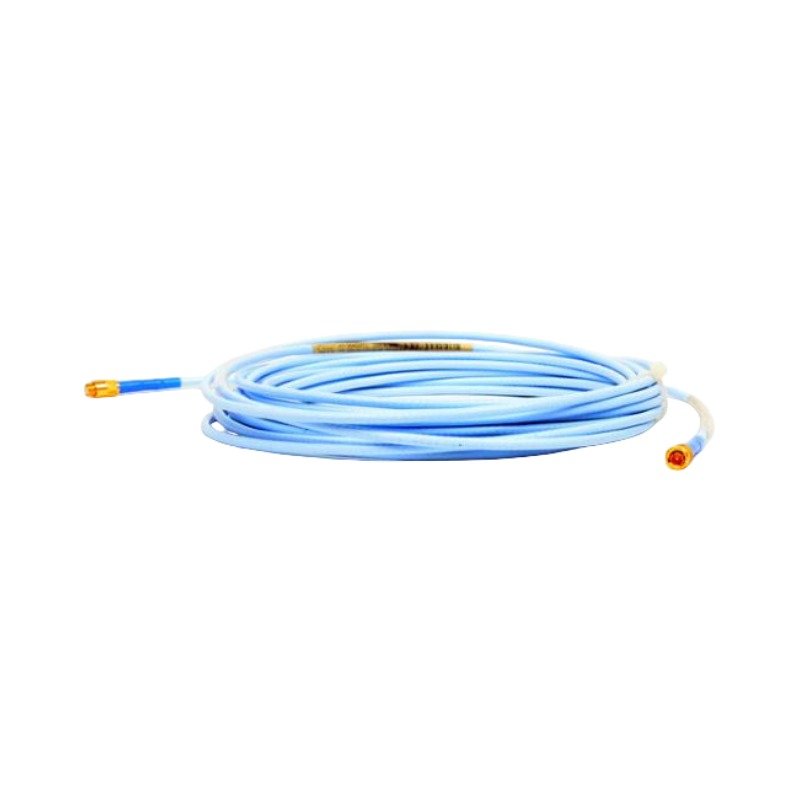

The Bently Nevada 330130-070-00-05, also cataloged as the Bently Nevada 330130 Standard Extension Cable, operates as a dedicated hardware component for high-frequency RF signal transmission within 3300 XL 8mm Proximity Transducer networks. The specialized $75\ \Omega$ triaxial cable links the primary eddy-current probe tip to the front-end Proximitor processing sensor. Consequently, the low-loss physical bridge ensures the uncompromised delivery of dynamic asset telemetry up to localized monitoring racks without phase shifting or signal impedance mismatching.

Suffix Breakdown & Model Matrix

Hardware Specifications

Machinery Monitoring and TSI Characteristics

The matched electrical length profile stabilizes loop impedance values, facilitating precise eddy-current probe scaling across critical high-speed machine trains. Consequently, the active coaxial conduction path permits uninterrupted gap voltage validation (-10 VDC targets) by maintaining linear signal transmission directly through the physical sensor string. Furthermore, the high-density internal shielding braid provides strict cross-talk suppression and radio frequency interference (RFI) rejection. As a result, this design isolates proximity signal loops from adjacent industrial electromagnetic fields to ensure absolute measurement integrity during the tracking of complex rotor dynamics.

Frequently Asked Questions

Q: Does this proximity extension cable require dedicated field or bench calibration?

A: No, the 3300 XL series features complete component interchangeability across its standard manufacturing lines. Therefore, technicians can insert any 330130-070-00-05 cable into a matching system configuration without executing time-consuming manual recalibration procedures, provided the cumulative hardware lengths match the system profile.

Q: Can maintenance teams alter or mix total system lengths when utilizing this 7-meter cable?

A: No, the total combined electrical length of the probe and extension cable must match the specific parameters of the target Proximitor sensor (typically 9.0 meters total for a 7.0-meter cable paired with a 2.0-meter probe). Modifying or mismatching these system lengths alters the core calibration curves, skewing machine protection readings.

Field Installation Guidelines

1. Route the cable through the designated internal conduit tracks, confirming that all bends respect the minimum 25.4 mm physical bending radius limit to avoid internal trace stress.
2. Join the miniature coaxial fittings using finger pressure until the integrated ClickLoc connectors snap firmly together, establishing a constant locking interface that resists machine vibration.
3. Apply localized silicone tape or protective sleeves over exposed connection points to block oil ingress, taking care to isolate the outer shield from contacting any machine frame ground tracks.
4. Maintain a parallel routing clearance boundary of at least 300 mm away from high-voltage alternating current supply lines to suppress inductive background noise injection.
