Description

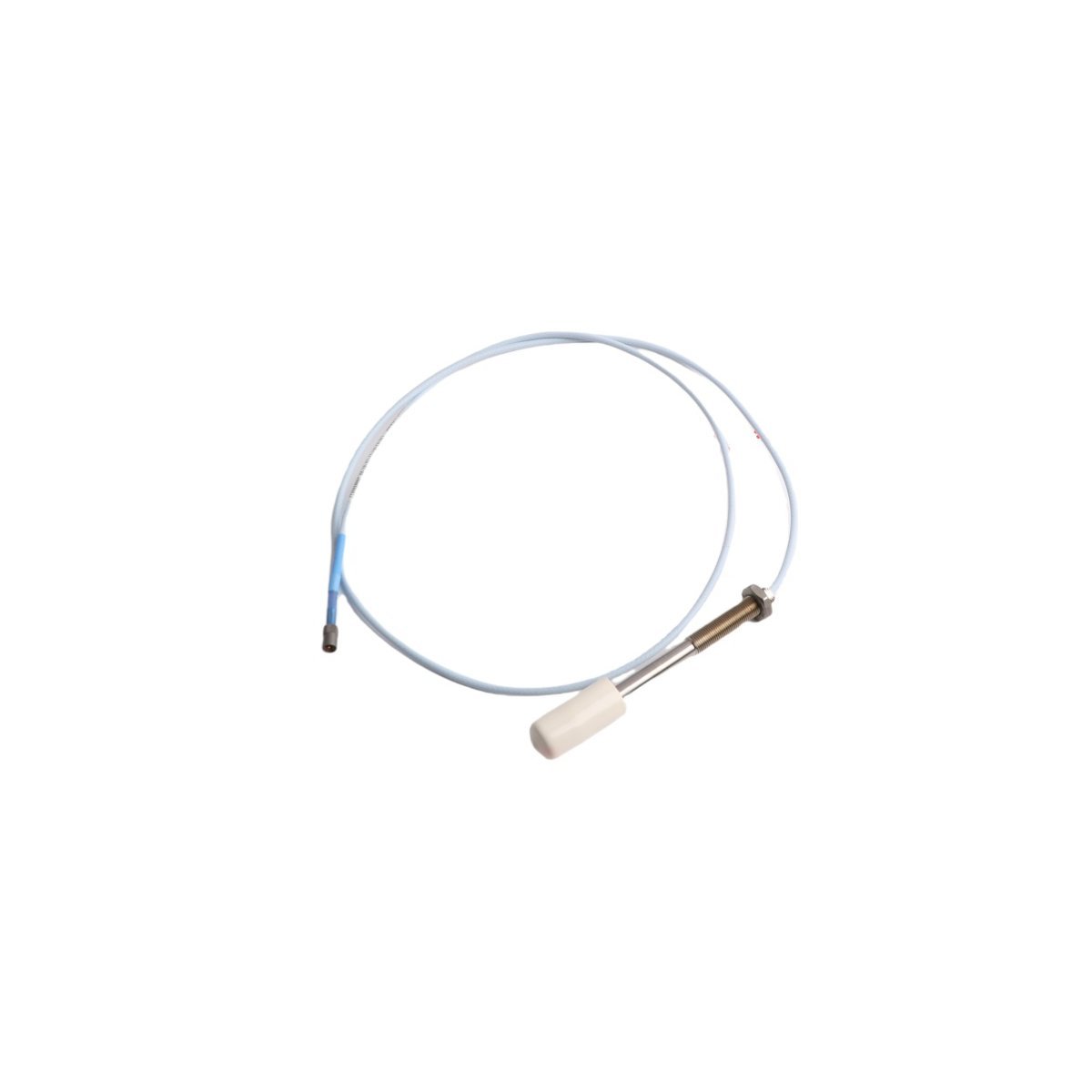

The Bently Nevada 330103-07-12-10-02-00 functions as a high-precision eddy current proximity sensor. It measures the physical gap between the probe tip and a rotating shaft. This non-contacting transducer provides critical data for radial vibration and axial position monitoring. Consequently, the system detects mechanical shaft movement with sub-micron resolution. Reliable data output ensures the continuous protection of high-speed turbomachinery components.

Engineering Configuration

This 3300 XL series probe features a 3/8-24 UNF threaded housing for standard industrial installations. The specific configuration includes a 0.7-inch unthreaded section and a 1.2-inch total case length. Furthermore, the unit incorporates a 1.0-meter integrated cable protected by a FEP jacket. The miniature coaxial ClickLoc connector ensures a secure, moisture-resistant electrical link. High-quality polyphenylene sulfide (PPS) materials protect the sensing tip from harsh chemical exposure.

Industrial Asset Application

Maintenance engineers deploy this probe on critical rotating equipment in diverse power and oil sectors. It performs exceptionally well on steam turbines, large centrifugal compressors, and heavy-duty pumps. Moreover, the 330103-07-12-10-02-00 integrates seamlessly with Bently Nevada 3500 monitoring racks. The sensor provides the necessary inputs for automated machinery shutdown logic and safety alarms. This capability prevents catastrophic equipment failure during sudden mechanical imbalances.

Installation and Reliability

The 3300 XL 8mm system provides a linear range of approximately 2.0 mm (80 mils). Its design simplifies the gapping process through highly predictable voltage-to-distance scaling. Because the probe follows strict API 670 standards, it meets global requirements for machinery protection. Maintenance teams can install this model quickly using standard brackets and junction boxes. Using this reliable sensor significantly improves overall plant safety and reduces unplanned maintenance costs.

Technical Data Specifications

Core Performance Benefits

• Non-contact sensing technology eliminates mechanical wear on the probe and shaft surface.
• Gold-plated connectors maintain superior signal conductivity in humid or corrosive environments.
• Exceptional thermal stability minimizes measurement drift during intense machine temperature cycles.
• Rugged cable construction resists degradation from industrial oils and cooling fluids.
• Standardized 3300 XL architecture allows for easy component interchangeability during maintenance.
