Description

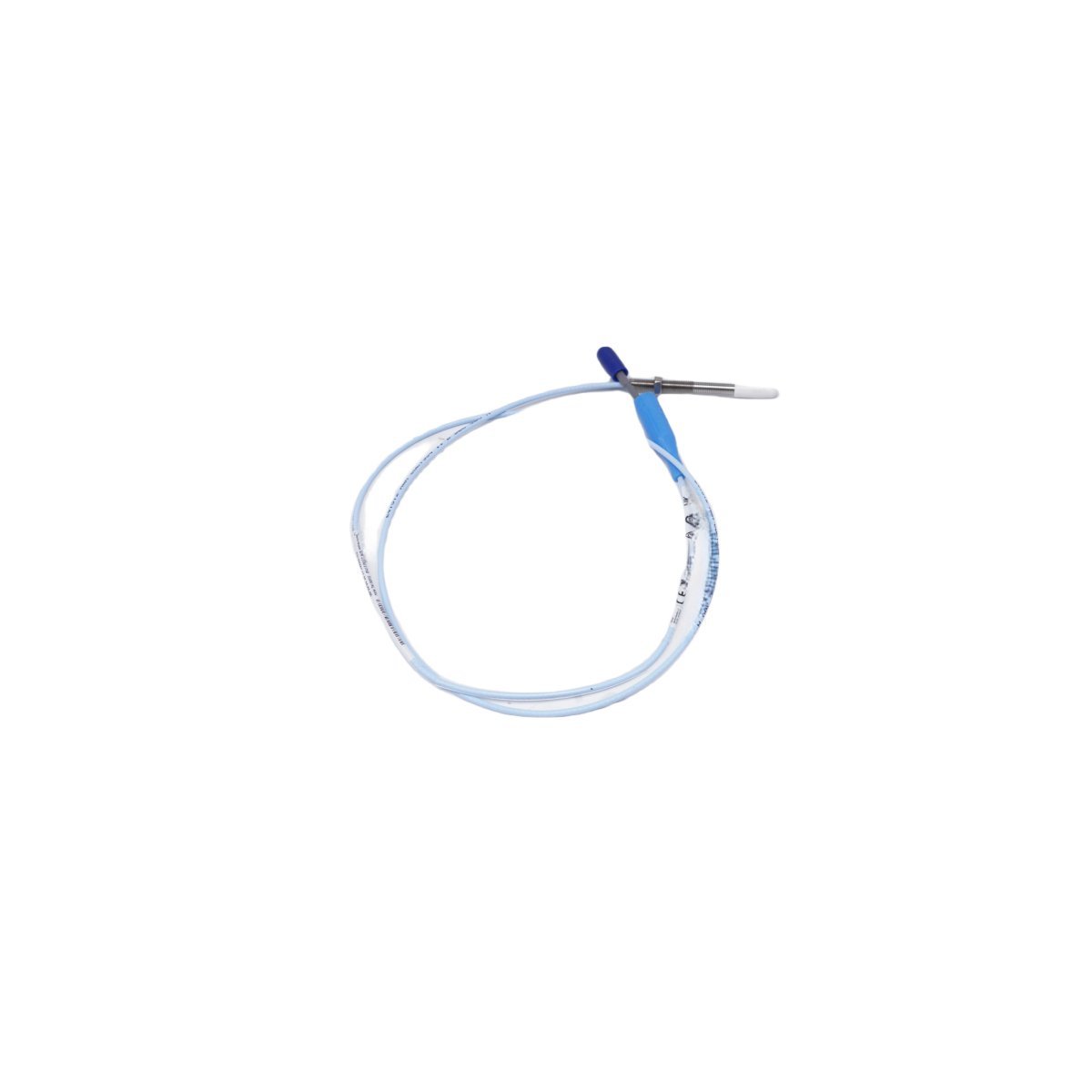

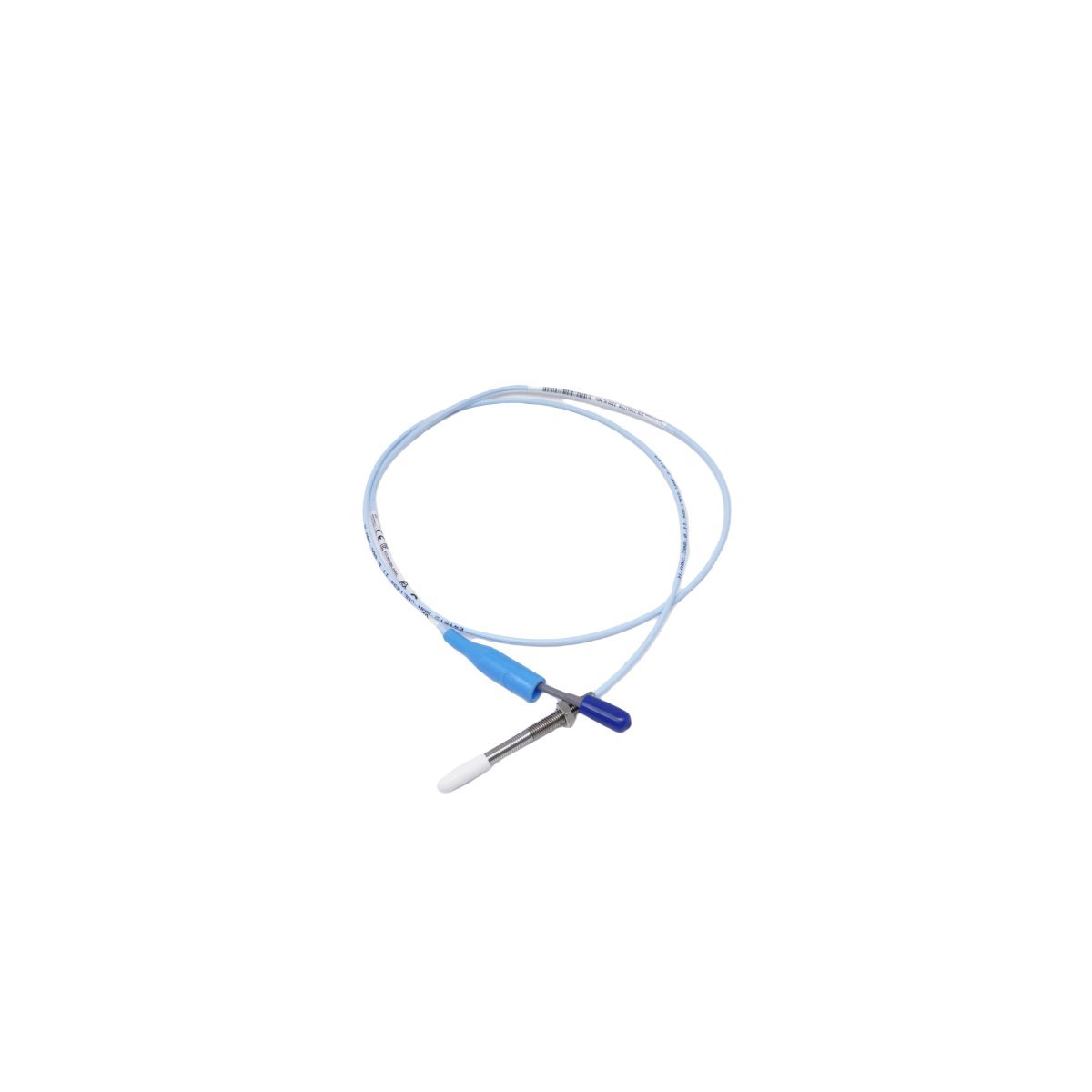

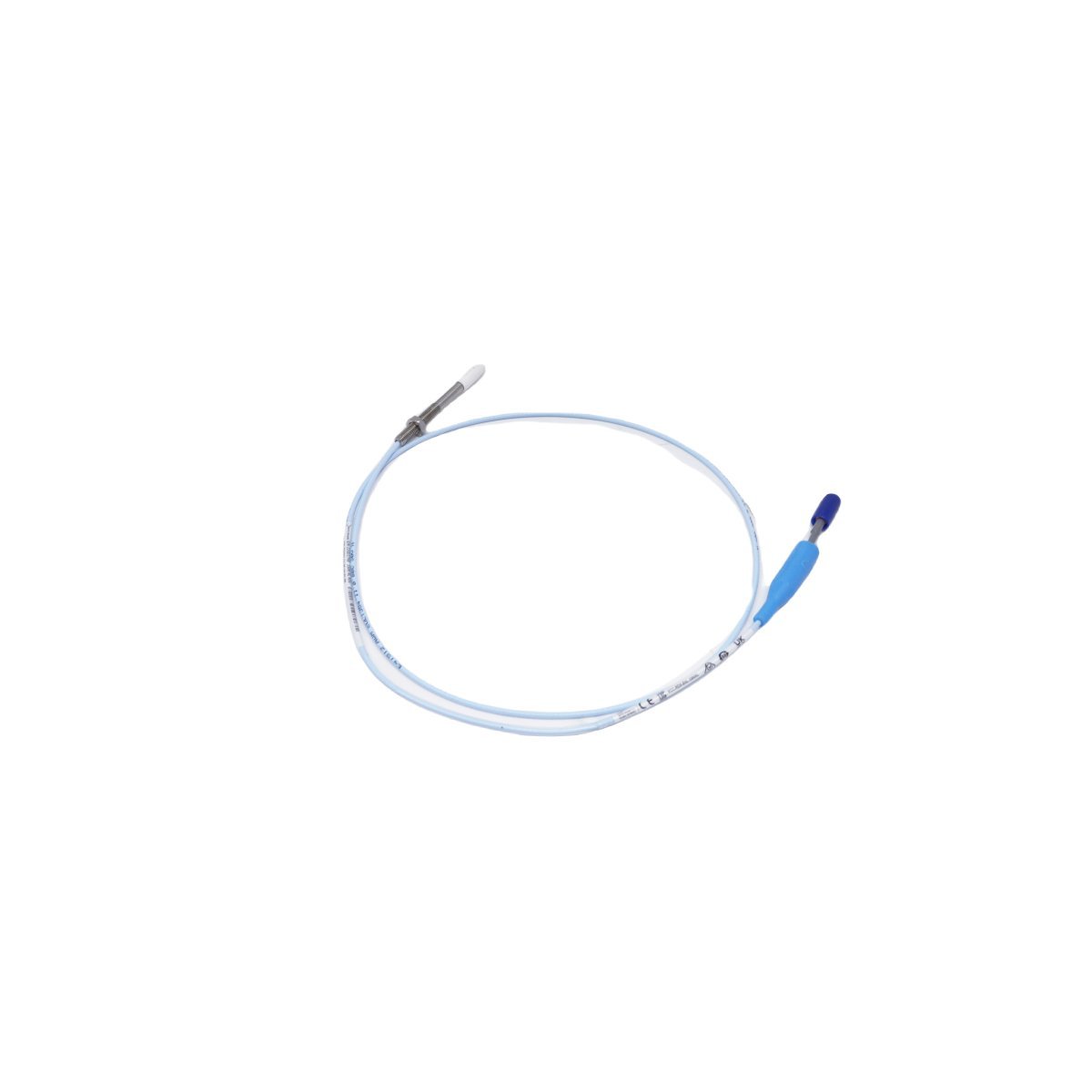

The Bently Nevada 330901-11-25-10-01-00 operates as a high-precision displacement sensor for industrial machinery. It utilizes eddy current technology to observe shaft vibration and position without physical contact. This transducer specifically targets applications with small mounting clearances or restricted target sizes. Consequently, it provides accurate diagnostic data for maintaining optimal machine health. The sensor delivers a linear electrical output proportional to the gap between the probe and target.

Structural and Design Features

This model utilizes a 1/4-28 UNF threaded housing suitable for tight mechanical interfaces. The specific configuration features a 1.1-inch unthreaded section and a 2.5-inch total case length. Furthermore, the assembly includes a 1.0-meter integrated cable with a miniature coaxial connector. A high-strength polyphenylene sulfide (PPS) tip protects the internal electronics from industrial contaminants. These robust materials ensure stable performance in environments with high moisture and temperature fluctuations.

Industrial Asset Applications

Maintenance professionals deploy this probe in compact rotating machinery across the energy sector. It performs reliably on small centrifugal pumps, cooling fans, and auxiliary turbines. Moreover, the sensor fits perfectly into high-speed shafts where standard 8mm probes cannot fit. The 330901 series integrates seamlessly with the 3500 machinery protection system racks. These capabilities make it essential for real-time asset monitoring and automated safety shutdowns.

System Reliability and Integration

The 3300 NSv system offers a robust solution for diverse machinery health diagnostics. Its design simplifies the calibration process through predictable voltage-to-distance scaling. Because the probe follows rigorous industrial standards, it provides consistent results worldwide. Maintenance teams benefit from fast installation using standard mounting brackets and junction boxes. Using this sensor significantly reduces the risk of unexpected mechanical failure and production downtime.

Product Specifications

Core Operational Advantages

• Non-contact sensing eliminates mechanical friction and extends the lifespan of the probe.
• Compact dimensions allow for installation in confined internal machine spaces.
• Gold-plated coaxial connectors maintain signal integrity by resisting chemical corrosion.
• Advanced thermal stability prevents measurement drift during significant temperature cycles.
• Shielded cable insulation reduces noise interference from nearby high-voltage industrial motors.
