Description

The Bently Nevada 330103-04-13-10-02-00 functions as a high-precision eddy current sensor. It monitors the dynamic and static distance between a probe tip and a target shaft. This non-contacting transducer provides essential data for radial vibration and axial position analysis. Consequently, the sensor allows for early detection of shaft misalignment or bearing degradation. These insights ensure the structural integrity of high-speed rotating assets.

Hardware Configuration

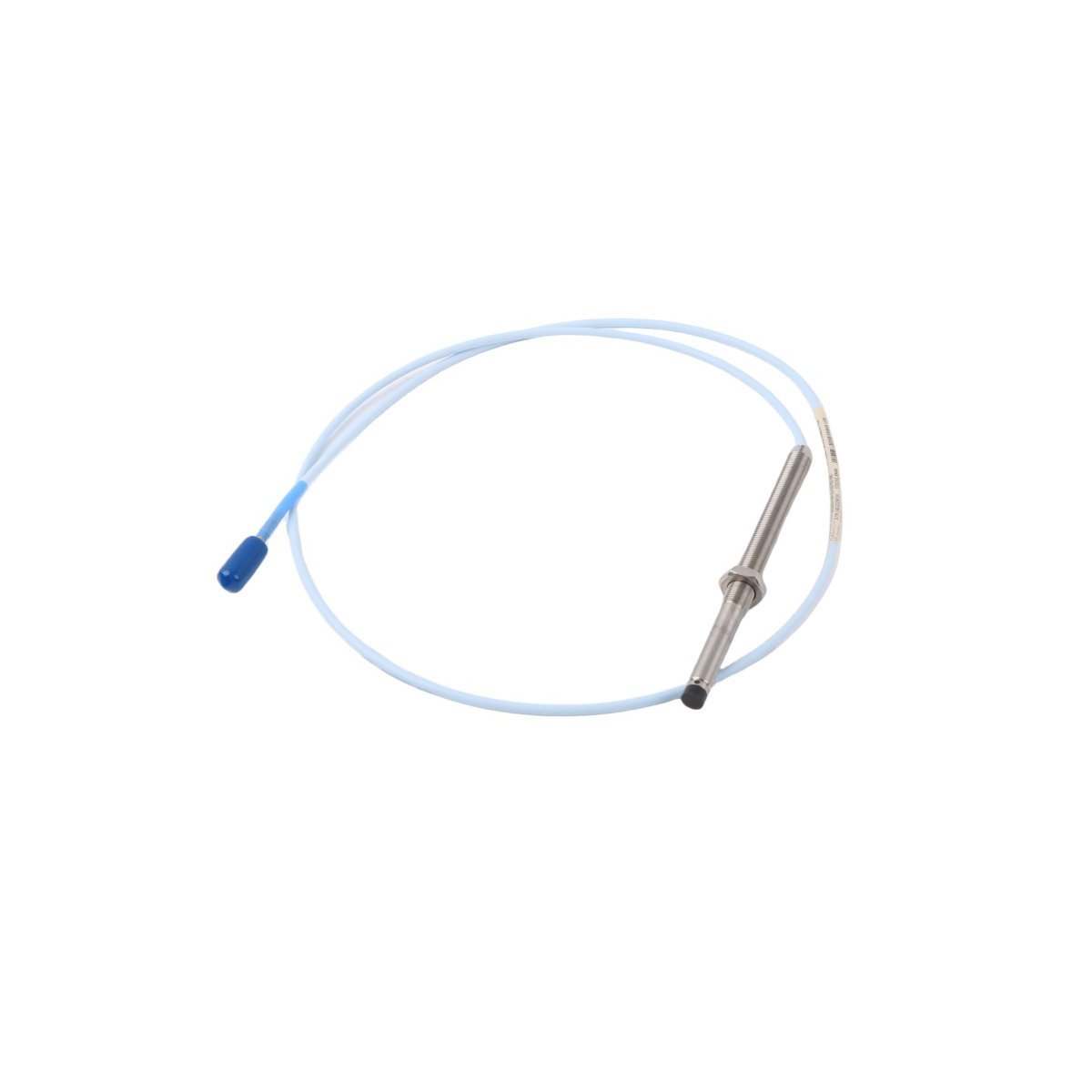

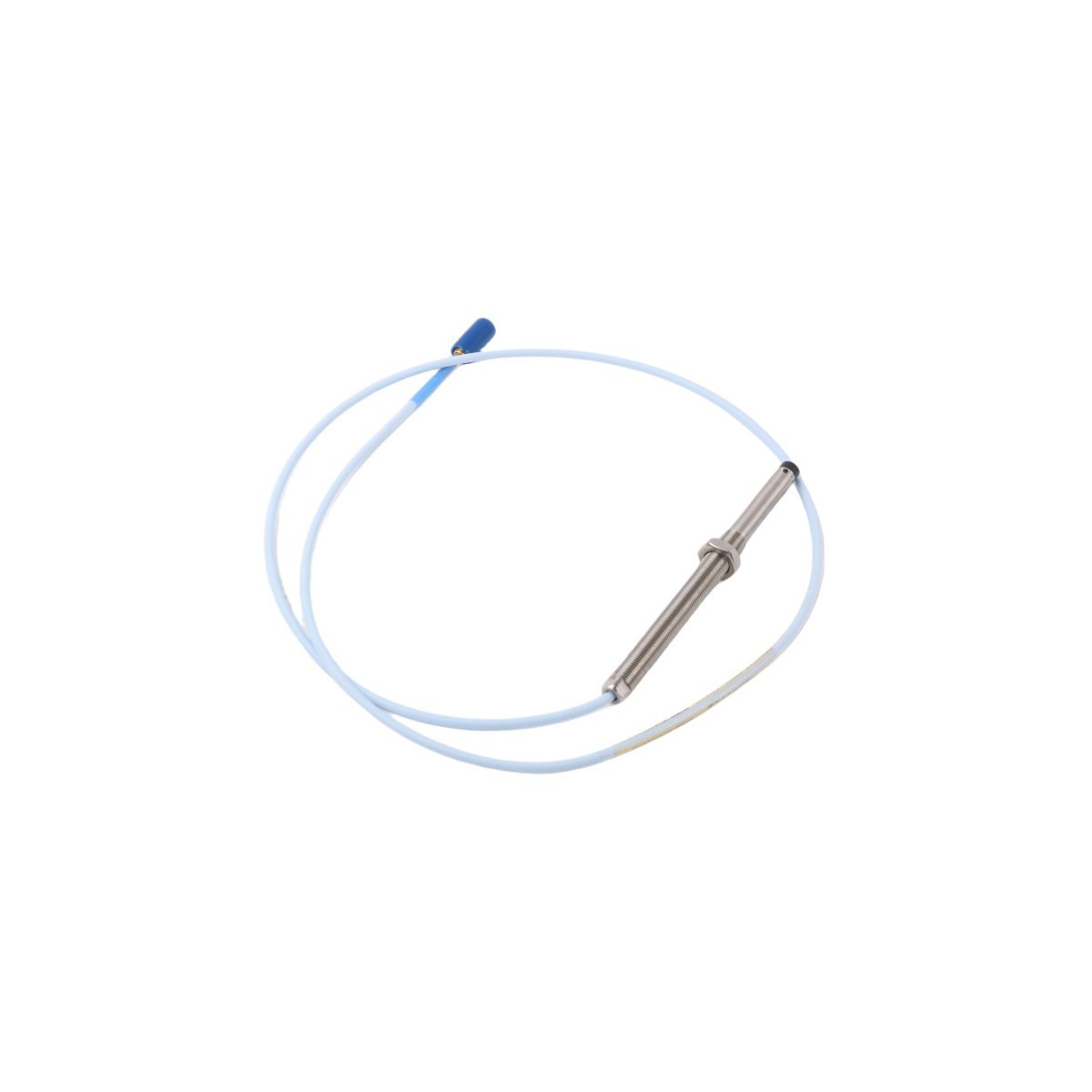

This 3300 XL series probe features a 3/8-24 UNF thread for standard industrial mounting. The specific configuration includes a 0.4-inch unthreaded length and a 1.3-inch total case length. Additionally, the unit incorporates a 1.0-meter integrated cable with a miniature coaxial ClickLoc connector. The polyphenylene sulfide (PPS) tip resists chemical exposure and extreme temperatures. These robust materials guarantee stable signal output in hazardous plant environments.

Machinery Protection Applications

Maintenance teams deploy this proximity sensor across diverse Turbomachinery Instrumentation (TSI) applications. It monitors critical equipment such as centrifugal compressors, steam turbines, and large motors. Furthermore, the probe functions perfectly within 3500 Series machinery protection systems. Its high sensitivity enables precise diagnostic reporting for asset managers. The rugged construction supports continuous operation in power generation and refining sectors.

Reliability and Integration

The 3300 XL system delivers exceptional resolution for complex machinery health diagnostics. Its design allows for easy installation using various bracket configurations and housings. Because the sensor offers a wide linear range, it accommodates significant shaft thermal expansion. This flexibility reduces the need for frequent recalibration during plant turnarounds. Reliable monitoring with this probe significantly lowers the risk of unplanned outages.

Product Specifications

Key Performance Advantages

• Non-contact sensing eliminates physical friction and mechanical wear during measurement.
• Gold-plated connectors provide superior electrical conductivity and prevent chemical corrosion.
• Shielded cable design reduces interference from nearby high-voltage electrical equipment.
• Full interchangeability with other 3300 XL components simplifies inventory management.
• Advanced thermal stability maintains measurement accuracy despite fluctuating casing temperatures.
