Description

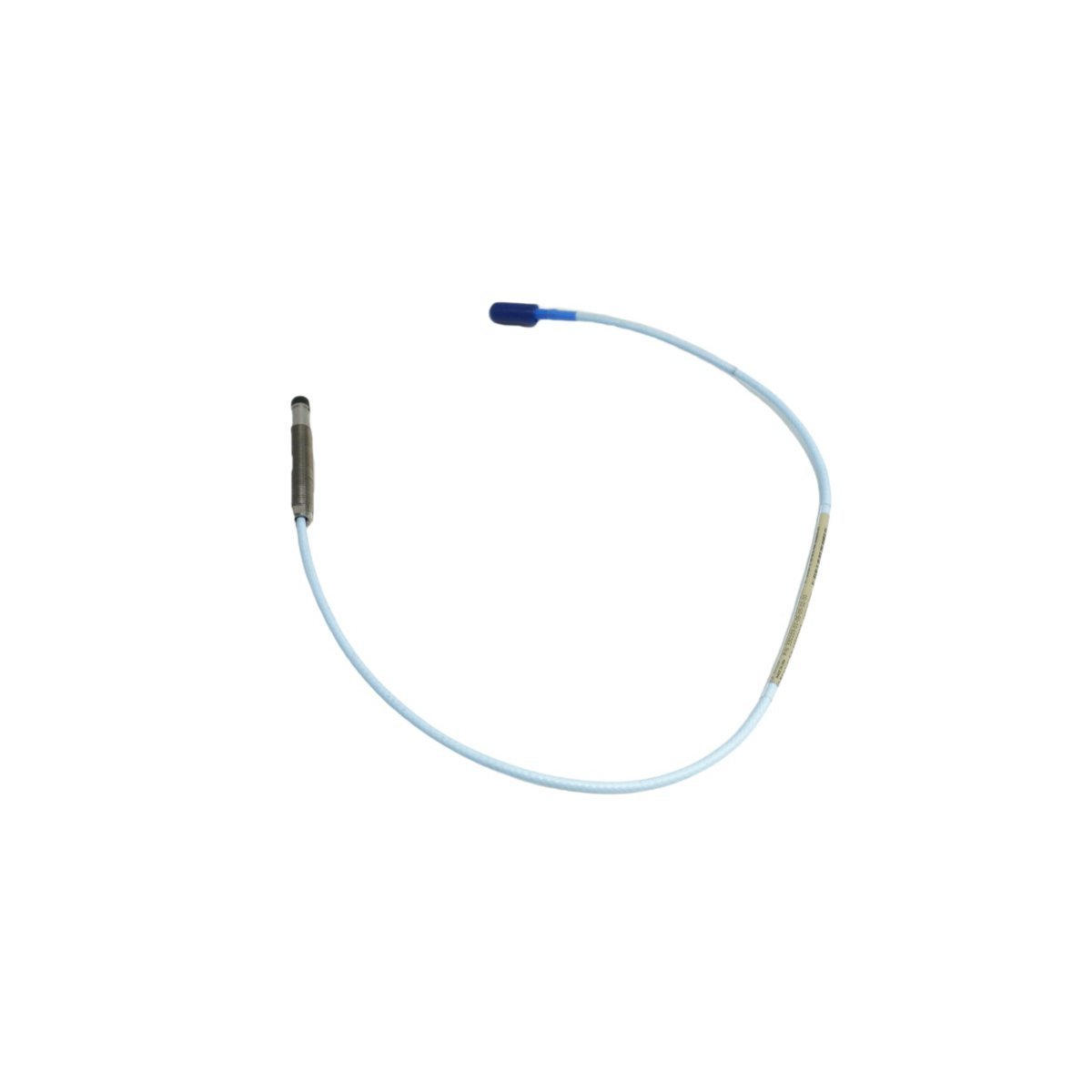

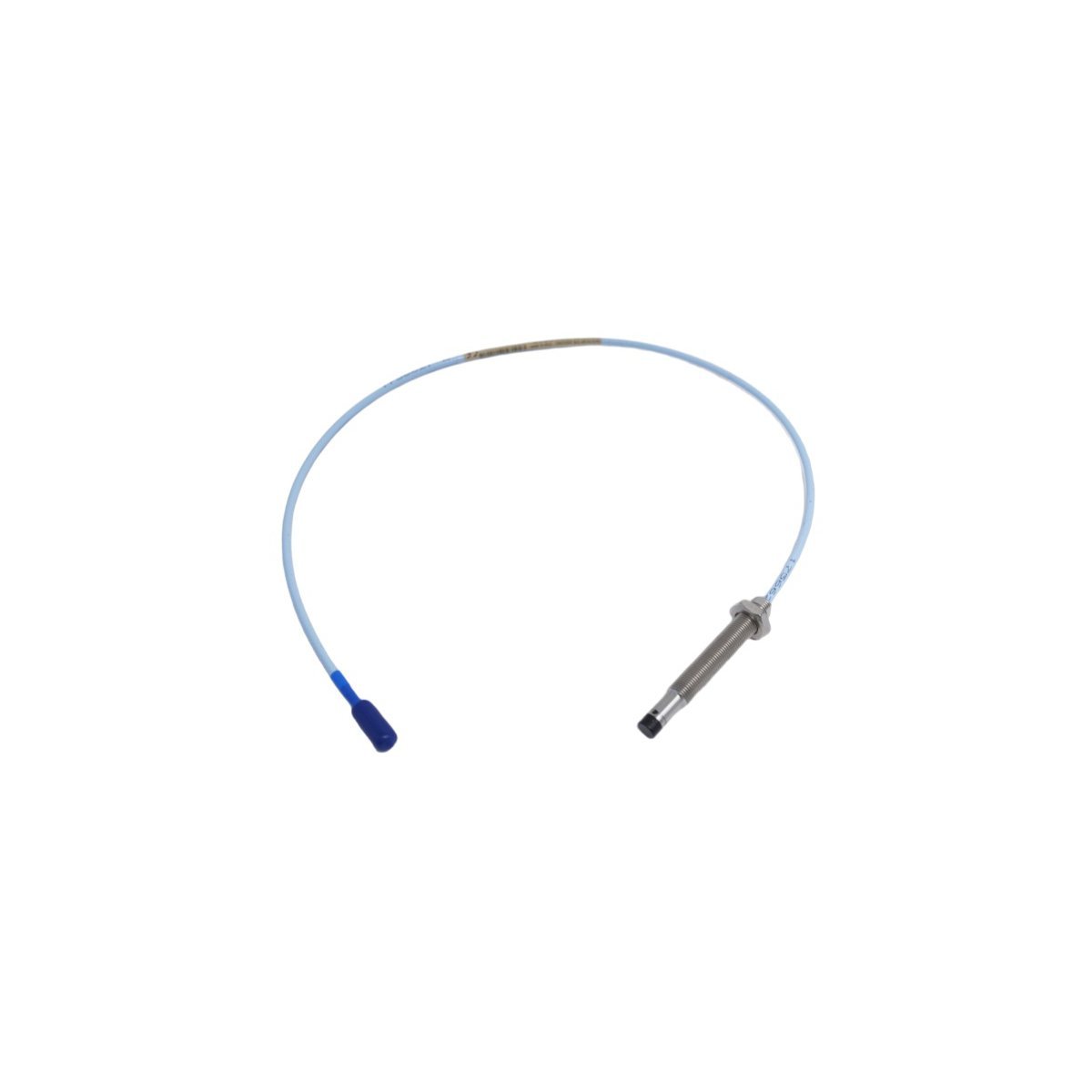

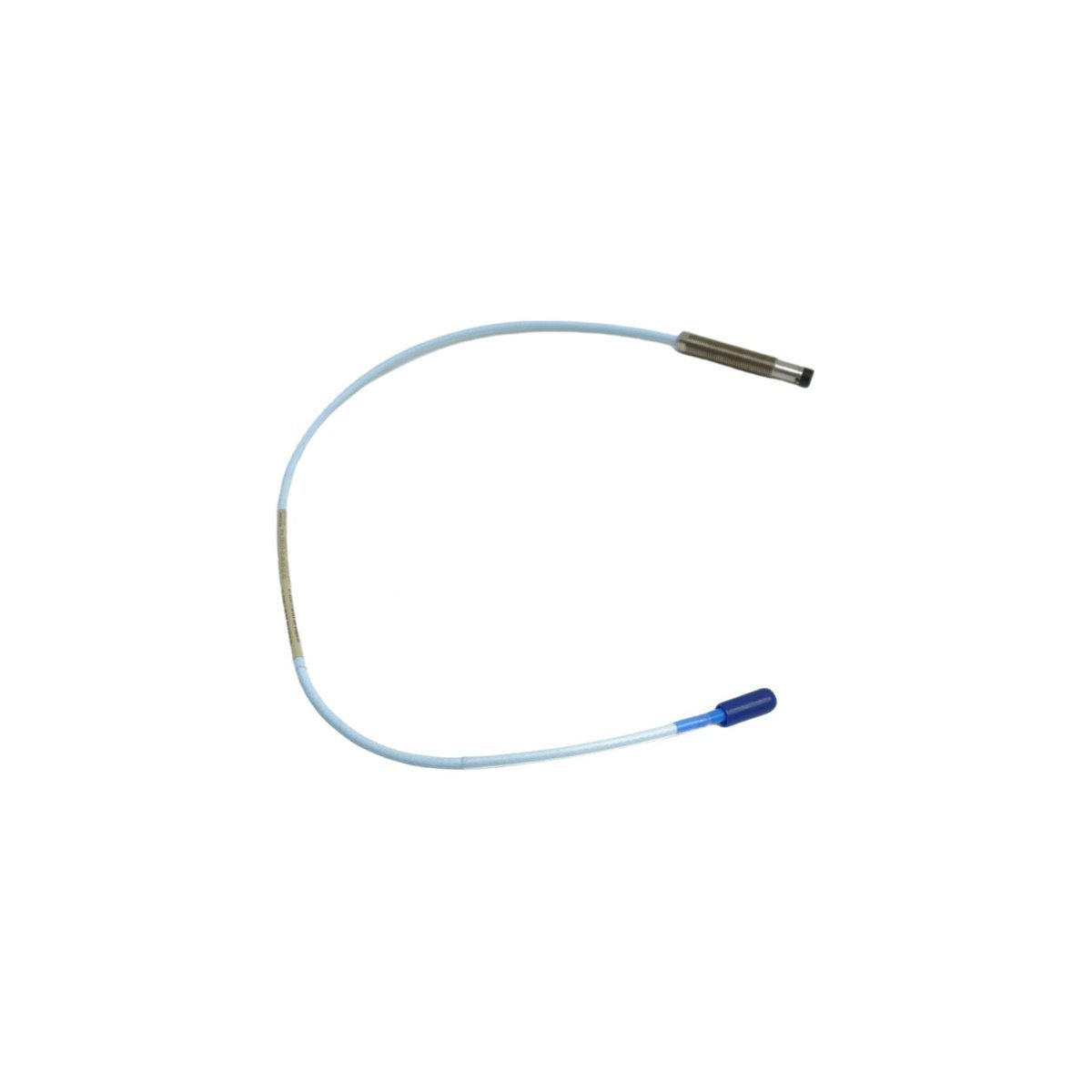

The Bently Nevada 330103-01-09-50-02-00 belongs to the industry-standard 3300 XL series. This 8 mm proximity probe measures shaft vibration and position with extreme accuracy. It converts distance between the tip and target into a proportional voltage signal. Consequently, plant operators can monitor radial displacement and axial thrust in real time. This sensor provides the critical data necessary for early machinery fault detection. It also integrates seamlessly with 3500 series monitoring racks.

Robust Mechanical Configuration

This specific model features a 3/8-24 UNF threaded case for secure mounting. The “01” unthreaded length and “09” overall case length define its physical dimensions. Furthermore, the probe utilizes a 5.0-meter integrated cable without miniature coaxial protectors. The tip consists of high-performance polyphenylene sulfide (PPS) to resist chemical degradation. This material choice ensures stability even during significant temperature fluctuations in the field.

Critical Machinery Protection

Engineers typically deploy the 3300 XL system on high-speed turbines and compressors. It strictly follows API 670 standards for linear range and thermal stability. Because it tolerates harsh industrial environments, the probe excels in power plants and refineries. The 5.0-meter system length eliminates the need for external extension cables in specific setups. This reduces signal attenuation and simplifies the overall installation process.

Operational Reliability

The 330103-01-09-50-02-00 provides a stable 7.87 V/mm (200 mV/mil) output. This consistency remains true even when operating in high-temperature turbine housings. By providing reliable gap voltage data, it assists in proper sensor positioning. Maintenance teams can trust this hardware for long-term monitoring of mission-critical assets. Investing in this proximity probe ensures the highest level of protection for expensive rotating machinery.

Essential Technical Specifications

Advantages and Key Features

• Advanced probe tip design offers superior resistance to oil and moisture.
• Standardized calibration allows for easy replacement without heavy system reconfiguration.
• Thick cable jacketing protects the internal signal core from mechanical abrasion.
• Gold-plated brass connectors ensure high-level conductivity and corrosion resistance.
• Precise linear range supports accurate measurements across diverse shaft speeds.
