Description

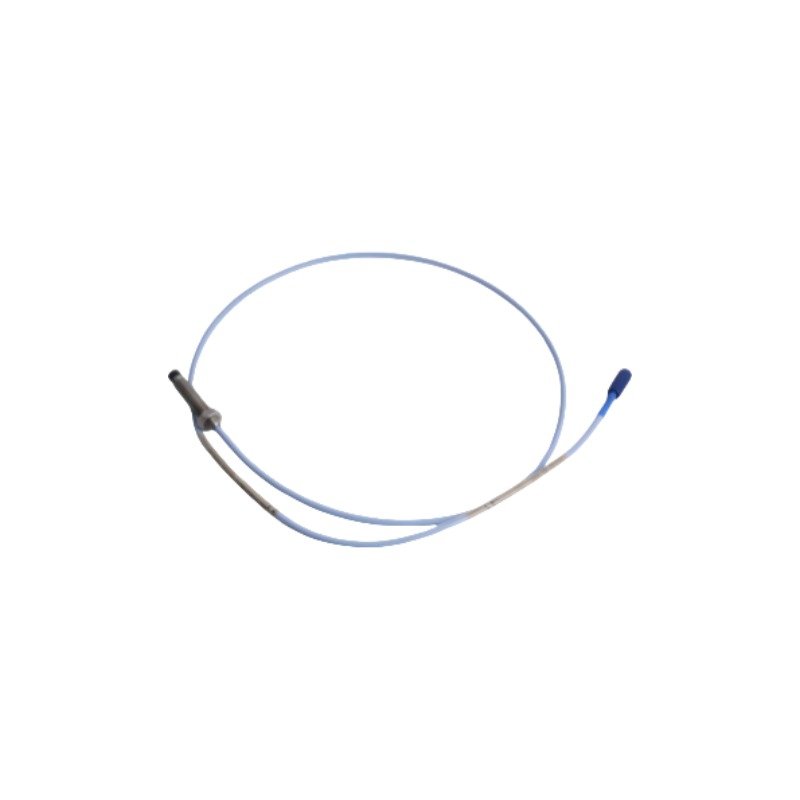

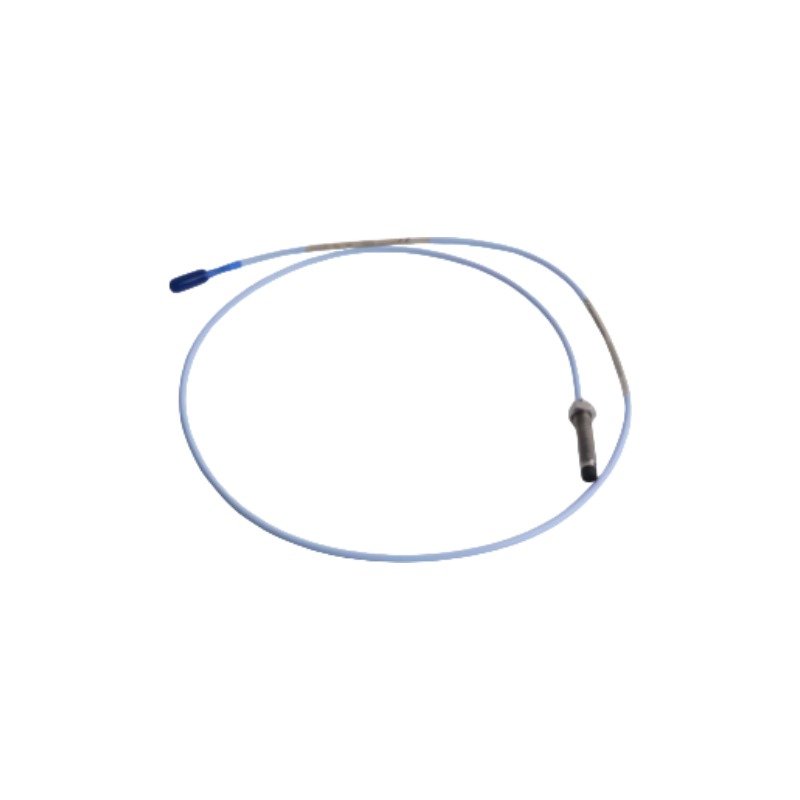

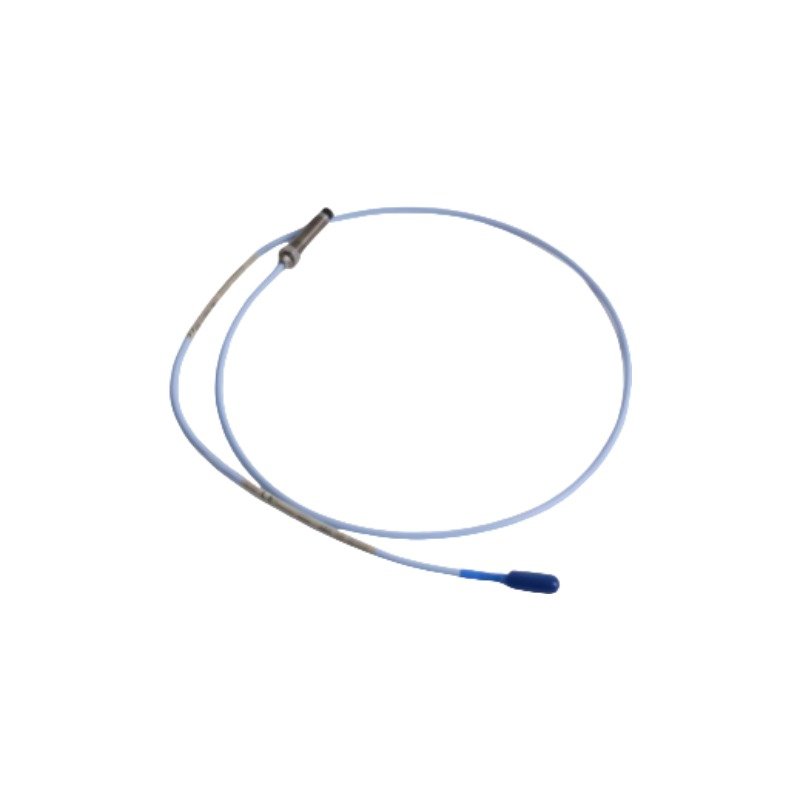

The Bently Nevada 330101-00-18-10-02-05 represents a standard 3300 XL 8 mm proximity sensor with English threads. Industrial facilities deploy this probe within a complete transducer system to measure fluid-film bearing displacement, shaft vibration, and structural phase reference data on rotating machinery.

Hardware Specifications

Transducer Calibration and Gap Voltage Validation

To establish the linear range centerpoint, field technicians must execute precise gap voltage validation during mechanical commissioning. Specifically, technicians calibrate the sensor to target a nominal -10 VDC gap voltage. Consequently, this voltage tracks the exact physical midpoint of the eddy-current probe scaling matrix. By securing this alignment, the system captures accurate rotor dynamics data and simultaneously maintains high cross-talk suppression when operators deploy multiple proximity probes in close proximity.

Frequently Asked Questions

Q: How does the 1.0-meter total probe length affect the configuration of the loop?

A: The 3300 XL system enforces total electrical matching length rules. Because this probe measures exactly 1.0 meter, technicians must pair it with a 4.0-meter or 8.0-meter extension cable. As a result, this loop satisfies the 5.0-meter or 9.0-meter total system parameters mandatory for the corresponding Proximitor Sensor.

Q: What environmental conditions does the “05” approval option cover?

A: The “05” option signifies Multiple Approvals from global bodies (such as ATEX, IECEx, and CSA). Consequently, this rating certifies the hardware for safe operation inside intrinsically safe or zone-classified hazardous environments when wired to compliant monitoring monitors.

Field Installation Guidelines

• Always verify that the target surface area meets the minimum diameter requirements to completely contain the eddy-current field generated by the 8.0 mm tip.
• Achieve proper thread engagement during insertion; follow standard industrial practices to prevent cross-threading the English probe case into the machine housing.
• Route the unarmored coaxial cable using dedicated conduit or tray systems to prevent severe pinching, stretching, or sharp kinks below the minimum bend radius.
• Pull the protective insulation sleeves completely over the final connector interface to isolate the internal coaxial system from problematic machine ground loops.
