Description

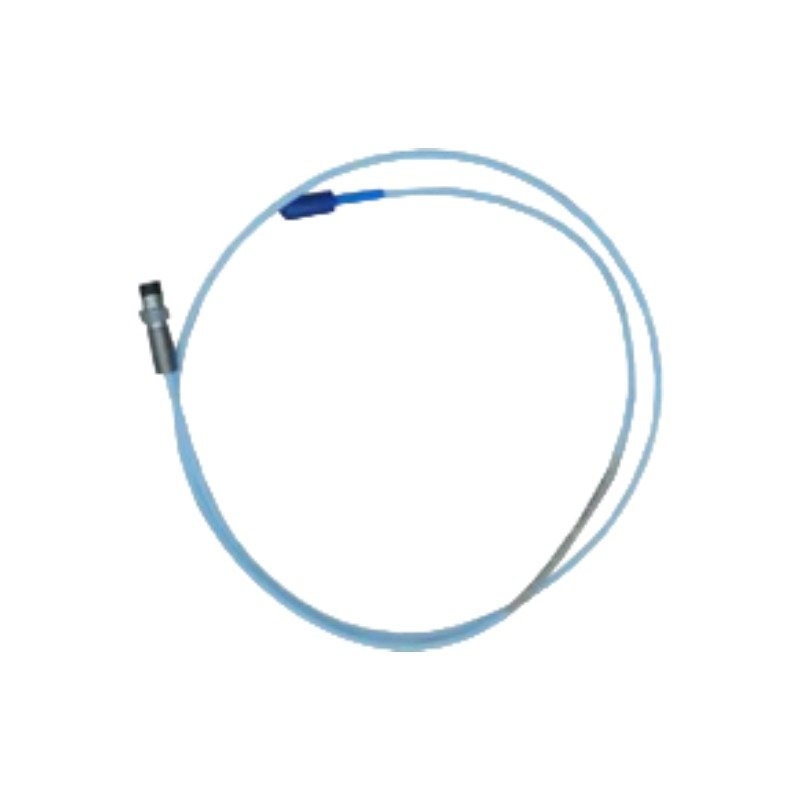

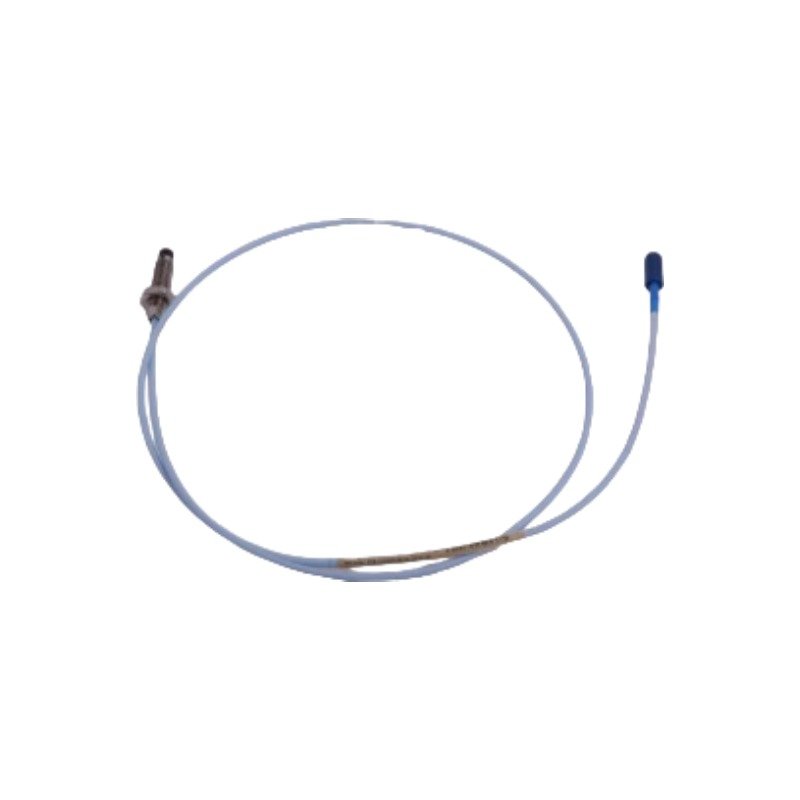

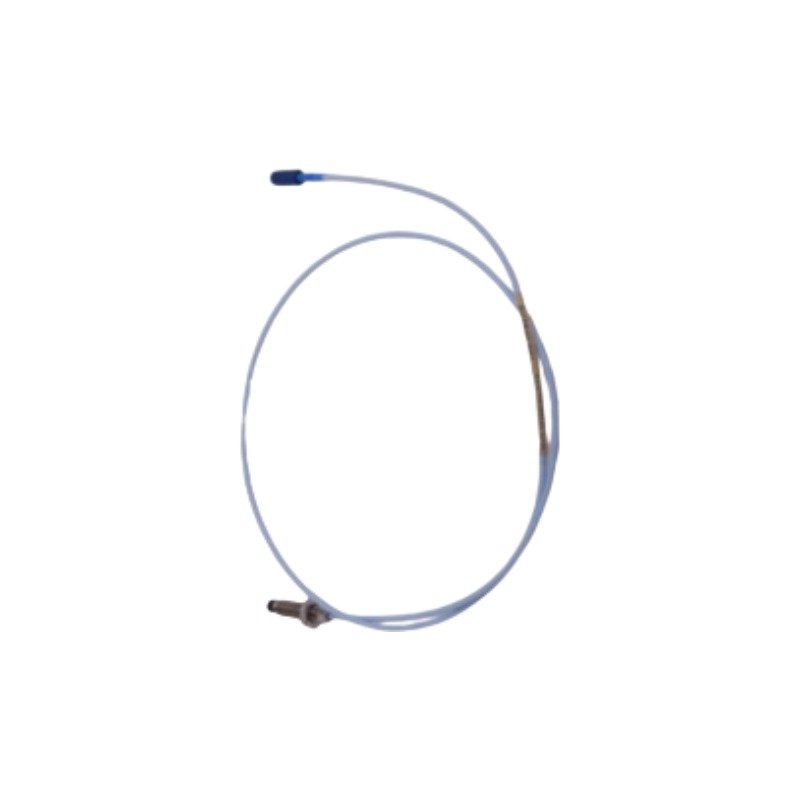

The Bently Nevada 330103-00-03-50-02-00 serves as a vital component within the 3300 XL 8 mm Proximity Transducer System. Consequently, industrial facilities deploy this specialized unarmored probe to execute continuous, non-contacting shaft vibration and displacement monitoring across critical turbomachinery platforms.

Hardware Specifications

Transducer Calibration and Gap Voltage Validation

To establish the linear range centerpoint, field technicians must execute precise gap voltage validation during mechanical commissioning. Specifically, technicians calibrate the sensor to target a nominal -10 VDC gap voltage. Consequently, this voltage tracks the exact physical midpoint of the eddy-current probe scaling matrix. By securing this alignment, the system captures accurate rotor dynamics data and simultaneously maintains high cross-talk suppression when operators deploy multiple proximity probes in close proximity.

Frequently Asked Questions

Q: How does the 5.0-meter total probe length affect the design of the loop?

A: The 3300 XL system enforces total electrical matching length rules. Because this model contains a self-contained 5.0-meter total length option, technicians must connect it directly to a 5.0-meter Proximitor Sensor without using an intermediate extension cable. As a result, this direct setup eliminates extra field connection points and preserves standard calibration.

Q: Why choose an unarmored cable configuration for this specific application?

A: The unarmored FEP jacket provides maximum flexibility and a smaller cross-sectional profile. Therefore, if the installation path routes exclusively inside dedicated, internal machine conduits or protective terminal junction enclosures, the standard cable layout reduces physical crowding and simplifies wire pulling.

Field Installation Guidelines

• Always verify that the target surface area meets the minimum diameter requirements to completely contain the eddy-current field generated by the 8.0 mm tip.
• Achieve proper thread engagement during insertion; follow standard industrial practices to prevent cross-threading the metric probe case into the machine housing.
• Route the unarmored coaxial cable using dedicated conduit or tray systems to prevent severe pinching, stretching, or sharp kinks below the minimum bend radius.
• Pull the protective insulation sleeves completely over the final connector interface to isolate the internal coaxial system from problematic machine ground loops.
