Description

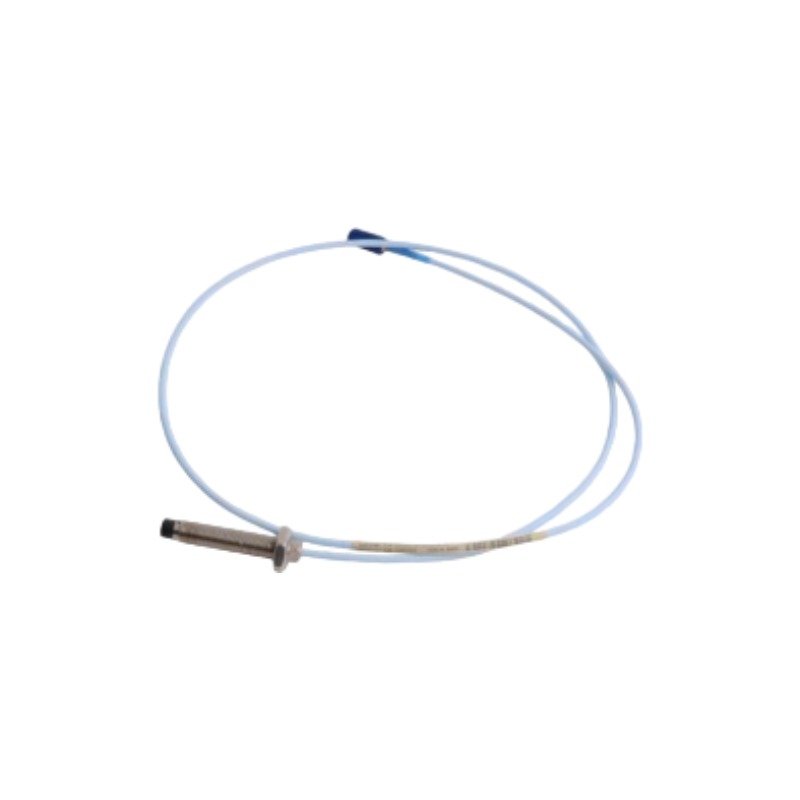

Configured for contactless vibration and shaft position measurements in TSI monitoring platforms, the Bently Nevada 22810-00-06-10-02 (22810 Proximity Sensors) provides direct physical/electrical execution.

Suffix Breakdown & Model Matrix

Hardware Specifications

Eddy-Current Probe Scaling and Gap Voltage Validation

The Bently Nevada 22810-00-06-10-02 operates on eddy-current sensing principles to deliver linear displacement measurement across high-speed rotating shafts. The probe tip coil generates an electromagnetic field that reacts to target proximity, producing a conditioned output voltage proportional to dynamic clearance. During initial mechanical positioning, field engineers adjust the probe gap until downstream monitoring hardware indicates target -10 VDC gap voltage bias levels, ensuring linear performance across changing rotor dynamics profiles.

Frequently Asked Questions

Q: How do field technicians verify correct physical placement during mounting?

A: Technicians monitor the DC bias voltage output at the Proximitor sensor while threading the probe into the mounting port. Achieving a steady -10 VDC reading confirms correct positioning within the calibrated linear range.

Q: What frequency response range does this probe support for dynamic vibration monitoring?

A: The probe delivers a continuous frequency response from 0 to 10 kHz, capturing static axial displacement as well as high-frequency dynamic shaft vibration waveforms.

Field Installation Guidelines

• First, inspect the M10 x 1 mounting threads and ensure the tapped port is clean and free from foreign particles.
• Next, thread the probe body carefully into the housing, taking care not to twist or strain the attached coaxial cable during rotation.
• Additionally, torque the mounting jam nut to specification without over-tightening to protect the AISI stainless steel casing.
• Finally, route the probe cable away from high-voltage conduit lines and secure the coaxial connector to prevent mechanical loosening during operation.
