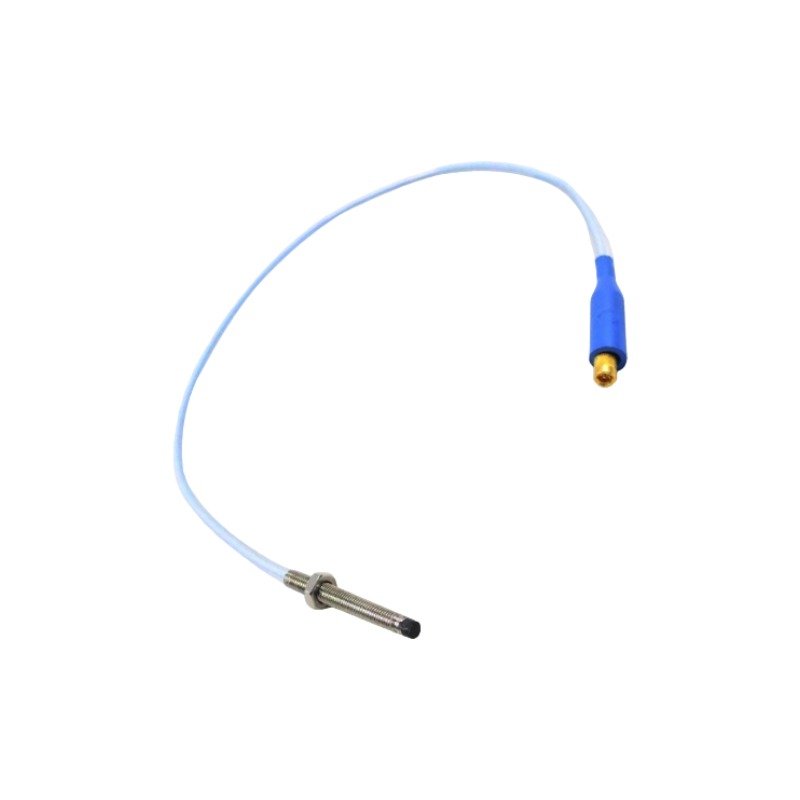

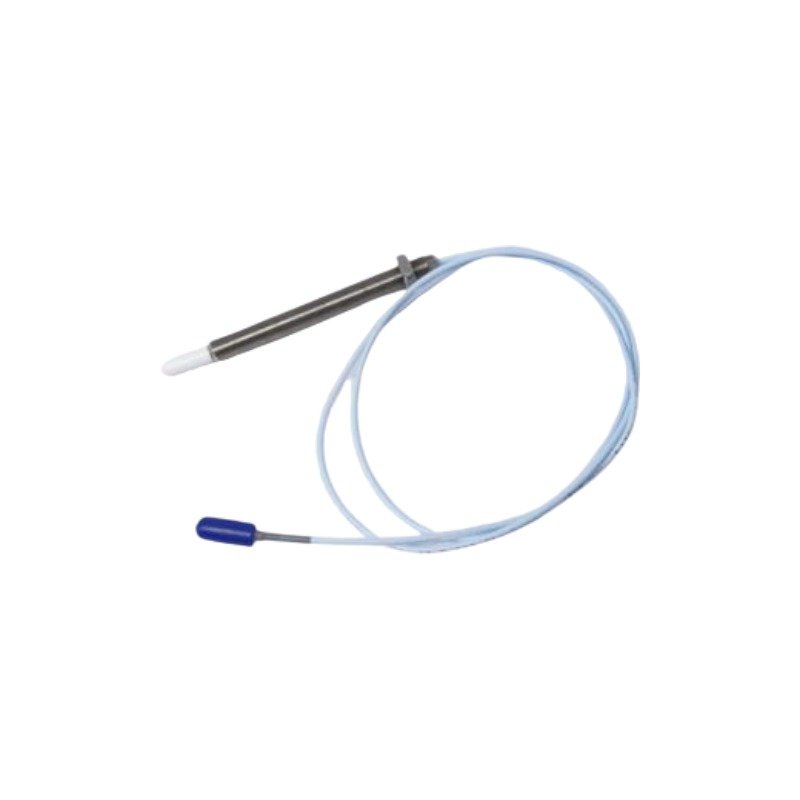

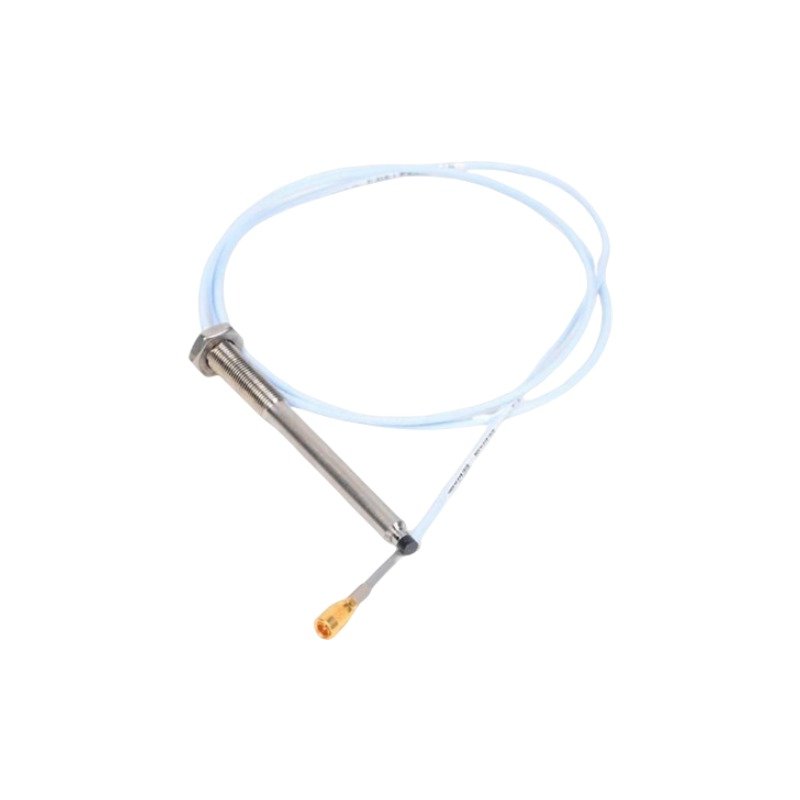

Bently Nevada 330901-00-41-05-02-CN 3300 NSv Proximity Probe
Purchase authentic Bently Nevada 330901-00-41-05-02-CN 3300 NSv Proximity Probes. Brand New in original factory packaging with Original Stock and Global Shipping.
Description
The Bently Nevada 330905-00-41-05-02-CN, also cataloged as the 330901 Proximity Sensors, operates as a dedicated hardware component for contactless dynamic displacement and vibration measurements within 3300 NSv TSI platforms.
Suffix Breakdown & Model Matrix
| Option | Specification |
|---|---|
| 330901 | 3300 NSv Proximity Probe base model |
| -00 | Unthreaded length: 0.0 in |
| -41 | Overall case length: 4.1 in |
| -05 | Total length: 0.5 metre (20 in) |
| -02 | Miniature coaxial ClickLoc connector, standard cable |
| -CN | Agency approvals: ATEX, IECEx, and Chinese NEPSI hazardous area marking |
Hardware Specifications
| Parameter | Specification |
|---|---|
| Model | 330901-00-41-05-02-CN |
| Brand | Bently Nevada |
| Origin | USA |
| Weight | 0.15 kg |
| Dimensions | Case length 4.1 in, cable length 0.5 metre (20 in) |
| Operating Temp | -34 deg C to +177 deg C |
| Power Consumption | Powered via downstream Proximitor Sensor loop |
| Product Type | Proximity Sensors |
| Cable Connector | Miniature coaxial ClickLoc connector |
| Certification | ATEX, IECEx, NEPSI hazardous area approvals |
Eddy-Current Probe Scaling and Gap Voltage Validation
The Bently Nevada 330901-00-41-05-02-CN probe employs eddy-current sensing to track dynamic shaft vibration and axial position across tight mechanical clearances. Furthermore, the probe tip maintains linear output voltage scaling over target observation faces. During field commissioning, technicians position the probe body within its mounting sleeve until downstream measurement hardware registers target -10 VDC gap voltage bias levels, ensuring precise rotor dynamics tracking across transient operating speed curves.
Frequently Asked Questions
Q: How do technicians confirm correct physical insertion depth during mounting?
A: Field engineers adjust the probe position while reading the DC voltage at the Proximitor output terminals. Achieving a stable -10 VDC gap voltage confirms proper mechanical placement within the linear sensing range.
Q: How does the ClickLoc connector maintain continuous signal integrity under high machine vibration?
A: The miniature coaxial ClickLoc connector incorporates a mechanical snap-lock coupling mechanism that prevents thread rotation and maintains constant electrical contact resistance during continuous shaft vibration.
Field Installation Guidelines
- First, inspect mounting threads and verify that the installation port is clean and free of metal filings or debris.
- Next, thread the probe body into the mounting fixture, using standard hand torque limits to prevent over-tightening the casing.
- Additionally, push the miniature coaxial ClickLoc connector together firmly until the locking collar engages fully.
- Finally, route the 0.5 metre probe cable through dedicated signal conduit and connect the shield to a single ground point to block ambient noise coupling.
Additional information
| Weight | 0.15 kg |
|---|---|
| Dimensions | 42 × 74 × 63 mm |
