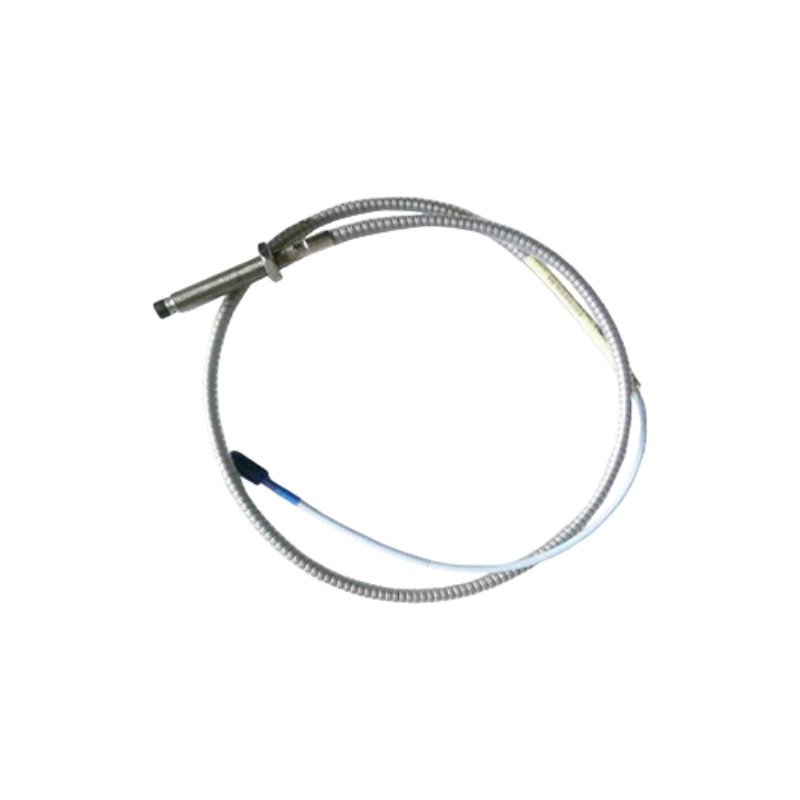

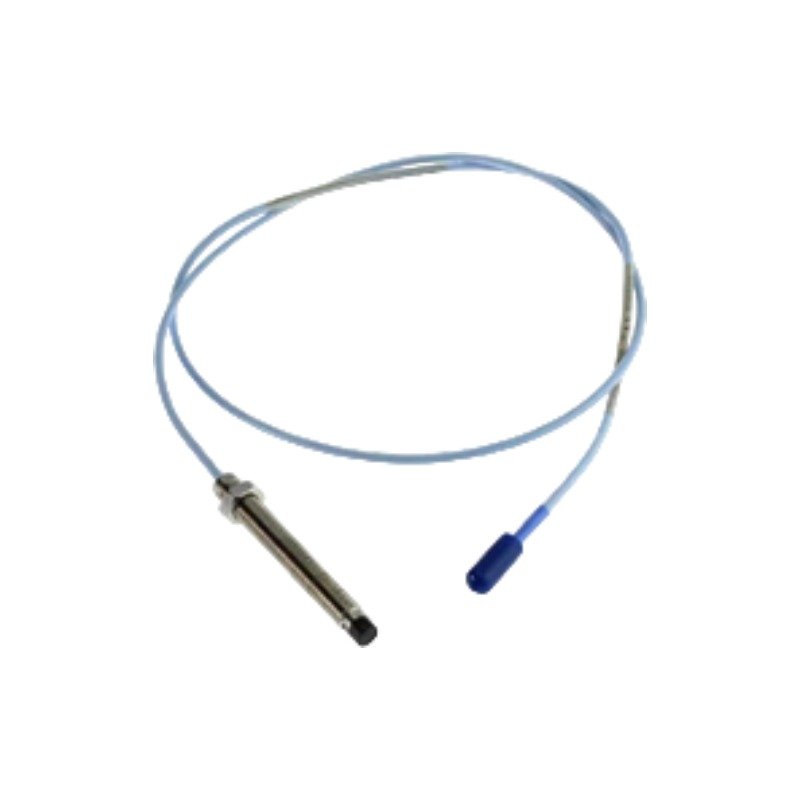

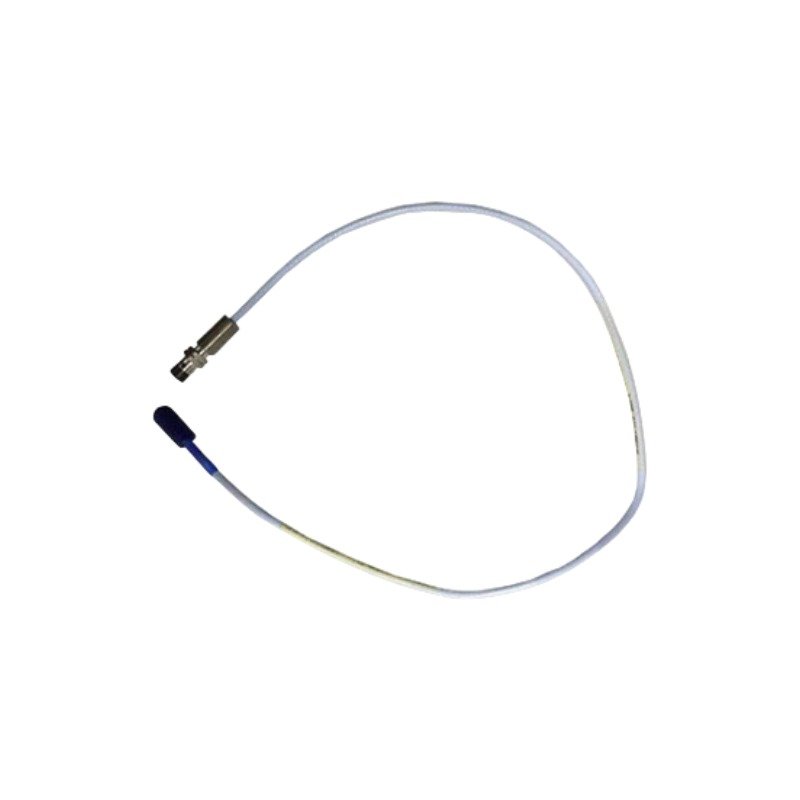

Bently Nevada 330104-00-05-05-01-00 3300 XL 8 mm Proximity Probe
Purchase authentic Bently Nevada 330104-00-05-05-01-00 3300 XL 8 mm Proximity Probes. Brand New in original factory packaging with Original Stock and Global Shipping.
Description
The Bently Nevada 330104-00-05-05-01-00, also cataloged as the 330104 Proximity Sensors, operates as a dedicated hardware component for dynamic shaft position and vibration measurement within 3300 XL monitoring systems.
Suffix Breakdown & Model Matrix
| Option | Specification |
|---|---|
| 330104 | 3300 XL 8 mm Probe, M10 x 1 thread, with armor |
| -00 | Unthreaded length option: 0 mm |
| -05 | Overall case length option: 50 mm |
| -05 | Total length option: 0.5 meter (1.6 feet) |
| -01 | Miniature coaxial ClickLoc connector with connector protector, standard cable |
| -00 | Agency approval option: Not required |
Hardware Specifications
| Parameter | Specification |
|---|---|
| Model | 330104-00-05-05-01-00 |
| Brand | Bently Nevada |
| Origin | USA |
| Weight | 0.15 kg |
| Dimensions | 1.8 x 1.6 x 121 cm |
| Operating Temp | -51 deg C to +177 deg C |
| Power Consumption | Powered via Proximitor Sensor (-24 VDC supply loop) |
| Product Type | Proximity Sensors |
| Probe Diameter | 8 mm |
| Mounting Thread | M10 x 1 |
| Unthreaded Length | 0 mm |
| Case Length | 50 mm |
| Cable Length | 0.5 meter (1.6 feet) |
| Connector Type | Miniature coaxial ClickLoc connector with connector protector |
Eddy-Current Probe Scaling and Gap Voltage Validation
The Bently Nevada 330104-00-05-05-01-00 utilizes high-frequency eddy-current sensing to track rotor dynamics and relative shaft movement. The integrated tip coil projects a high-frequency magnetic field onto the target shaft surface, conditioning the return signal to match calibrated eddy-current probe scaling limits (7.87 V/mm or 200 mV/mil). During initial installation and static calibration, field engineers adjust physical mechanical clearance until connected instrumentation displays target -10 VDC gap voltage bias levels, ensuring linear displacement response across dynamic machinery operating profiles.
Frequently Asked Questions
Q: What function does the ClickLoc connector with connector protector serve in field deployments?
A: The ClickLoc mechanism prevents physical cable disconnection caused by machine vibration, while the connector protector seals the coaxial junction against oil and moisture ingress.
Q: Can this probe be connected directly to a monitoring channel without a Proximitor sensor?
A: No, the probe must connect through a matched 3300 XL extension cable to a 3300 XL Proximitor sensor to condition the RF signal into a linear DC voltage output.
Field Installation Guidelines
- First, inspect the M10 x 1 threaded mounting port to verify it is free from debris, metal filings, and damaged threads.
- Next, carefully screw the probe into the threaded mounting location, ensuring the armored cable rotates freely without twisting or binding.
- Additionally, adjust the probe insertion depth using an external voltmeter connected to the Proximitor sensor output until the gap voltage reaches target -10 VDC.
- Finally, tighten the mounting locknut to secure the physical position and snap the ClickLoc connector protector tightly over the coaxial cable junction.
Additional information
| Weight | 0.15 kg |
|---|---|
| Dimensions | 18 × 16 × 1210 mm |
