Description

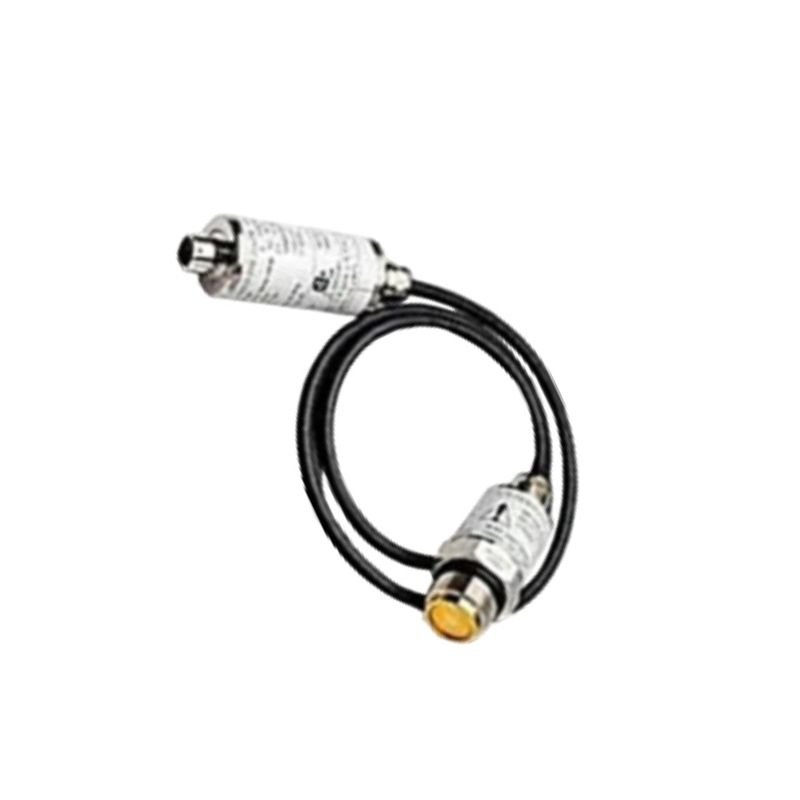

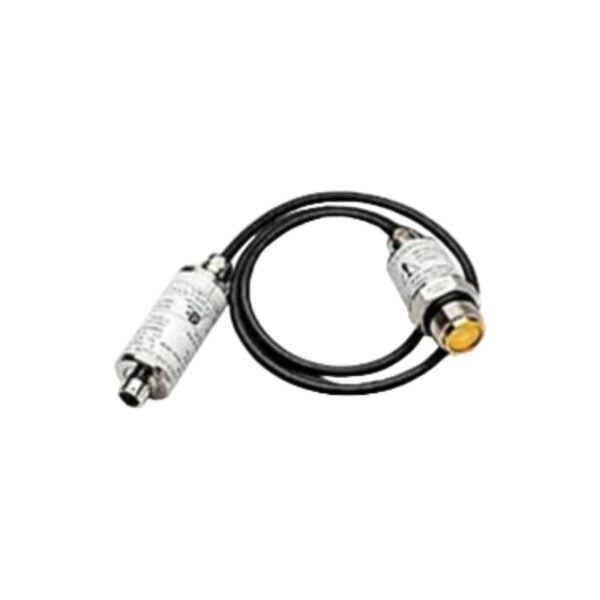

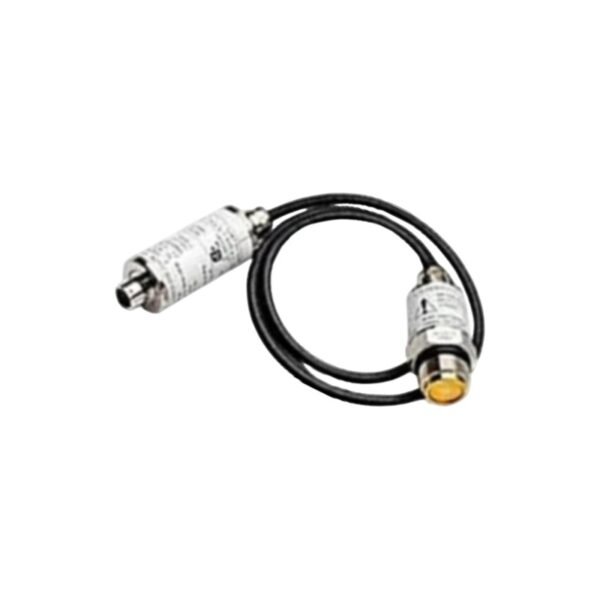

The Bently Nevada 165844-14, also cataloged as the 165844-14 Proximity Probe, operates as a dedicated hardware component for non-contact measurement of vibration and displacement within 3300XL Series diagnostic networks. Specifically, the transducer converts the physical gap clearance between the probe tip and a target conductive surface into a proportional electrical voltage signal. Furthermore, the high-resolution internal configuration transmits this analog variable directly to upstream proximity calibrator modules or monitoring backplanes.

Hardware Specifications

Machinery Monitoring and TSI Characteristics

This proximity probe actively maintains accurate eddy-current probe scaling because its physical coil structure responds linearly to displacement changes over an extended operational envelope. Consequently, the hardware facilitates constant gap voltage validation (-10 VDC targets) when the system routes the raw sensor output through a matching 3300XL Proximitor sensor interface. During transient speed changes, the high-resolution signal path tracks complex rotor dynamics, which enables the hosting rack to calculate absolute shaft positioning without degradation. Additionally, the concentric design parameters of the probe tip enforce high cross-talk suppression, preventing mutual inductive interference when engineers mount adjacent sensors in close axial or radial proximity.

Frequently Asked Questions

Q: How does the extended linear range feature affect the calibration procedures during field commissioning?

A: The extended linear range active zone matches pre-defined calibration curves embedded within the 3300XL driver circuitry. Additionally, keeping the probe installation tip within the optimal voltage window stabilizes the measurement scaling factors across the full operating range.

Q: What specific hardware interfaces convert the raw eddy-current variations from the 165844-14 into standard voltage metrics?

A: The probe connects directly via a low-loss coaxial link to a dedicated 3300XL Proximitor module. Following this, the Proximitor converts the high-frequency impedance changes into a stable negative DC voltage output.

Q: Can mechanical scratches on the observed shaft surface distort the high-resolution signal output?

A: Surface electrical runout or mechanical scratches disrupt the eddy-current field paths. Therefore, technicians must verify shaft smoothness or apply compensation methods within the host monitoring framework to ensure measurement accuracy.

Field Installation Guidelines

• Mounting Mechanics: Thread the probe body into the bracket housing until it reaches the calibrated distance from the shaft target. Subsequently, secure the locking nuts tightly to prevent physical position drift during high-vibration machine operations.
• Shielding Requirements: Run the extension coaxial cable through continuous flexible metallic conduit structures. Furthermore, terminate the outer braided copper shields exclusively at the main instrument panel earth ground terminal block.
• Wiring Separations: Isolate the proximity probe extension leads from parallel high-voltage AC electric links or variable frequency motor drive lines by a minimum clear distance of 200 mm to suppress inductive noise.
• Thermal Management: Ensure the environmental conditions surrounding the probe body remain within the standard rated threshold matrix of -51 deg C to +177 deg C. Additionally, prevent hot process fluids or steam from directly contacting the exposed probe connector joint.
