Description

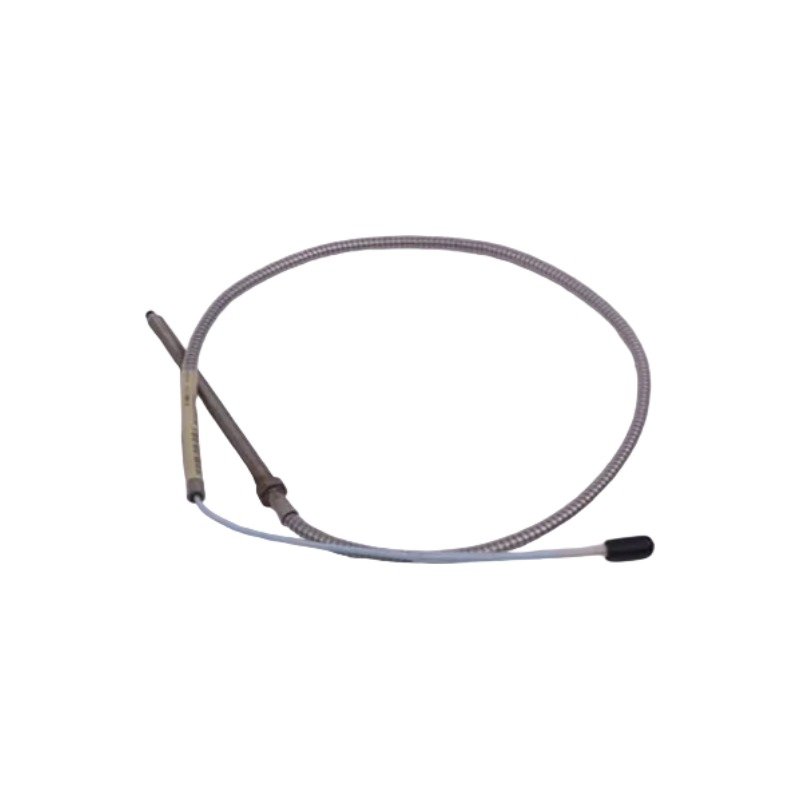

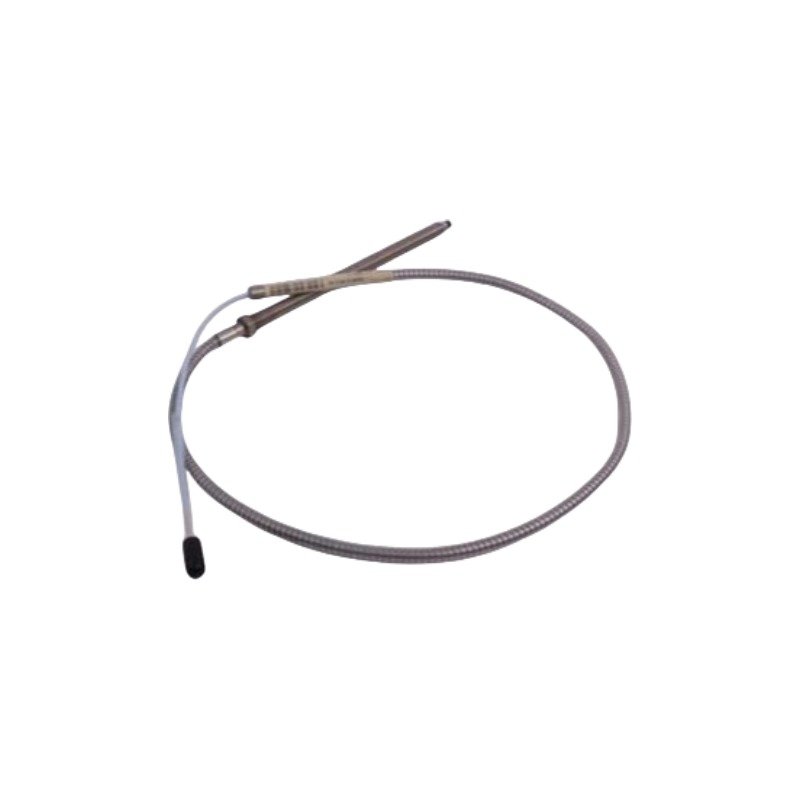

Configured for dynamic vibration sensing and machinery health monitoring in Bently Nevada 3300XL vibration monitoring systems, the Bently Nevada 109548-01 (109548-01 Proximity Probe) provides direct physical/electrical execution.

Hardware Specifications

Eddy-Current Probe Scaling and Gap Voltage Validation

The 109548-01 operates as a key sensing transducer to capture transient vibration events and velocity parameters on rotating machinery. Specifically, during commission, proper eddy-current probe scaling must be verified against the target shaft material to ensure accurate signal generation. Additionally, technicians must perform physical gap voltage validation (-10 VDC targets) to position the probe tip within its calibrated linear range. Consequently, executing these setup steps stabilizes the loop output. Furthermore, proper probe alignment and cable shielding minimize electromagnetic interference, which aids in active cross-talk suppression when multiple probes are installed in close proximity within a single casing.

Frequently Asked Questions

Q: How is operating power supplied to the 109548-01?

A: The probe utilizes a standard 4-20 mA loop configuration. Consequently, it draws its operating power directly from the current loop, eliminating the need for an independent, external power source at the mounting location.

Q: What physical installation precautions should be taken to ensure measurement accuracy?

A: The probe tip must be mounted perpendicular to the observed surface. Additionally, operators must maintain the proper physical gap distance to stay within the linear sensitivity range and avoid mechanical contact with the shaft during rotor dynamics transitions.

Field Installation Guidelines

• First, thread the 109548-01 into the mounting bracket or housing until the probe tip reaches the specified distance from the target surface. Subsequently, use a multimeter to verify that the gap voltage aligns with the standard target of -10 VDC.
• Second, tighten the locknuts to the torque specifications provided by the manufacturer. Otherwise, mechanical vibration can cause the probe to drift out of its linear range, leading to loop errors.
• Third, route the sensor cable through a grounded metal conduit to isolate the 4-20 mA loop from external electromagnetic noise. Additionally, ensure that the shield wire is terminated only at the receiver or monitor end to prevent ground loop currents.
