Description

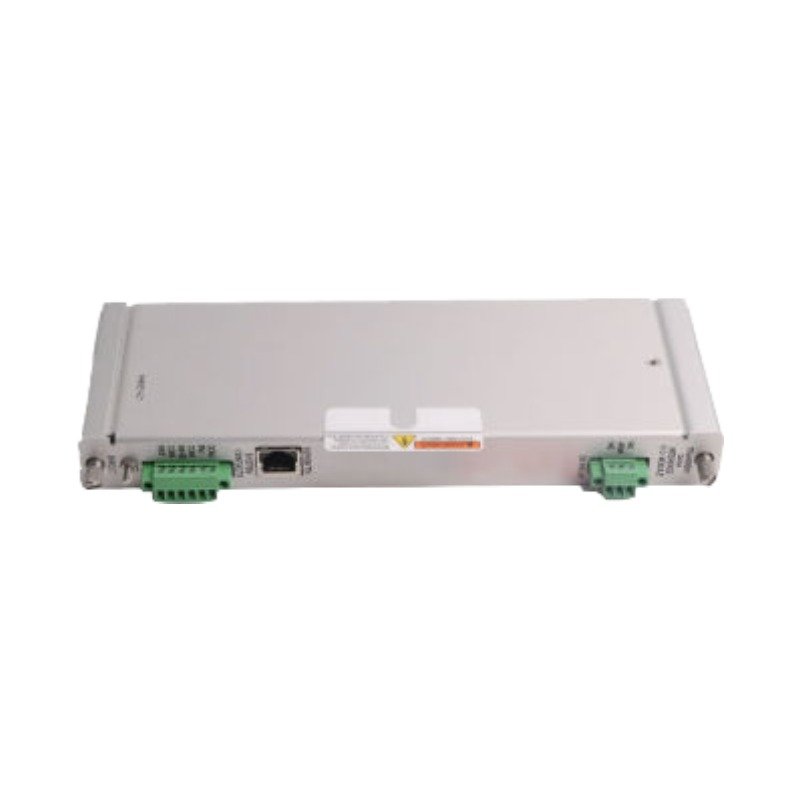

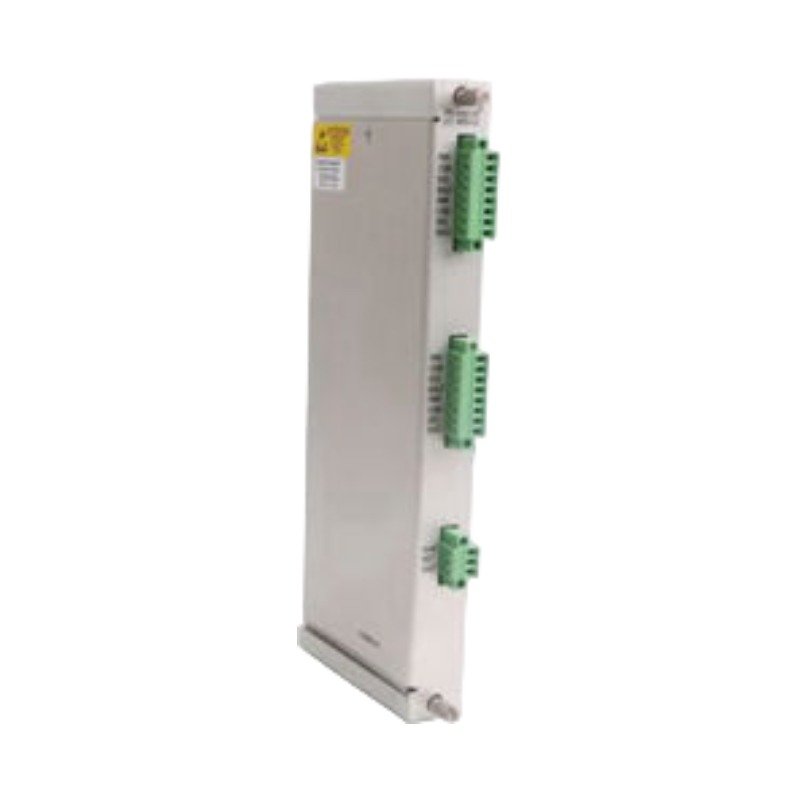

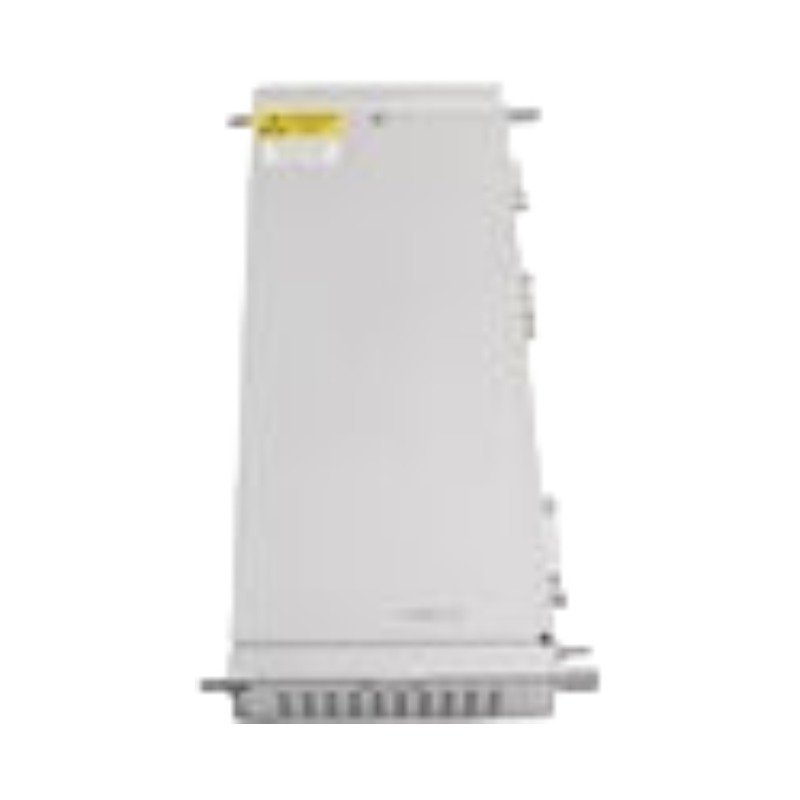

Configured for VGA video output transmission and touchscreen interface data routing in Bently Nevada 3500 Series machinery protection system platforms, the Bently Nevada 147663-01 (147663-01 VGA Display I/O Module) provides direct physical/electrical execution.

Hardware Specifications

Rotor Dynamics and Cross-Talk Suppression

The rear-mounted hardware card receives processed machinery information directly from the front-facing 3500/94 main monitor module via the chassis backplane. Consequently, the internal video drivers format complex vibration datasets into real-time bar graphs, numerical values, and API-670 compliant layouts. To prevent electromagnetic distortion over extended cable runs, the output circuitry applies active cross-talk suppression to isolate high-frequency video sync paths from serial touch communication data. Consequently, operators can review vital machinery metrics—including static values derived from eddy-current probe scaling and continuous gap voltage validation routines—without impacting core backplane rotor dynamics protection pathways.

Frequently Asked Questions

Q: How does the 147663-01 module interface with a remote touchscreen monitor?

A: The module routes analog video output through a standard standard definition VGA port. Simultaneously, it manages touch input data by executing dedicated RS-232 serial transmissions over an independent cable link.

Q: Can this display I/O module be hot-swapped while the machinery protection rack is online?

A: Yes. The hardware design permits live insertion and removal operations under power. However, you must disconnect the external monitor cable first to prevent potential grounding transients from tripping adjacent active modules.

Field Installation Guidelines

• Chassis Fastening Requirements: Insert the module into the rear slot directly corresponding to the front 3500/94 monitor card. Subsequently, tighten both faceplate screws completely to achieve electrical ground continuity with the chassis.
• Cable Length Constraints: Limit the total physical cable distance between the VGA port and the display monitor to 10 m. As a result, this restriction prevents signal degradation and video ghosting artifacts in high-EMI environments.
• Conduit Isolation Procedures: Route the analog video and serial touch cables away from AC power lines or high-voltage motor conductors. Additionally, ensure all unshielded terminal connections are kept below 25 mm inside the cabinet enclosure.
