Description

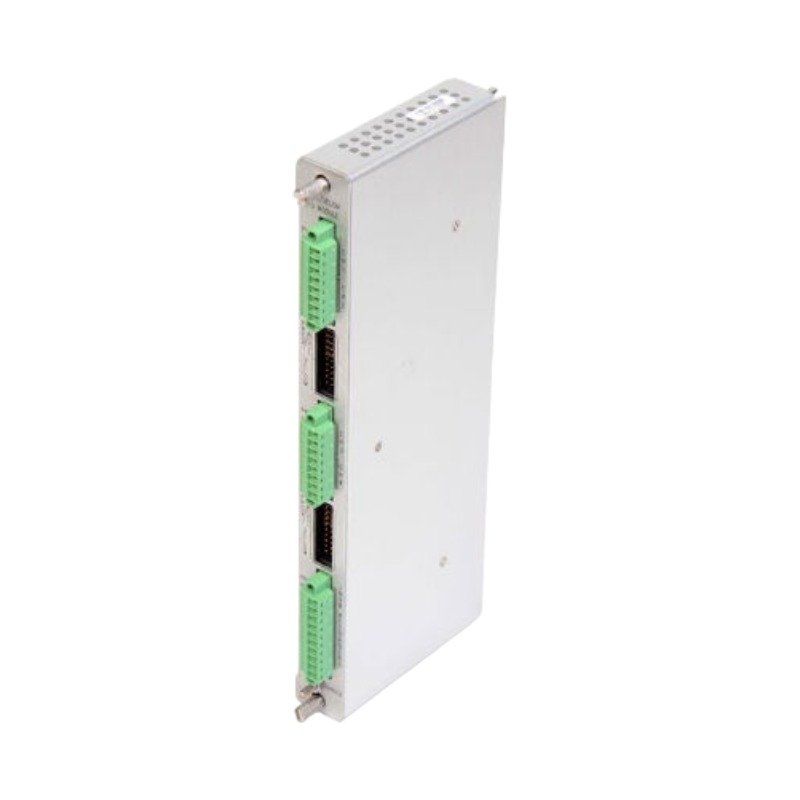

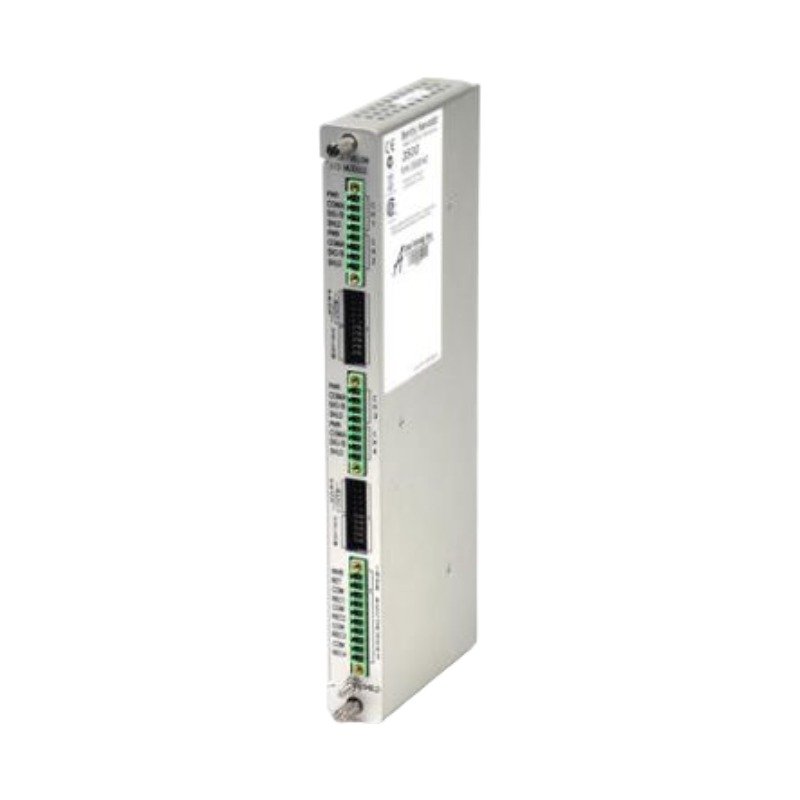

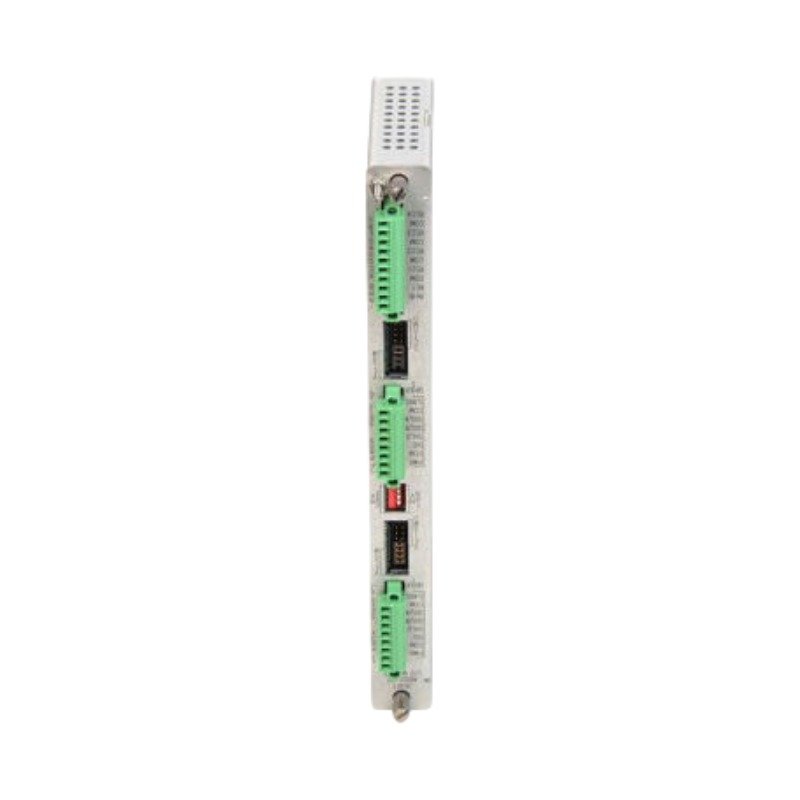

The Bently Nevada 140471-01, also cataloged as the 140471-01 Prox/Velom I/O Module with Internal Terminations, operates as a dedicated hardware component for processing shaft vibration, position, and velocity signals within Bently Nevada 3500 Series machinery protection system platforms.

Hardware Specifications

Rotor Dynamics and Eddy-Current Probe Scaling

The 4-channel physical interface routes signals directly from proximity and seismic sensors into the 3500/42M processing module. Consequently, the internal circuitry enforces accurate eddy-current probe scaling to handle diverse industrial measurement variables such as radial vibration, thrust position, and structural eccentricity. To maintain steady data fidelity, calibration parameters demand routine gap voltage validation against -10 VDC targets across all active proximity loops. Because field environments are susceptible to electro-magnetic emissions, the module design integrates distinct grounding matrices that perform active cross-talk suppression, ensuring true transient signal recording during complex rotor dynamics analysis.

Frequently Asked Questions

Q: What is the main benefit of the internal termination architecture found on the 140471-01?

A: The internal termination design allows direct connection of field wiring to the module body. Consequently, this eliminates the requirement for external terminal blocks, reducing structural space and cabinet wiring complexity.

Q: Can the 140471-01 module accept input from a Velomitor sensor and a Proximitor sensor simultaneously?

A: Yes. You can program each individual channel independently using the 3500 Rack Configuration Software to interface with either proximity, velocity, or acceleration transducers.

Field Installation Guidelines

• Internal Terminal Fastening: Connect the sensor wires directly into the integrated terminal clamps. Additionally, strip wire insulation to exactly 7 mm and tighten terminal screws to ensure positive mechanical retention against machine vibrations.
• Shield Grounding Infrastructure: Terminate the transducer cable shields directly at the internal chassis ground bracket. As a result, this routing prevents the formation of parallel electrical ground loops.
• Cable Separation Rules: Enclose proximity and velocity sensor signal lines inside dedicated, grounded steel conduits. Furthermore, route these runs entirely separate from high-current AC motor supply conductors to eliminate inductive noise.
