Description

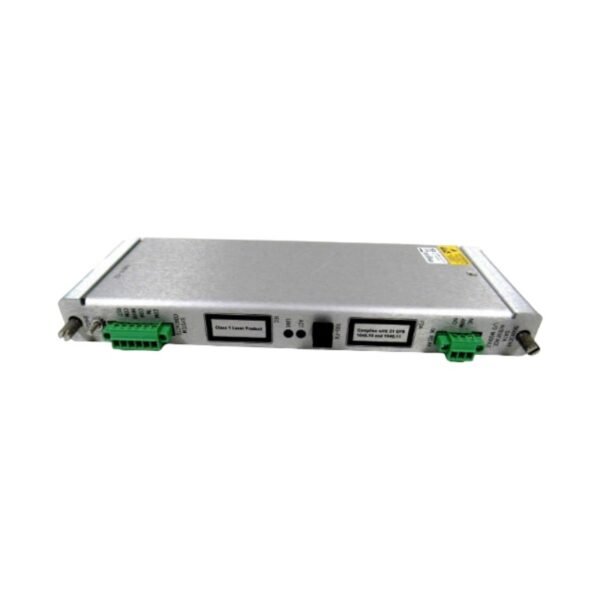

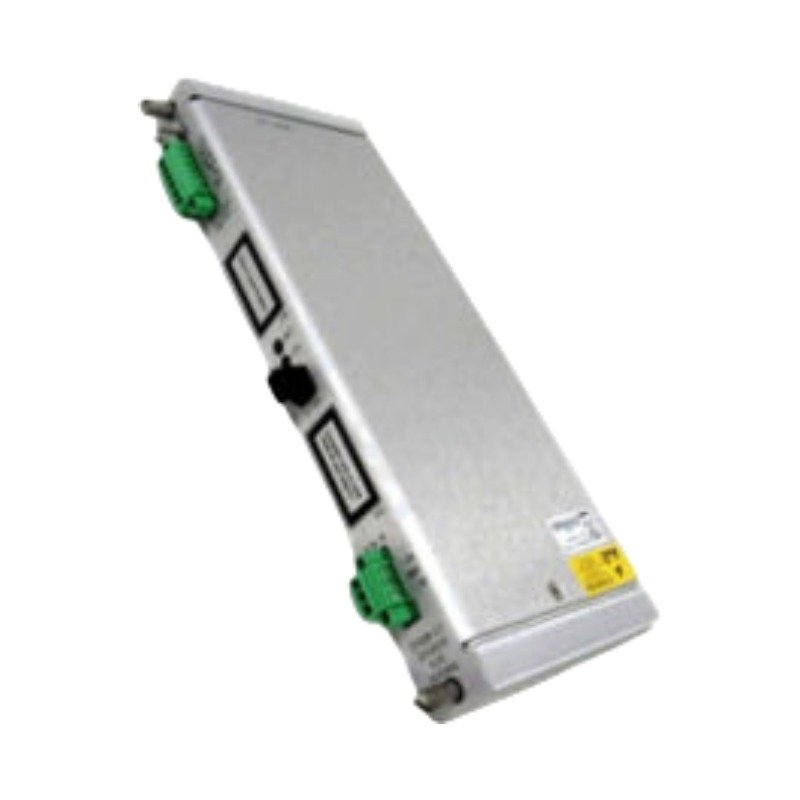

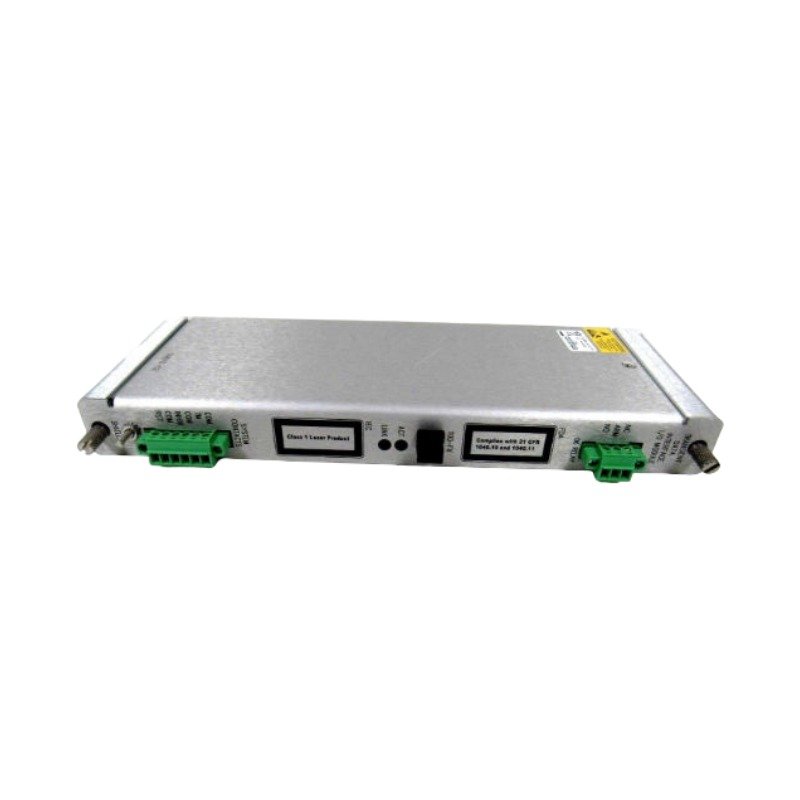

Configured for high-speed waveform data collection and network transmission in 3500 Machinery Protection Systems, the Bently Nevada 146031-02 (146031-02 100Base-FX Fiber Optic I/O Module) provides direct physical/electrical execution.

Hardware Specifications

Eddy-Current Probe Scaling and Rotor Dynamics Processing

The module interfaces directly with the 3500/22M Transient Data Interface main processor to transfer continuous steady-state and dynamic waveform data over deterministic optical pathways. Consequently, this architecture isolates communication traffic from local rack processing loops, maintaining unimpeded eddy-current probe scaling calculations inside adjacent monitor modules. The high bandwidth allows simultaneous gap voltage validation (-10 VDC targets) across all channels without network saturation. Furthermore, fiber optic physical layer transmission provides native electromagnetic isolation, ensuring cross-talk suppression and preventing ground potential differentials from corrupting multi-channel rotor dynamics analysis.

Frequently Asked Questions

Q: What is the mechanical function of the USB-B port on the front panel of the associated 3500/22M system slot?

A: The USB-B port provides a direct point-to-point connection for a local computer running the 3500 System Configuration software. This physical link permits firmware flashing, configuration uploads, and diagnostic status checks without requiring network access through the 146031-02 fiber optic port.

Q: Can the 146031-02 I/O module be pulled from the chassis backplane while the rack is powered?

A: Yes, the 146031-02 I/O module supports online replacement. However, removing the I/O module breaks the fiber optic network connection, which terminates data transmission to the System 1 software until the replacement hardware finishes its initialization sequence.

Field Installation Guidelines

• Chassis Slot Positioning: Install the module into the rear slot directly corresponding to the 3500/22M Transient Data Interface module position located at the left side of the rack chassis.
• Fiber Optic Minimum Bend Radius: Route the multimode fiber optic cables with a minimum bend radius of 30 mm to eliminate structural stress on the glass cores and minimize optical attenuation.
• Connector Cleanliness: Clean the duplex SC optical connectors with an isopropyl alcohol wipe before insertion into the transceiver module to prevent signal loss caused by microscopic dust accumulation.
• Mounting Bolt Torque: Tighten the two rear panel retaining screws to a specification of 0.68 N-m to ensure structural grounding continuity between the module faceplate and the rack frame.
