Description

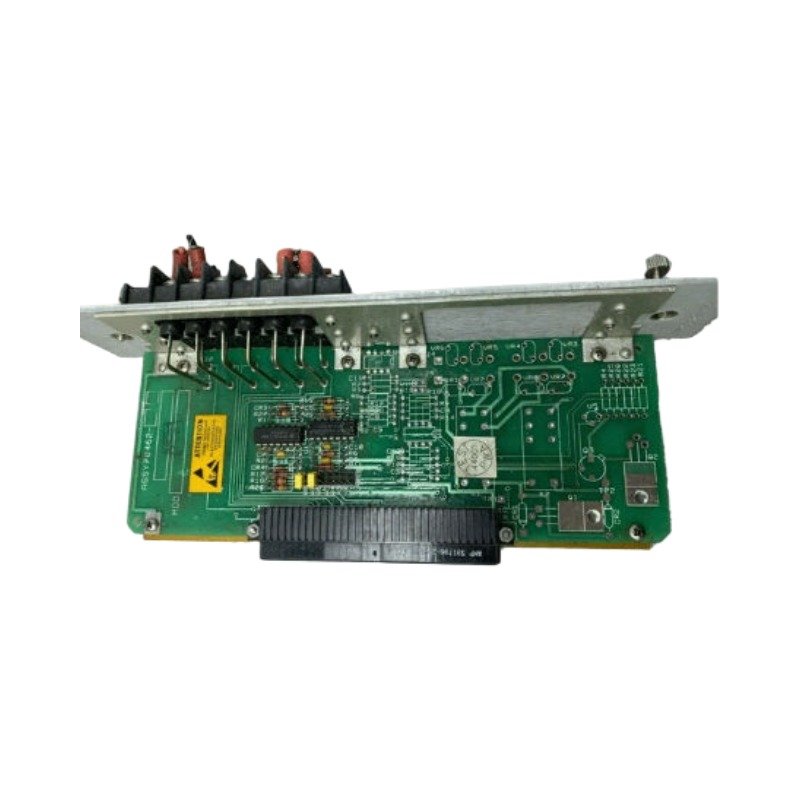

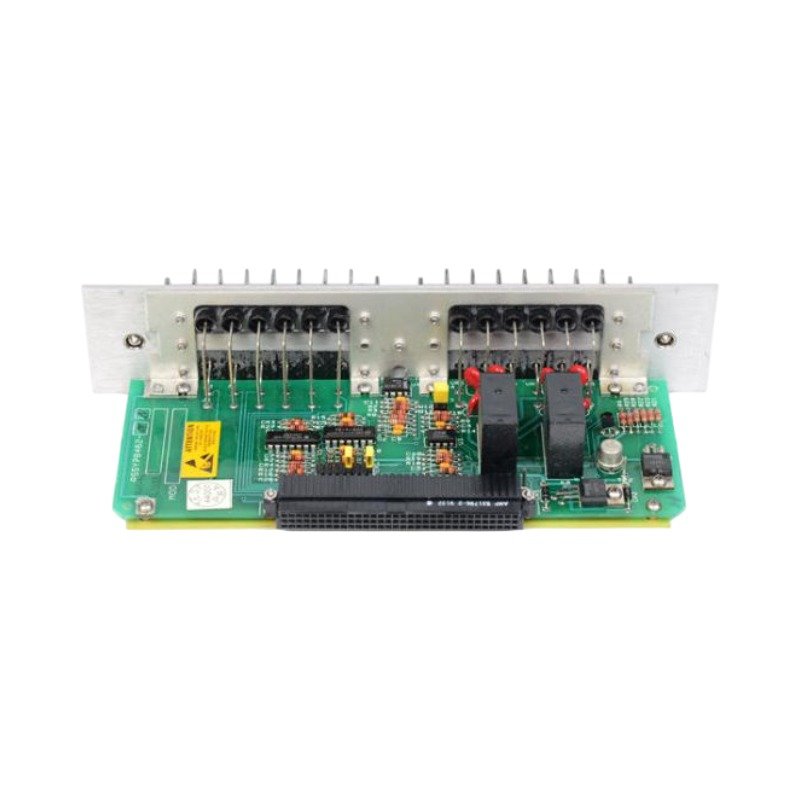

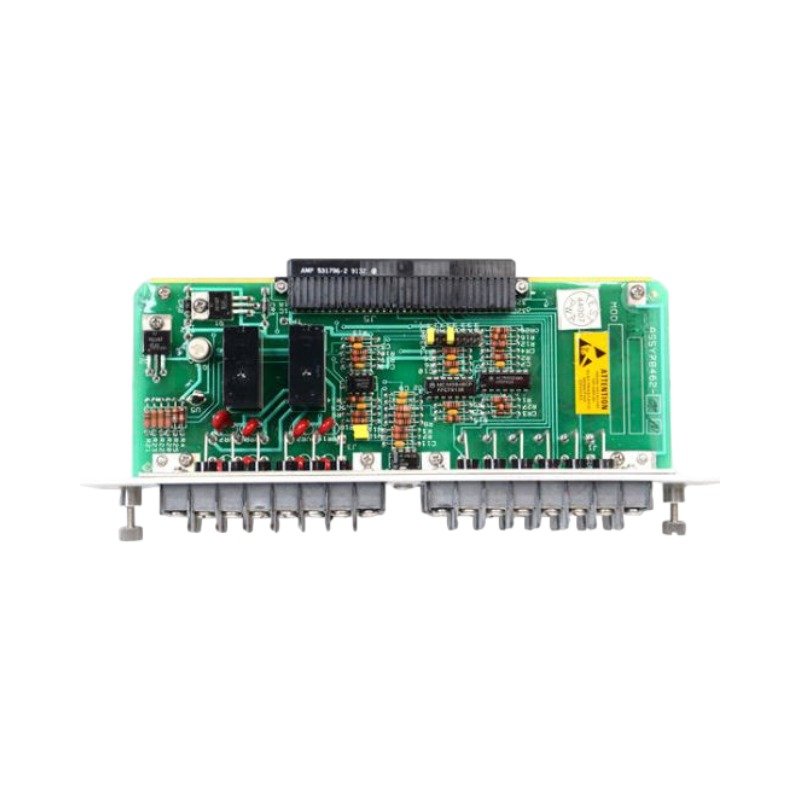

Configured for alarm relay execution and shutdown signal transfer within Bently Nevada 3500 Machinery Protection System racks, the Bently Nevada 125740-01 (125740-01 Relay I/O Module) provides direct physical/electrical execution.

Hardware Specifications

Mechanical Relay Driving and Rotor Dynamics Signal Isolation

The module mounts into the rear backplane interface of the chassis to link logic commands directly to external warning systems. Consequently, this discrete component handles high-energy output loops while safeguarding the inner bus topology. While contiguous instrumentation cards handle active eddy-current probe scaling and continuous gap voltage validation (-10 VDC targets), this card ensures high-attenuation cross-talk suppression during high-current contact switching. This isolated design stops electromagnetic spikes from distorting low-voltage rotor dynamics signals processed by nearby monitors.

Frequently Asked Questions

Q: In which physical slots of the 3500 rack structure can the 125740-01 I/O module be positioned?

A: The 125740-01 installs exclusively into the half-height rear slot block located directly behind its paired front-facing relay main controller or matching monitor processing card.

Q: Do the contact switches on the 125740-01 feature integrated hardware-level arc suppression components?

A: No, the 125740-01 board layout lacks internal transient voltage surge suppressors. Operating personnel must add external arc suppression networks across the field contacts when switching highly inductive loads to maximize contact service life.

Field Installation Guidelines

• Chassis Slot Alignment: Slide the I/O module into the designated rear slot tracks until the multi-pin backplane plug seals firmly into the matching rack connector socket.
• Terminal Screw Tightening: Secure all external field circuit connections into the terminal board screws using a calibrated manual tool torqued to exactly 0.56 N-m.
• Power Isolation Requirement: Disengage all high-voltage external power lines routing to the contact terminals before completing card removal or installation operations.
• Retaining Screw Grounding: Tighten the upper and lower faceplate captive screws to a specification of 0.68 N-m to verify functional frame grounding paths between the module panel and the main metal enclosure.
