Description

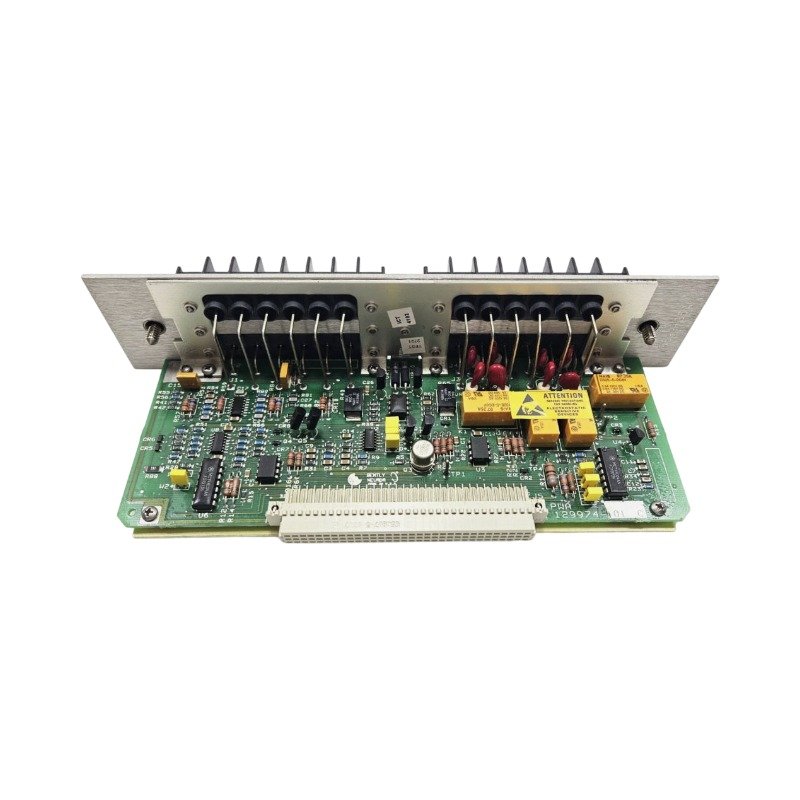

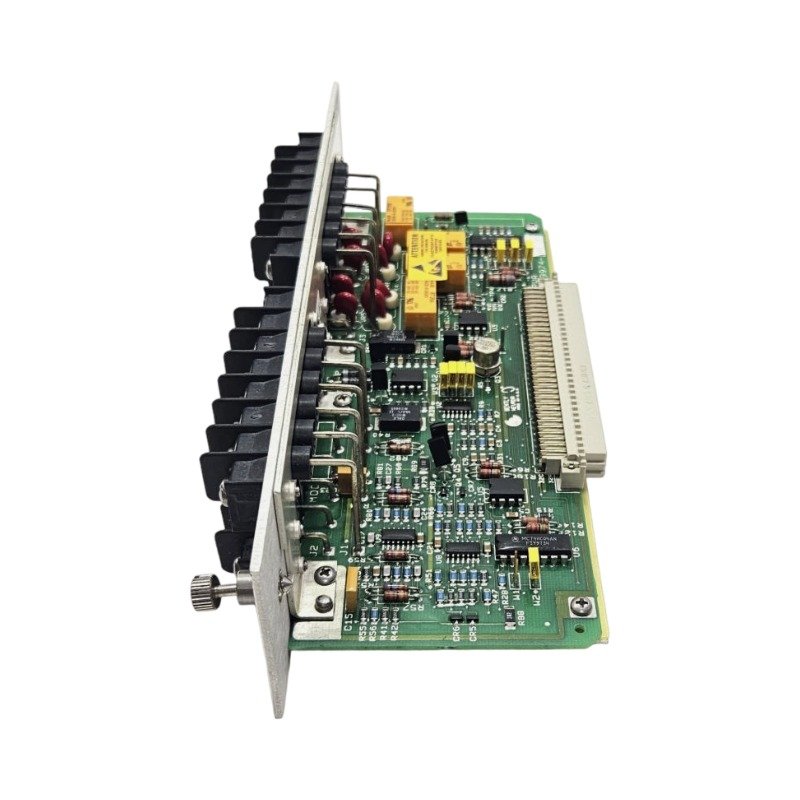

The Bently Nevada 129974-01 (often listed with the circuit board designation PWA 129974-01) is a high-reliability Transducer Input/Output (I/O) and terminal module designed for legacy 3300 Series Machinery Protection Systems (specifically paired with the 130732-01 Velomitor Monitor Module). It serves as the physical and electrical backplane interface that receives raw casing vibration waveforms from Velomitor accelerometers and distributes conditioned signals for system-wide analysis.

Hardware Specifications

Velocity Processing and Rotor Dynamics Signal Integrity

The 129974-01 functions as a dedicated signal conditioning interface that transforms high-impedance charge signals from casing-mounted sensors into manageable voltage baselines. While adjacent eddy-current proximity probes map internal displacement metrics and require constant gap voltage validation (typically -10 VDC targets), this module concentrates on high-frequency structural casing acceleration and velocity.

The circuitry features specialized low-pass and high-pass filtering combinations (configurable from 4 Hz to 4 kHz) that suppress mechanical cross-talk and high-frequency switching noise. This attenuation keeps transient rotor dynamics signals uncorrupted as they travel from the machine frame to the centralized rack backplane.

Frequently Asked Questions

Q: Can the 129974-01 I/O module be paired with standard eddy-current proximity probes?

A: No. The 129974-01 is explicitly engineered for the internal circuitry requirements of Velomitor (seismic/velocity) transducers. Connecting a proximity probe will cause severe impedance mismatches, disabling the rack’s transducer OK diagnostic status.

Q: How does the module handle a field wiring short circuit?

A: The card incorporates built-in overvoltage, reverse polarity, and robust short-circuit limiters. If a field cable becomes pinched or shorted, the internal power rail limits current output to 40 mA, protecting the front-facing monitor module from terminal damage.

Field Installation Guidelines

• Backplane Tracking and Alignment: Slide the I/O module into its designated rear slot guide rails until the multi-pin connector seats firmly into the rack’s master backplane socket.

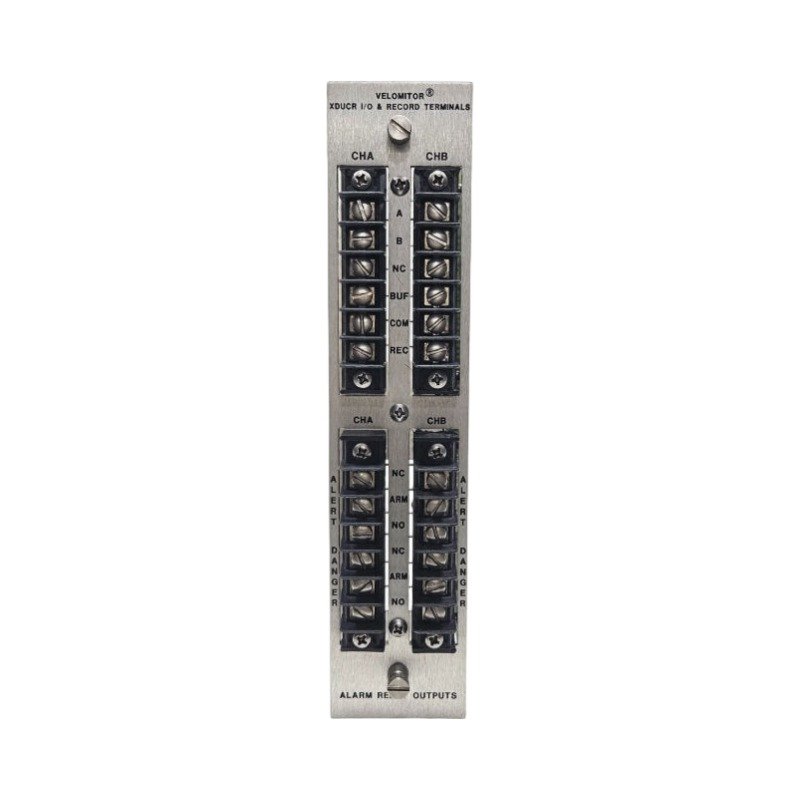

• Terminal Block Torque Specs: Secure all raw field sensor lines to the integrated screw terminal blocks using a calibrated instrument screwdriver torqued to exactly 0.56 N-m.
• Shield Grounding Protocol: Terminate the braided sensor shield line exclusively at the dedicated chassis earth ground terminal on this I/O module. Do not ground the shield at the machine casing end to prevent creating disruptive ground loops.
• Online Bypass Safety: Before hot-plugging or servicing this rear I/O card, verify that the associated front monitor channel is placed into a “Bypass” state to avoid sending a false transient trip signal to the plant’s emergency shutdown string.
