Description

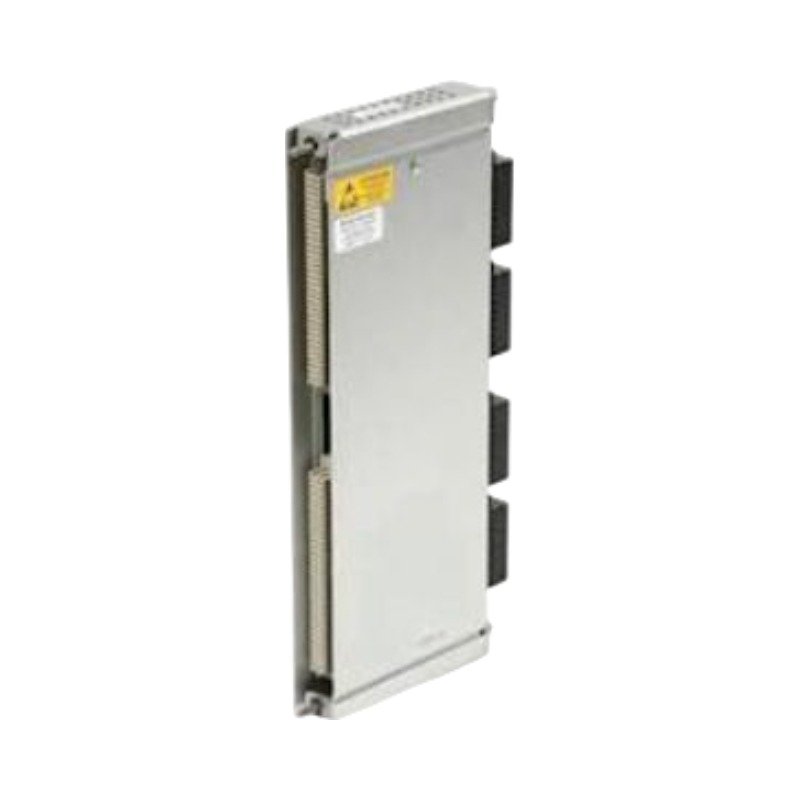

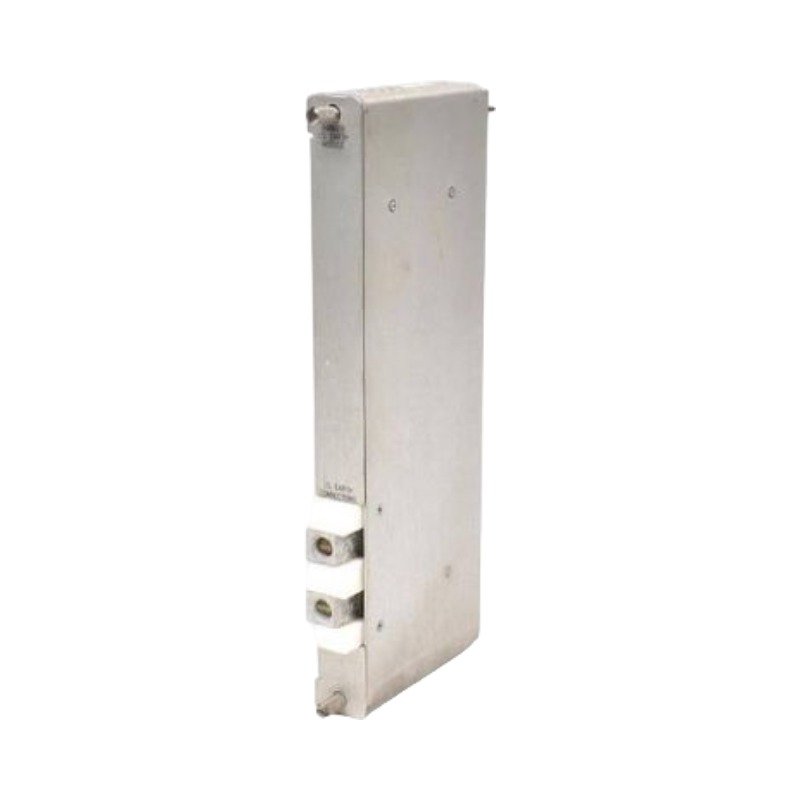

Configured for high-reliability sensor grounding and explosion protection within 3500 Machinery Protection Systems, the Bently Nevada 136719-01 (136719 Earthing I/O Module) provides direct physical/electrical execution.

Hardware Specifications

Machinery Monitoring and TSI Characteristics

This module executes precise eddy-current probe scaling configurations across the backplane by terminating specialized transducer signals cleanly. Consequently, the hardware routes analog outputs reflecting critical rotor dynamics to adjacent monitor cards without background noise inflation. During commissioning, technicians perform gap voltage validation through the internal barrier architecture to check individual circuit ground references. Furthermore, the active isolated bus clamps ground loops and forces high-attenuation cross-talk suppression, establishing a secure baseline for hazardous area sensor installations.

Frequently Asked Questions

Q: How does this earthing module modify the overall slot capacity of a standard 3500 chassis?

A: The physical installation of this module establishes an intrinsically safe ground bus over the backplane. Consequently, the unit requires a dedicated position, limiting a standard 19-inch rack configuration to a maximum of 13 active monitor slots.

Q: Can operations personnel replace or hot-swap this specific earthing hardware while the machine monitoring loop is active?

A: Yes. The hardware includes integrated hot-swap capabilities that allow maintenance teams to slide the module out for service. However, removing the card temporarily interrupts the intrinsic safety earth connection for any associated internal barrier loops.

Field Installation Guidelines

• Insert the card strictly into its assigned half-height slot on the 3500 backplane, confirming that the mechanical guide pins seat completely before tightening.
• Connect a low-impedance copper conductor directly from the module master ground terminal to the main plant instrumentation earth bus.
• Route any field transducer wiring separately from multi-conductor high-voltage power lines to maintain optimal signal-to-noise ratios and ensure cross-talk suppression.
• Verify through electrical verification that total loop resistance between the backplane connection and the physical ground plane registers under 1.0 Ohm.
