Description

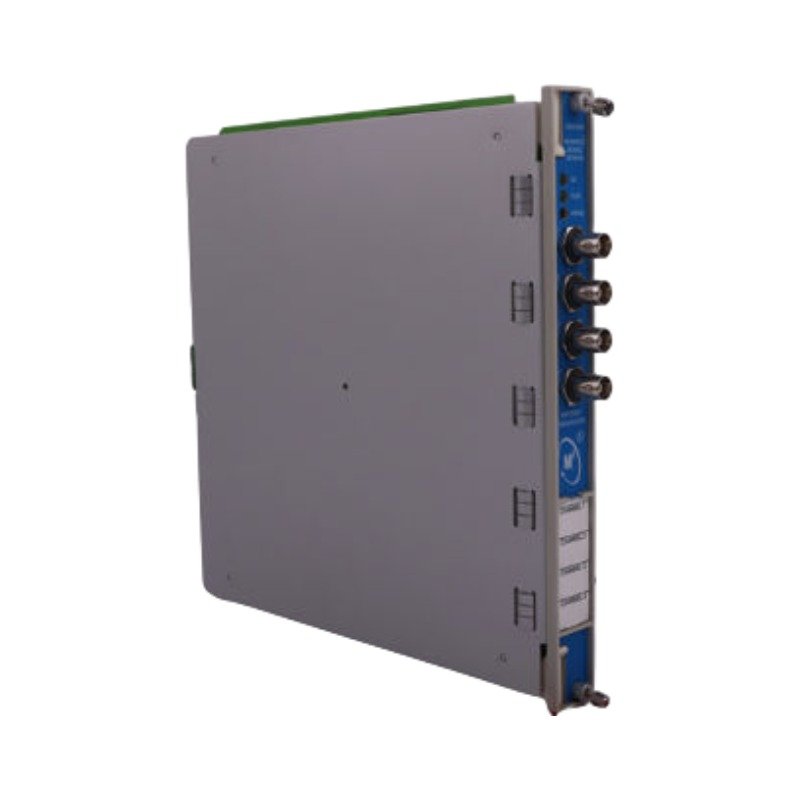

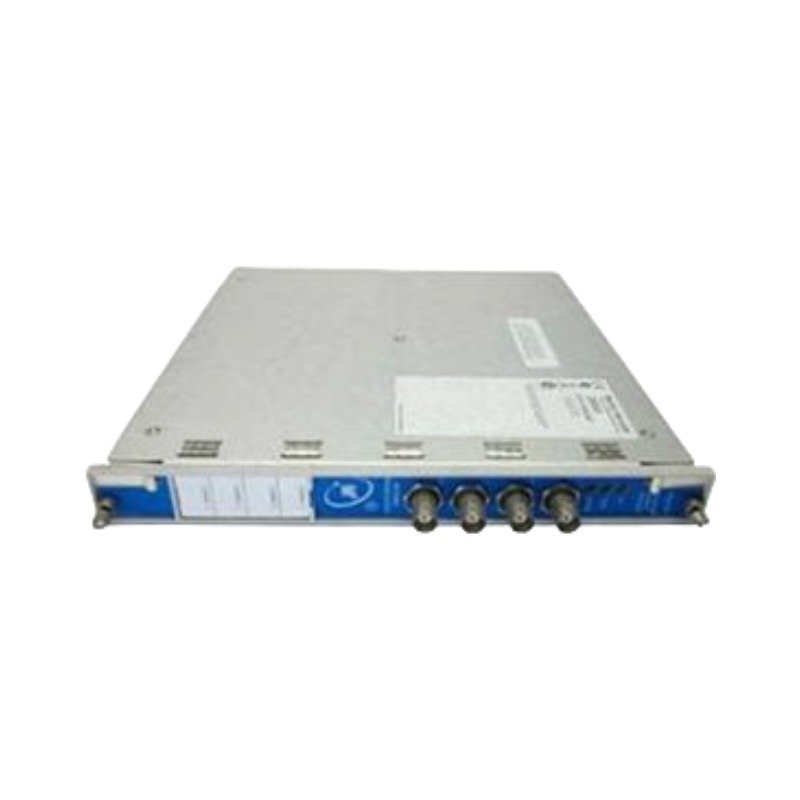

The Bently Nevada 140734-02, also cataloged as the 140734-02 Proximitor/Seismic I/O Module with Internal Terminations, operates as a dedicated hardware component for physical signal conditioning within a Bently Nevada 3500 Series Machinery Protection System. Concurrently, the card accepts input signals from proximity probes, seismic velocity sensors, or accelerometers, converting these raw indicators into clean data paths across the 3500 backplane bus.

Hardware Specifications

Machinery Monitoring and TSI Characteristics

The 140734-02 drives four-channel physical interfacing across networks where operators trace multi-plane rotor dynamics parameters. Prior to data conversion, the module deploys advanced cross-talk suppression pathways across the backplane connection, isolating low-voltage dynamic sensor inputs from high-frequency switching noise. The card conditions input signals to verify proper gap voltage validation (-10 VDC targets) for standard proximity loops. Subsequently, it passes synchronous and asynchronous waveforms to the main 3500/42M monitor processor card, thereby enabling real-time monitoring of shaft vibration, position, and eccentricities without signal distortion.

Frequently Asked Questions

Q: What differentiates the 140734-02 I/O card from the 140734-01 hardware variant?

A: The 140734-02 model features internal terminal blocks with standard compression screw strips, whereas the 140734-01 variant utilizes external termination blocks linked via high-density cables.

Q: Can the analog recorder outputs be configured independently for each channel?

A: Yes. The hardware configuration software enables users to map individual channel recorder outputs concurrently, selecting between 4-20 mA current loops or 1-5 VDC proportional signals to feed external DCS displays.

Field Installation Guidelines

• Chassis Engagement: Insert the 140734-02 I/O module into the rear slot of the 3500 chassis directly opposing the front-panel 3500/42M main monitor module. Subsequently, tighten the retaining hardware to establish solid ground contact.
• Transducer Field Wiring: Land the field transducer lines onto the internal terminal blocks using a standard terminal screwdriver. Strip the wire jackets to the specified length to prevent bare wires from shorting adjacent channels.
• Shield Grounding Protocols: Connect the outer braided shields of the instrumentation cables cleanly to the designated chassis frame grounding bar. Do not allow multi-point grounding at the machine end, as dual-ended grounding introduces noise from electrical ground loops.
