Description

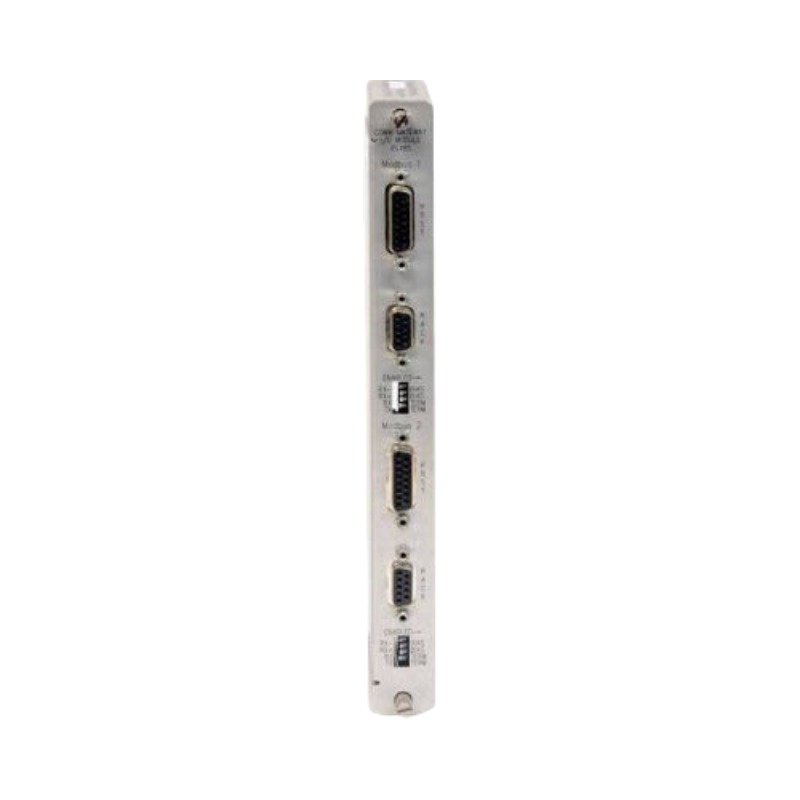

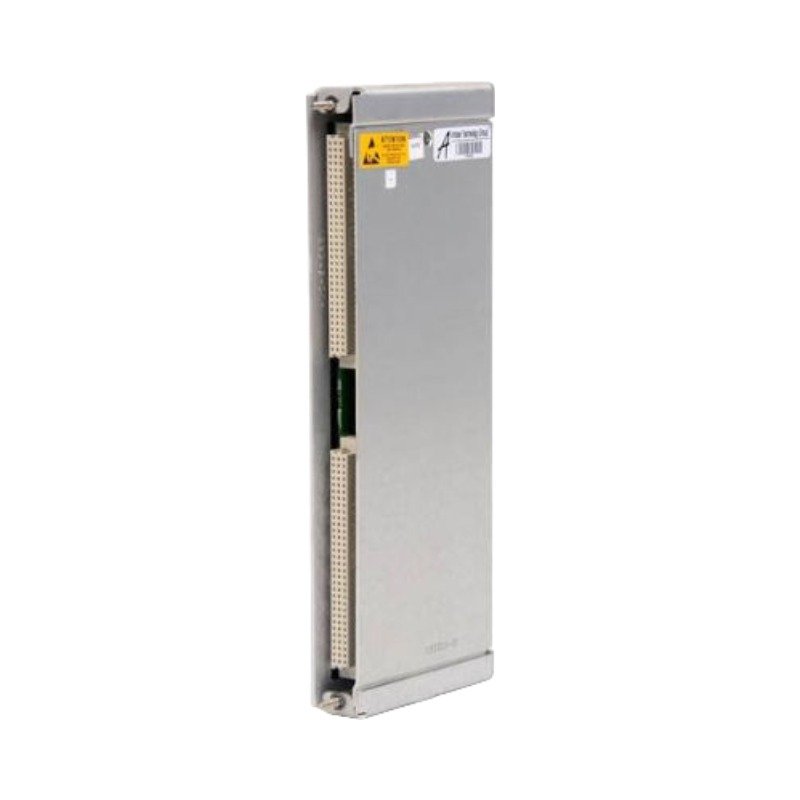

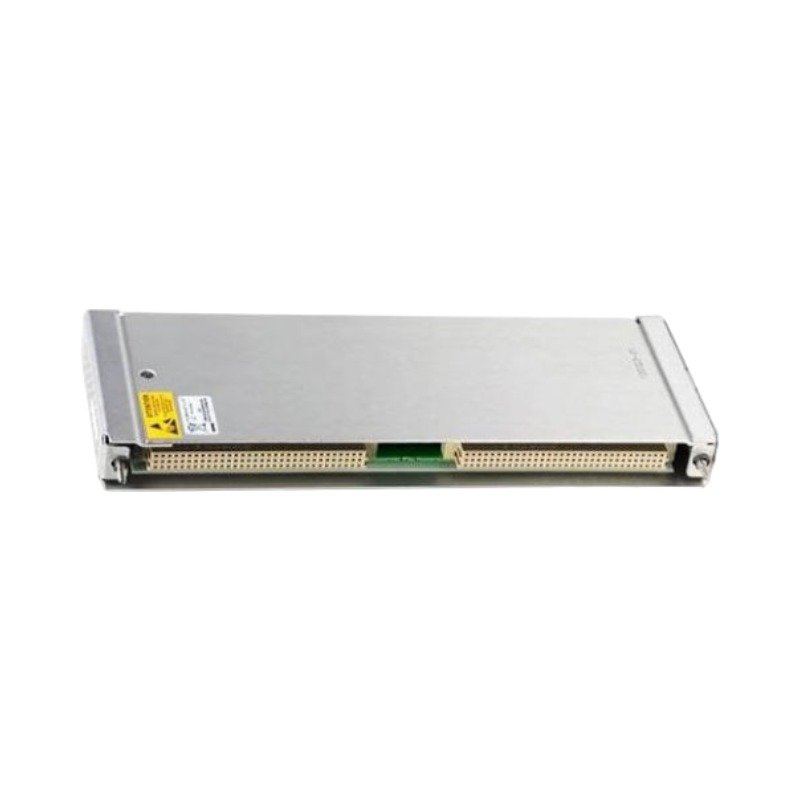

Configured for high-speed serial data transmission within 3500 Machinery Protection Systems, the Bently Nevada 133323-01 (133323-01 Modbus RS485 I/O Module) provides direct physical/electrical execution.

Hardware Specifications

Machinery Monitoring and TSI Characteristics

This communication interface module reads processed machinery health parameters from the internal rack backplane. Consequently, the hardware transfers digitized data representing raw eddy-current probe scaling configurations straight to distributed control networks without dropping primary processing tasks. Field technicians utilize the digital data registers to continuously cross-check gap voltage validation setpoints across multiple channels from a centralized console. Furthermore, the balanced differential transceiver circuit provides high noise immunity, which ensures robust cross-talk suppression along long-distance serial link lines.

Frequently Asked Questions

Q: How does this specific serial hardware update the internal rack register data map?

A: The module executes its internal collection network protocols continuously. As a result, the device refreshes the total internal register map in less than 1.0 second across all active slots.

Q: Does removing this rear communication interface component interfere with active machinery emergency trip logic?

A: No. The internal system backplane strictly isolates the 133323-01 communication bus from the main alarm relay logic. Therefore, technicians can replace this rear hardware while the protection loops remain fully operational.

Field Installation Guidelines

• Slide the card into the designated full-height rear slot directly behind the main front-panel 3500/92 module to guarantee proper backplane alignment.
• Terminate the incoming RS485 differential lines into the screw terminal blocks using a high-quality shielded twisted-pair cable.
• Connect the cable drain wire exclusively to the rack chassis ground lugs to preserve complete cross-talk suppression against external industrial noise.
• Tighten the module retaining fasteners completely to establish proper structural grounding before initiating configuration software routines.
