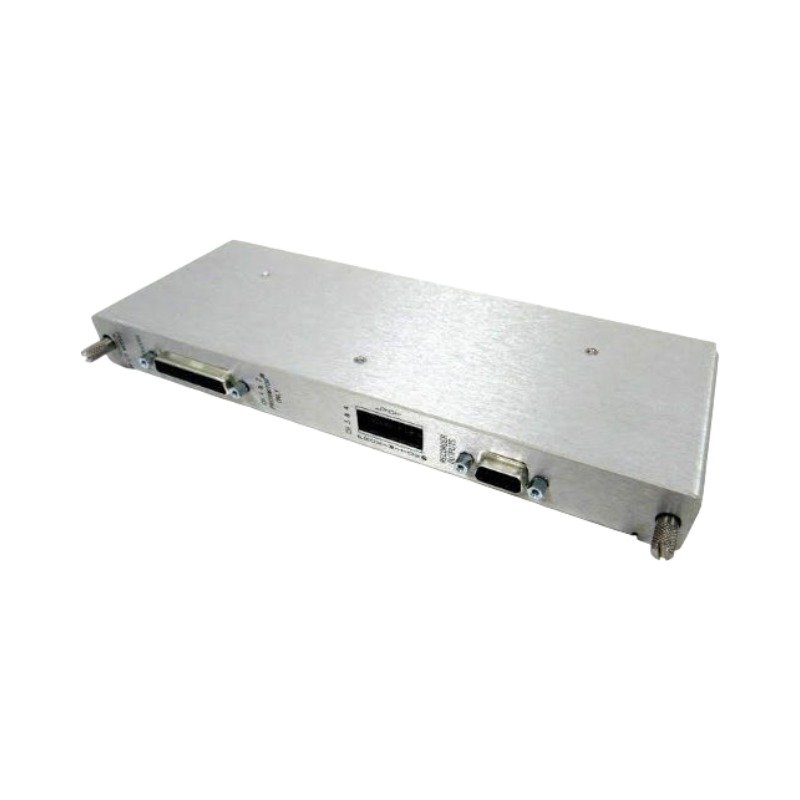

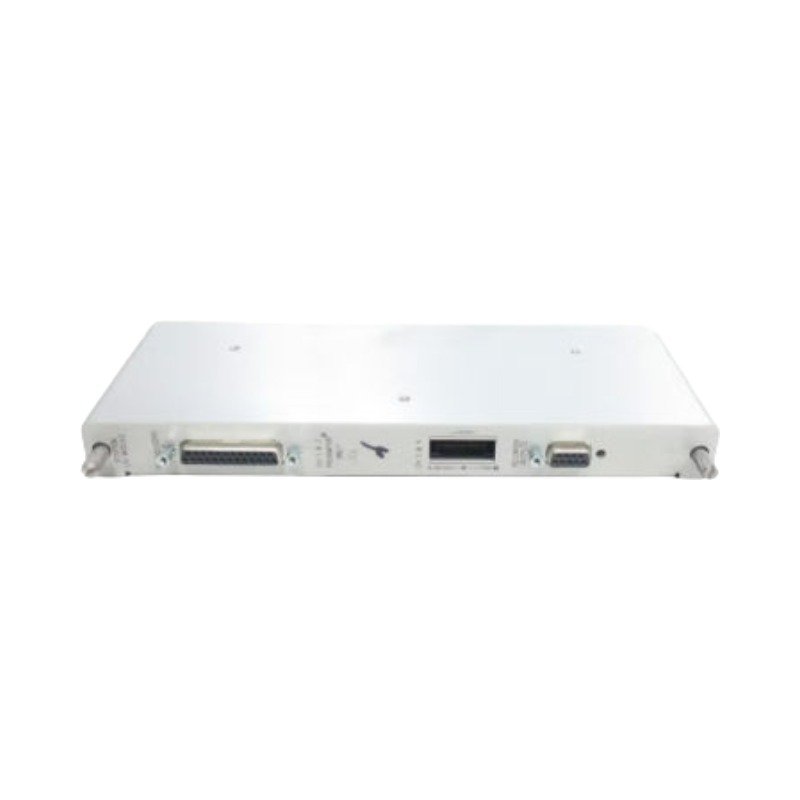

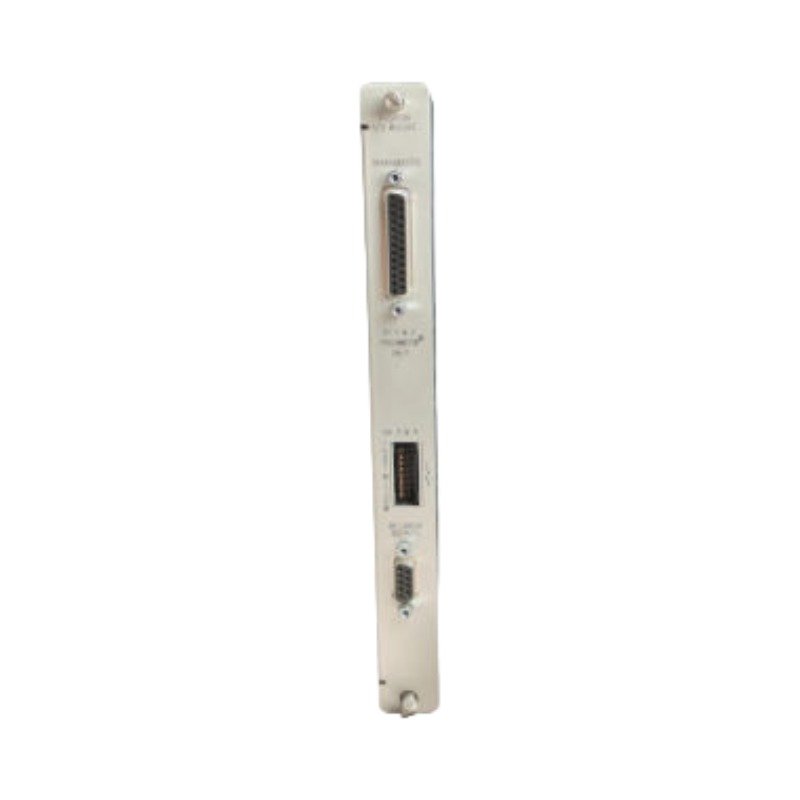

Bently Nevada 135145-01 3500/45 Position I/O Module
Obtain the 135145-01 Bently Nevada 3500/45 position input/output interface card. Available as Brand New, Original Stock with worldwide Global Shipping dispatch.
Description
The Bently Nevada 135145-01 serves as the primary 135145-01 Position Input/Output Module utilized to execute field sensor termination across 3500/45 Position Monitor platforms. Specifically, the module establishes direct physical connection paths for proximity probes and linear displacement transducers, routing critical telemetry into the main chassis backplane.
Suffix Breakdown & Model Matrix
The 135145-01 part number designates the hardware build for standard internal or external termination blocks. While the base module handles generic position parameters, users configure individual channel settings via the 3500 rack configuration software to execute specific application matrices:
- Axial Thrust Position: Tracks rotor movement relative to the thrust bearing face.
- Differential Expansion: Measures the relative growth difference between the machine shaft and the casing.
- Valve Position: Monitors the exact stroke displacement of steam turbine control valves.
Hardware Specifications
| Parameter | Specification |
|---|---|
| Model | 135145-01 |
| Brand | Bently Nevada |
| Origin | USA |
| Number of Channels | 4 fully independent channels |
| Supported Transducers | 3300 XL Proximitor, Rotary Position Transducers, DC LVDT |
| Isolation Barrier | 500 Vrms between field circuitry and chassis logic |
| Signal Update Rate | 100 ms maximum across all active channels |
| Weight | 0.20 kg |
| Dimensions | 241.3 mm x 24.4 mm x 99.1 mm |
| Operating Temp | -30 to +65 deg C |
| Power Consumption | 7.7 W typical under full sensor load |
Eddy-Current Probe Scaling and Rotor Dynamics
The rear interface circuitry dictates the calibrated transmission path needed to transfer raw proximity signals without frequency loss. Consequently, when the system tracks high-speed case expansion, the gold-plated pins match the loop impedance to ensure predictable eddy-current probe scaling. This precise connection pathway drives continuous gap voltage validation across the complete electrical stroke. Furthermore, the trace layout incorporates localized cross-talk suppression. As a result, this grounding layout isolates high-frequency adjacent channel paths, preventing heavy valve-stroke transients from corrupting nearby axial shaft measurements.
Frequently Asked Questions
Q: How does an engineer perform a hot-swap on this I/O module without tripping alarms?
A: To execute a hot-swap, you must first place the corresponding front-facing 3500/45 monitor module into Bypass mode. This action safely inhibits the rack relay logic before you unseat the rear 135145-01 hardware card.
Q: Does this specific hardware assembly support standard AC LVDT signal modulation?
A: No, this module version accepts only DC LVDTs, Proximitors, and rotary transducers. Interfacing an AC LVDT requires a different I/O sub-type equipped with internal carrier wave modulation circuits.
Field Installation Guidelines
- Chassis Insertion Order: Slide the module completely into the rear slot of the 3500 rack until the circuit edge seats into the backplane connector. Subsequently, tighten the top and bottom captive screws to complete the chassis ground loop.
- Terminal Torque Boundaries: Secure the field conductor wires into the terminal block screws. Tighten these terminal connections to a maximum torque rating of 0.56 N-m (5.0 in-lb) to avoid stripping the interior thread tracks.
- Shield Ground Disconnection: Terminate the transducer outer braided shielding explicitly at the designated ground rails on the terminal block. Do not ground the shield at the field junction box, thereby preventing parasitic ground loops.
