Description

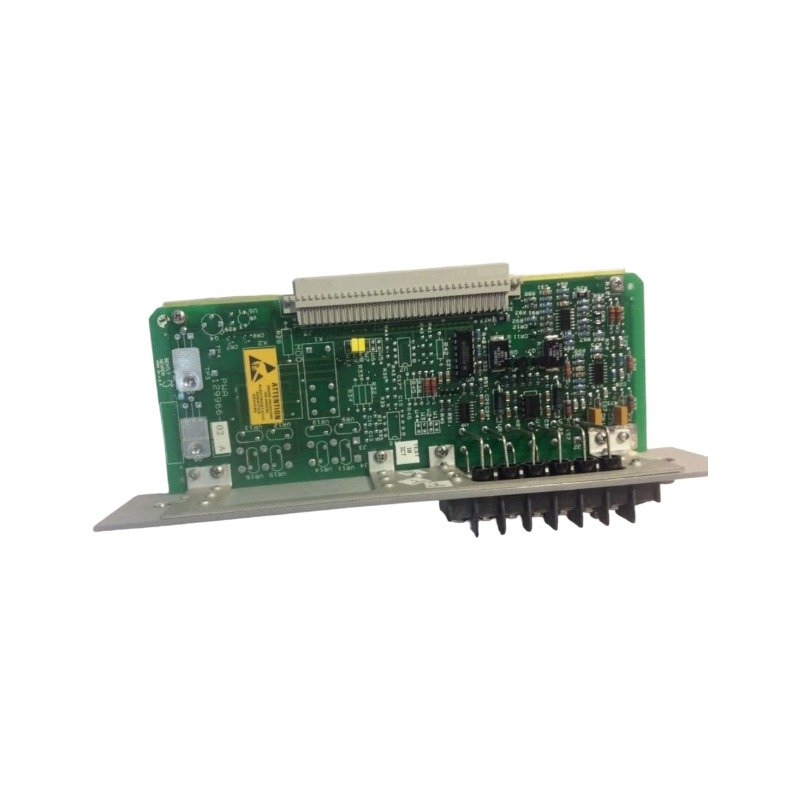

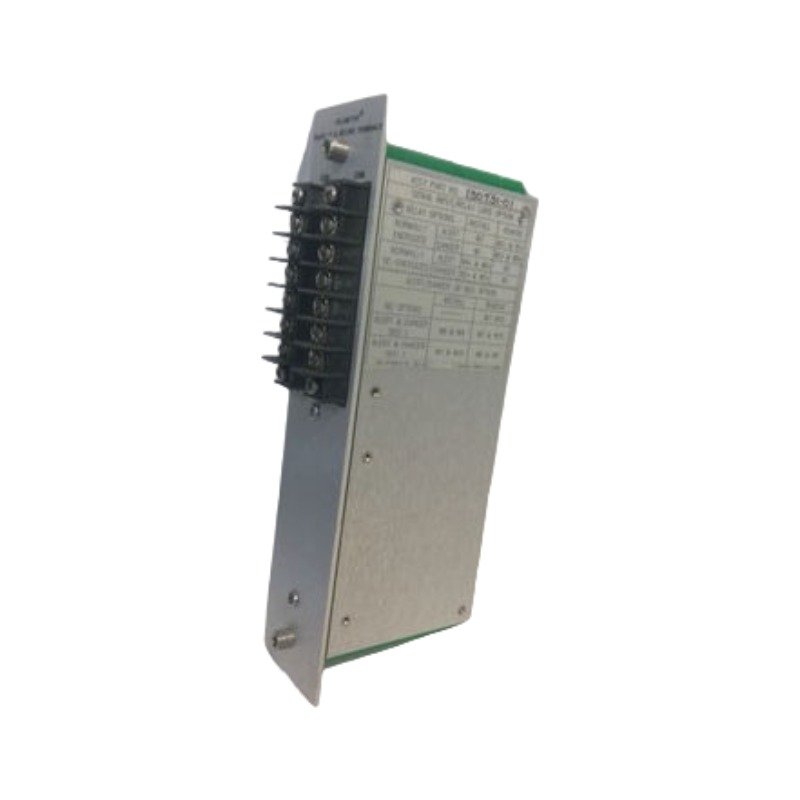

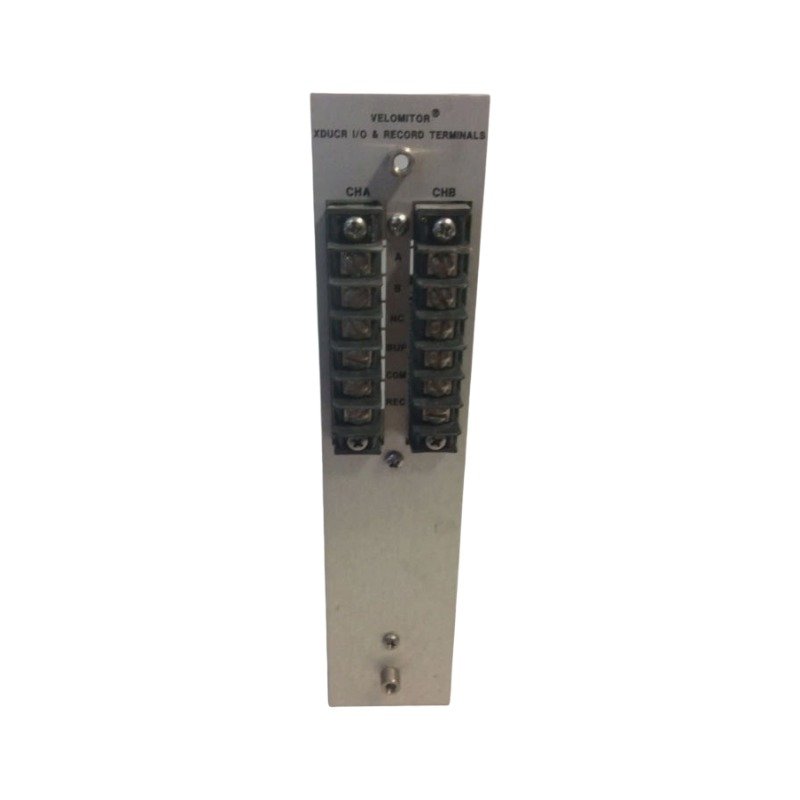

The Bently Nevada 130731-01, also cataloged as the Bently Nevada 130731 Velomitor Transducer I/O Module, operates as a dedicated hardware component for physical vibration signal routing and sensor interface conversion within Bently Nevada 3300 Series Monitoring Systems. The rear-mounted component interfaces solid-state piezoelectric velocity sensors directly with the primary monitor card via the rack backplane assembly. Consequently, this connectivity guarantees rapid, uninterrupted data transmission paths for absolute casing vibration tracking without introducing processing cycle delays.

Hardware Specifications

Machinery Monitoring and TSI Characteristics

The module trace layout stabilizes input impedance levels to facilitate precise eddy-current probe scaling configurations during simultaneous multi-sensor integration. Therefore, the direct pass-through architecture preserves loop voltage characteristics, enabling exact gap voltage validation (-10 VDC targets) and sensor bias validation across all integrated monitoring channels. Furthermore, the localized ground plane distribution delivers strict cross-talk suppression between proximal signal pathways. As a result, this design isolates adjacent casing velocity channels to preserve tracking data accuracy during the calculation of high-speed rotor dynamics.

Frequently Asked Questions

Q: Does this Velomitor interface card permit online live hot-swap replacement procedures?

A: Yes, maintenance personnel can physically extract or insert this card while the monitoring chassis remains active. However, because disconnecting the rear I/O component instantly severs the transducer input path, field engineers must place the main tracking monitor into bypass mode beforehand to eliminate the risk of accidental plant trips.

Q: What power parameters does the 130731-01 module draw from the internal system rails?

A: This card operates as a passive routing and terminal matching network for external seismic transducers. Because it utilizes no active onboard microprocessors or voltage regulation circuits, it exhibits a 0.0 W power profile and draws zero current from the internal rack backplane power lines.

Field Installation Guidelines

1. Guide the circuit module smoothly into the designated rear rack slot tracks, confirming exact edge connector alignment before applying final insertion force.
2. Tighten the integrated faceplate retaining hardware to a torque rating of 0.6 N-m to establish continuous structural grounding path integrity with the metal enclosure frame.
3. Terminate all incoming sensor coaxial shields at the designated internal terminal block ground strip, enforcing a single-point grounding framework to eradicate common-mode noise loops.
4. Route low-level transducer field lines separate from alternating current transmission conduits by a minimum spatial distance of 300 mm to suppress inductive noise coupling.
