Description

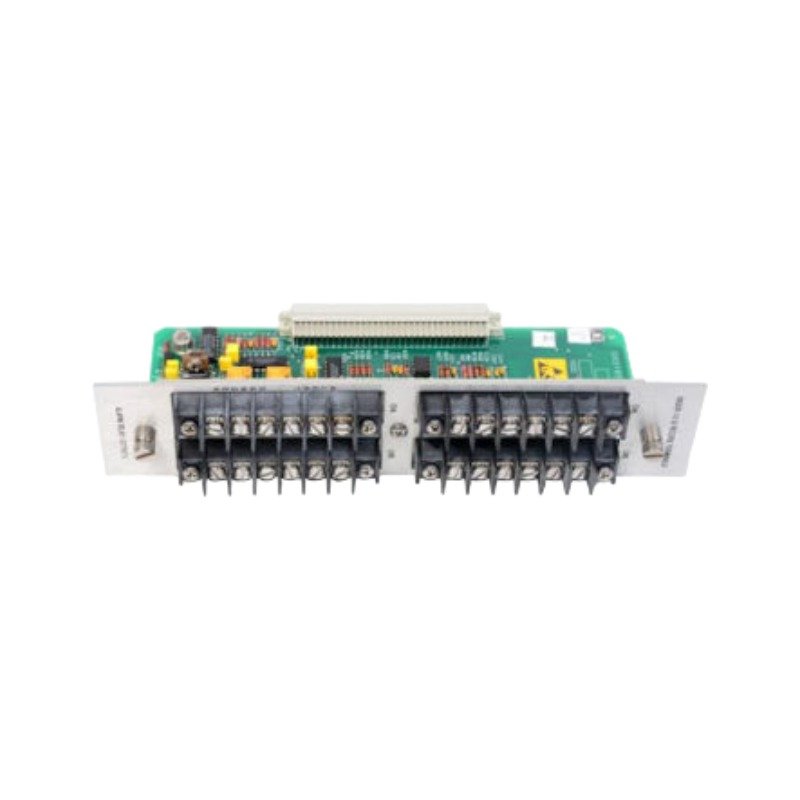

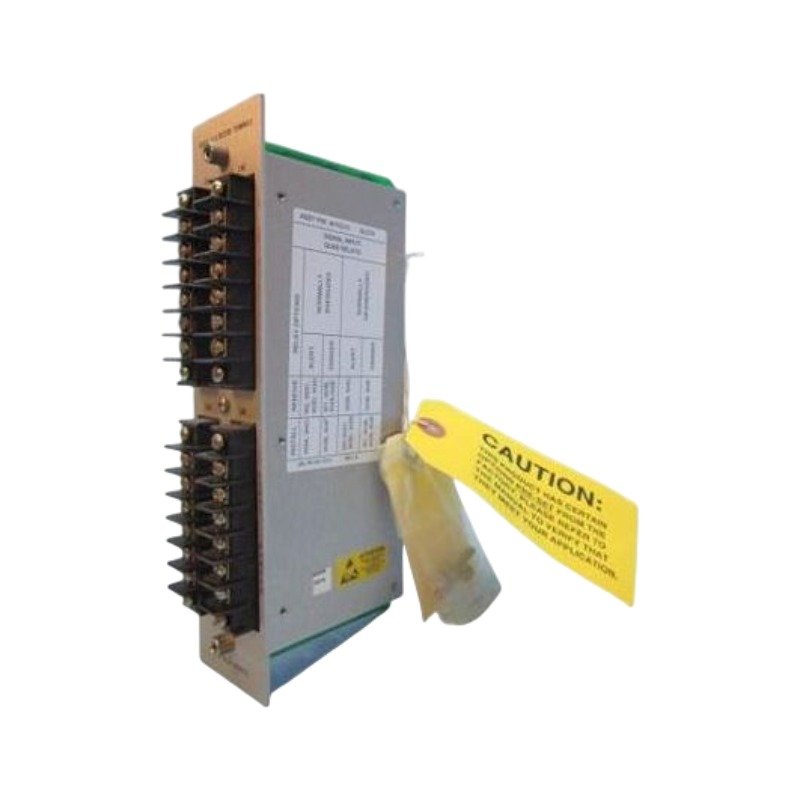

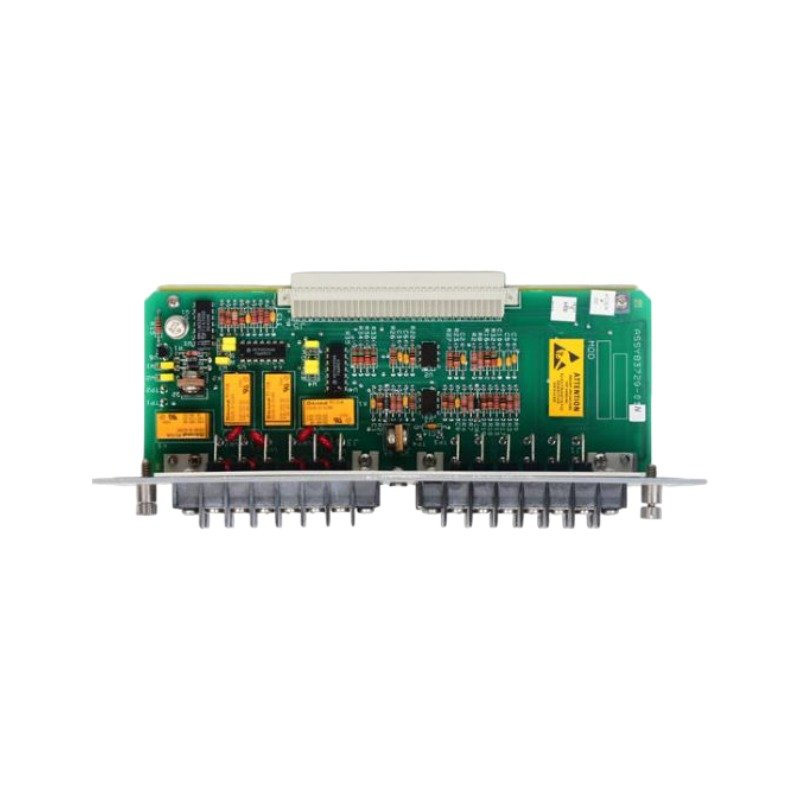

The Bently Nevada 84152-01, also cataloged as the Bently Nevada 84152 Transducer Input I/O and Record Terminals Module, operates as a dedicated hardware component for dual-channel radial vibration and shaft gap positioning within 3300/16 Monitoring System architectures. The rear-mounted circuit board interfaces proximity probe sensor streams directly with the primary monitoring infrastructure. Consequently, the hardware routes analog metrics and processes physical terminal connections to execute safety loops without introducing transmission packet delays.

Hardware Specifications

Machinery Monitoring and TSI Characteristics

The internal conductor routing tracks input variables to facilitate precise eddy-current probe scaling configurations during simultaneous machinery telemetry capture. Therefore, the module maintains absolute DC path transparency, allowing continuous gap voltage validation (-10 VDC targets) to verify nominal transducer zeroing parameters across both active channels. Furthermore, the specialized ground layer geometry ensures rigid cross-talk suppression between proximal signal wire connections. As a result, this baseline protection isolates sensitive measurement points from inductive data corruption, enabling accurate diagnostics for dynamic rotor dynamics evaluation.

Frequently Asked Questions

Q: Does this transducer I/O card support online live hot-swap replacement procedures?

A: Yes, maintenance personnel can physically extract or insert the rear module while the 3300 rack chassis remains powered. However, because breaking the physical terminal links severs active transducer data inputs to the front monitor card, field engineers must bypass the corresponding protective relay channels first to prevent false emergency machinery trips.

Q: What are the electrical configuration limits of the quad relay contacts on this board?

A: The onboard quad alarm relays provide dry contacts configurable via internal hardwired jumpers for either Normally Energized or Normally De-Energized operational states. Consequently, these outputs link directly to host plant shutdown interlocks, tripping external safety networks when independent channel limits are breached.

Field Installation Guidelines

1. Slide the module completely down the targeted slot tracks of the rear 3300 chassis frame, ensuring that the multi-pin connector seats firmly into the host backplane array.
2. Fasten the integrated faceplate retention hardware to a fixed target torque of 0.6 N-m to build a continuous chassis ground connection with the metal enclosure.
3. Terminate all incoming low-level transducer coaxial lines and recording loops at the dedicated terminal block screws, enforcing single-point shield grounding paths to wipe out common-mode electrical noise.
4. Separate external transducer signal links from active alternating current transmission conduits by a minimum spatial clearance of 300 mm to suppress electromagnetic background interference.
