Description

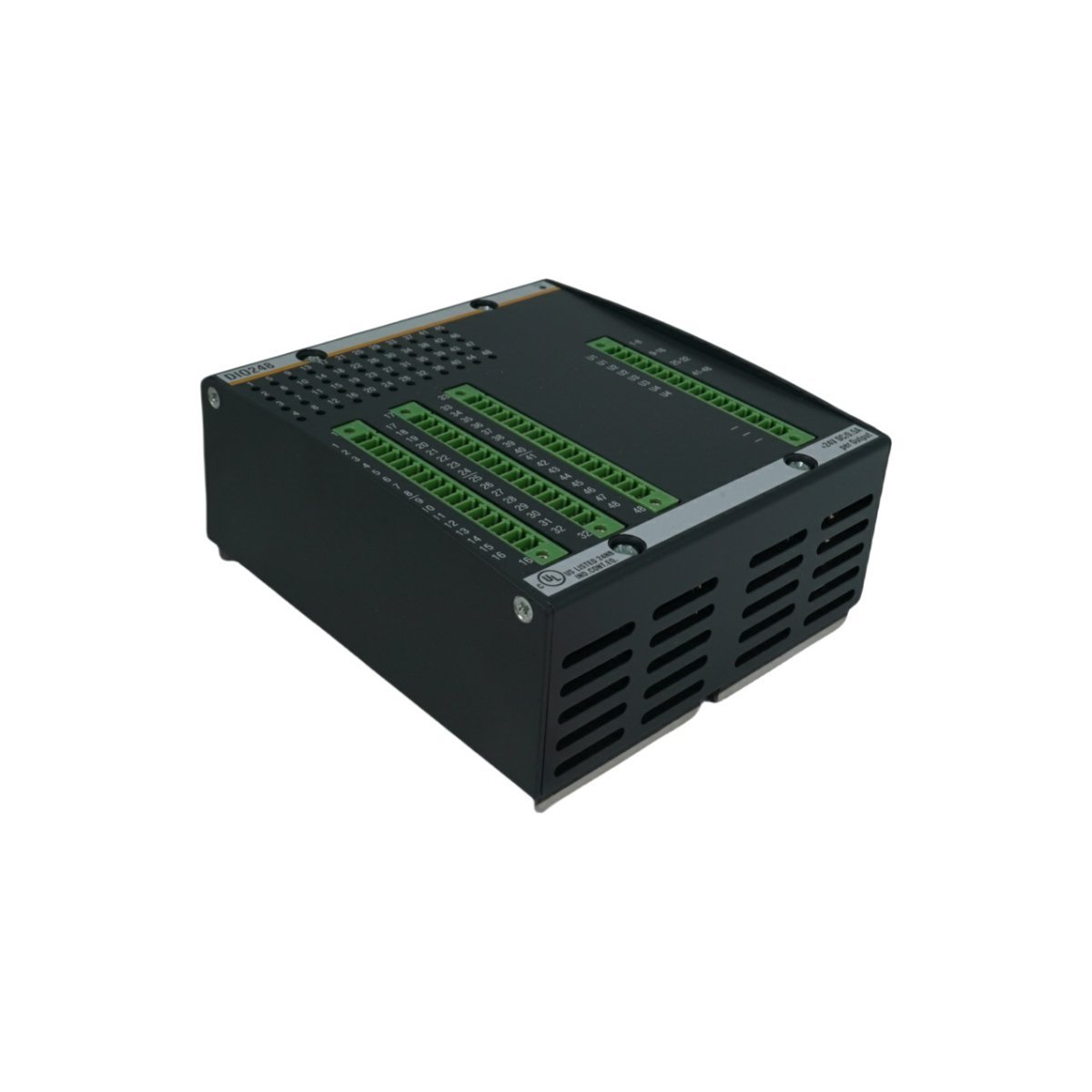

Bachmann DIO248 High-Density Digital I/O Control Module

The DIO248 is a multifunctional 48-channel digital interface module designed for the Bachmann M1 system, offering dynamic channel allocation and integrated 32-bit counter capabilities for precision automation.

Technical Operational Overview

The DIO248 provides a highly flexible interface for digital signal processing within industrial PLC environments. This module stands out by offering 48 total channels, where 16 points feature programmable logic, allowing them to serve as either inputs for discrete sensors or outputs for driving actuators. This versatility enables system designers to consolidate various I/O requirements into a single hardware footprint. The unit operates efficiently within a standard 18–34V DC voltage range and incorporates internal reverse polarity protection to prevent hardware damage during installation.

Furthermore, the DIO248 excels in specialized measurement tasks. Beyond simple state detection, the module supports advanced 32-bit counter modes, frequency measurement, and Pulse Width Modulation (PWM) outputs. These features make it particularly effective for controlling proportional valves or monitoring high-speed encoders. To ensure high system availability, the module utilizes galvanic isolation and integrated input filtering to suppress electrical noise. Technicians can also perform rapid on-site troubleshooting using the individual LED status indicators located on the front panel for every channel.

Key Technical Characteristics

• Dynamic Channel Configuration: Features 48 digital channels, including 16 “hybrid” points that users can assign as inputs or outputs based on application needs.
• Integrated Measurement Suite: Supports 32-bit counting, period measurement, and frequency analysis for precise motion and flow monitoring.
• PWM Logic Support: Allows for direct Pulse Width Modulation output, ideal for fine-tuning the control of pneumatic or hydraulic valves.
• Industrial-Grade Protection: Includes galvanic isolation between field and internal logic, along with comprehensive reverse polarity protection.
• Compact High-Density Design: Consolidates 48 channels into a 5.3 cm wide module, eliminating the need for extra terminal rails and reducing cabinet size.

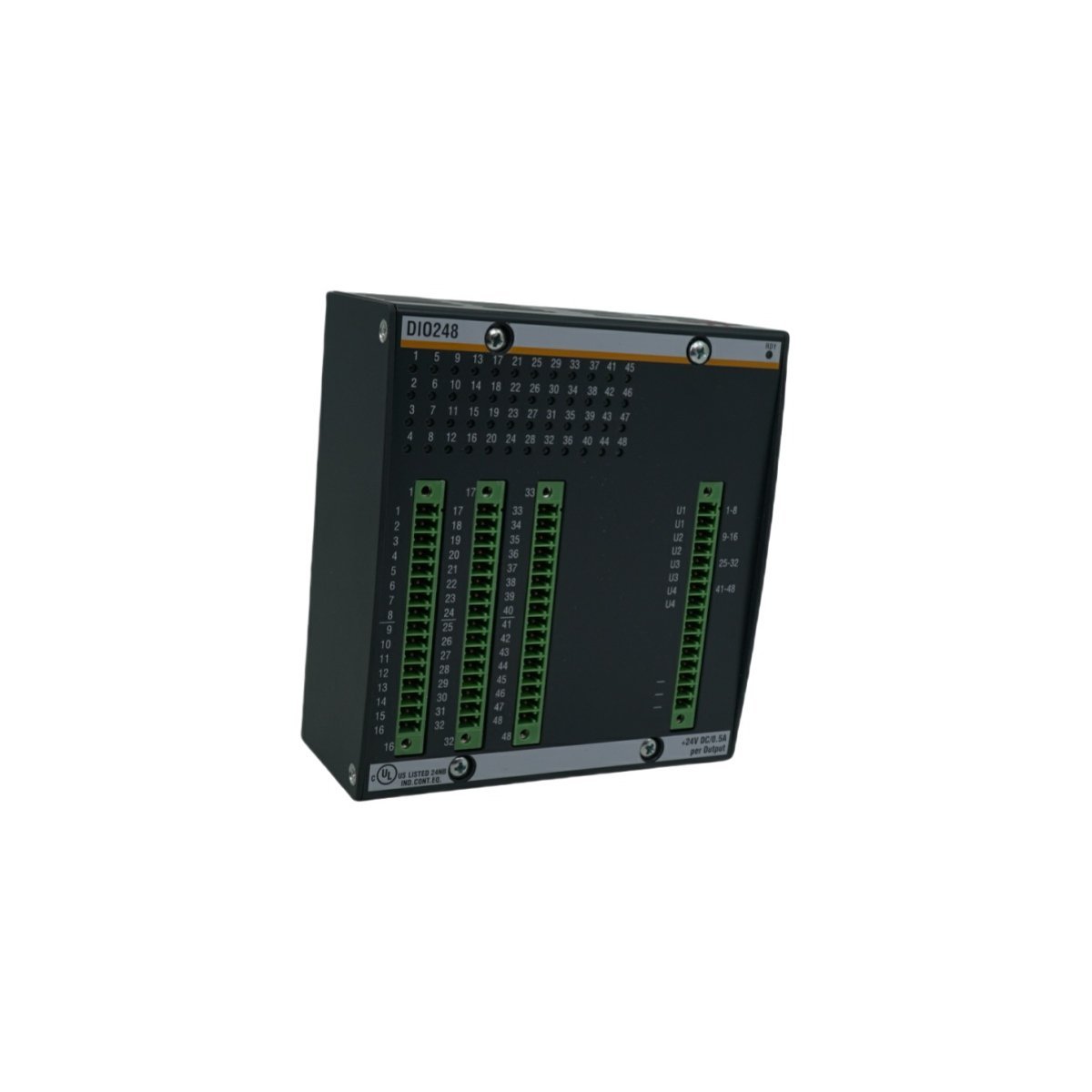

• Real-Time Diagnostics: Provides immediate visual feedback through dedicated per-channel LEDs and configurable interrupt inputs for event-driven logic.

Product Specifications

Industrial Applications

The DIO248 is frequently implemented in sectors requiring high-density discrete control, such as:

• Complex Machinery: Coordinating dozens of limit switches and solenoid valves in a single module.
• Renewable Energy: Managing the digital sequencing and sensor feedback for wind turbine pitch systems.
• Packaging and Logistics: Handling high-speed pulse counting for conveyor sorting and encoder feedback.
