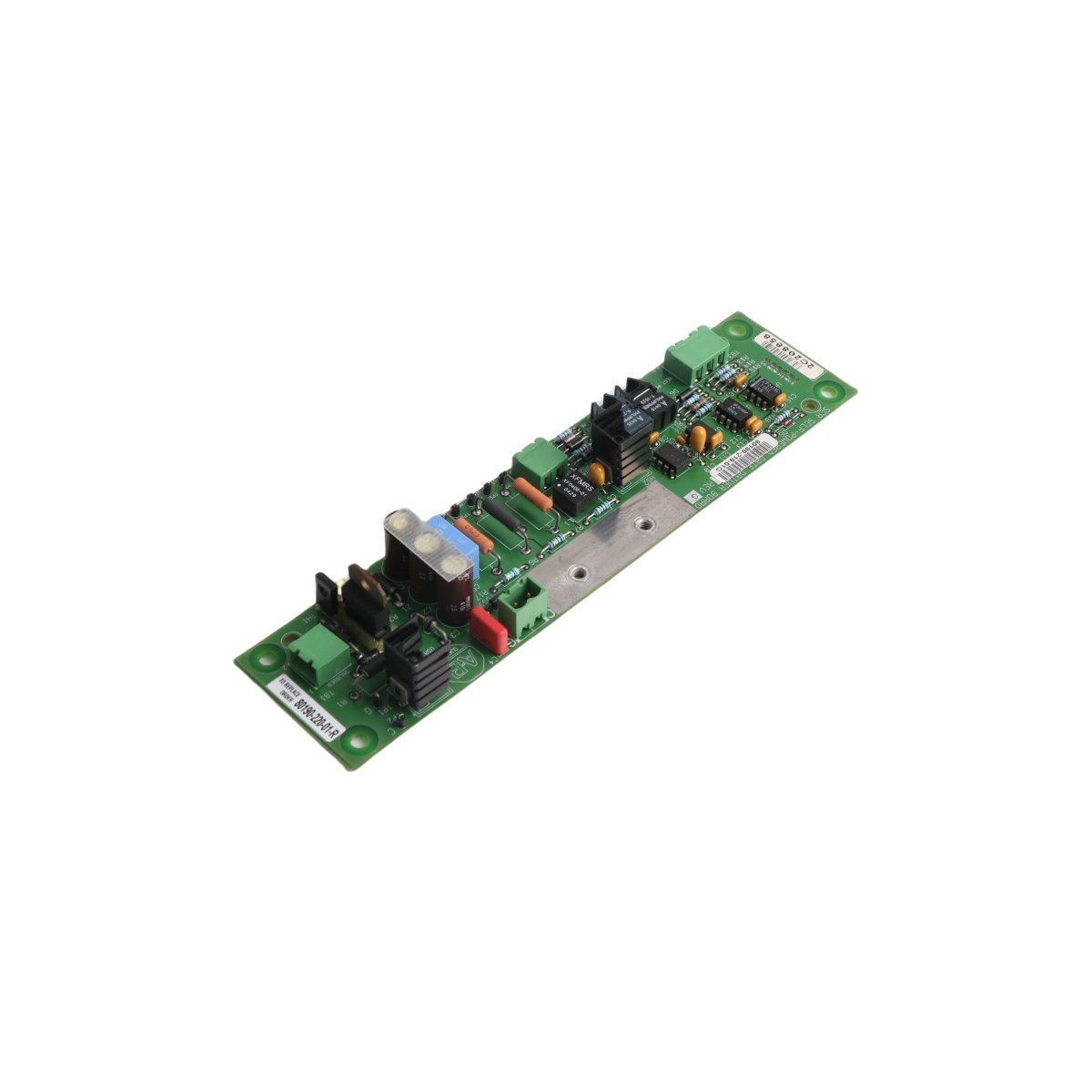

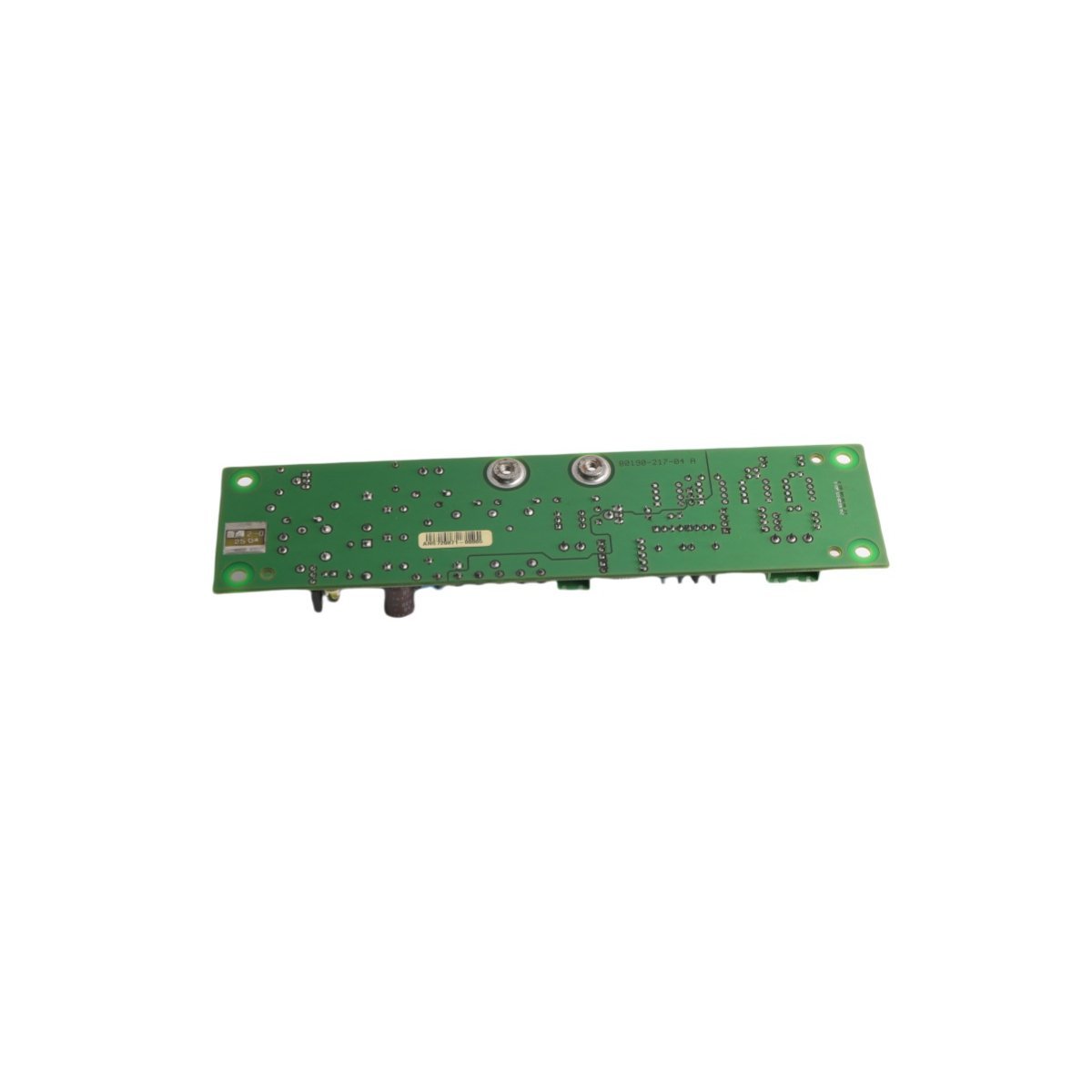

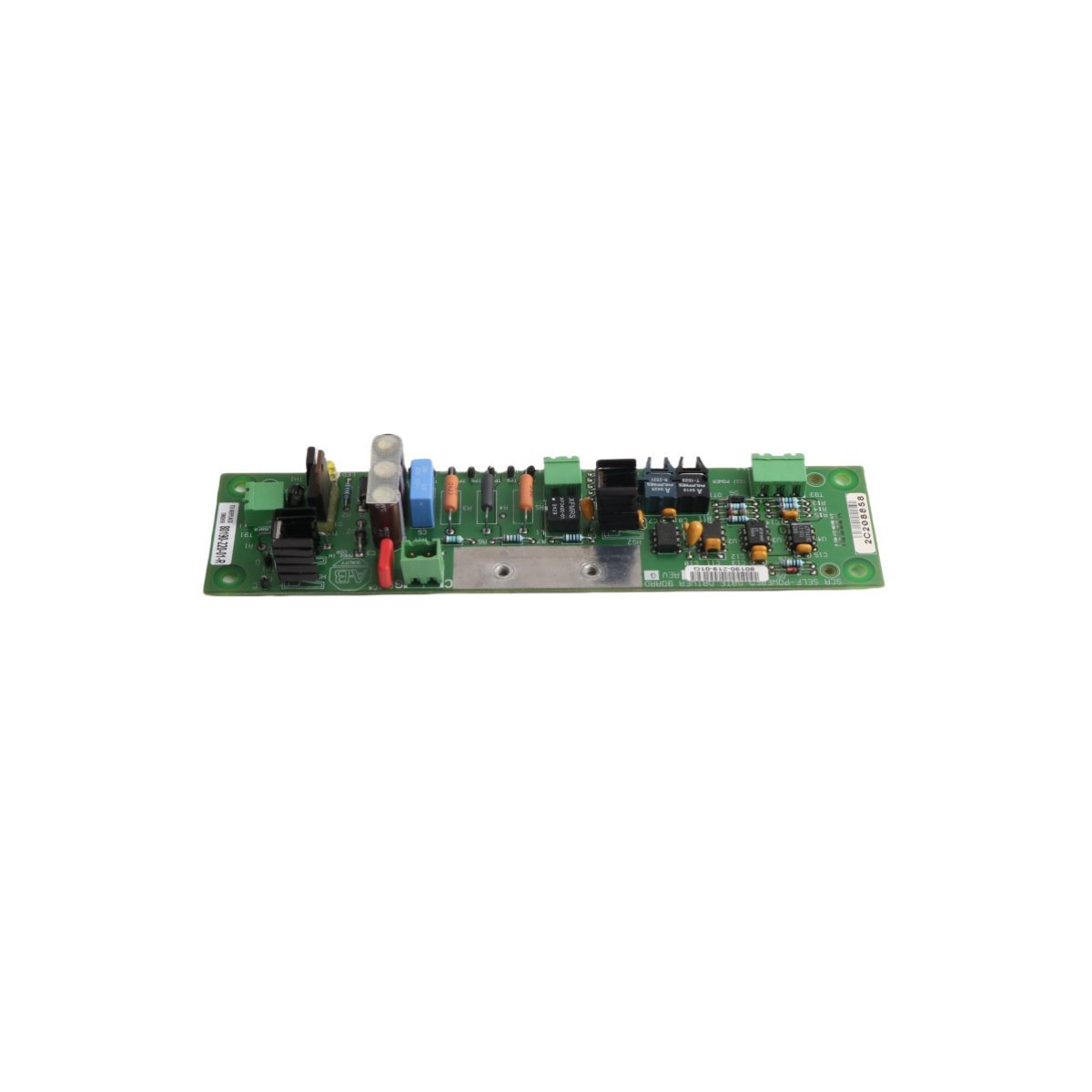

Allen-Bradley 80190-220-01-R Industrial SCR Gate Driver Control Board
The Allen-Bradley 80190-220-01-R is a self-powered SCR gate driver board designed for high-voltage power semiconductor control. This precision-engineered component provides reliable triggering for motor drives and power conversion systems, ensuring maximum stability in demanding industrial automation environments.
Description
Product Overview
The 80190-220-01-R functions as a high-precision gate driver board specifically engineered by Allen-Bradley for Silicon-Controlled Rectifier (SCR) management. This critical component facilitates the accurate triggering of power semiconductors, which is essential for regulating high-capacity electrical currents in industrial settings. Because it utilizes a robust architecture, the board maintains exceptional stability even when operating within electrically noisy or thermally demanding environments. Although the manufacturer transitioned this model to a discontinued status on June 30, 2016, it continues to serve as a vital replacement part for maintaining the operational integrity of legacy motor drives and power conversion systems.
Advanced Self-Powered Design
One of the most significant technical advantages of the 80190-220-01-R lies in its self-powered configuration. By harvesting the necessary energy directly from the system environment, the board eliminates the requirement for secondary external power supplies. This design choice effectively streamlines the installation process and reduces the overall footprint within the control cabinet. Furthermore, the SCR-centric circuitry enables the board to manage high-voltage applications with superior efficiency, making it an ideal choice for heavy-duty DC motor control and sophisticated power modulation tasks.
Integration and System Performance
The 80190-220-01-R ensures seamless synchronization within complex automation platforms by providing rapid response times and minimal signal attenuation. Maintenance professionals and Original Equipment Manufacturers (OEMs) rely on this driver board to deliver consistent output pulses, which prevents erratic switching and protects expensive downstream power components. Consequently, the board enhances the lifecycle of the entire drive system while ensuring that real-time industrial processes remain responsive and precise.
Technical Specifications
- Brand: Allen-Bradley / Rockwell Automation
- Model: 80190-220-01-R
- Part Type: SCR Gate Driver / Control Board
- Operational State: Self-Powered
- Primary Function: Semiconductor Triggering and Power Control
- Manufacturing Origin: USA
- Physical Dimensions: 20.7 x 5 x 2.5 cm
- Net Weight: 0.1 kg
Additional information
| Weight | 0.1 kg |
|---|---|
| Country of Origin | USA |
| Dimension | 20.7 x 5 x 2.5 cm |
0.0 Average Rating Rated (0 Reviews)
