Description

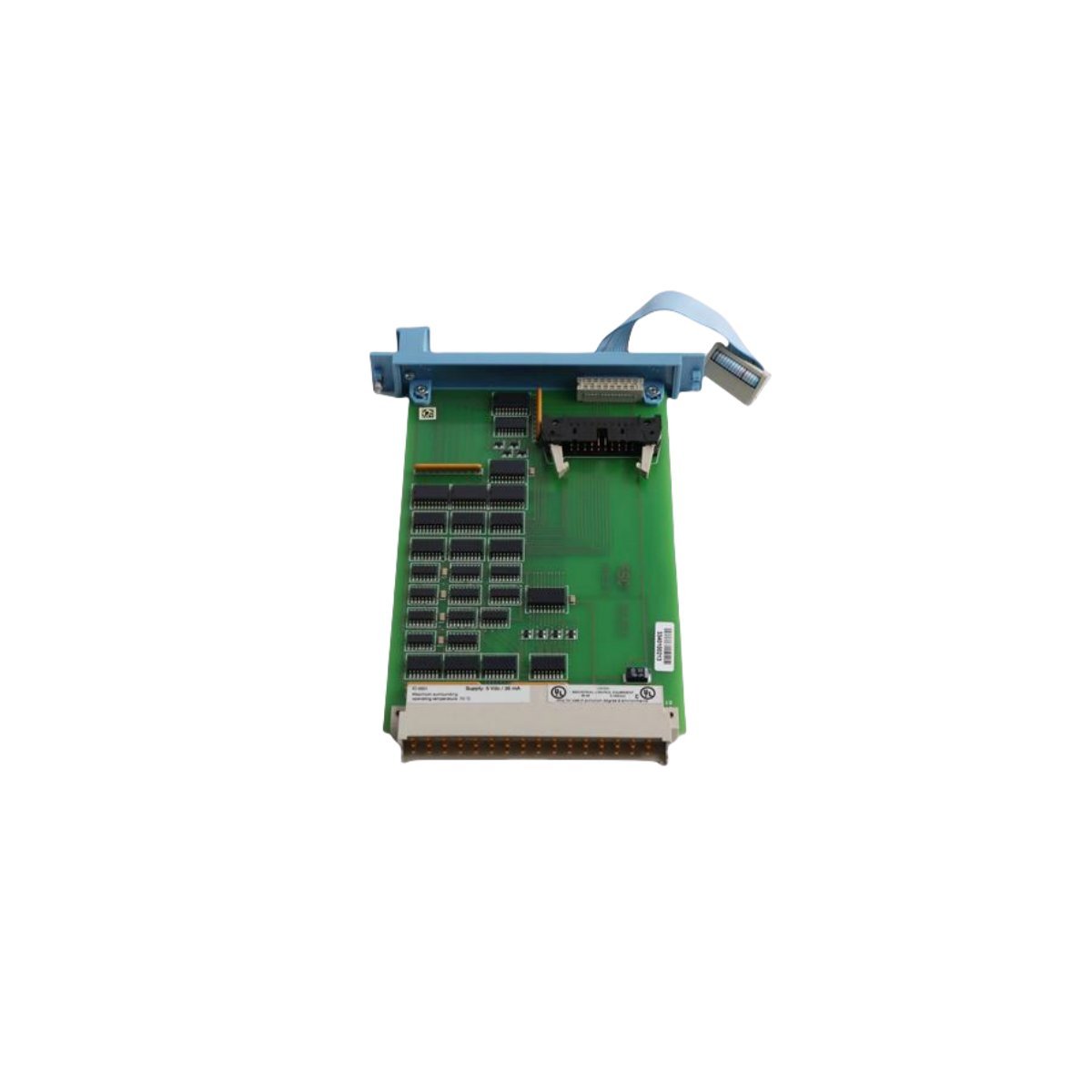

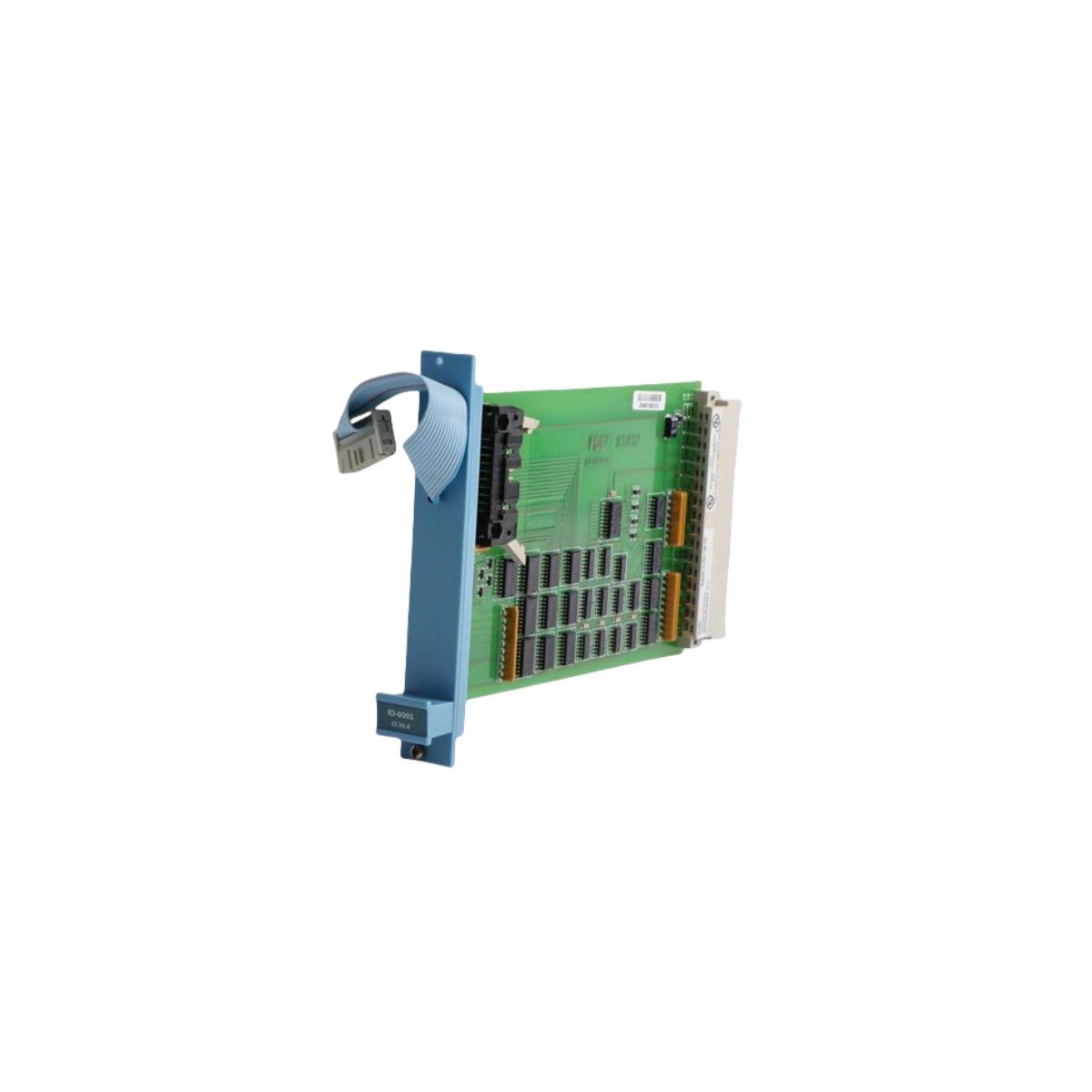

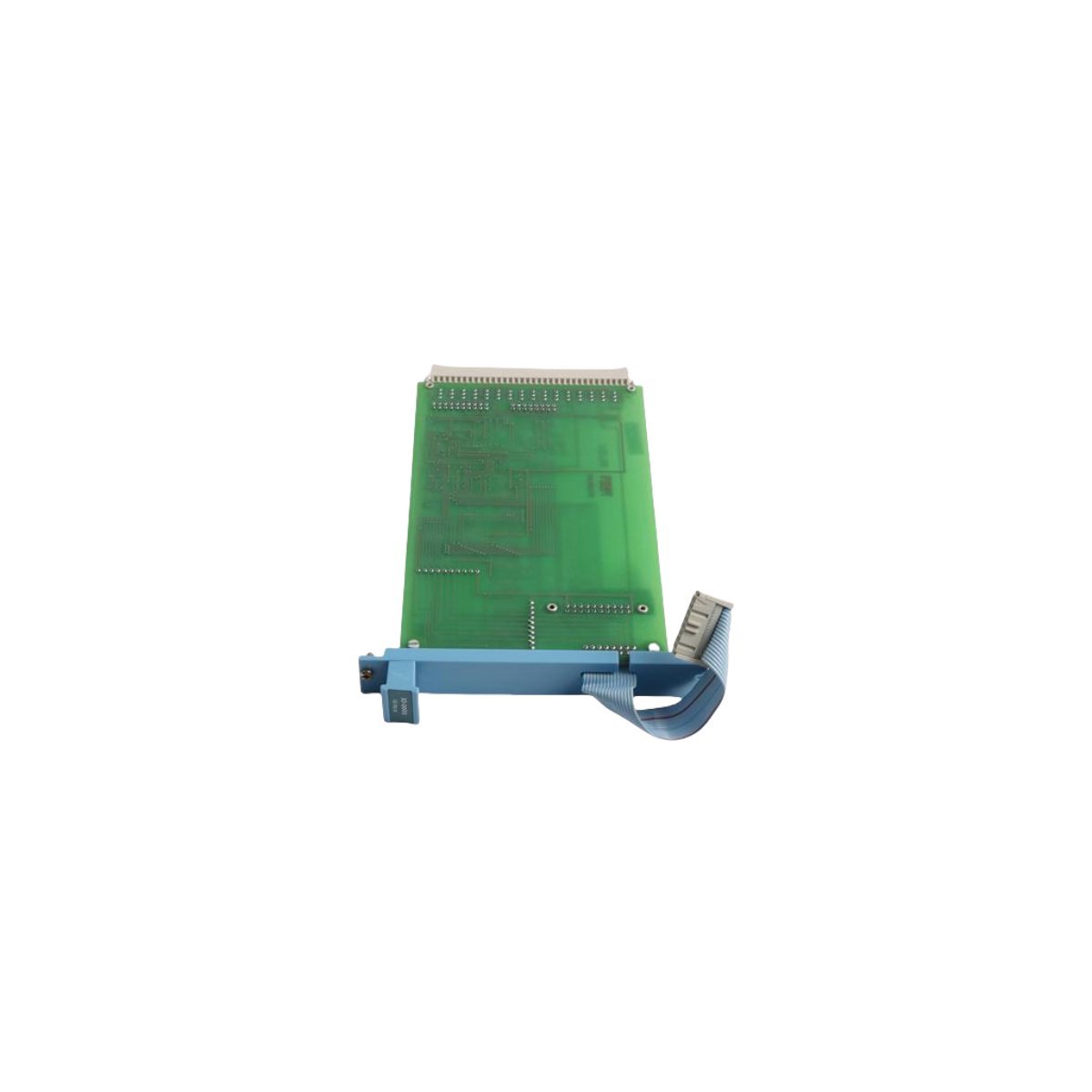

The Honeywell DC-TFB412 51307618-176, also cataloged as the 51307618-176 Control Module, operates as a dedicated hardware component for fieldbus packet routing and analog data conversion within distributed control system network topologies.

Suffix Breakdown & Model Matrix

• DC-TFB412: Series designator defining the specific fieldbus interface architecture and terminal block layout.
• 51307618-176: Unique manufacturing assembly and hardware revision identifier assigned by Honeywell for traceability.

Hardware Specifications

Channel Isolation and Loop Protocol Management

The hardware integrates multi-channel galvanic isolation networks to protect internal processing nodes from common-mode voltage spikes originating in field instrumentation loops. Analog input and output paths maintain adherence to 4-20 mA HART loop protocol specifications, ensuring transparent transmission of superimposed digital diagnostic variables. Additionally, cold junction compensation (CJC) circuitry is embedded within the terminal assembly to stabilize thermocouple voltage measurements against ambient thermal drift inside industrial cabinet enclosures.

Frequently Asked Questions

• Q: Does the control module support online replacement or hot-swapping under power?

  A: No. System power must be isolated from the associated backplane slot prior to module extraction or insertion to prevent electrical bus corruption.

• Q: How are communication errors handled across the fieldbus network?

  A: Frame error checking and hardware-level cyclic redundancy checks (CRC) monitor packet integrity during data exchange cycles.

• Q: What type of enclosure cooling is required for this module?

  A: Natural convection cooling via standard panel ventilation is sufficient, provided minimum vertical clearance rules are maintained.

Field Installation Guidelines

• Mount the module strictly into designated Honeywell DCS chassis slots, ensuring proper engagement with backplane connector pins.
• Torque all terminal block fasteners to recommended manufacturer specifications to maintain low-resistance ground continuity and prevent signal degradation.
• Route external instrumentation cables away from high-voltage power lines to minimize electromagnetic interference and transient noise coupling.
