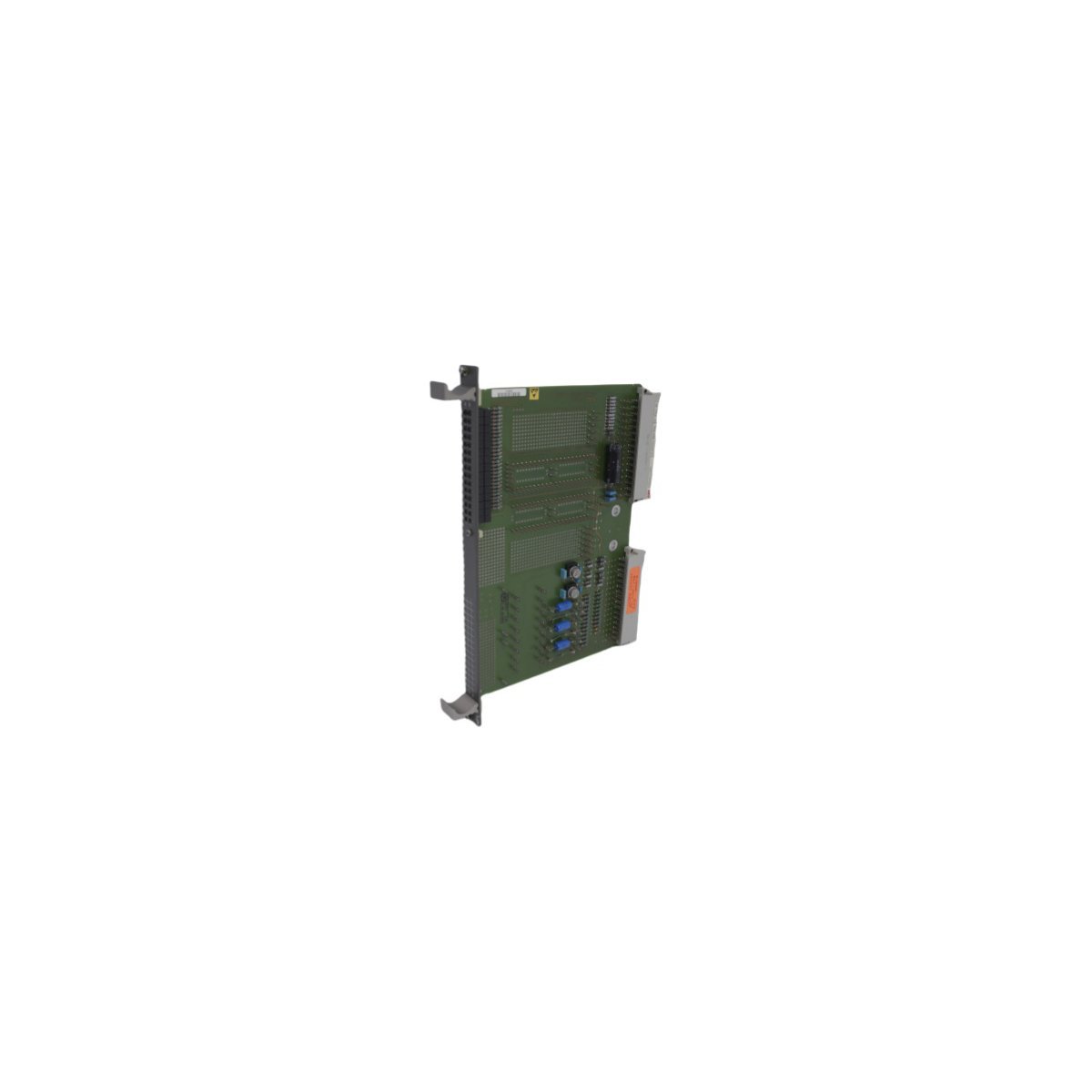

XVB363 AE ABB HIEE401238R1 Industrial DCS Process Control Module
The ABB HIEE401238R1 XVB363 AE is a high-performance control board designed for UNITROL excitation systems. Featuring 1MB of memory and RS485 connectivity, it ensures precise regulation and protection for critical generator and industrial DCS applications.
Description
Product Overview
The ABB HIEE401238R1 XVB363 AE serves as a high-tier control module specifically engineered for UNITROL excitation systems. This advanced circuit board manages critical regulation tasks and facilitates stable power delivery by executing complex control algorithms within a Distributed Control System (DCS) environment.
Product Features and Technical Functions
The XVB363 AE board operates as the central processing intelligence for excitation regulation, ensuring that generators maintain synchronized performance under fluctuating load conditions. It combines robust hardware architecture with high-speed data handling to optimize industrial uptime.
- Expanded Data Capacity: The module features 1MB of onboard memory, which provides sufficient space to store sophisticated logic sequences and historical diagnostic data.
- Versatile I/O Interface: Four dedicated input/output channels enable the board to interface directly with various sensors and actuators, allowing for flexible system configuration.
- Industrial Communication: An integrated RS485 interface supports seamless serial communication, while the module’s architecture allows for broader Ethernet routing within the plant network.
- Extreme Climate Tolerance: Engineered for resilience, the board functions reliably in ambient temperatures ranging from -25°C to +85°C, making it ideal for remote or unconditioned industrial sites.
- Efficient Power Management: The module consumes a maximum of 25W, which helps minimize heat dissipation within the control cabinet while maintaining high-speed processing capabilities.
Technical Specifications
| Attribute | Specification |
| Manufacturer | ABB |
| Model Number | XVB363 AE |
| Part Number | HIEE401238R1 |
| Product Family | UNITROL Excitation Systems |
| Memory Capacity | 1 MB |
| I/O Channels | 4 Channels |
| Communication Interface | RS485 / Ethernet Service |
| Power Consumption | Max 25W |
| Operating Temperature | -25°C to +85°C |
| Dimensions | 1.8 x 19.6 x 26.1 cm |
| Net Weight | 0.26 kg |
Application Fields
The HIEE401238R1 XVB363 AE board is essential for high-availability power sectors. Typical installations include:
- Excitation control in hydroelectric and thermal power generation plants.
- Voltage regulation for large-scale synchronous motors in mining and heavy manufacturing.
- Centralized process control within ABB DCS-driven industrial networks.
- Power management for marine propulsion and offshore energy platforms.
Additional information
| Weight | 1 kg |
|---|---|
| Country of Origin | Sweden |
| Dimension | 1.8 x 19.6 x 26.1 cm |
