Description

Technical Overview

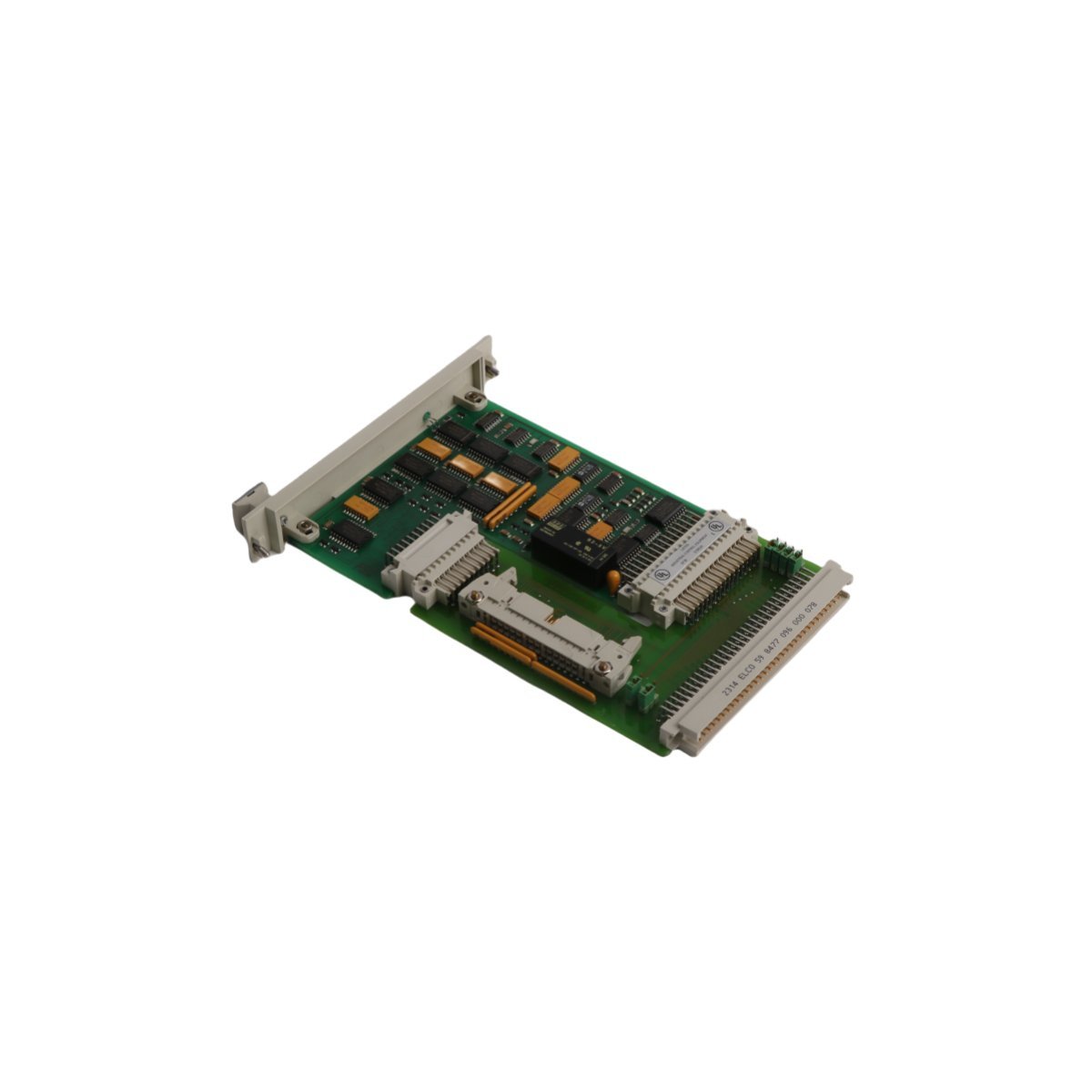

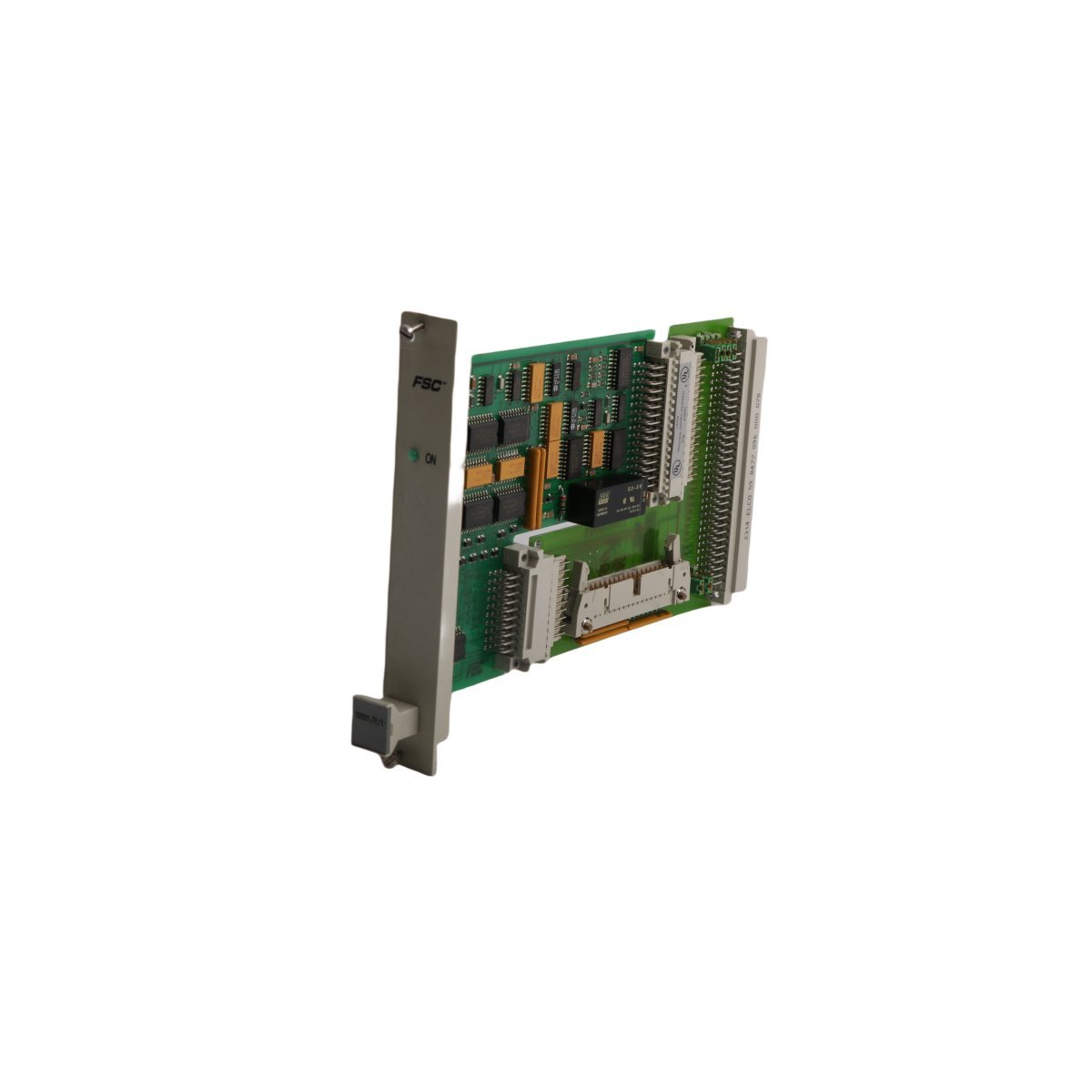

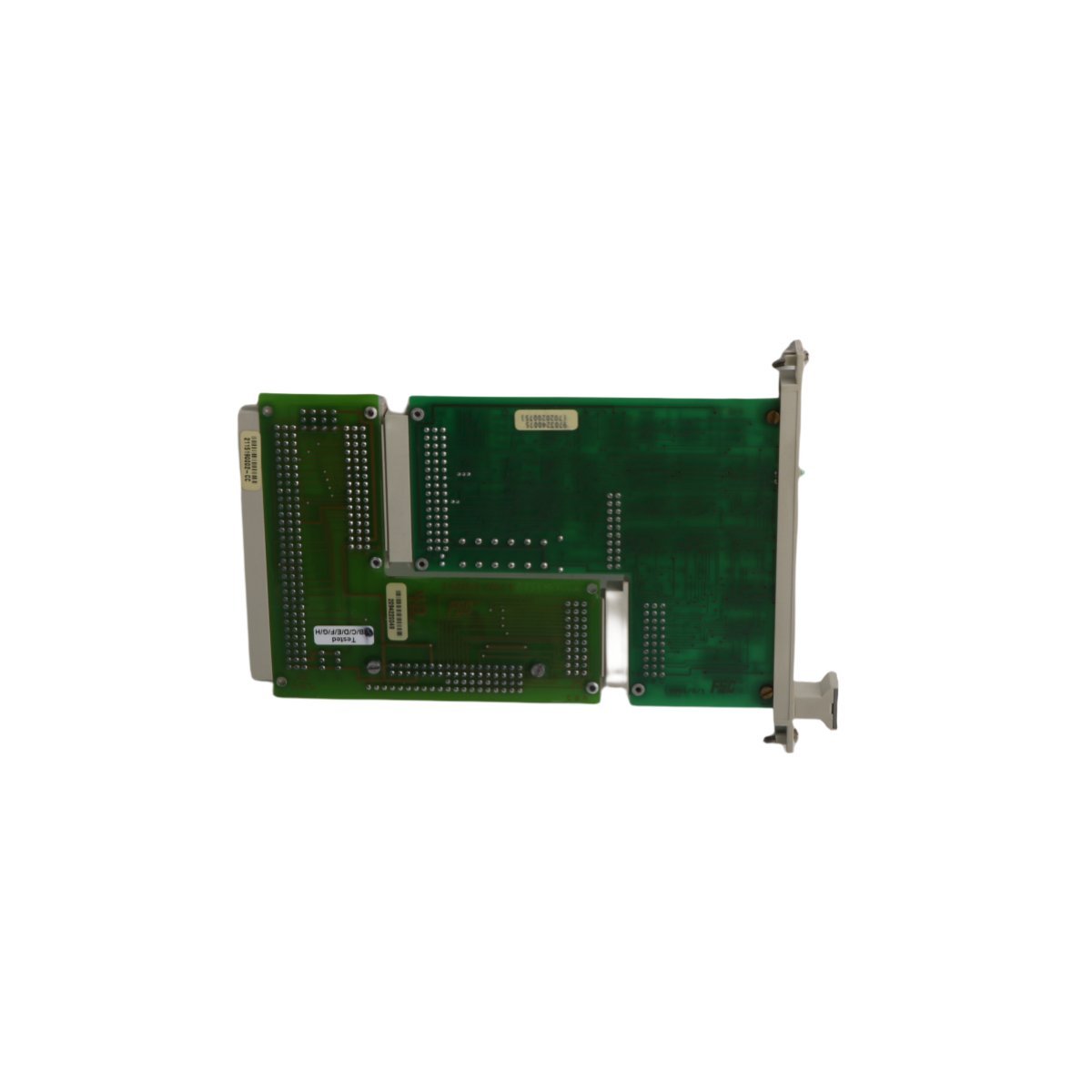

The Honeywell 10001/R/I serves as a specialized Vertical Bus Driver (VBD) within the Fail Safe Control (FSC) system architecture. This module primarily facilitates the high-speed transfer of data across the vertical backplane, ensuring that various I/O chassis and central processors maintain synchronized communication. By acting as a signal amplifier and timing coordinator, the unit maintains the integrity of critical safety loops, which is essential for emergency shutdown (ESD) and fire and gas (F&G) applications.

Operational Performance and Diagnostics

The 10001/R/I module incorporates sophisticated diagnostic circuitry that continuously verifies the health of the bus communication. Because the FSC system prioritizes fault tolerance, this vertical bus driver identifies potential signal degradation before it results in a system trip. Consequently, operators receive real-time status updates, allowing for proactive maintenance and significantly higher system availability. Furthermore, the compact form factor of the module allows for efficient cabinet density without compromising the thermal management of the DCS rack.

System Integration and Protocol Management

This hardware integrates directly into the Honeywell FSC framework and supports diverse communication services, including optimized Ethernet routing for peripheral data exchange. While the module architecture is dedicated to vertical bus management, its design ensures seamless compatibility with existing safety controllers. This compatibility allows plant managers to upgrade or expand their safety systems with minimal process disruption. Additionally, the ruggedized build of the 10001/R/I ensures that the hardware withstands the electrical noise and vibration typically found in heavy industrial environments.

Core Technical Characteristics

• System Component: Fail Safe Control (FSC) Hardware
• Function: Vertical Bus Signal Driving and Synchronization
• Reliability: Redundant communication path support
• Monitoring: Integrated real-time diagnostic reporting
• Protective Design: Ruggedized for high-vibration and industrial EMI environments
• Efficiency: Low power consumption with a lightweight 0.14kg profile

Physical and Logistical Specifications

• Brand: Honeywell
• Model Number: 10001/R/I
• Origin: United States
• Dimensions: 2.0 cm x 18.6 cm x 12.7 cm
• Weight: 0.14 kg
• HS Code: 8537101190
• Condition: Brand New
• Lifecycle Status: Discontinued by OEM (Dec 31, 2018), available as replacement stock

Industrial Applications

The 10001/R/I Vertical Bus Driver is indispensable for safety-critical sectors, including petrochemical refining, offshore oil platforms, and large-scale chemical manufacturing. Because these industries rely on the FSC system to manage hazardous variables, the reliability provided by this bus driver is vital for protecting both personnel and high-value capital assets.
