Description

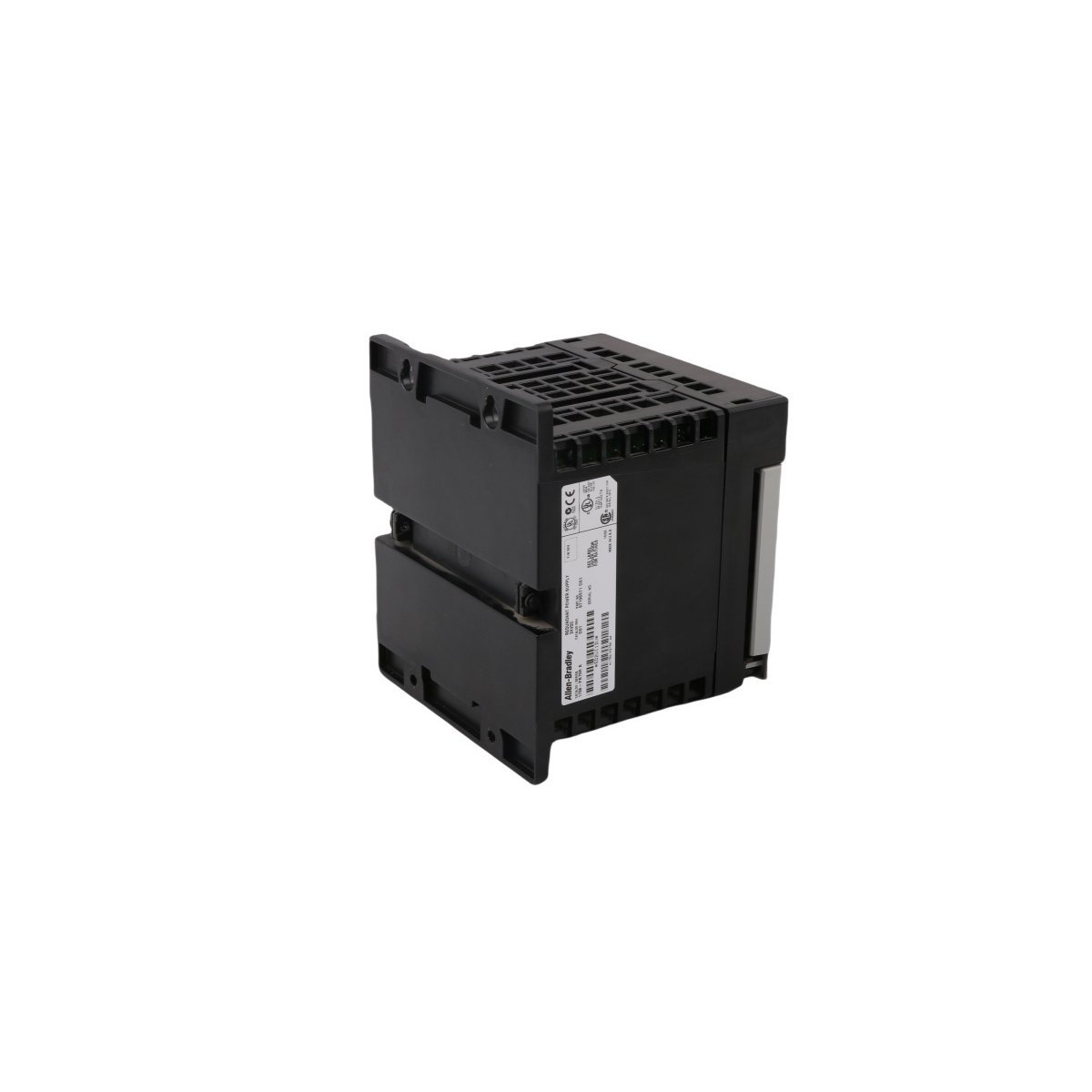

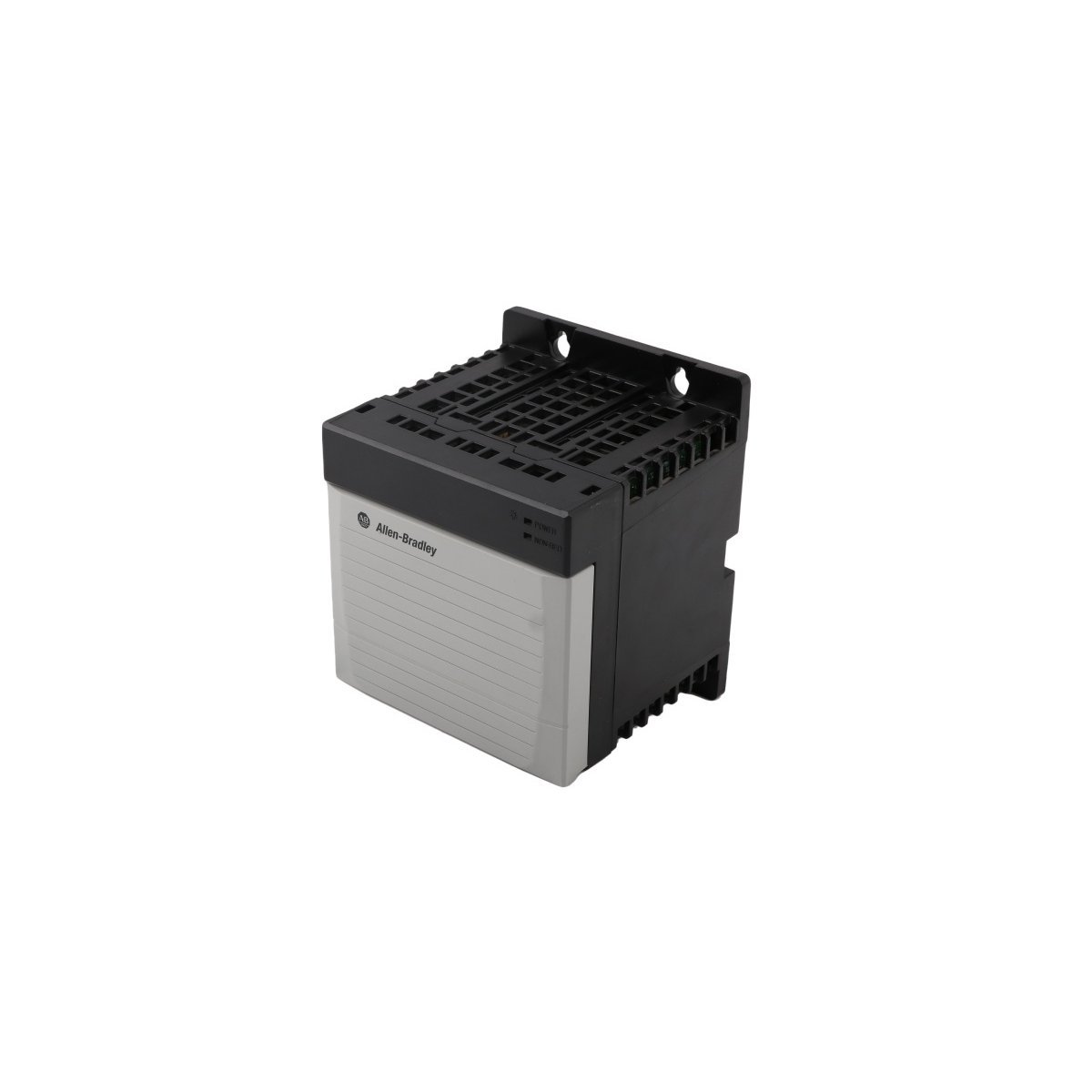

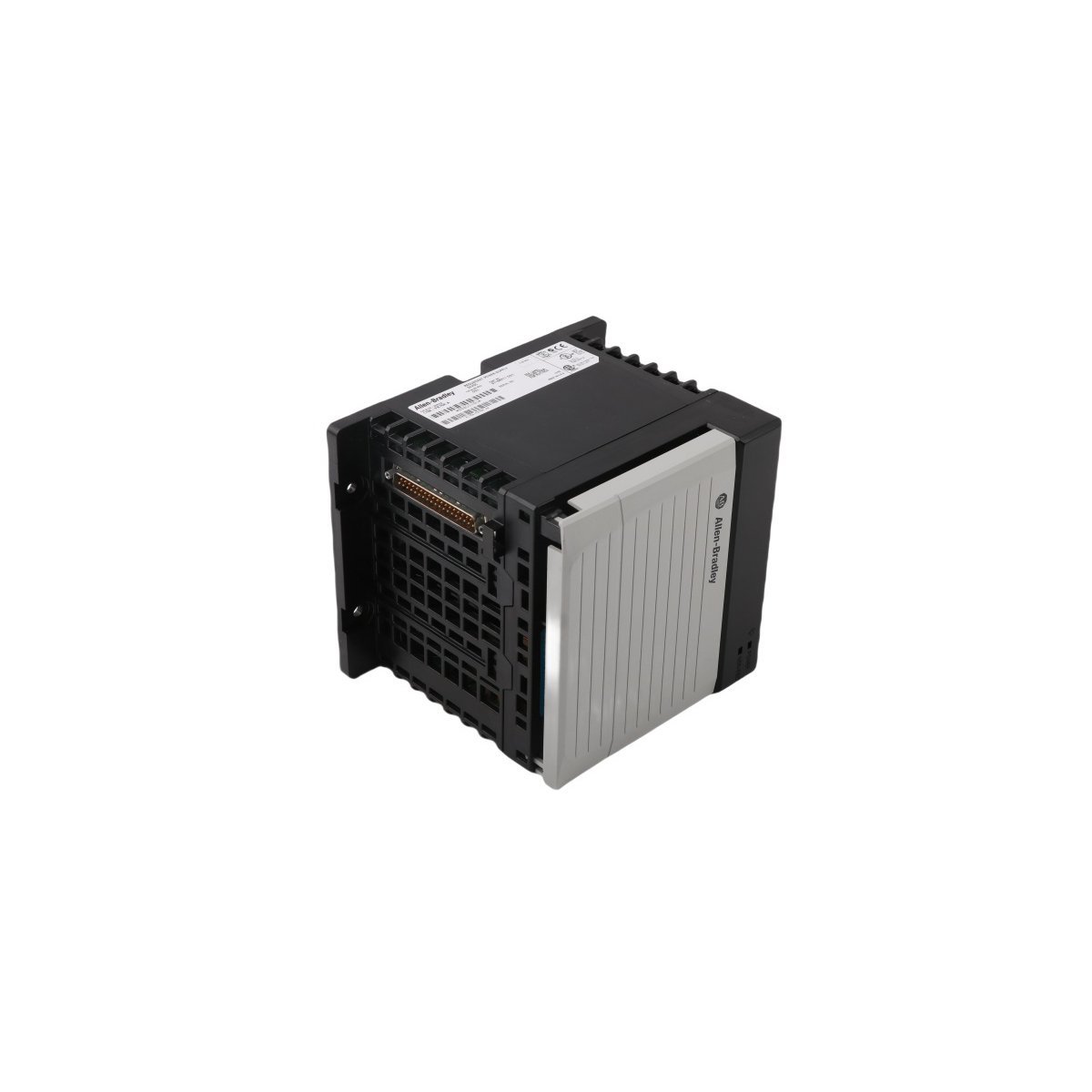

The Allen-Bradley 1756-PB75R serves as a high-availability power solution for ControlLogix chassis. This redundant DC module ensures continuous operation for critical PLC systems. It prevents unexpected downtime by providing secondary power support. Consequently, the system maintains stability even during primary source failures.

Key Technical Specifications

Functional Design and Performance

This module features automatic load sharing capabilities when paired with another redundant unit. It balances the electrical load across the chassis backplane efficiently. Furthermore, the 1756-PB75R includes a dedicated status indicator for real-time health monitoring. This visual tool helps maintenance teams identify power issues quickly.

The unit provides significant protection through high-voltage isolation testing. Specifically, it withstands 3250V DC for 60 seconds to ensure hardware safety. An internal annunciator contact supports remote alarm signaling. This feature alerts operators to power loss immediately.

Installation and System Compatibility

The 1756-PB75R integrates seamlessly with standard ControlLogix 1756-A4 through 1756-A17 chassis. It requires a 1756-PSCA2 chassis adapter for proper redundant configuration. Furthermore, technicians use 1756-CPR2 cables to establish secure power connections.

Compliance with ATEX and IECEx standards allows for use in specialized environments. The rugged design supports non-operating temperatures as low as -40°C. Therefore, it remains reliable for storage in extreme climate conditions. Proper handling during connection prevents dangerous electrical arcing.
