Description

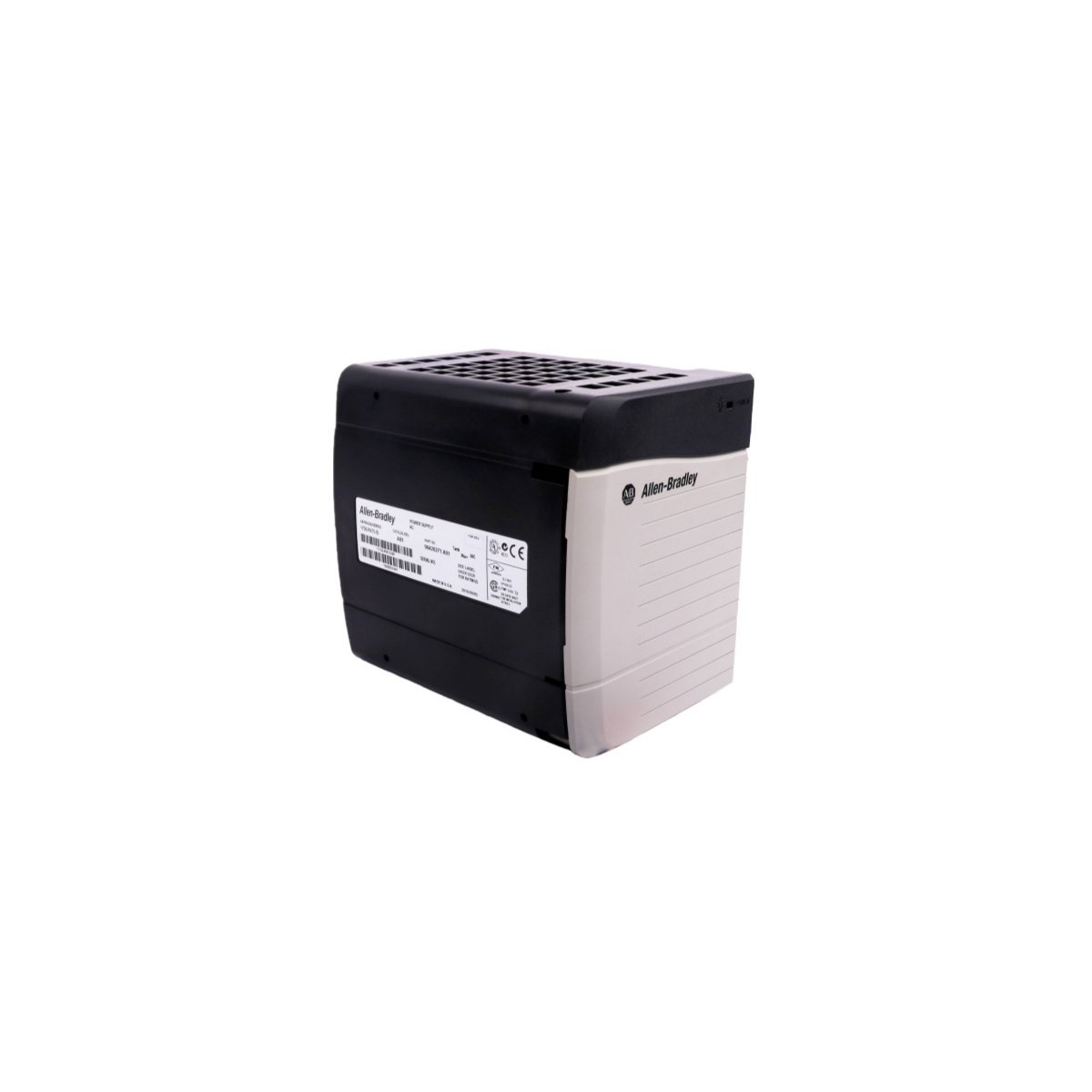

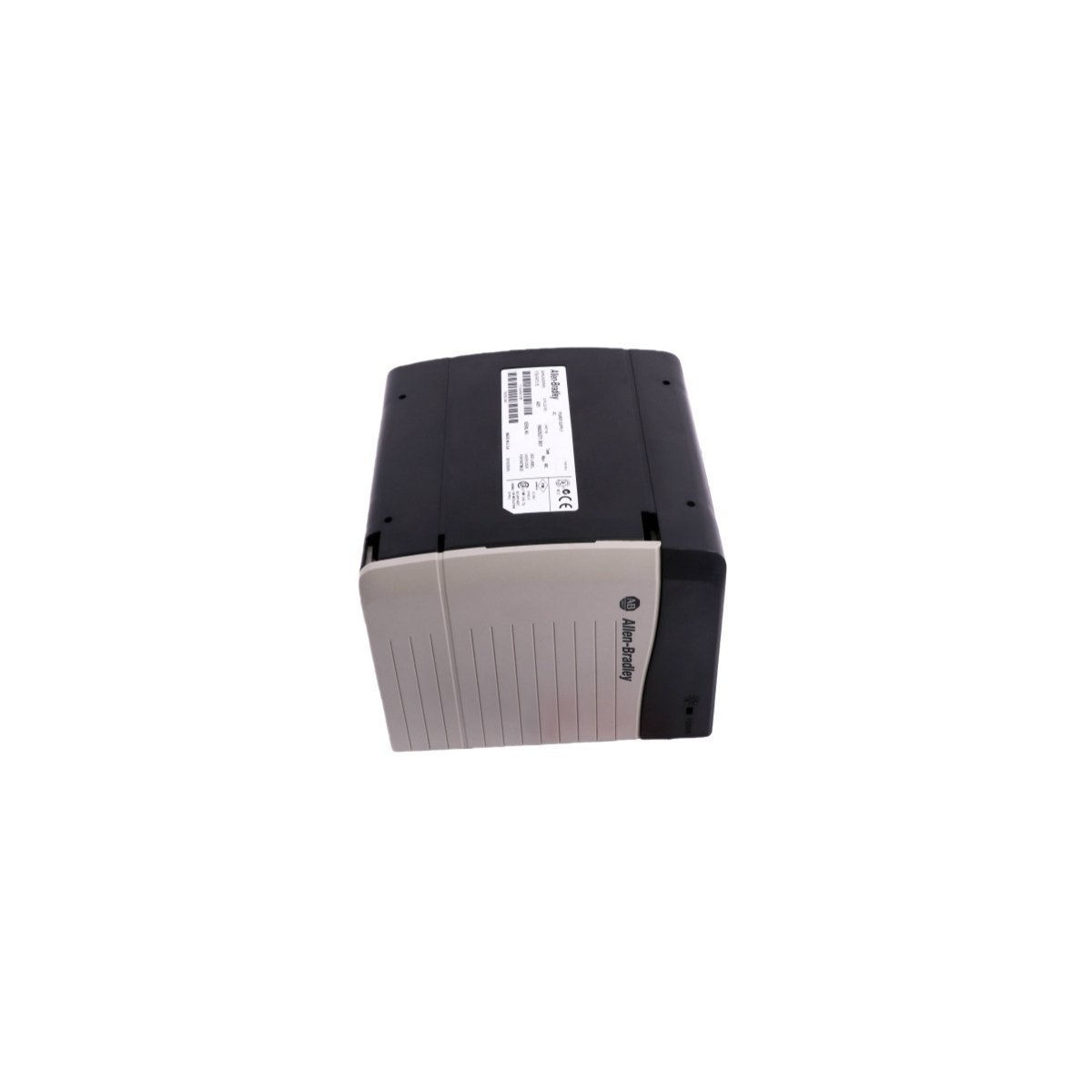

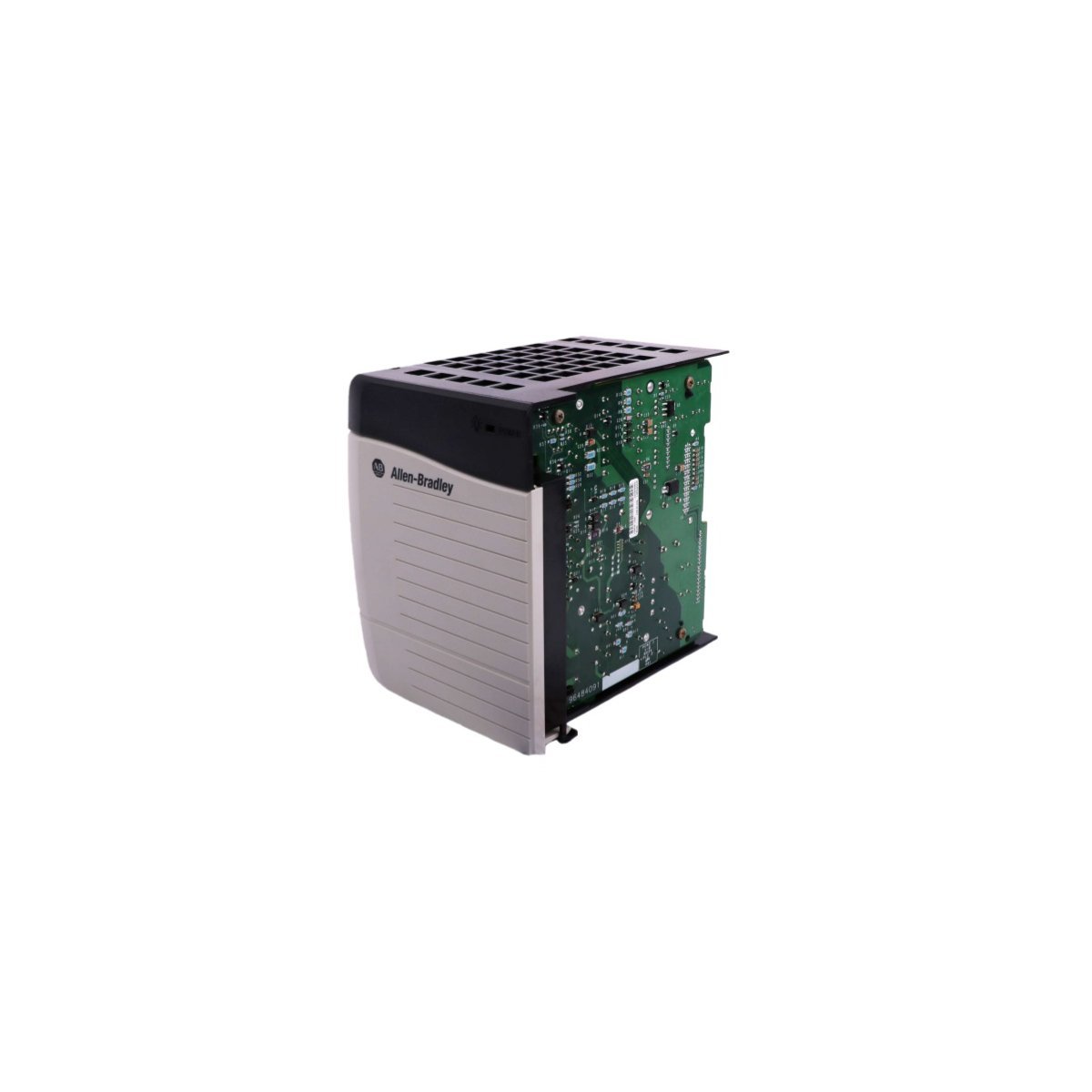

The Allen-Bradley 1756-PA75 serves as the primary energy source for ControlLogix chassis backplanes. This 75-watt module converts alternating current into stable direct current for all system components. It occupies the dedicated power supply slot on the left side of the rack. Consequently, it provides the necessary electrical foundation for controllers, I/O modules, and communication interfaces.

Core Technical Specifications

Global Compatibility and Input Versatility

This power supply features a broad input voltage range for worldwide deployment. It accepts standard 120V AC or 240V AC power without manual switch adjustments. This flexibility reduces the need for multiple hardware variants in global spare parts inventories. Furthermore, the unit manages frequency fluctuations between 47 and 63 Hz effectively.

Industrial Protection and Reliability

The 1756-PA75 prioritizes system safety through reinforced electrical isolation and internal fusing. These safeguards protect the expensive PLC hardware from external power surges. Moreover, the module provides a specific hold-up time during brief power interruptions. This capability helps maintain process continuity during minor grid instability or dips.

The hardware design facilitates easy maintenance and fast system assembly. Standardized wiring terminals ensure secure connections for incoming AC power lines. Additionally, the unit performs reliably in environments rated for Pollution Degree 2. This robust construction makes it suitable for demanding factory floor applications.
