Description

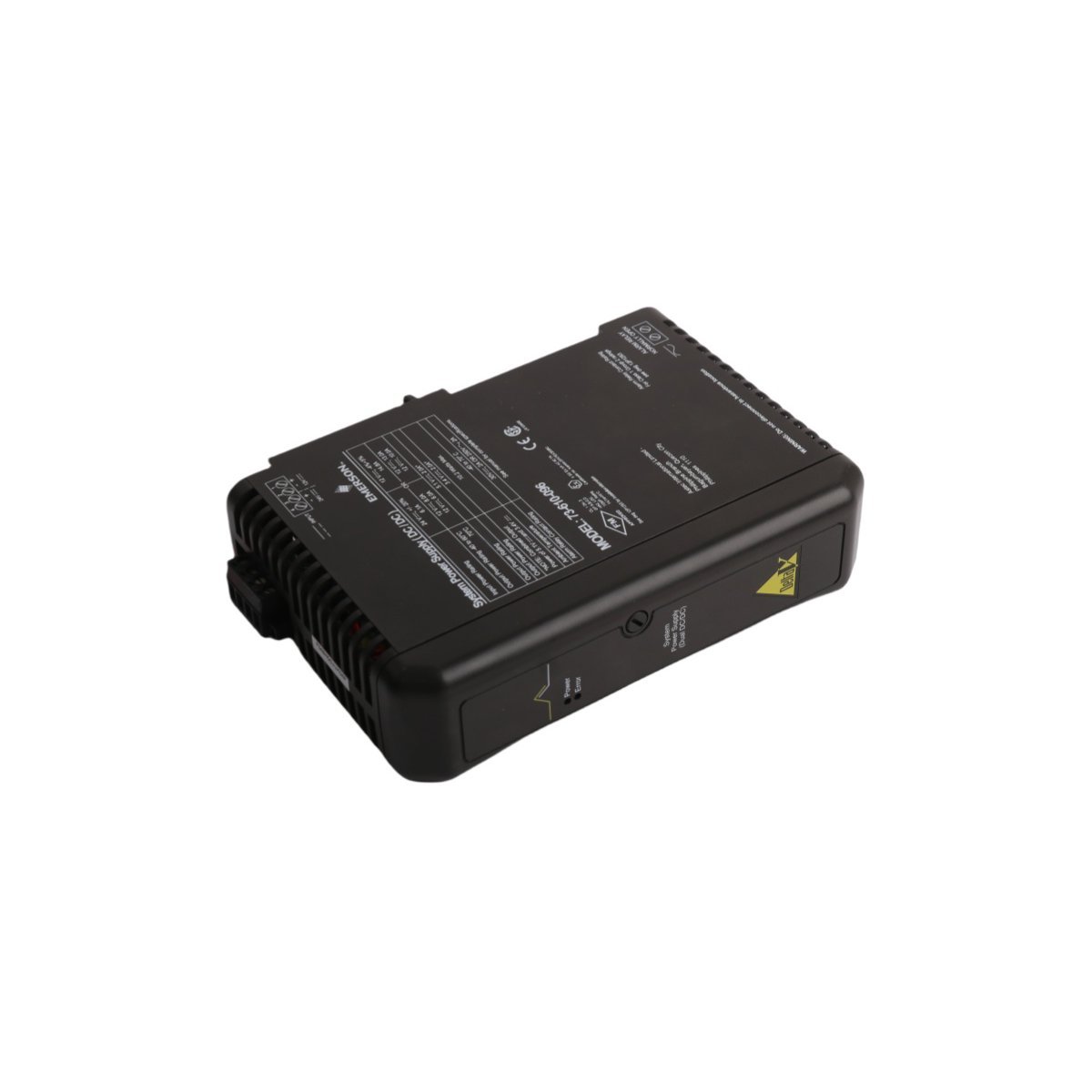

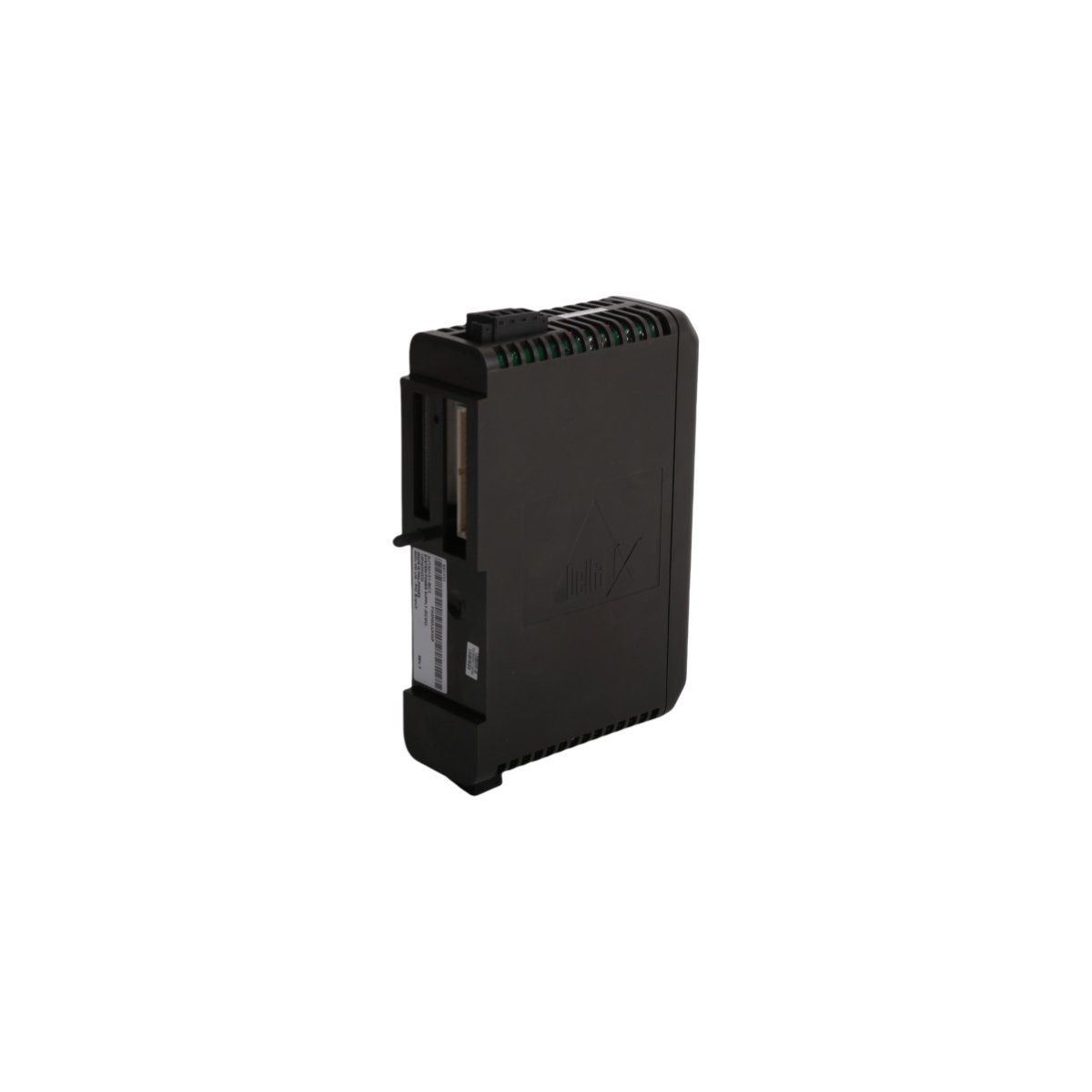

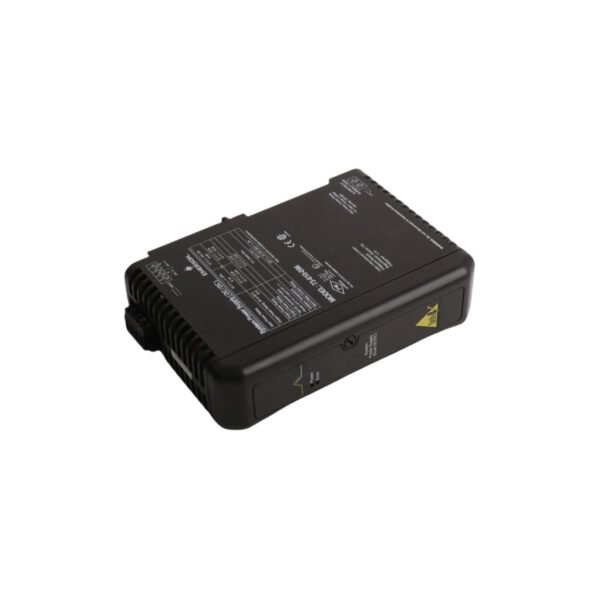

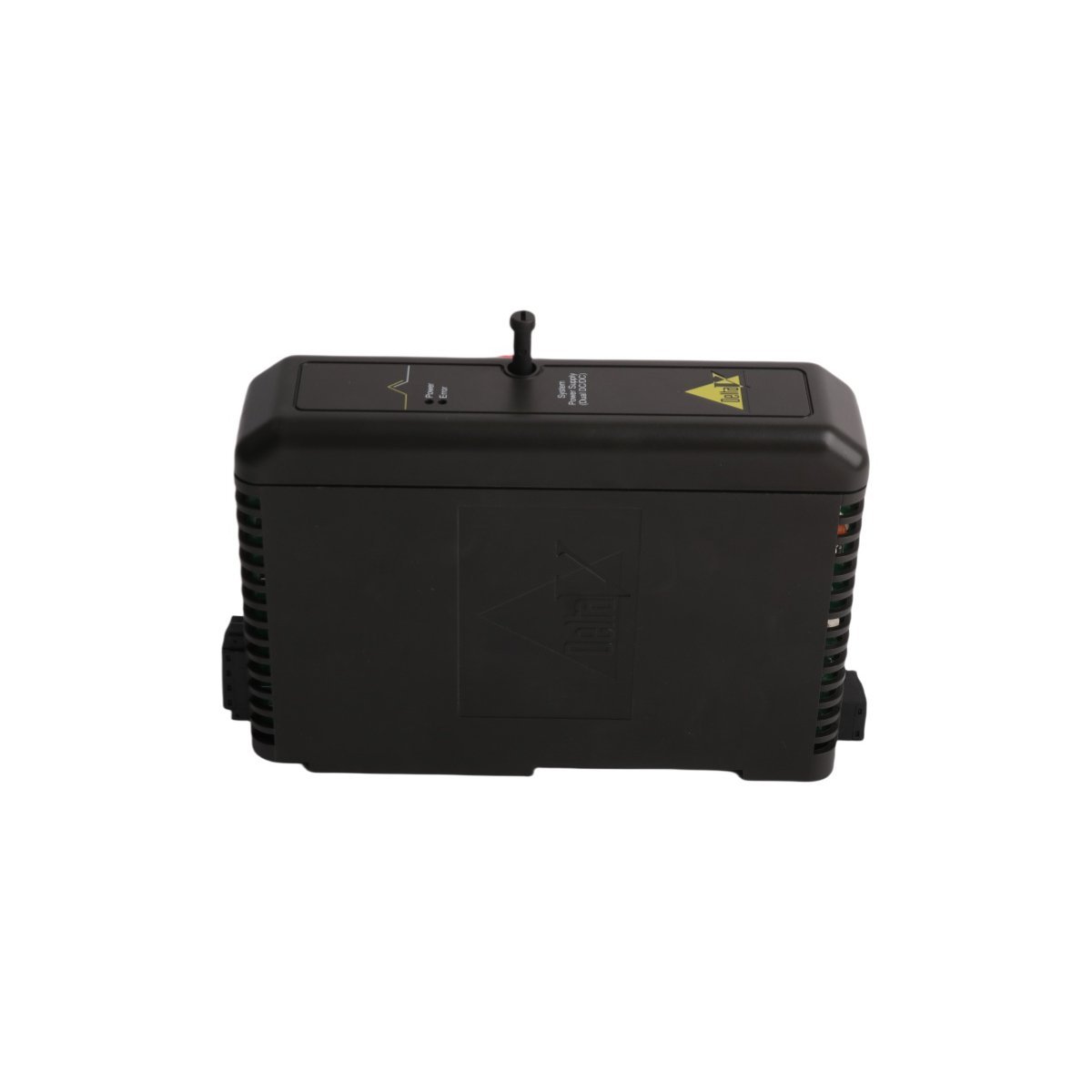

The Emerson KJ1501X1-BC5 functions as a high-integrity power solution for DeltaV SIS™ infrastructures. This dual DC power supply provides precise voltage regulation for critical safety instrumented systems. It converts varying input voltages into stable 5.1VDC and 3.4VDC outputs. Consequently, the module ensures that sensitive logic solvers receive consistent power. This reliability prevents system resets during minor voltage dips. It remains a core component for maintaining safety loop integrity in industrial plants.

This power module features a robust design to withstand severe environmental stress. It operates efficiently within an expansive temperature range from -40°C to +70°C. Furthermore, the unit handles high-impact shocks and continuous mechanical vibrations. This hardware durability makes it suitable for remote or offshore installations. The integrated alarm contacts provide immediate notification of power irregularities. Operators can therefore address electrical faults before they escalate into system failures.

Technical Specifications and Data

• Brand: Emerson
• Model Number: KJ1501X1-BC5
• Module Type: Dual DC System Power Supply
• System Series: DeltaV SIS
• Input Voltage Options: 12VDC (13.8A max) or 24VDC (4.5A max)
• Output Voltages: 5.1VDC (2.0A) and 3.4VDC (2.0A)
• Total Power Output: 10.2W
• Alarm Contact Rating: 30VDC at 2.0A
• Unit Weight: 0.4 kg
• Physical Dimensions: 4.3 cm x 12.5 cm x 18.5 cm
• Origin: USA

Advanced Thermal and Electrical Protection

Emerson utilizes a specialized metal housing for the KJ1501X1-BC5 to optimize heat dissipation. The casing also acts as a shield against electromagnetic interference (EMI). This prevents electrical noise from affecting nearby control modules. Moreover, the power supply includes internal protection against short circuits and over-voltage conditions. This design minimizes internal heat buildup even during maximum load periods. Such efficiency contributes to a significantly longer service life for the hardware.

The compact footprint allows for high-density mounting within standard DCS cabinets. Engineers can install multiple units to support redundant power architectures. This scalability helps facilities meet varying power demands as systems grow. Additionally, the module meets stringent industrial certifications for hazardous locations. It provides a secure electrical foundation for automation in high-risk sectors. Organizations benefit from reduced maintenance costs and enhanced equipment protection.

Primary Industrial Applications

The KJ1501X1-BC5 power supply supports mission-critical tasks in various sectors. Typical applications include:

• Powering safety logic solvers in petrochemical refineries
• Supporting emergency shutdown systems in offshore platforms
• Providing stable DC power for burner management systems
• Energizing gas detection and fire alarm control units
• Maintaining power for high-availability process safety loops
