Description

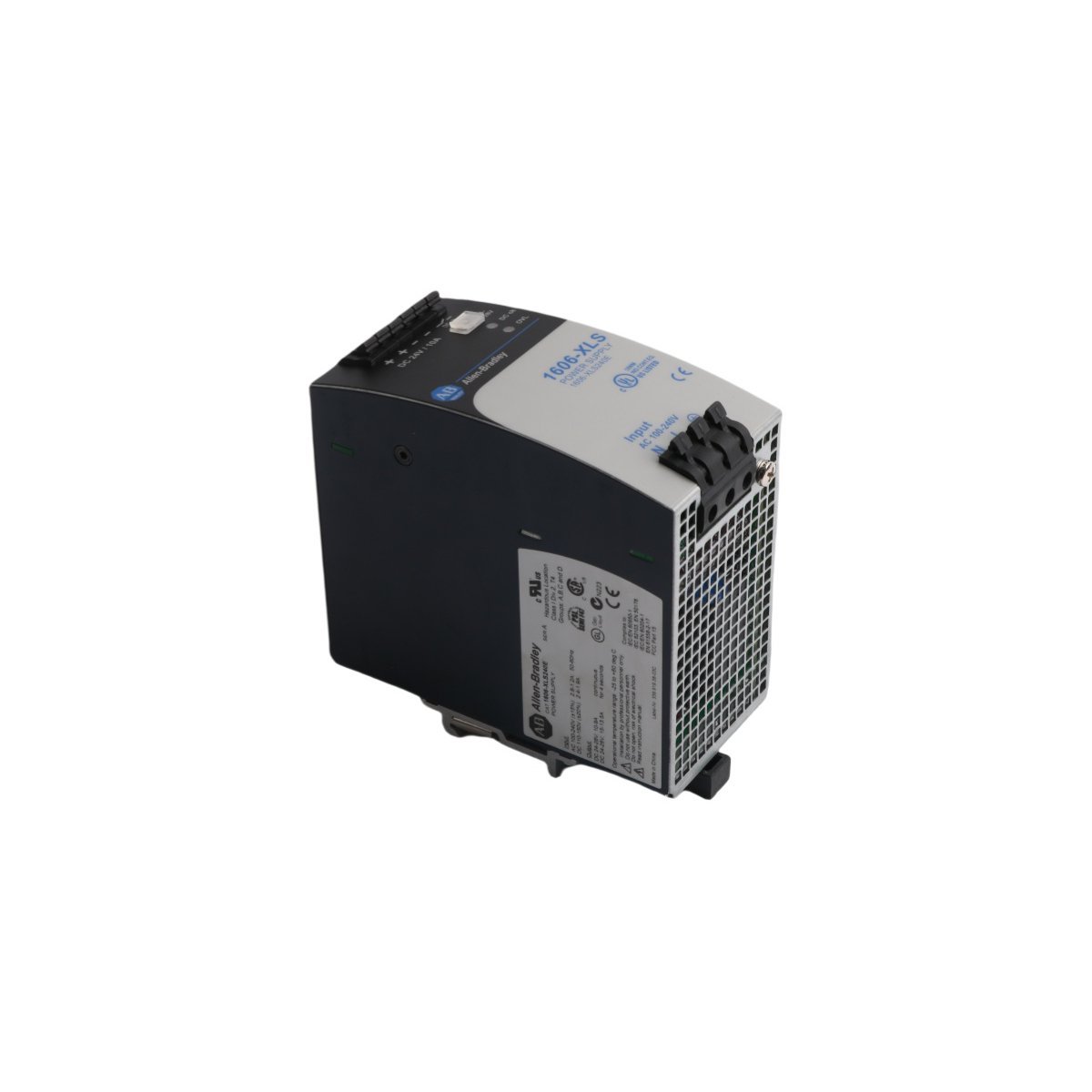

Configured for high-efficiency voltage regulation in PLC platforms, the Allen Bradley 1606-XLS240E (1606-XLS240E Performance Power Supply) provides direct physical and electrical execution of power distribution tasks. This unit manages DC output stability and transient load handling across industrial control cabinets and DIN-rail mounted networks.

Hardware Specifications

Industrial Control and Power Distribution Characteristics

The Allen Bradley 1606-XLS240E utilizes synchronous rectification to maintain operational efficiency within PLC-based control architectures. The device supports firmware flash compatibility via integrated diagnostic feedback circuits, ensuring seamless integration with existing Allen Bradley controller backplanes. When populating chassis configurations, users must account for I/O density scaling and ensure that the power supply’s harmonic distortion suppression meets the specific requirements of the deterministic Ethernet/IP or Profinet network environments.

Frequently Asked Questions (FAQ)

Q: What precautions should be taken when utilizing the DC-ok contact?

A: The DC-ok relay contact is intended for local status monitoring of the output voltage. Ensure that the switching load connected to the contact does not exceed the specified voltage and current limits to prevent relay failure.

Q: Can this power supply be connected in parallel for increased load capacity?

A: Yes, the 1606-XLS240E supports parallel operation for redundancy or increased current output. Use appropriate decoupling diodes to prevent reverse current flow and maintain output voltage stability during load transients.

Field Installation Guidelines

• Ensure the unit is installed on a standard 35 mm DIN-rail in an upright orientation to facilitate natural convection cooling.
• Maintain a minimum clearance of 40 mm above and below the device, and 20 mm on the sides, to prevent thermal accumulation.
• Connect the PE (Protective Earth) terminal to the cabinet ground using a low-impedance wire to ensure electromagnetic compatibility and surge protection.
• Verify that the input voltage matches the rating before applying power. Ensure all wire connections at the spring-clamp terminals are secure and properly seated.
• For high-load or motor-starting applications, monitor the output voltage ripple under peak load conditions to ensure it remains within the allowable tolerance for connected logic controllers.
