Description

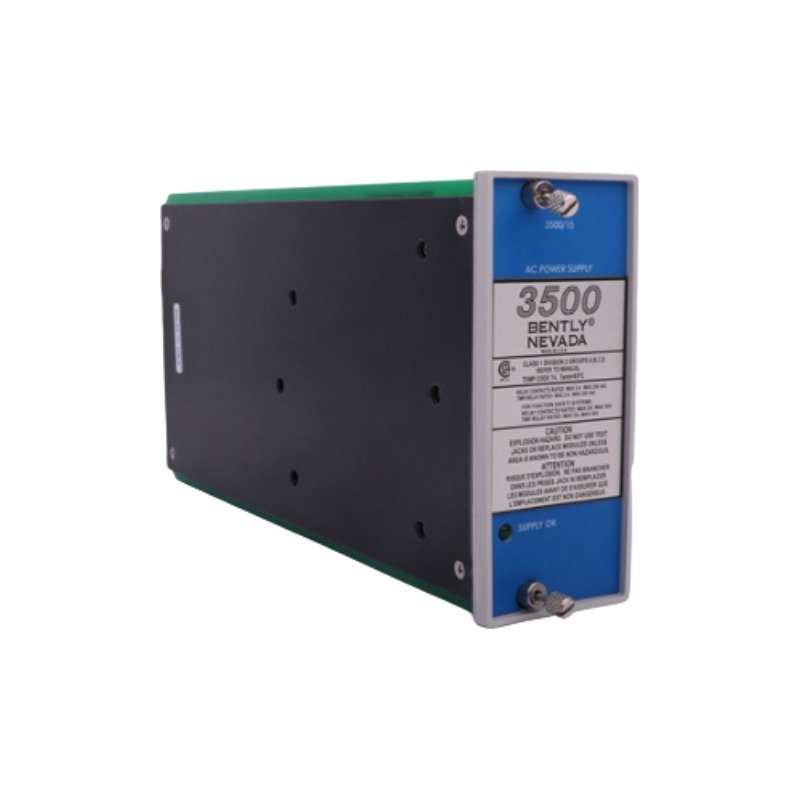

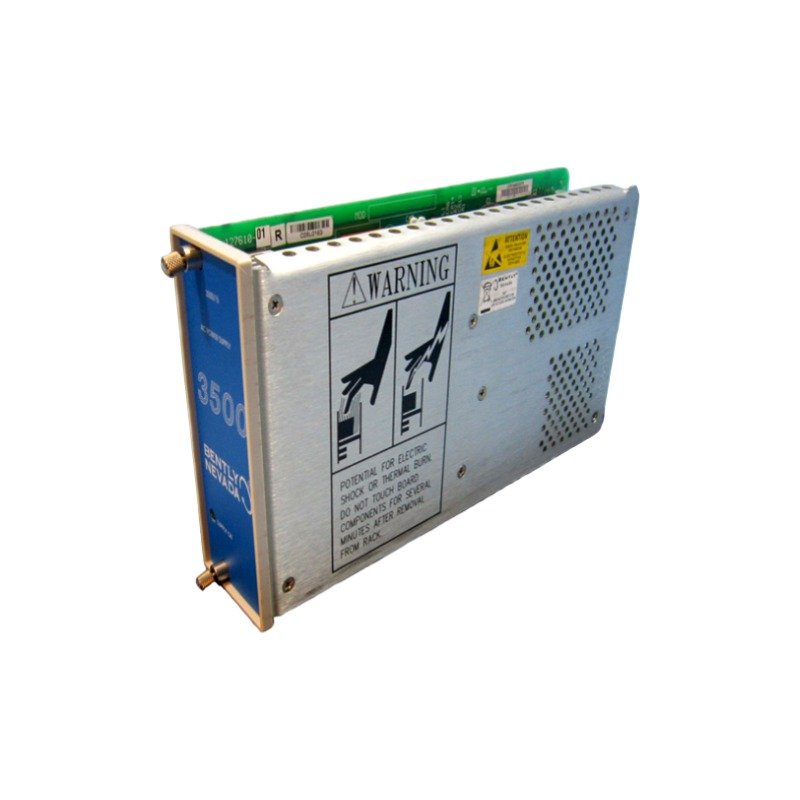

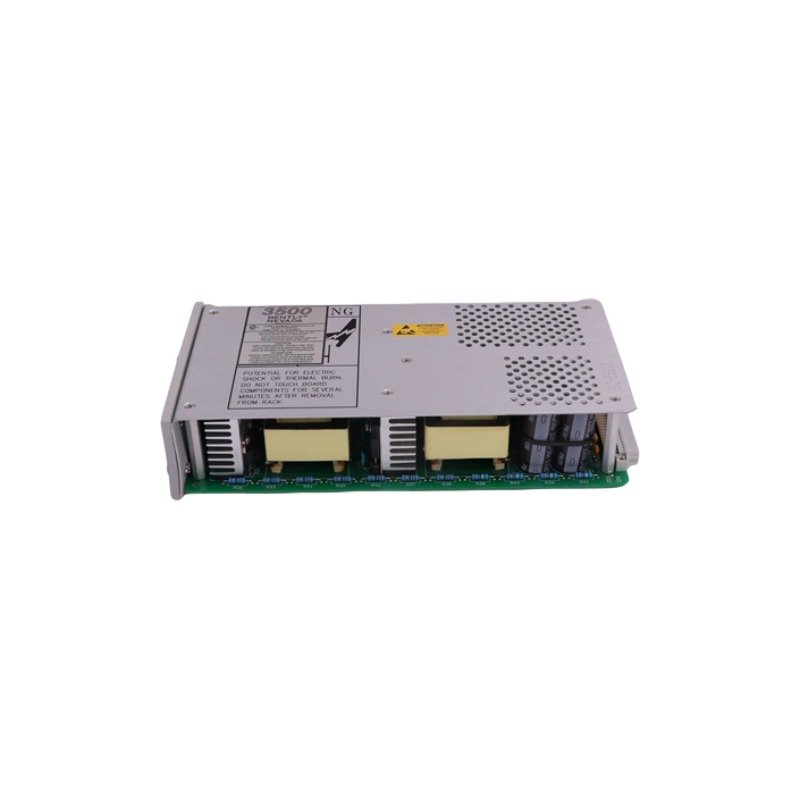

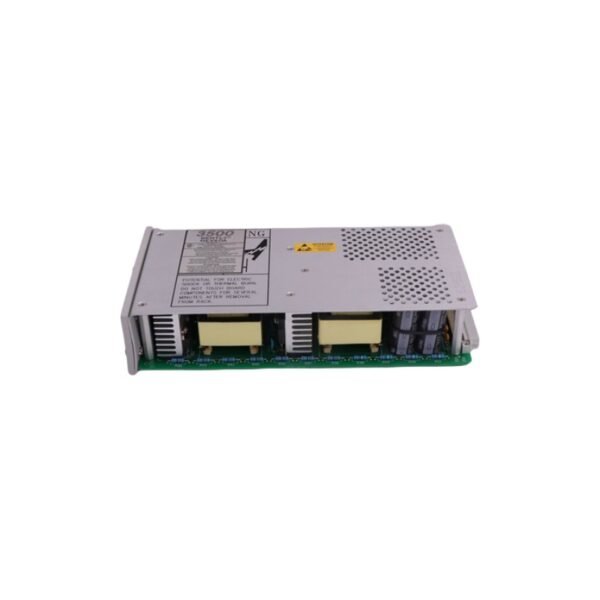

The Bently Nevada 3500/15 127610-01, also cataloged as the 127610-01 AC Power Supply Module, operates as a dedicated hardware component for converting nominal 110 to 220 Vac input voltage into regulated power within 3500 Series Machinery Protection System platforms. Specifically, this half-height module mounts into the designated left-most slots of the chassis framework to distribute baseline operating current across the shared system backplane. Furthermore, the unit delivers sufficient current density to sustain electrical execution for a fully populated instrument rack under peak load conditions.

Hardware Specifications

Machinery Monitoring and TSI Characteristics

This power supply module actively stabilizes the core operating voltage parameters required to sustain consistent eddy-current probe scaling across all installed proximity monitoring channels. Consequently, the regulated output rails suppress input line transients, which enables precise gap voltage validation (-10 VDC targets) without risking power-induced drift. During rapid machine speed changes, the clean internal supply rails prevent power fluctuations from corrupting high-frequency instrumentation data, ensuring uninterrupted analysis of complex rotor dynamics. Additionally, the internal filter architecture enforces rigorous cross-talk suppression between the main incoming AC grid lines and adjacent low-amplitude analog vibration processing circuits.

Frequently Asked Questions

Q: How does the system handle power distribution when a technician installs two 3500/15 127610-01 modules inside the same rack?

A: The module positioned in the lower slot automatically acts as the primary supply, while the module in the upper slot functions as the secondary backup. If the primary hardware suffers a power failure, the backup module assumes the full load without causing a system trip or interrupting data execution.

Q: Can this legacy 127610-01 module interoperate with the newer 106M1079-01 Universal AC Power Supply components?

A: No, this legacy hardware module must exclusively pair with its matching legacy Power Input Module (PIM), such as part number 125840-01. Mixing legacy units with newer universal AC components inside the same slot slot allocation will cause physical hardware damage.

Q: What front-panel indicator diagnostics confirm healthy output execution?

A: The hardware includes a front-panel visual “SUPPLY OK” LED. This indicator illuminates steadily when the internal converter loops maintain the regulated output rails within proper operational design limits.

Field Installation Guidelines

• Mounting Mechanics: Slide the half-height module into the designated slot positions on the far left side of the 3500 rack chassis. Secure the front panel mounting fasteners completely to ensure appropriate thermal transfer and physical bonding to the frame.
• Shielding Requirements: Connect incoming AC supply ground conductors directly to the safety ground stud on the matching Power Input Module (PIM). Maintain shield isolation from signal grounding loops to avoid introducing common-mode noise into adjacent measurement cards.
• Wiring Separations: Enforce a minimum separation path of 200 mm between incoming AC power lines terminated at the rear PIM and low-voltage field transducer cables to mitigate electromagnetic interference.
• Thermal Management: Verify that enclosure ambient conditions remain strictly within the specified range of -30 deg C to +65 deg C. Do not obstruct the rack ventilation paths, and ensure humidity levels stay beneath 95% non-condensing parameters.
