Description

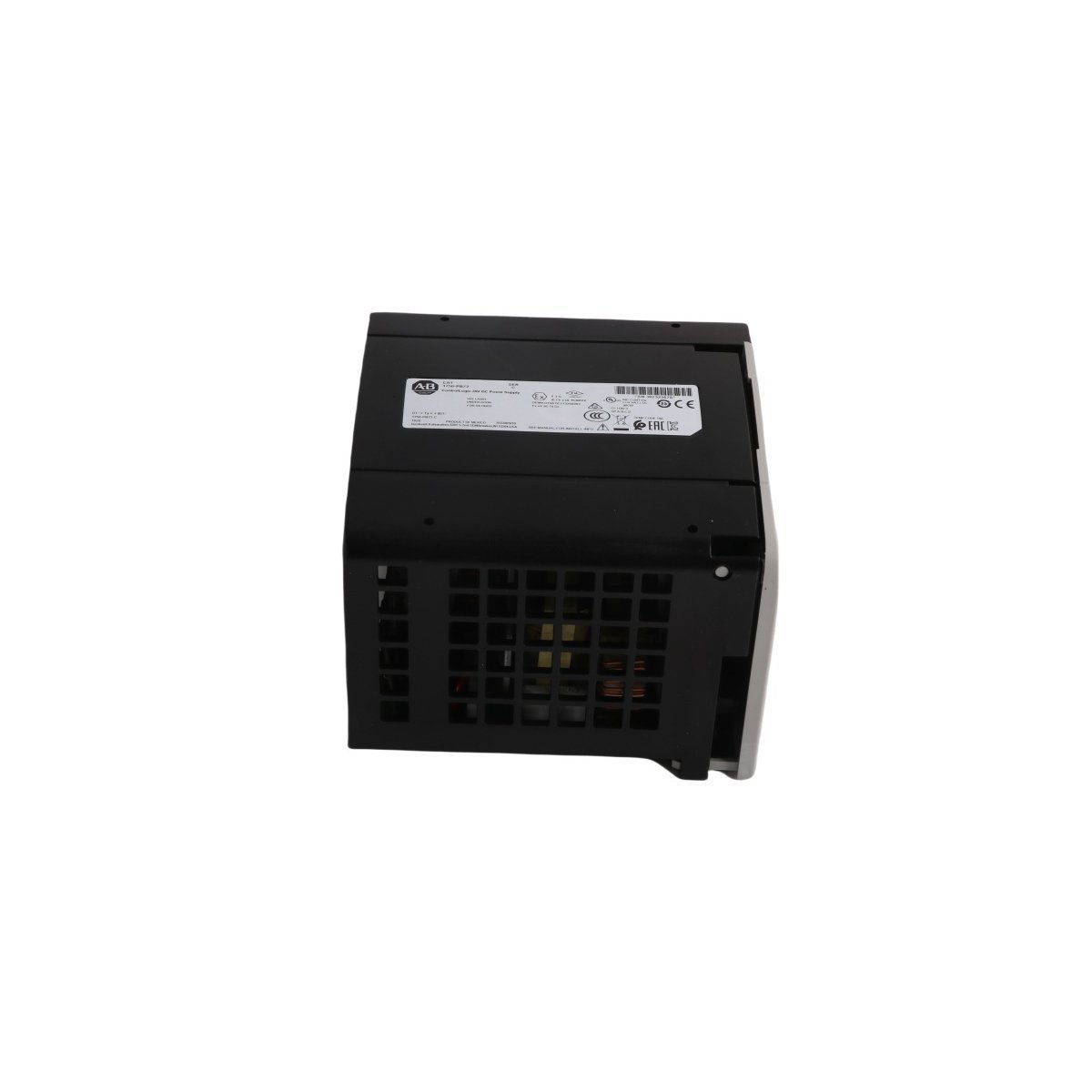

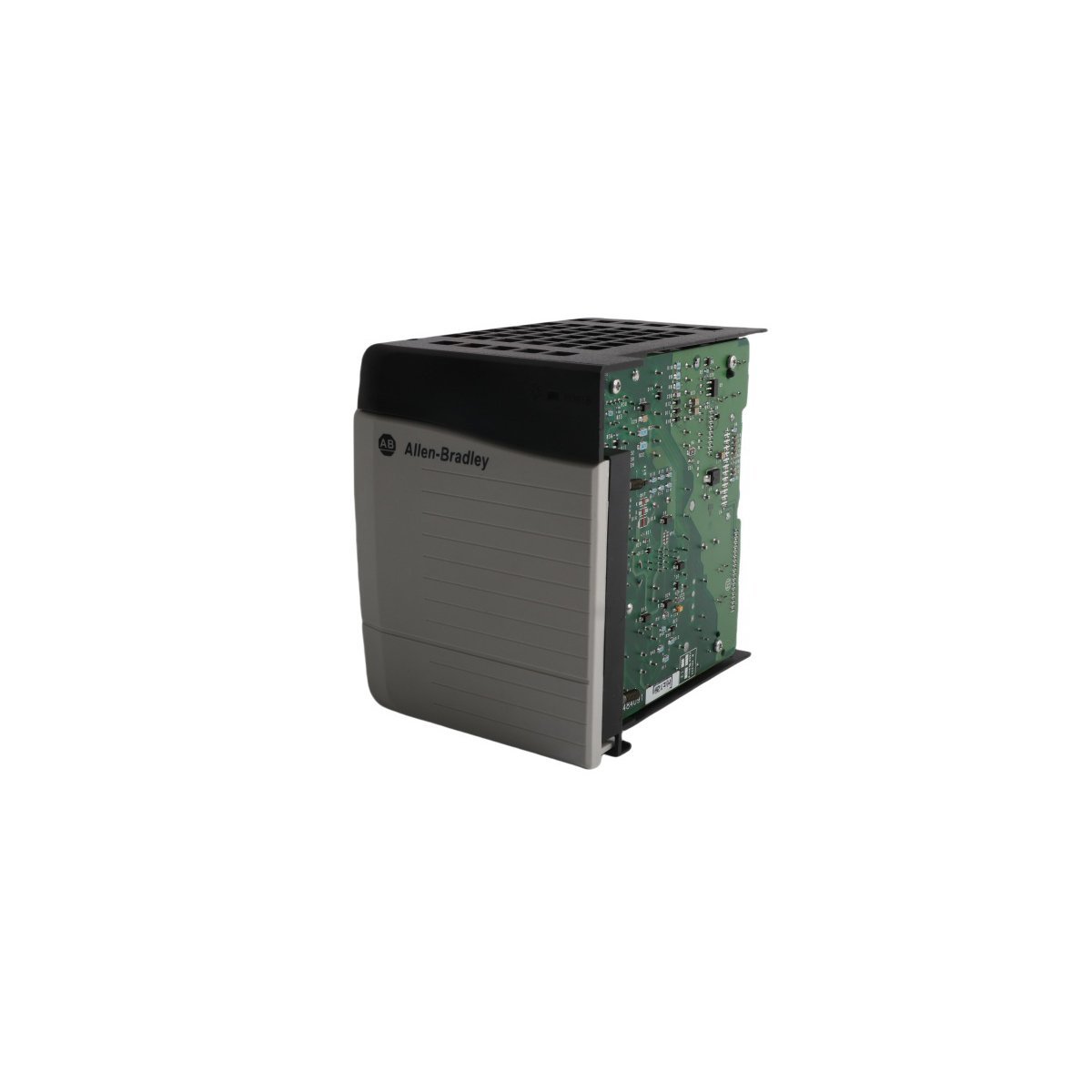

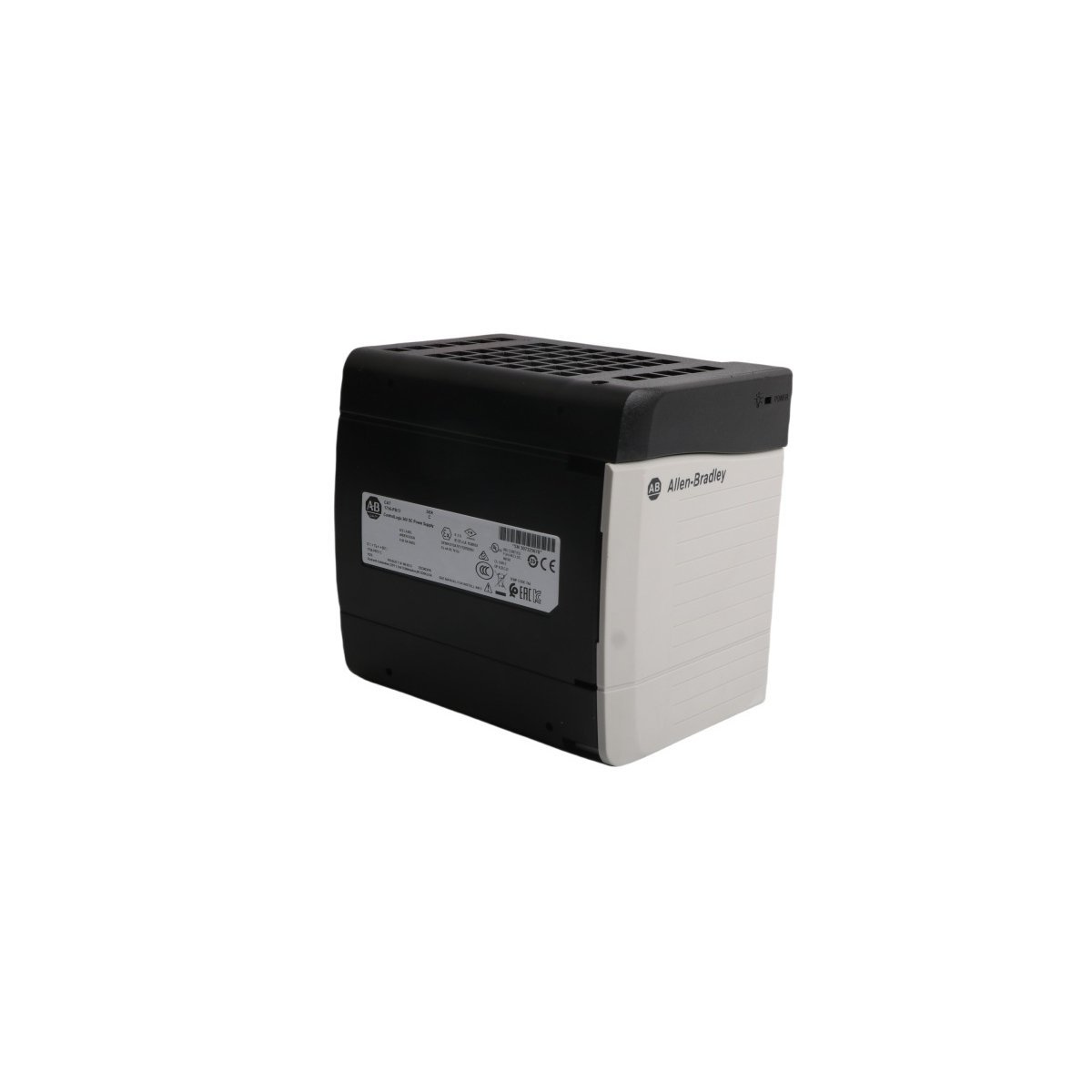

The Allen-Bradley 1756-PB72 provides essential system power for ControlLogix chassis environments. This module converts a 24V DC nominal input into various backplane voltages. It supports the operation of controllers, I/O modules, and communication interfaces. Furthermore, the unit mounts directly to the left side of the chassis. This design saves valuable space as it does not occupy any functional I/O slots. The internal circuitry features reinforced insulation to protect against high-voltage transients. Consequently, it delivers a stable energy source for critical industrial automation tasks.

Electrical Performance and Capacity

The 1756-PB72 delivers a total power output of 75 Watts to the backplane. It provides specific current levels across three distinct voltage rails for module compatibility. The power supply offers 10A at 5.1V DC and 2.8A at 24V DC. Additionally, it supplies 4A at the 3.3V DC level for specialized electronic components. Integrated overcurrent protection prevents damage during unexpected electrical faults. Operators can monitor the system status through a prominent green LED indicator. This visual aid confirms that the output voltages remain within safe operating limits.

Environmental Resilience and Safety

Engineered for demanding industrial sites, this power supply withstands significant vibration and shock. It maintains reliable performance in temperatures ranging from 0°C to 60°C. Moreover, the module handles humidity levels up to 95% without condensation. The hardware also meets rigorous surge immunity standards for line-to-line and line-to-earth transients. Proper grounding remains necessary to ensure the highest level of electromagnetic compatibility. This robust construction makes the 1756-PB72 suitable for heavy manufacturing and process control.

Technical Specifications

Installation and Connectivity

The physical layout of the 1756-PB72 simplifies the wiring and commissioning process. Users access the DC input terminals through a protective front cover door. Terminal markings clearly identify the DC positive and negative connection points. Furthermore, the unit secures firmly to the chassis mounting plate via integrated tabs. This prevents movement during operation in high-vibration machinery. The compact footprint allows for easy integration into standard industrial control panels. Ultimately, this power supply ensures long-term operational integrity for the ControlLogix platform.
