Description

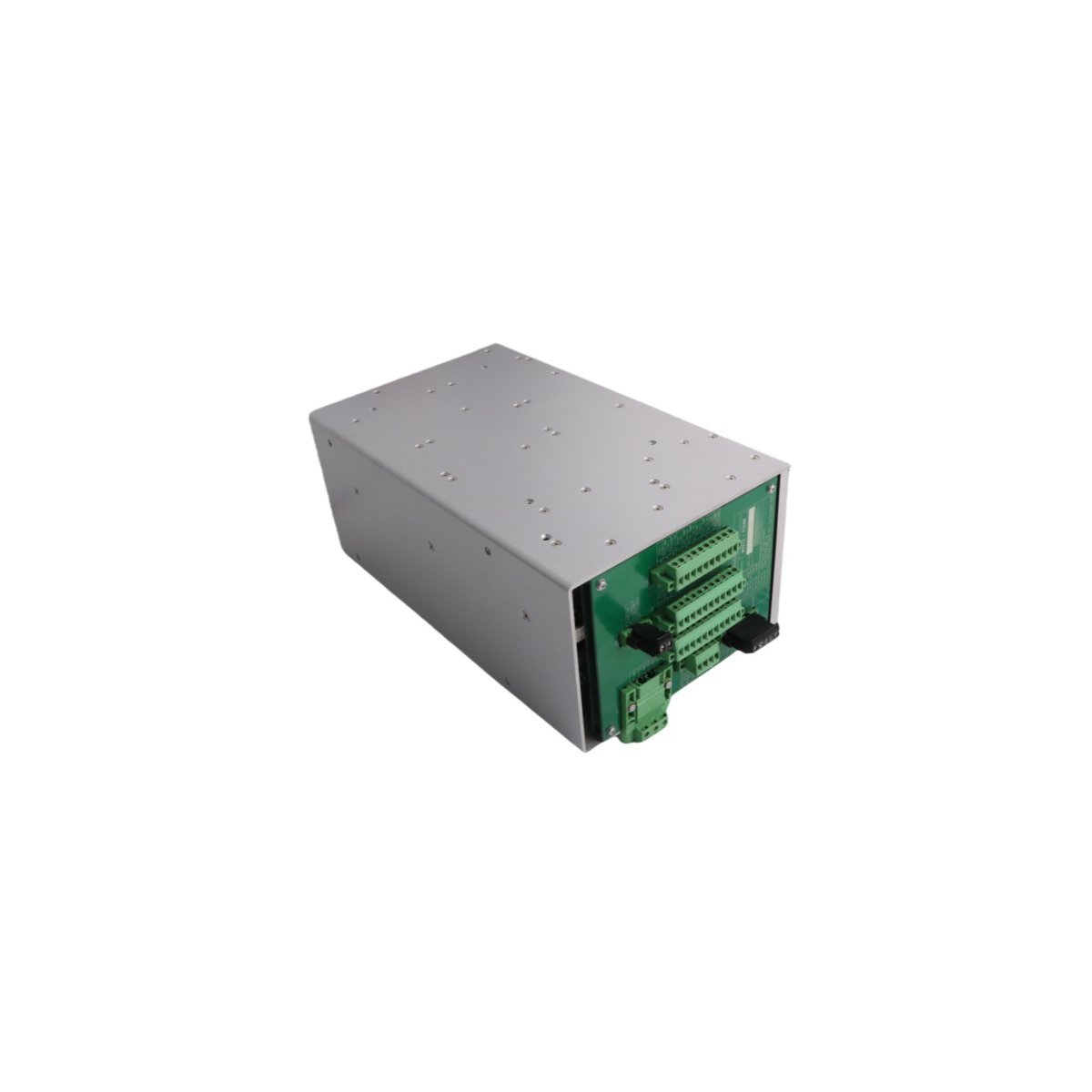

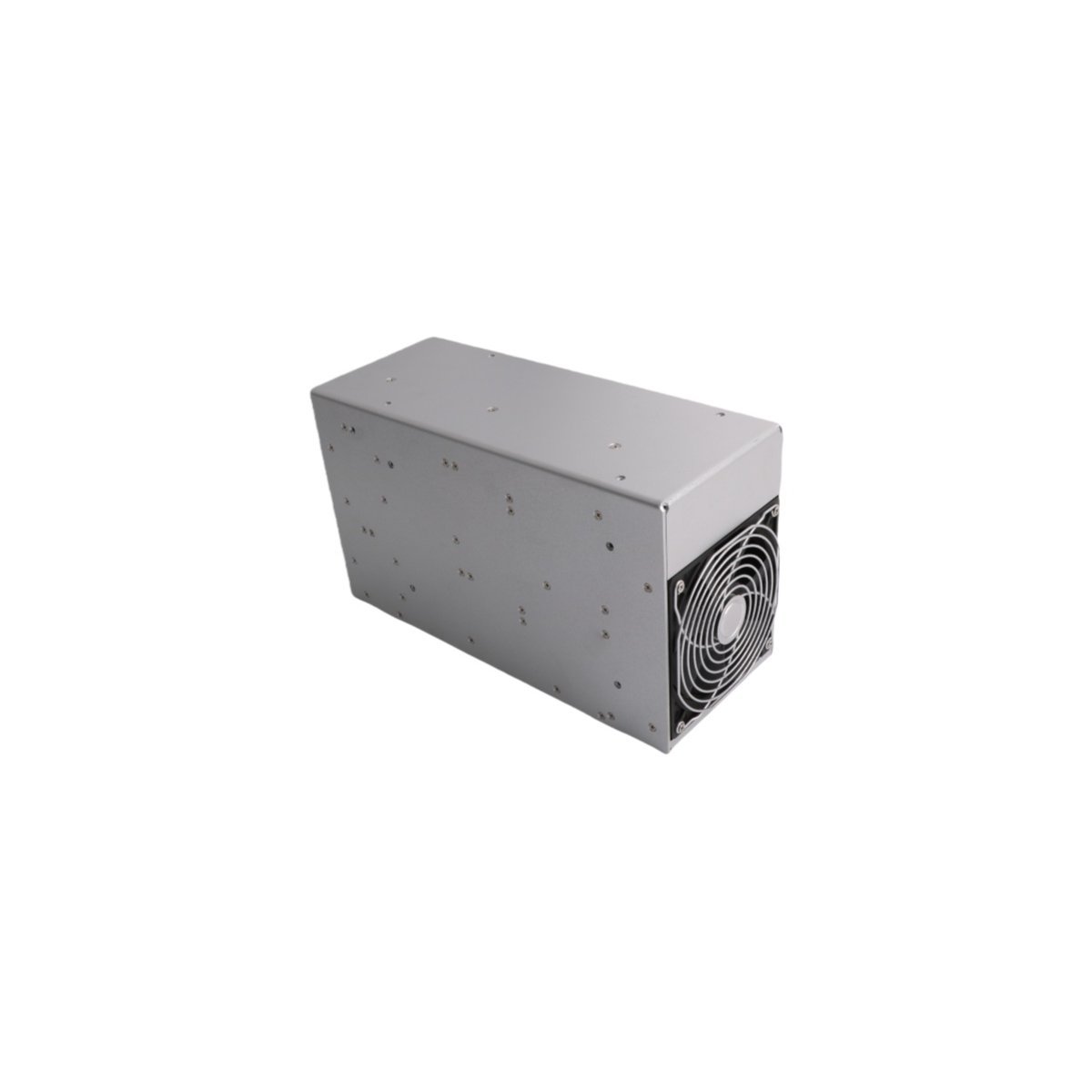

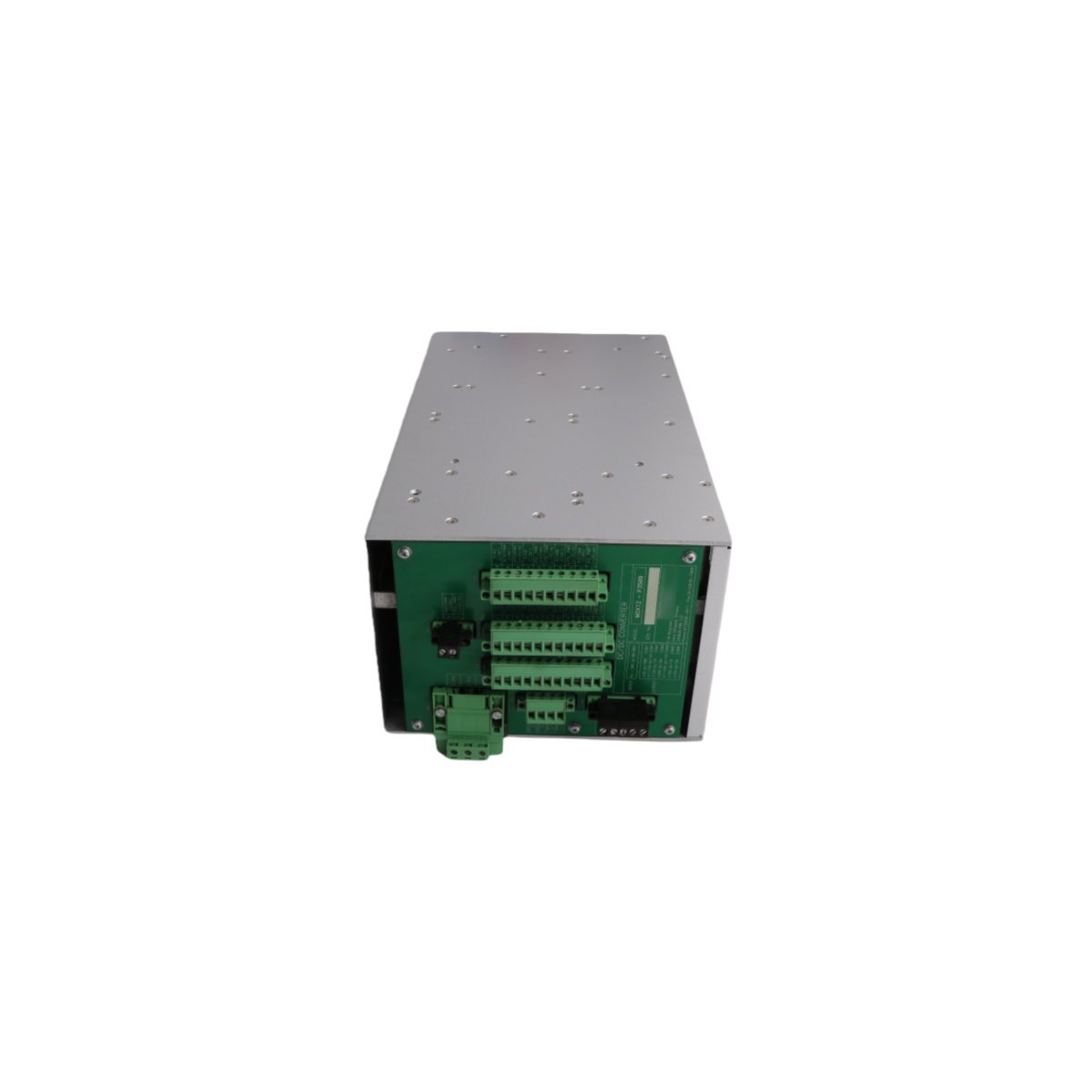

The Allen Bradley MOX12-P3509B 80026-173-23 serves as a high-performance power distribution center for complex industrial automation systems. This switching power supply converts standard AC input into multiple regulated DC outputs for control hardware. It provides essential voltages including +5V, ±15V, +12V, and ±24V DC to support diverse components. The unit features a rugged metal housing that ensures durability in harsh factory environments. Furthermore, this enclosure provides excellent shielding against electromagnetic interference for sensitive electronics.

Essential Technical Specifications

Energy Efficiency and Thermal Reliability

This power supply achieves superior energy conversion efficiency exceeding 90 percent during standard operation. Consequently, the module minimizes heat generation and lowers long-term electricity costs. The advanced thermal design allows the unit to function reliably across a broad temperature range. It maintains stable power delivery even in unconditioned spaces or near high-heat machinery. This thermal resilience reduces the need for specialized cooling equipment within control cabinets. Therefore, it lowers the total cost of ownership for industrial power infrastructure.

Integrated System Protection and Safety

The MOX12-P3509B includes a comprehensive suite of protective features to safeguard connected control assets. It utilizes automatic overvoltage and short-circuit protection to prevent hardware damage during electrical faults. Additionally, an overtemperature shutdown mechanism activates to prevent internal component failure. These safety protocols ensure high system uptime and protect expensive processors and I/O modules. The unit accommodates various international power standards due to its wide-range AC input.

Industrial Applications and Installation

This switching power supply supports various automation tasks including processing, communication, and I/O management. Its multi-voltage output capability makes it ideal for mixed-signal control environments. The compact dimensions allow for efficient installation in standard industrial control panels. Furthermore, the robust construction handles the physical shocks and vibrations typical of heavy manufacturing. This module remains a critical component for maintaining the operational integrity of high-demand production lines.
