Description

Product Overview

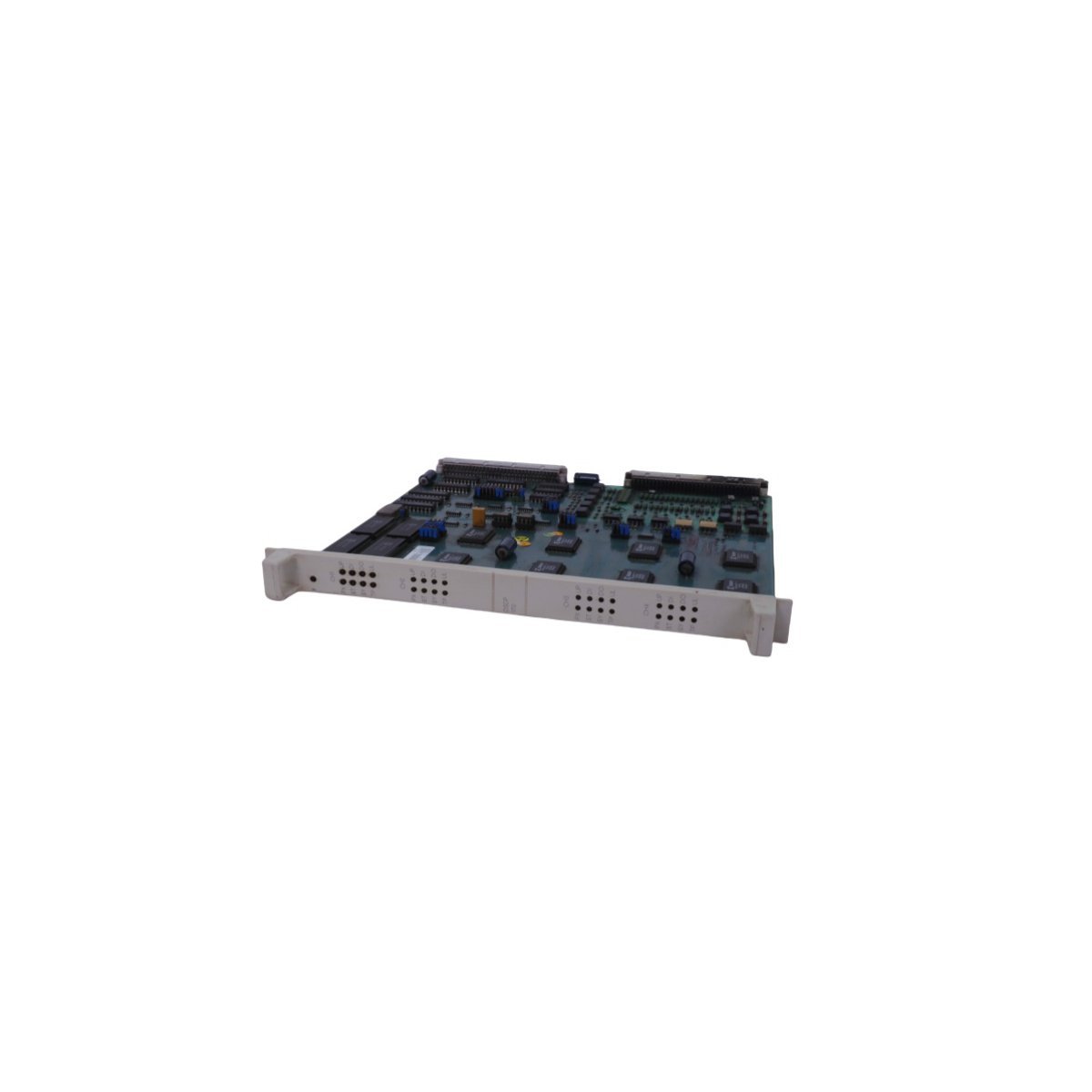

The ABB DSDP170 57160001-ADF is a specialized high-speed pulse counting interface designed for the MasterPiece 200 and Advant OCS controller families. This module provides precise tracking of rapid frequency signals from encoders and flowmeters to support high-accuracy positioning and process monitoring.

Advanced Signal Processing and Accuracy

The DSDP170 57160001-ADF module excels in capturing high-frequency digital pulses that standard digital input boards cannot process. By utilizing dedicated onboard hardware for pulse accumulation, the board ensures that the central processor receives accurate count data without missing transitions during high-speed operations. This capability makes the module an essential component for applications involving motor speed feedback, turbine flow measurement, and material length detection. Furthermore, integrated signal conditioning protects the board from electrical transients, ensuring that measurement integrity remains consistent even in electrically noisy industrial environments.

System Integration and Scalability

ABB designed the 57160001-ADF for seamless synchronization with the MasterPiece 200 I/O subrack architecture. The module communicates directly with the controller via the system bus, facilitating real-time updates for time-critical control loops. Because the board supports multiple pulse modes, engineers can easily configure the inputs to match specific sensor requirements, such as bidirectional quadrature encoders or simple unidirectional pulse trains. This flexibility allows for a smooth integration process within existing Distributed Control Systems (DCS) while providing a reliable path for system expansions.

Industrial Compliance and Reliability

Built to withstand the rigorous conditions of manufacturing and energy sectors, the DSDP170 features a rugged PCB design that complies with international safety and quality standards, including CE and UL certifications. The hardware utilizes advanced voltage regulation to maintain stable operation despite fluctuations in the primary power supply. Moreover, the board’s design prioritizes thermal efficiency, which reduces internal stress on electronic components and extends the mean time between failures (MTBF). By implementing this robust counting solution, facilities can significantly reduce maintenance-related downtime and improve overall system reliability.

Technical Specifications
