Description

Product Overview

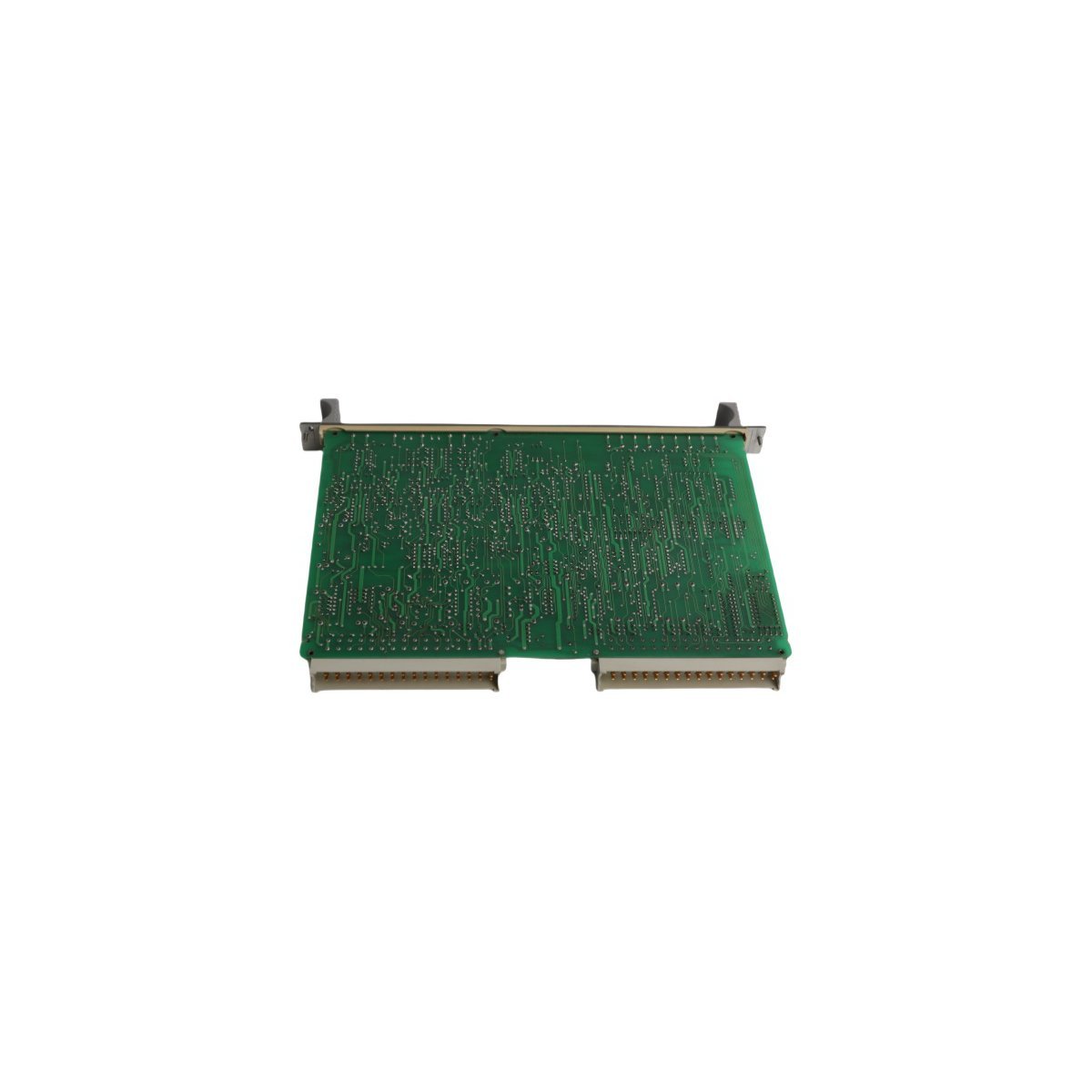

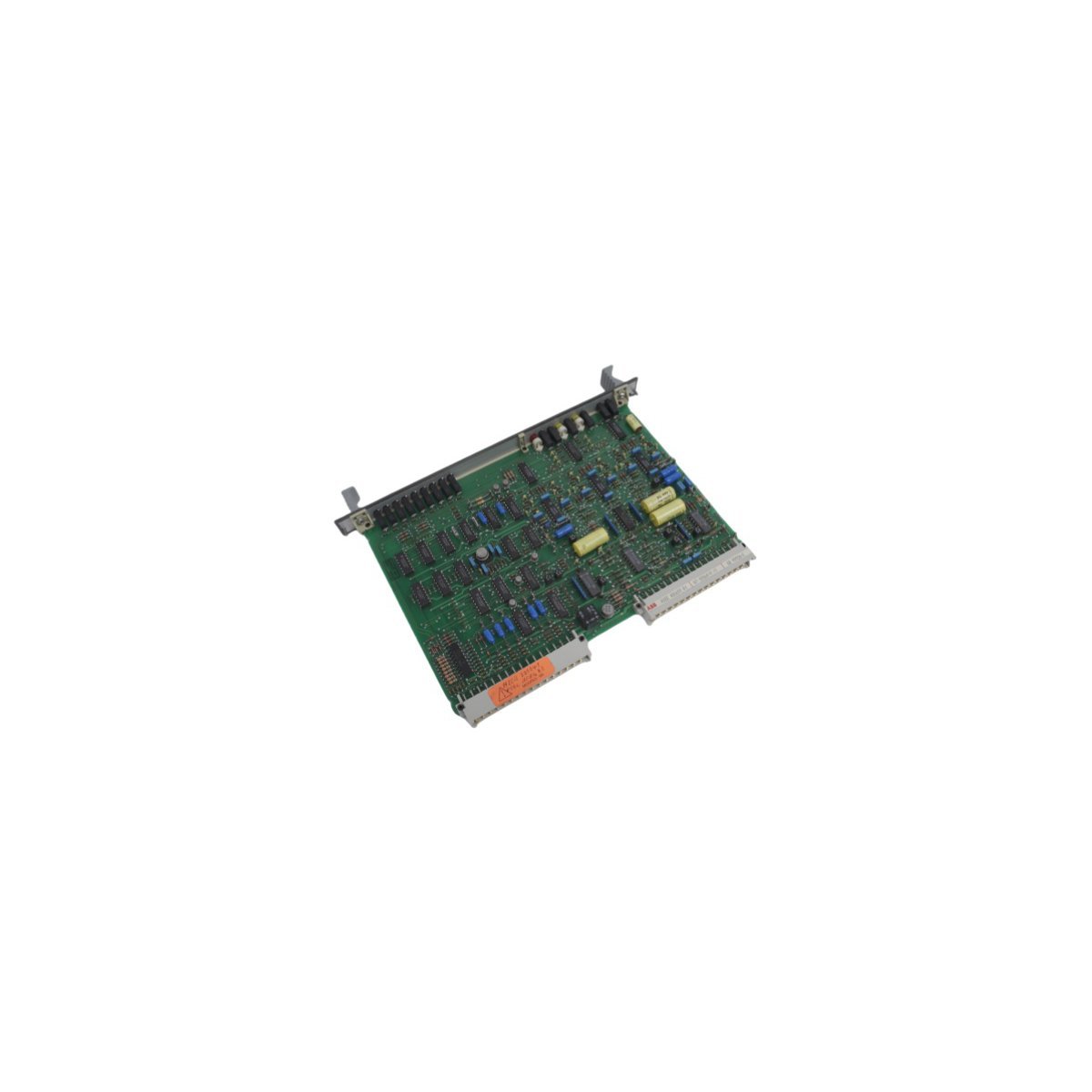

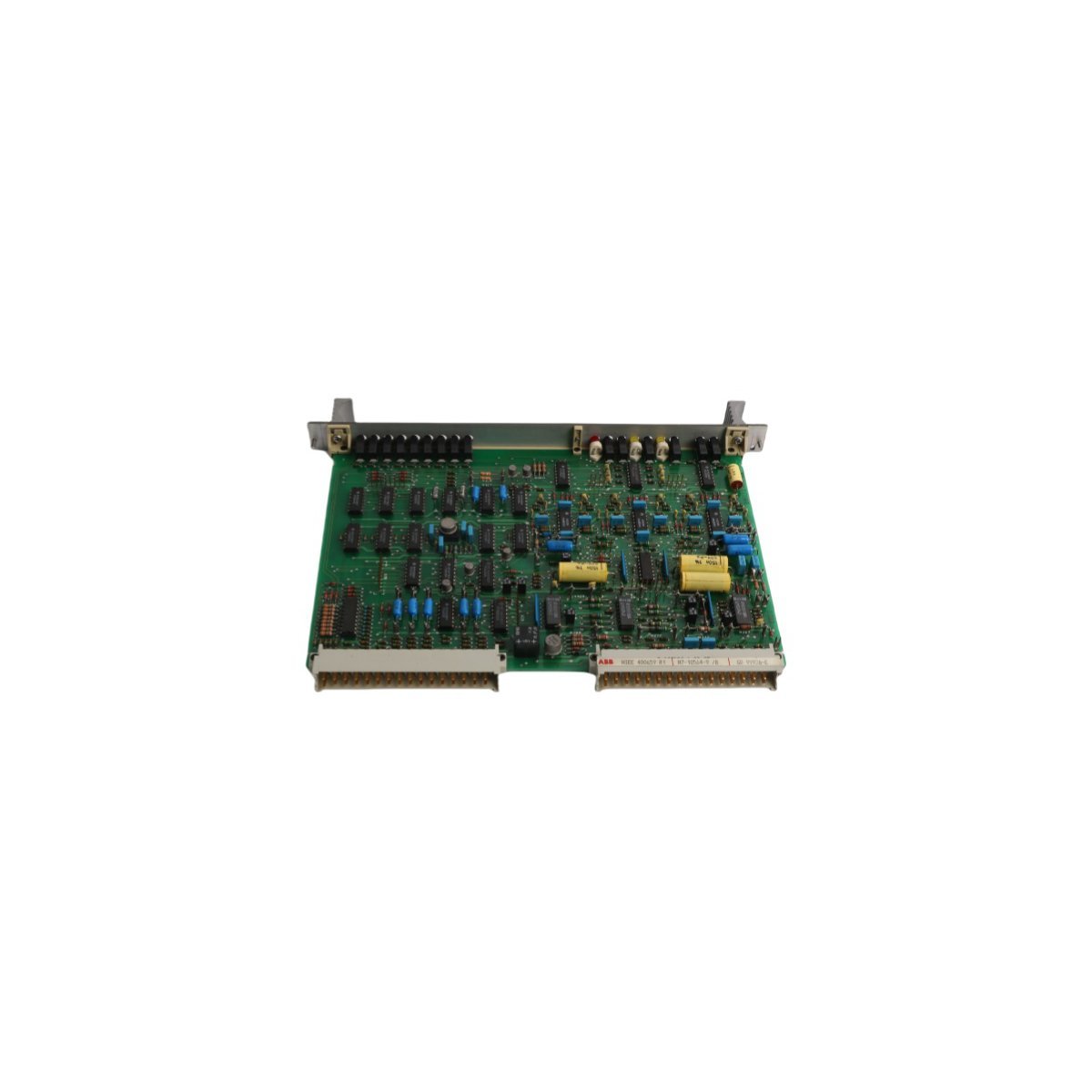

The ABB HIEE400659R1 GD9993B-E is a specialized industrial I/O module engineered for the UNITROL excitation series. This board facilitates high-precision signal acquisition and distribution to maintain stable generator control and grid synchronization.

Precision Signal Management

The GD9993B-E module serves as a primary interface for field data collection within high-performance excitation systems. It processes critical inputs and outputs required for monitoring system variables, ensuring that the central controller receives accurate, real-time telemetry. By utilizing advanced filtering circuitry, the board eliminates electrical noise that could otherwise compromise signal integrity. Consequently, this leads to more stable voltage regulation and enhanced protection for large-scale synchronous machines.

Industrial Networking and Integration

This module supports modern industrial communication standards to allow for seamless integration into Distributed Control Systems (DCS). It effectively manages data traffic via Profinet and Modbus TCP/IP protocols, enabling high-speed transparency between the excitation hardware and supervisory operator stations. Furthermore, the unit features a 5A output current capacity, providing sufficient power to drive external relays and actuators without requiring additional amplification hardware. This high output capability simplifies the overall cabinet architecture and reduces the number of necessary peripheral components.

Resilient Environmental Design

ABB optimized the HIEE400659R1 for continuous operation in demanding power generation environments. The hardware operates reliably across a broad temperature spectrum ranging from -25°C to +60°C, ensuring performance stability in non-climate-controlled automation rooms. Despite its robust electrical capabilities, the module maintains a lightweight and slim profile, which allows for high-density installation in standard UNITROL racks. Swedish engineering standards ensure that the materials used resist mechanical vibration and long-term thermal stress, minimizing the risk of unplanned system downtime.

Technical Specifications
