Description

Product Overview

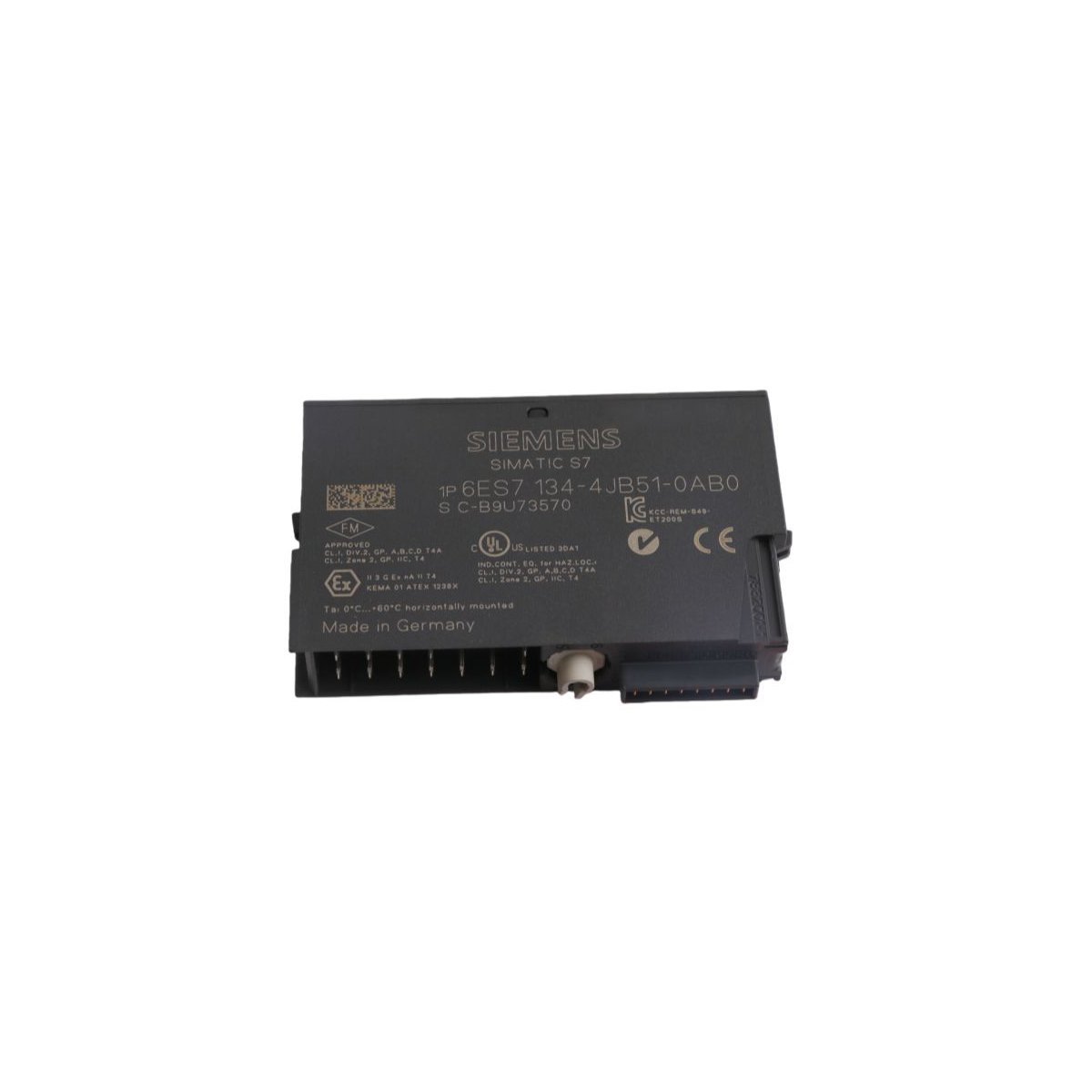

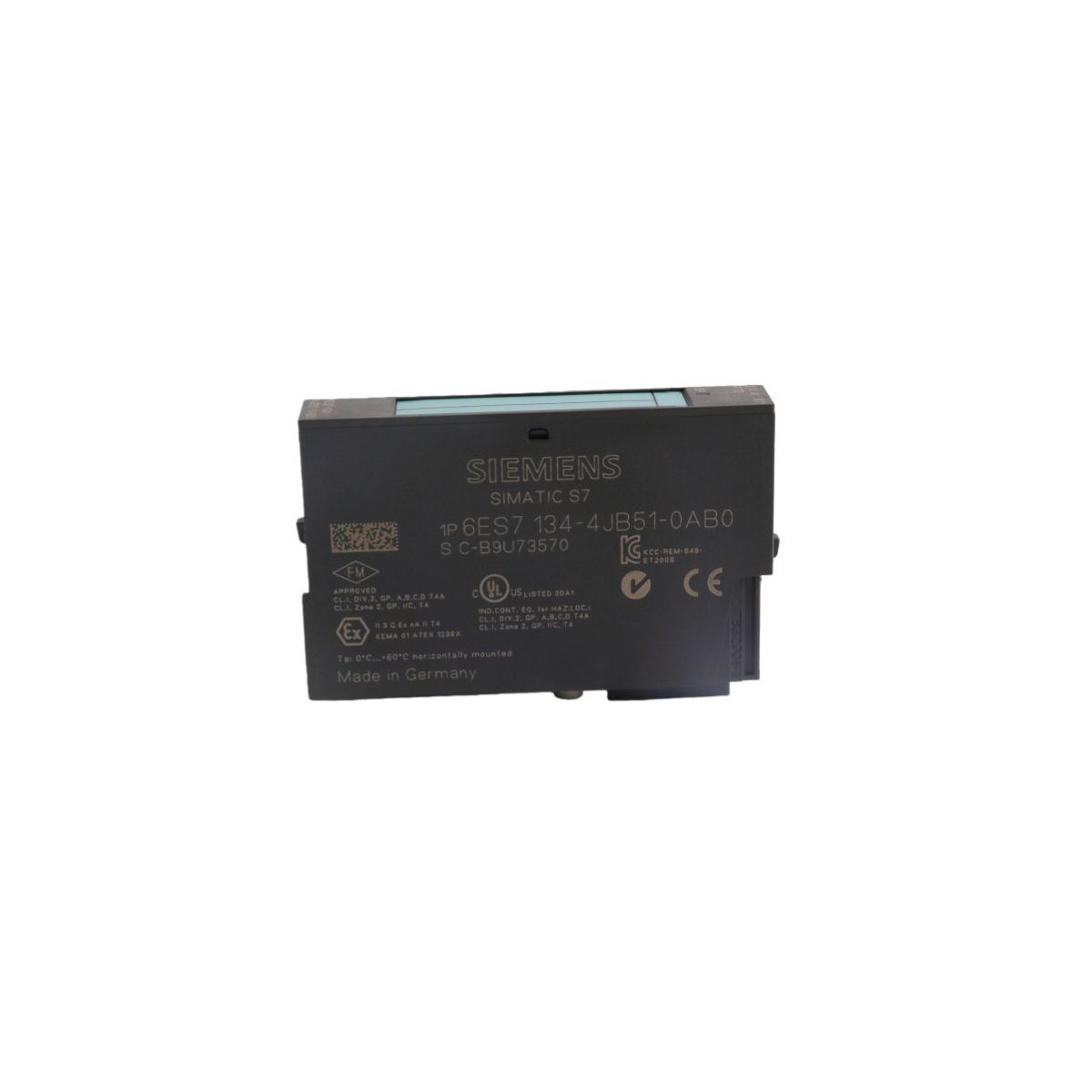

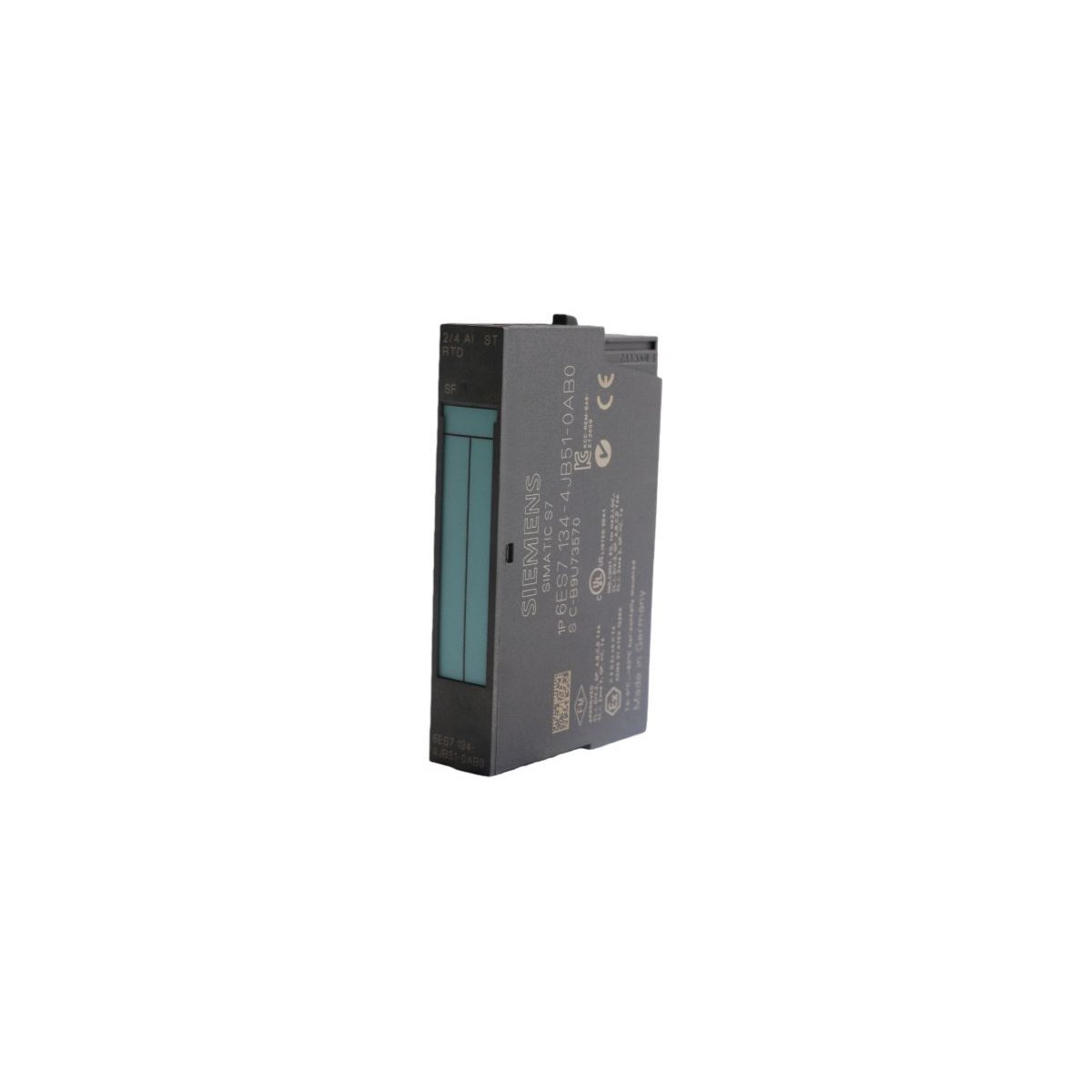

The Siemens 6ES7134-4JB51-0AB0 is a high-precision analog input electronic module specifically engineered for the SIMATIC ET 200S distributed I/O system. This module facilitates accurate temperature monitoring by interfacing with resistance-based sensors (RTDs), making it a vital component for thermal regulation in industrial automation environments.

Technical Characteristics and Features

This electronic module provides high-resolution data conversion, utilizing a 15-bit plus sign architecture to ensure granular accuracy in temperature sensing. It operates across multiple input configurations, supporting 2-channel operation for 3-wire and 4-wire connections, or 4-channel operation for 2-wire setups.

To simplify system integration, the module incorporates internal linearization of sensor characteristic curves. This feature eliminates the need for manual calculation of temperature values within the PLC program. Furthermore, the unit provides galvanic isolation from the backplane bus and load voltage, which effectively protects the controller from electrical noise and potential surges.

Supported Sensor Types and Diagnostics

The 6ES7134-4JB51-0AB0 is compatible with various standardized sensors, including:

• Pt100 (Platinum resistance thermometers)
• Ni100 (Nickel resistance thermometers)
• PTC (Positive Temperature Coefficient) thermistors

Advanced diagnostic features enhance system reliability by monitoring for specific fault conditions. The module can detect short circuits (typically under 18Ω) and wire breakages. Consequently, operators can quickly identify and rectify hardware failures, reducing overall system downtime.

Physical Installation and Compatibility

Siemens designed this module with a compact form factor to maximize cabinet space. It serves as a direct functional successor to the 6ES7134-4JB50-0AB0 model, allowing for seamless hardware replacements without necessitating wiring changes. Additionally, the module supports Identification and Maintenance (I&M) data, which simplifies asset management and remote troubleshooting.
